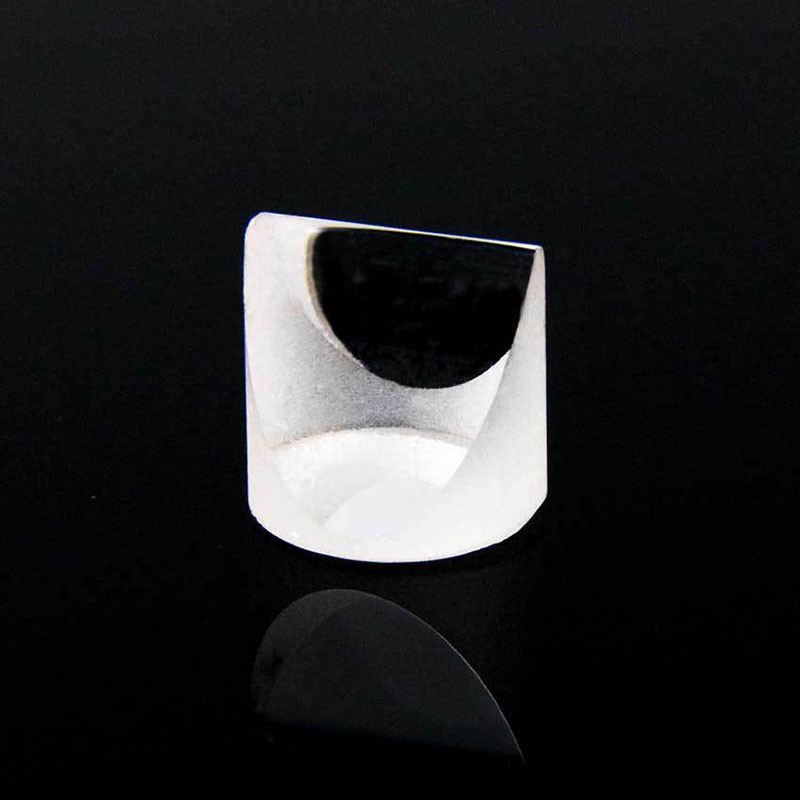

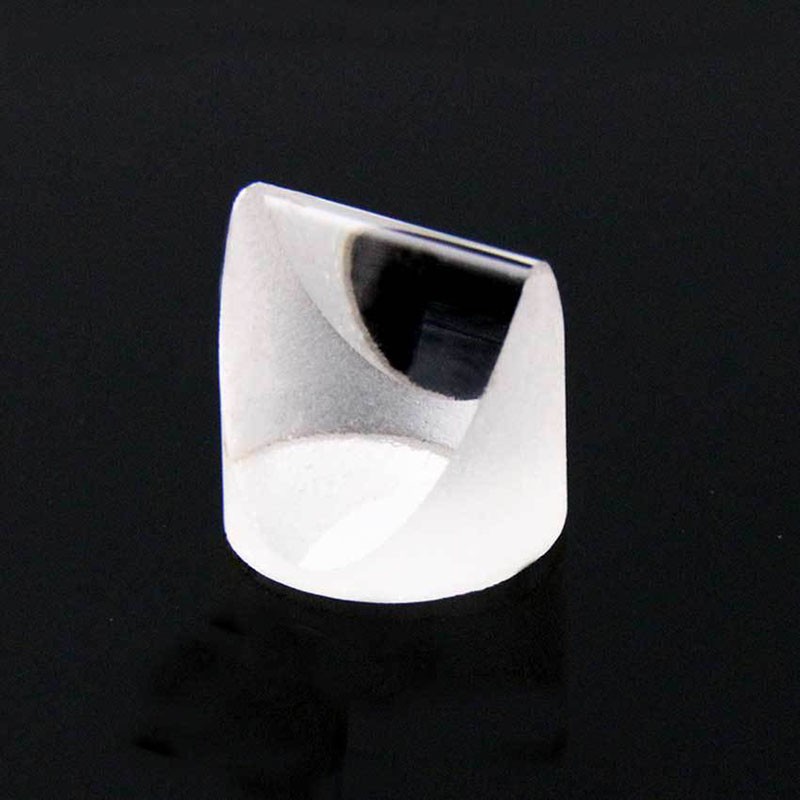

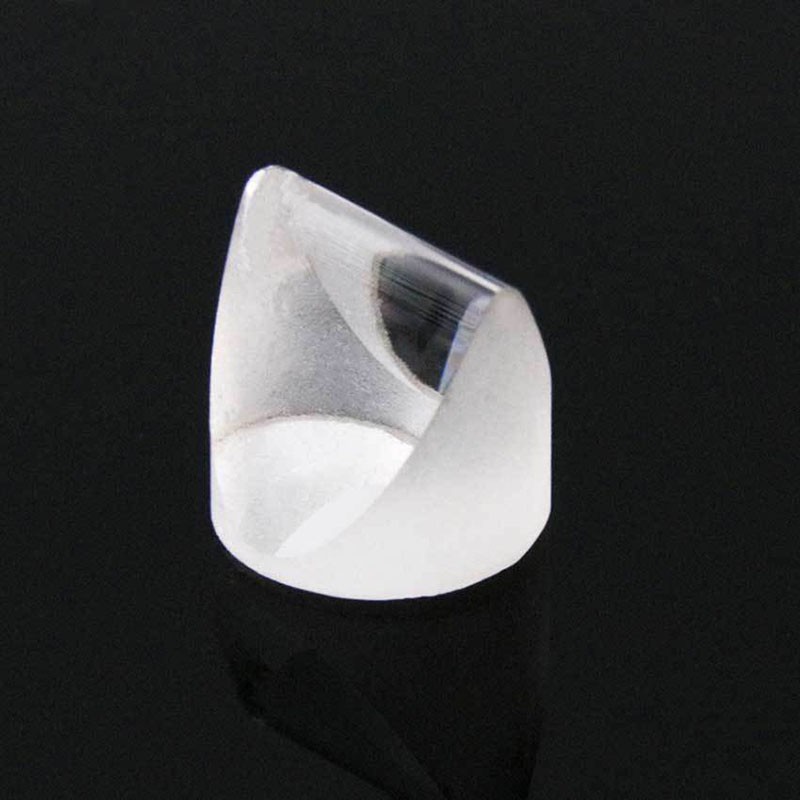

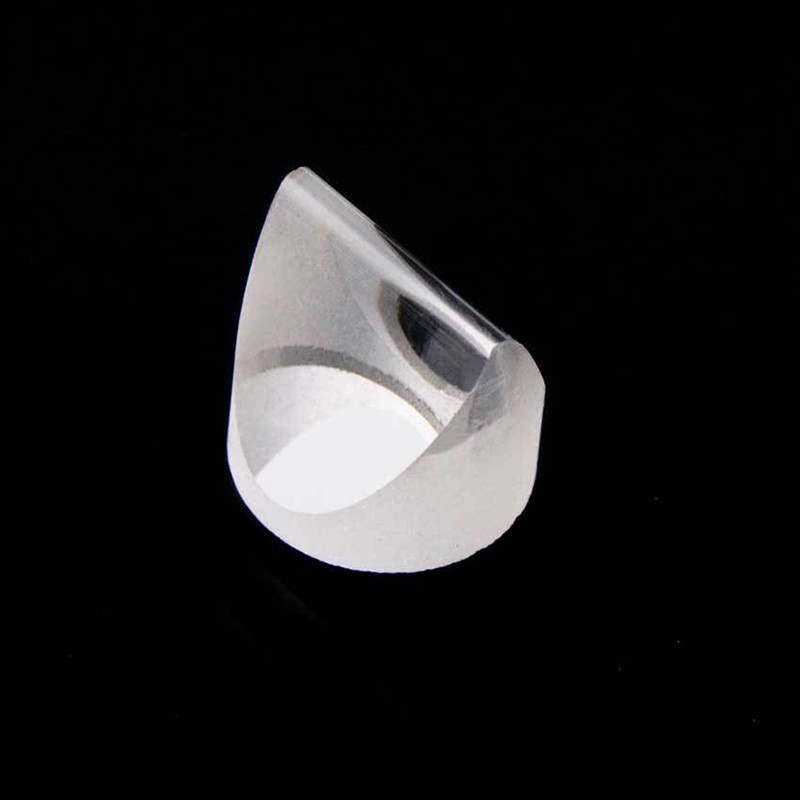

Fan angle 90 degree Spot 2mm Glass Laser Line Powell Lenses

Fan angle 90 degree Spot 2mm Glass Laser Line Powell Lenses

90 degree Powell prism

2mm glass optical prism

Uniform Line Generator for Laser Alignment

Uniform Laser Line Prism

Optical Powell prisms are precision optical components designed to convert a laser beam into a uniform, high-quality laser line.

Unlike standard cylindrical lenses, Powell prisms provide consistent intensity distribution across the entire projected line, significantly improving measurement accuracy and inspection reliability.

They are widely used in machine vision, 3D scanning, laser alignment, industrial automation, and optical inspection systems. Custom fan angles, coatings, and wavelengths are available to meet specific application requirements.

Description

Custom Fan angle 90 degree Powell prism Spot Diameter 2mm Glass Laser Line Powell Lenses

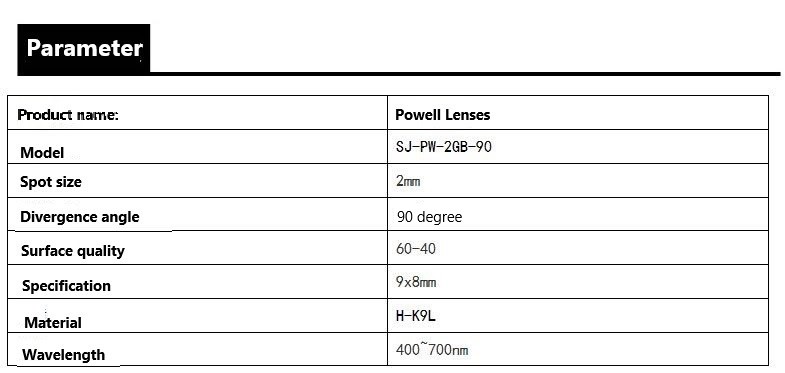

Specifications

Material: Optical Glass (BK7, Fused Silica, or Customized Materials)
Wavelength Range: 405nm – 1064nm (Customizable)
Fan Angle: 5° – 120°
Diameter: 5mm – 25mm
Surface Quality: 60-40 Scratch-Dig or Better
Surface Accuracy: λ/4 @ 632.8nm
Coating Options: AR Coating, Broadband AR Coating, Custom Coatings
Angle Tolerance: ±0.1° to ±0.5°
Custom Designs Available

Contact: rebecca@realpoo.cn

Optical Coating Options

To improve transmission efficiency and ensure stable laser performance, Changchun Realpoo provides customized optical coatings for different wavelength applications.

Anti-Reflection (AR) Coating
Reduces surface reflection and improves laser transmission efficiency.

Broadband AR Coating
Suitable for multi-wavelength optical systems requiring wide spectral performance.

Custom Laser Coating
Optimized for specific laser wavelengths and high-performance applications.

Available coating wavelengths include:

405nm

450nm

520nm

635nm

650nm

808nm

980nm

1064nm

Contact:rebecca@realpoo.cn
