1060nm Optical glass filter 24*1.1mm infrared narrowband optical filters

1060nm Optical glass filter 24*1.1mm infrared narrowband optical filters

glass optical filter

custom optical filter

factory offer optical filter

1060nm optical filter

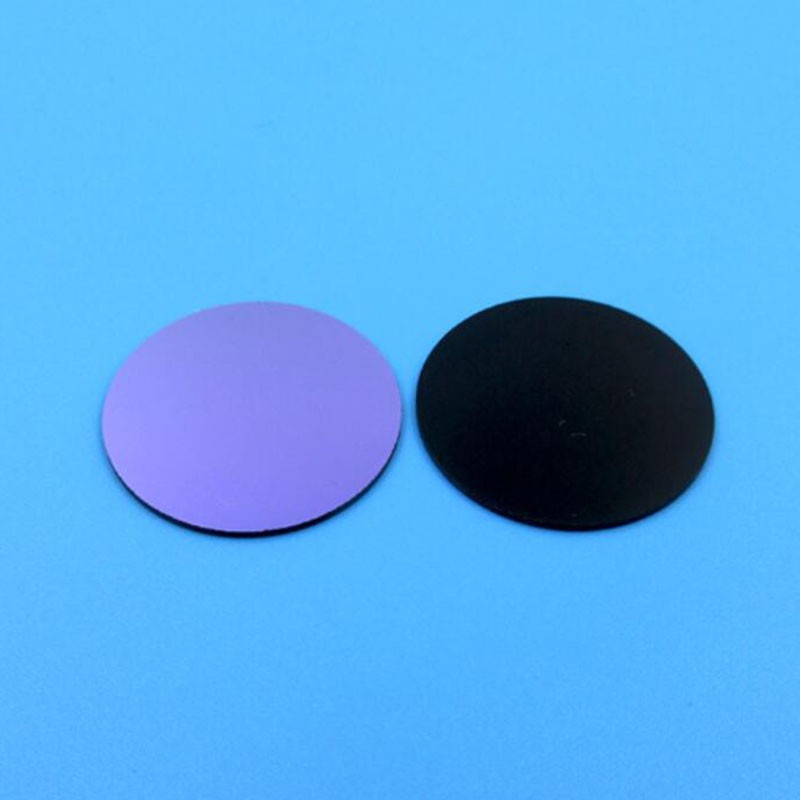

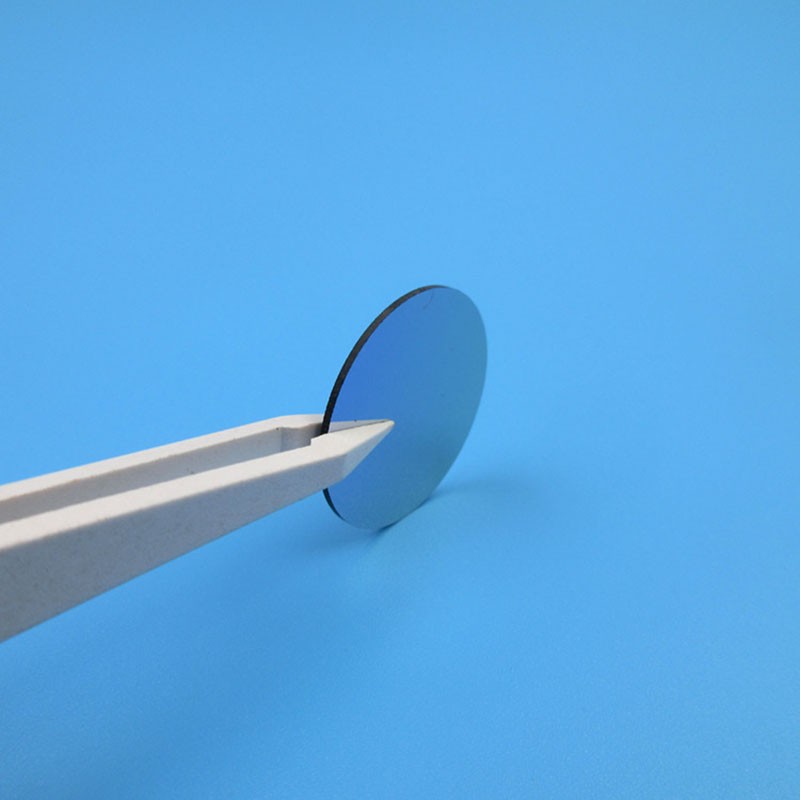

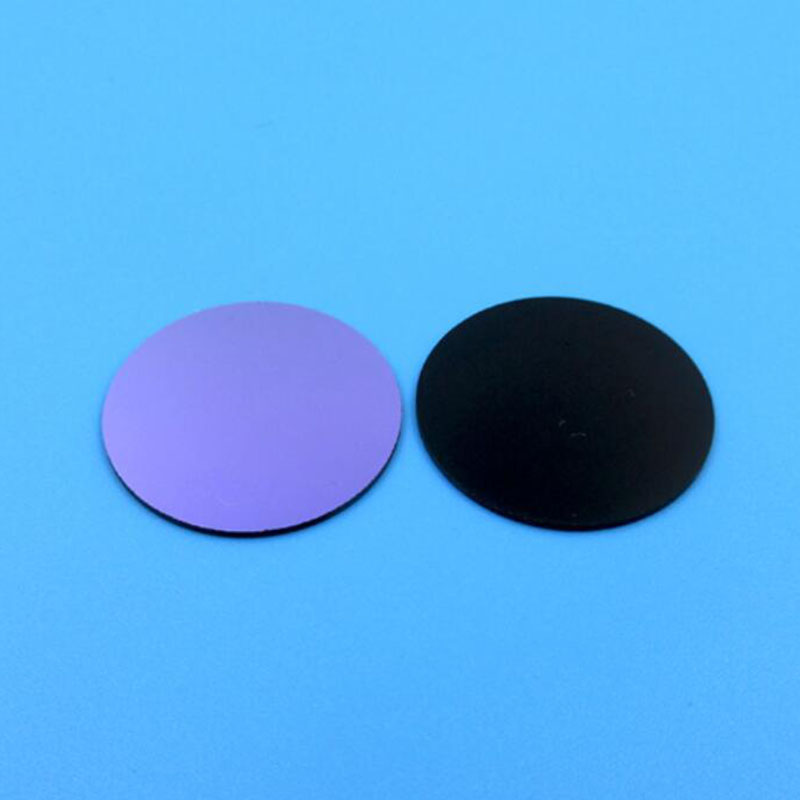

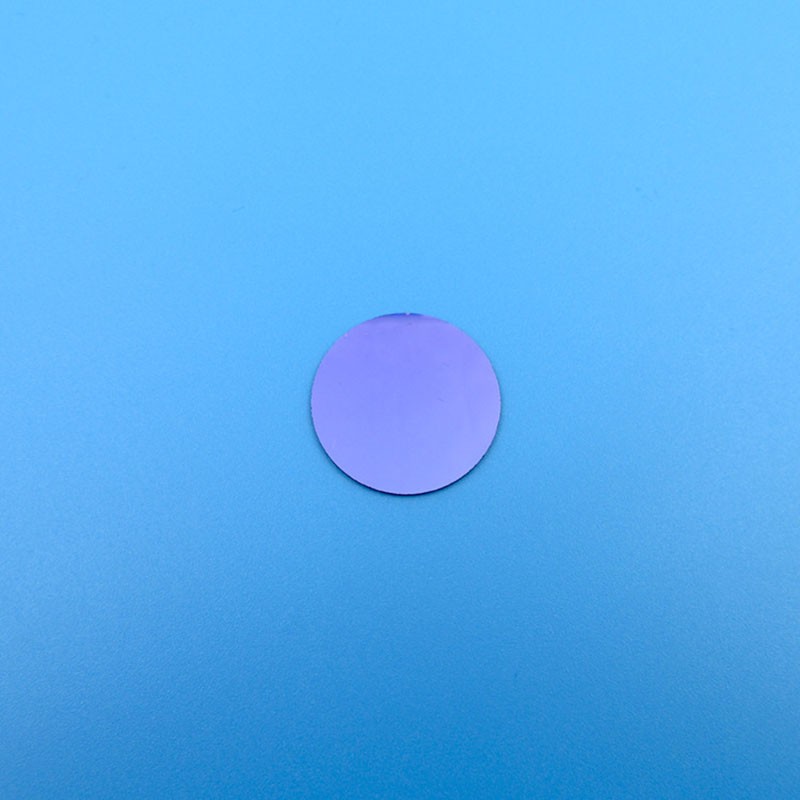

Precision narrow bandpass interference filter centered at 1060 nm (Nd:YAG fundamental / fiber laser wavelength), designed to transmit a sharp 1060 nm ± band while blocking visible and out-of-band NIR wavelengths.

Fabricated on N-BK7 (K9), UV Fused Silica, or IR-grade substrate with hard dielectric multilayer coating via ion-assisted deposition.

The 24 mm × 1.1 mm format is commonly used in Nd:YAG laser systems, fiber optic test equipment, and NIR analytical instruments requiring clean isolation of the 1060 nm line.

Available as stand-alone filter window or integrated into custom mounts.

Description

1060nm Optical glass filter 24*1.1mm infrared narrowband optical filters

Specifications

Center Wavelength (CWL): 1060 nm ± 2 nm (1047 / 1053 / 1064 nm also available)

Half Bandwidth (FWHM): 10 nm / 20 nm / 30 nm / 40 nm (custom 5–80 nm)

Peak Transmittance (Tpeak): ≥ 80%–92% (typical; fused silica >85%)

Blocking Range: 400–2000 nm (or specified sub-ranges)

Blocking Level (Cut-off Depth): ≥ OD4 (0.01%) standard; OD5–OD6 optional

Substrate Material: N-BK7 (K9) / UV Fused Silica (JGS1) / Silicon (for high-power) — selected per application

Substrate Size: 24 mm diameter × 1.1 mm thickness

Size Tolerance: +0.0 / −0.1 mm (diameter); ±0.05 mm (thickness)

Surface Quality: 60-40 / 40-20 Scratch-Dig

Surface Flatness: λ/4 @ 632.8 nm (reference)

Parallelism: ≤ 1 arcmin (standard)

Incidence Angle: 0° ± 5° (AOI-tuned design on request)

Coating Durability: Meets MIL-C-675C (humidity, adhesion, wipe resistance)

Edge Treatment: Ground / beveled 0.2×45°; optional edge blackening

Factory custom optical filter,can cutom as your required,
