Description

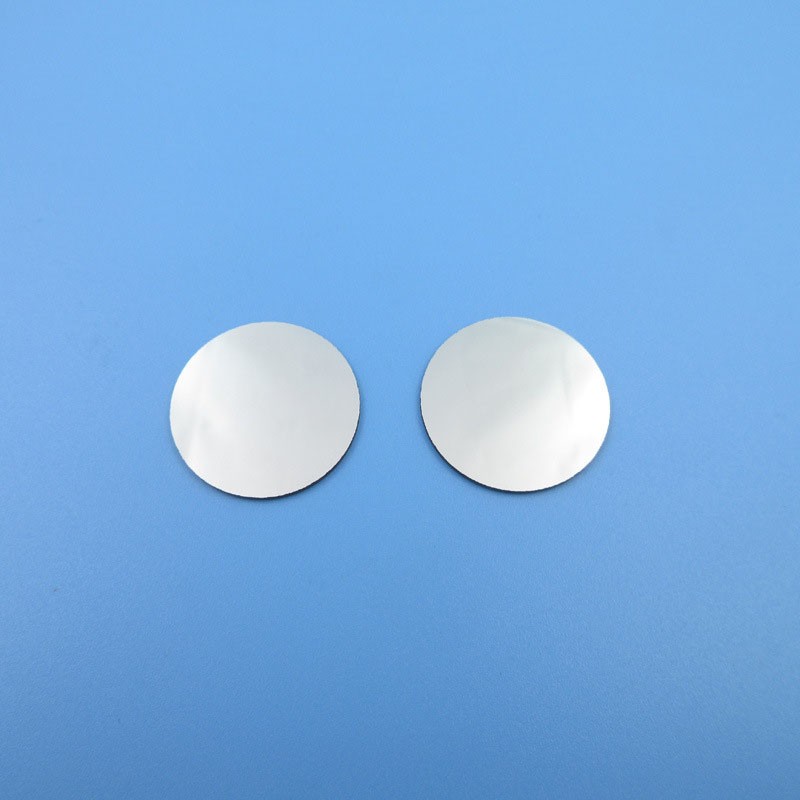

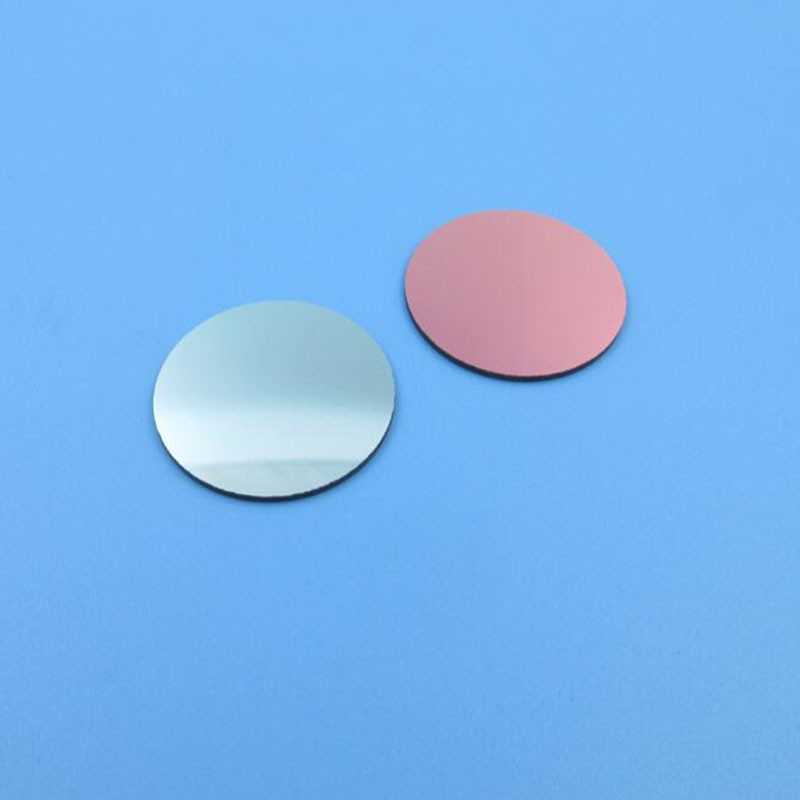

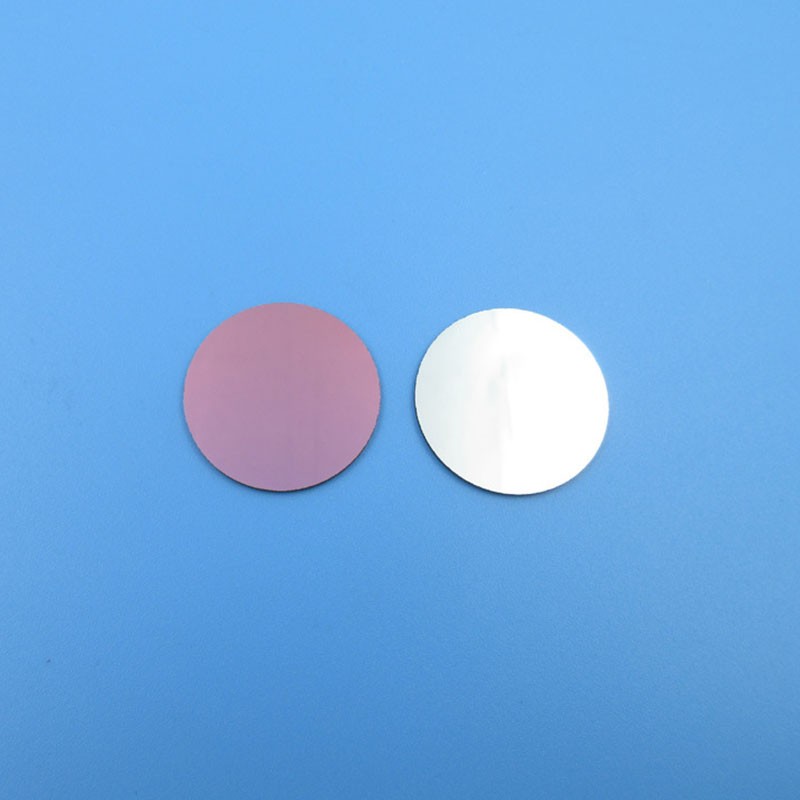

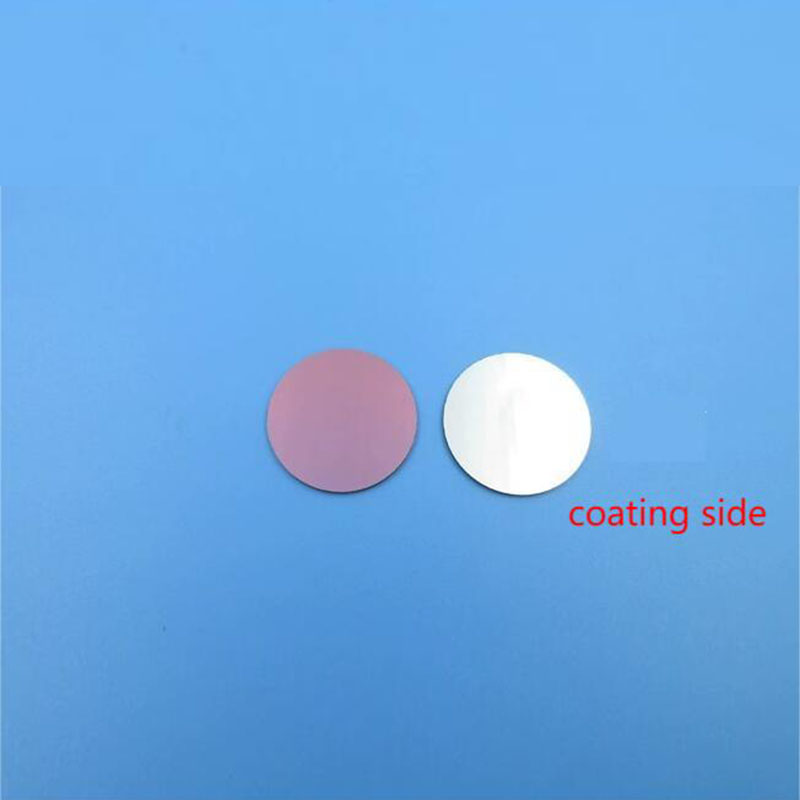

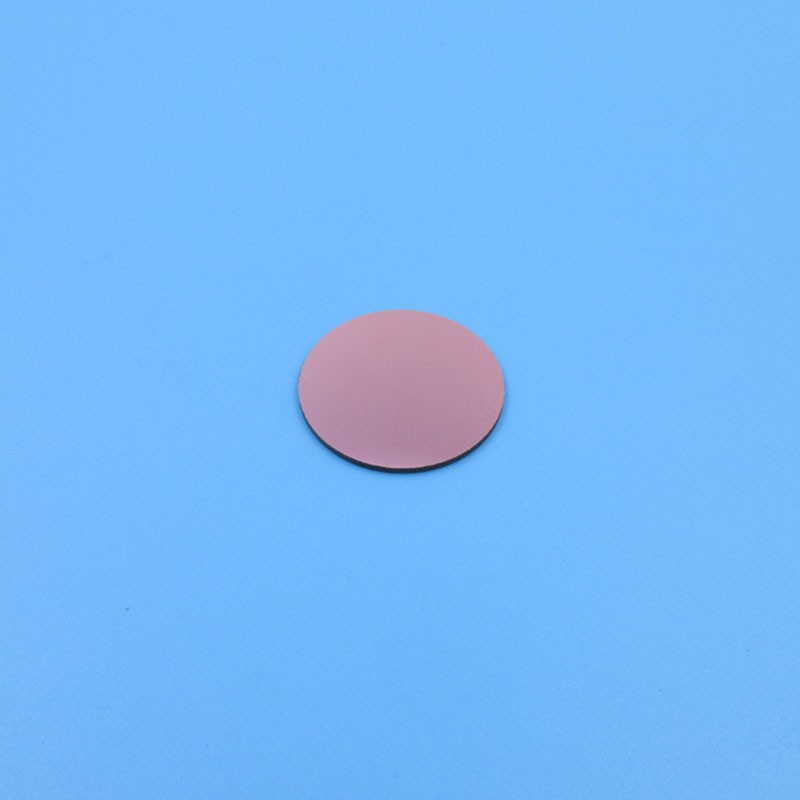

24*1.1mm glass filter 1450nm infrared narrowband optical filter
Specifications

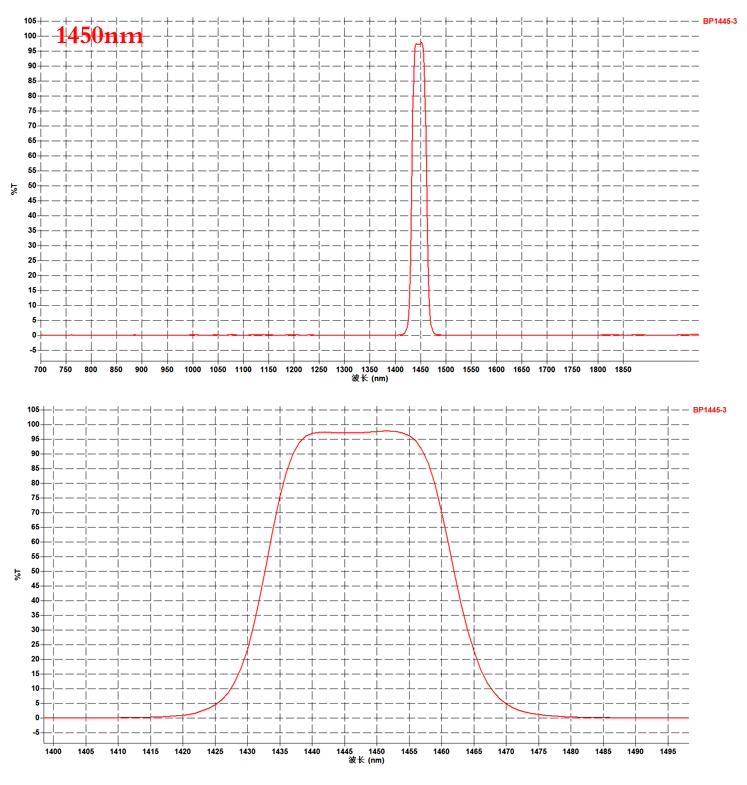

Center Wavelength (CWL): 1450 nm ± 2 nm (1400–1500 nm on request)
Half Bandwidth (FWHM): 10 nm / 20 nm / 30 nm / 40 nm (custom)
Peak Transmittance (Tpeak): ≥ 55%–80% (substrate dependent; Fused Silica or Ge typical)
Blocking Range: 400–2500 nm (or specified sub-ranges)
Blocking Level (Cut-off Depth): ≥ OD3 / OD4 standard; OD5 optional
Substrate Material: Fused Silica (for 1400–1600 nm good T), Germanium (Ge), ZnSe — selected per system
Substrate Size: 24 mm diameter × 1.1 mm thickness (custom sizes available)
Thickness Tolerance: ±0.1 mm
Surface Quality: 60-40 / 80-50 Scratch-Dig (IR-grade relaxed per agreement)
Surface Flatness: λ/4 @ 632.8 nm (reference) or λ/2 @ 10.6 µm equivalent
Parallelism: ≤ 1 arcmin
Incidence Angle: 0° ± 5° (AOI-tuned design on request)
Coating Durability: Humidity & thermal cycled per MIL-STD; soft brush clean only (IR coatings)
Edge Treatment: Ground / beveled; optional edge blackening
Factory custom optical filter,can cutom as your required,
please contact our sales manager
