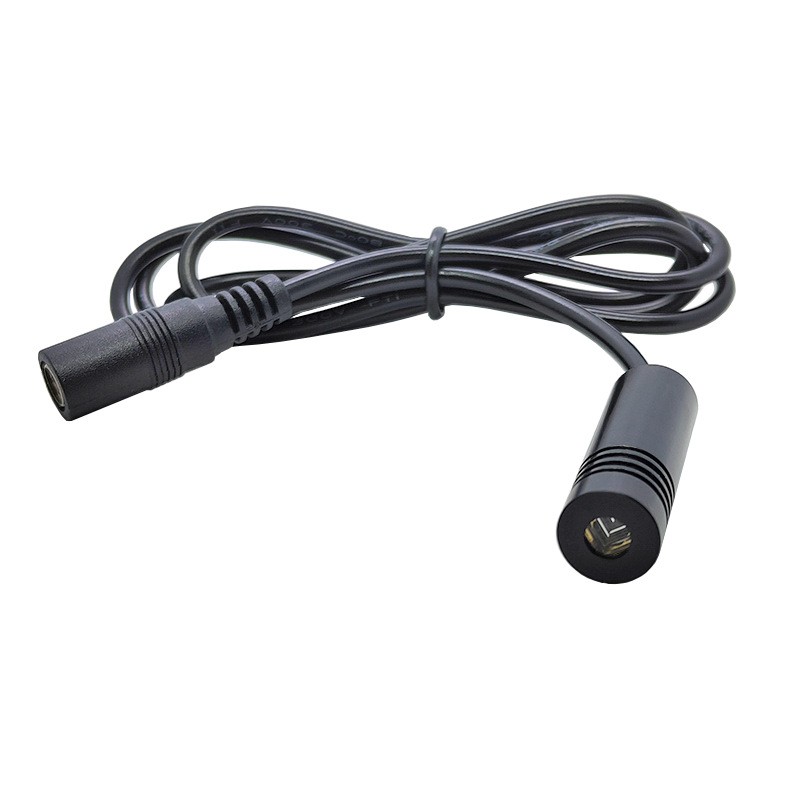

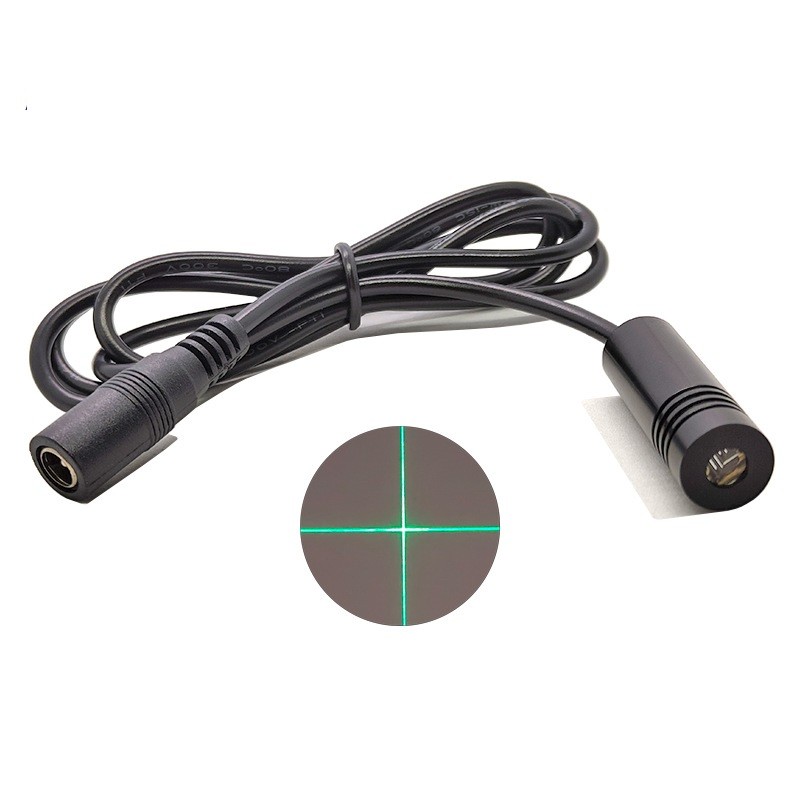

Φ12×40mm true green cross line laser module with 520nm wavelength and 5mW output (Class IIIa / Class 2), featuring a focusable cross cylindrical lens and built-in APC constant current driver.

Using a direct-injection 520nm laser diode (no DPSS, instant-on, no warm-up), it projects a bright, perpendicular green crosshair—more visible than red at equal power—ideal for sewing/embroidery machine alignment, woodworking saw guides, tile layout marking, and OEM positioning equipment.

Description

Custom 520nm5mW cross laser module 12X40mm green laser module

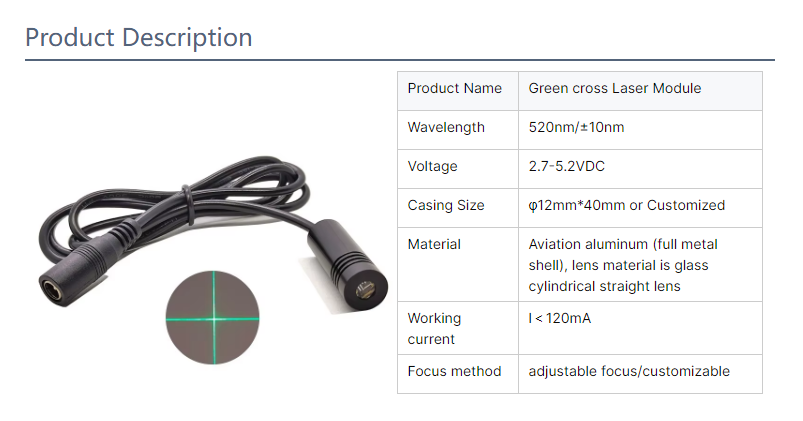

Specifications

Wavelength: 520nm ±10nm (True Green Diode — peak eye-visible green)
Output Power: 5mW (CW, Class IIIa / Class 2 available)
Laser Pattern: Cross Line (90° perpendicular crosshair)
Lens: Optical Glass or PMMA Cross Cylindrical Lens (focus adjustable via front cap)
Operating Voltage: DC 3V / 3–5V (typical 5V; 12V optional with driver)
Operating Current: <60mA
Cross Width: ≤1.0mm @ 1m (adjustable via focus ring)
Beam Divergence: <1.0 mrad

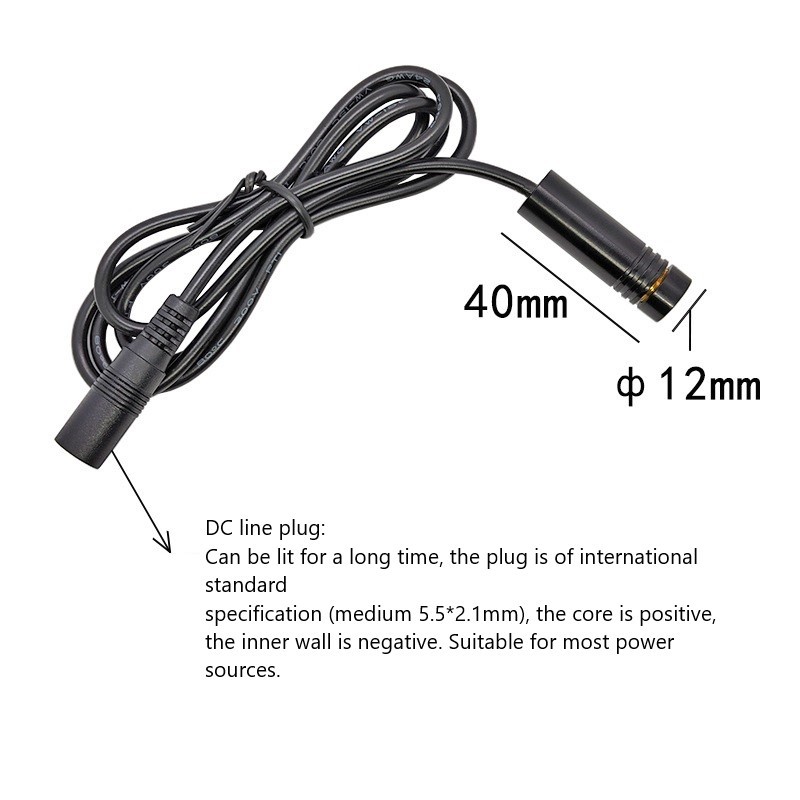

Housing: Φ12×40mm Black Anodized Aluminum (ESD & reverse polarity protected)
Lead Wire: Red(+)/Black(−) 100–150mm or JST connector (customizable)
Working Temp.: -10°C to +50°C
Storage Temp.: -40°C to +80°C
Lifetime: >8,000 hrs
Custom Options: Fan angle of each axis, line thickness, voltage, wire length, connector type, focus lock, potting for dust resistance
