Description

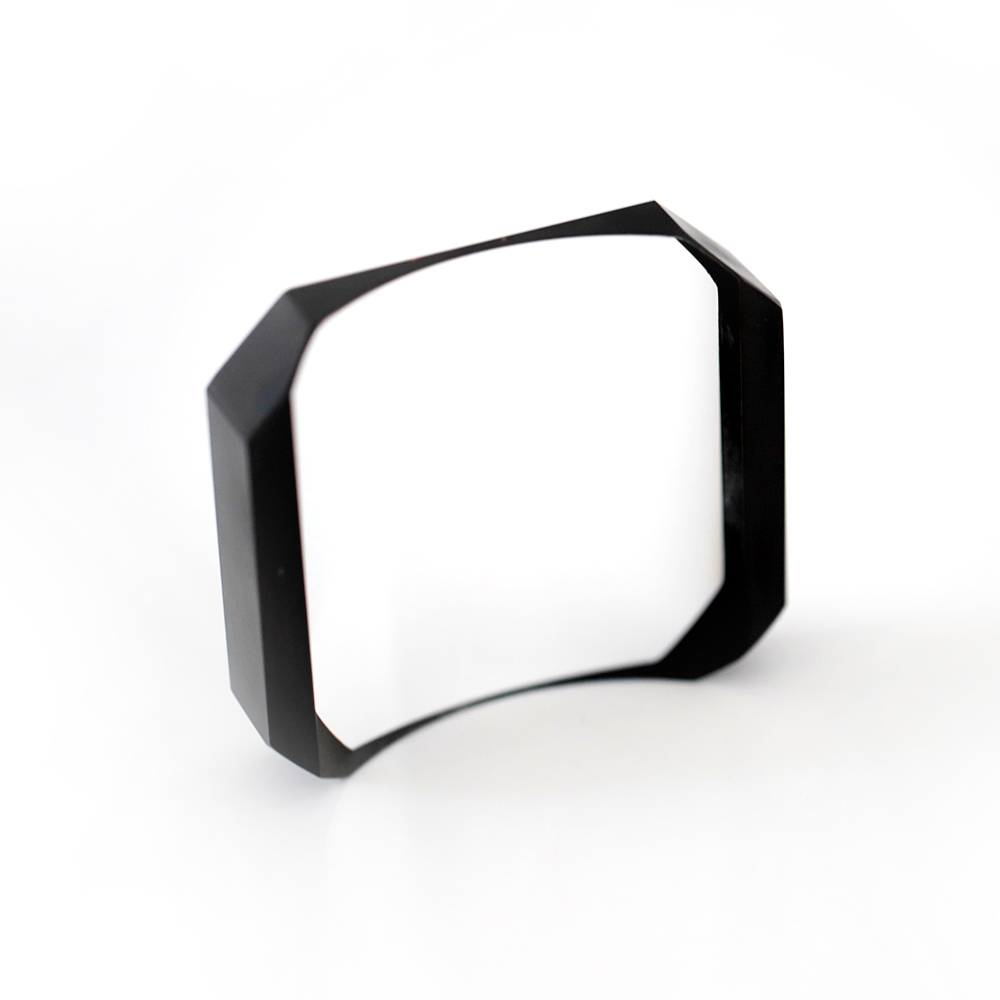

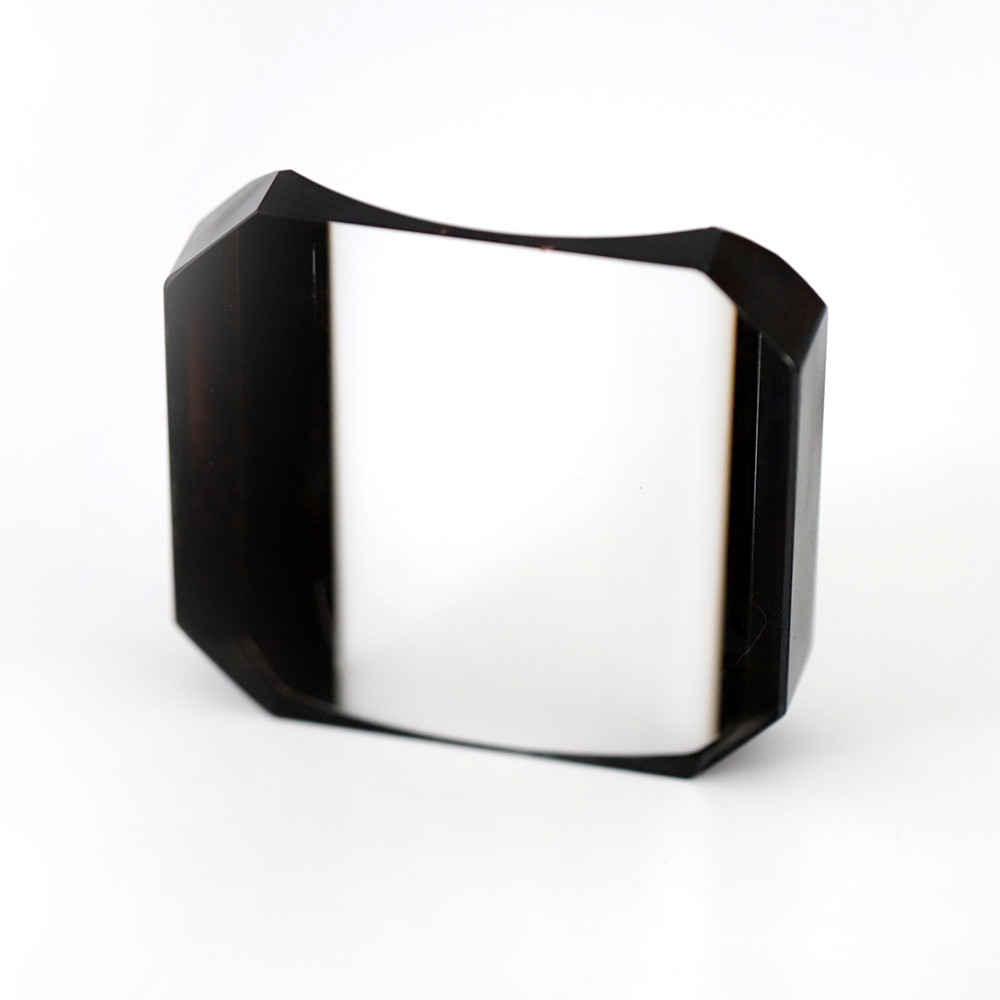

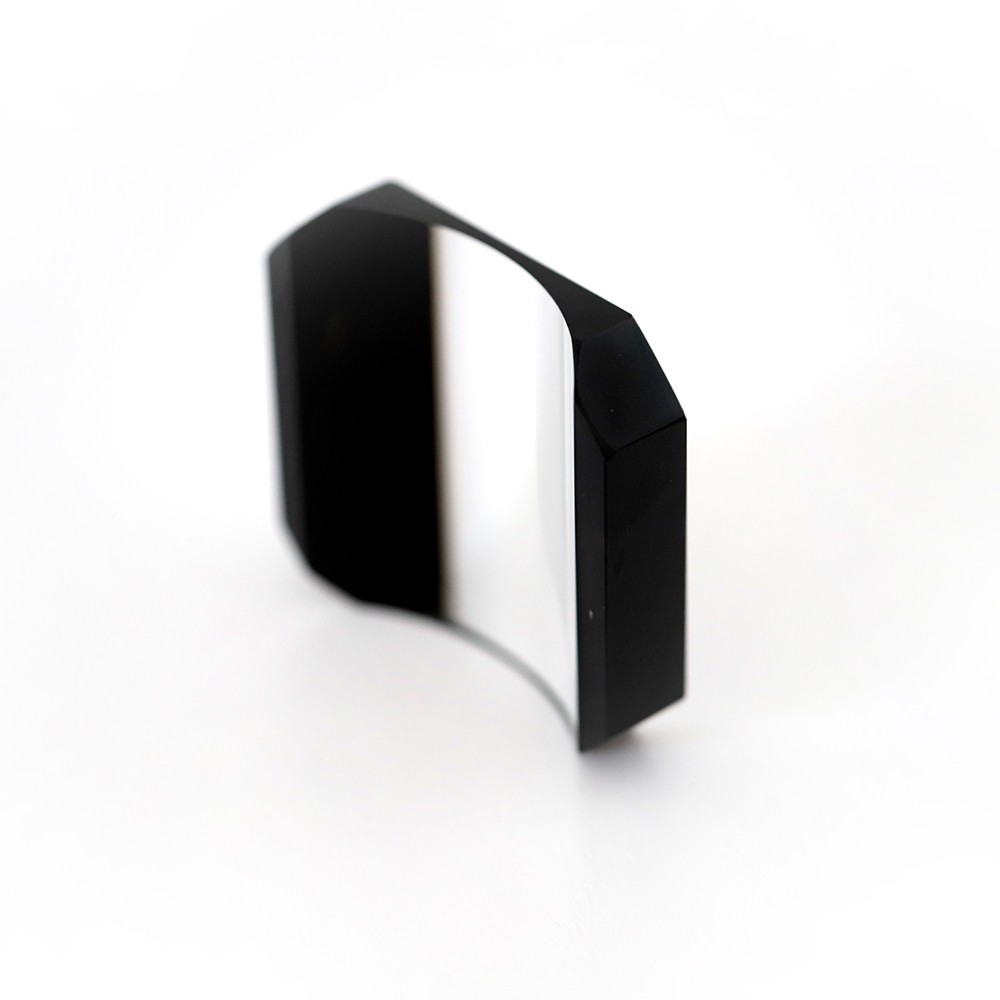

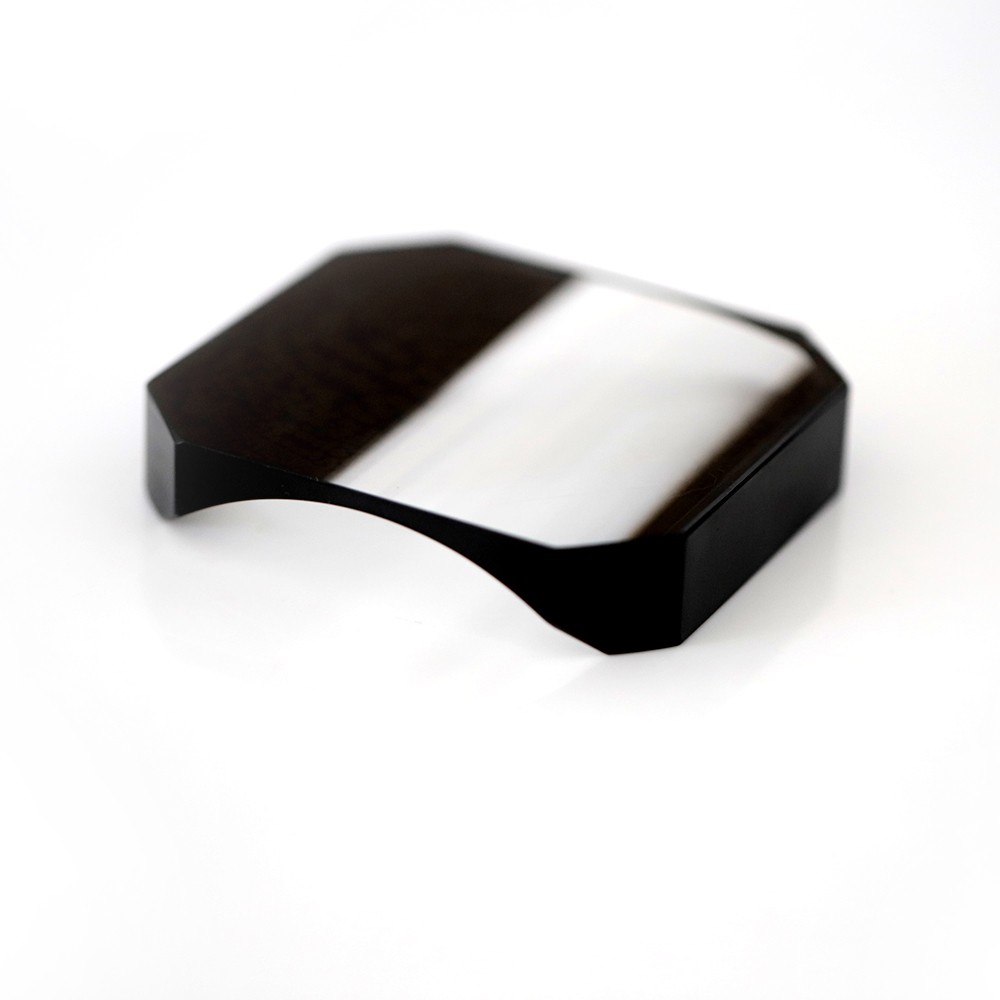

80×75mm Cylindrical Lens
Achieve precise line focusing and beam transformation with our 80×75mm plano-convex cylindrical lens.
Manufactured from high-quality BK7 or fused silica, this lens provides exceptional surface accuracy and low wavefront distortion for demanding laser applications.
Benefits:
-
Line focus capability – converts circular beams into uniform line patterns
-
High damage threshold – suitable for pulsed and CW lasers
-
Broadband AR coating options – optimized for 532nm, 633nm, 1064nm, or custom wavelengths
-
Versatile mounting – rectangular form factor fits standard optical mounts
Specifications
Length (Axis Direction): 80 mm
Width (Perpendicular Direction): 75 mm
Type: Plano-Convex Cylindrical Lens
Focal Length: Customizable (upon request)
Radius of Curvature: Customizable (upon request)
Substrate Material: BK7 / Fused Silica / UV Grade Quartz
Wavelength Range: 350 nm – 2000 nm (depending on coating)
Coating: AR Coating (single wavelength or broadband)
Surface Quality: 40-20 scratch-dig (MIL-PRF-13830B)
Surface Accuracy: λ/4 @ 632.8 nm
Clear Aperture: ≥90% of dimension
Application: Laser line generation, beam shaping, laser diode collimation, machine vision
