10X30mm 670nm 10mW red laser module

  • 670nm 10mW red laser module
  • adjustable focus laser modules
  • 670nm red laser module

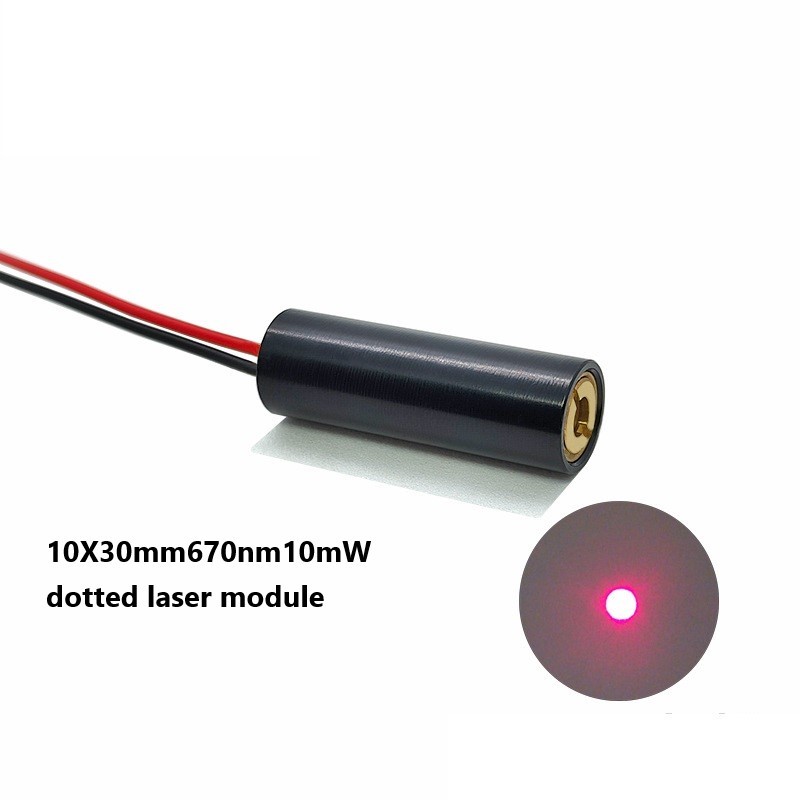

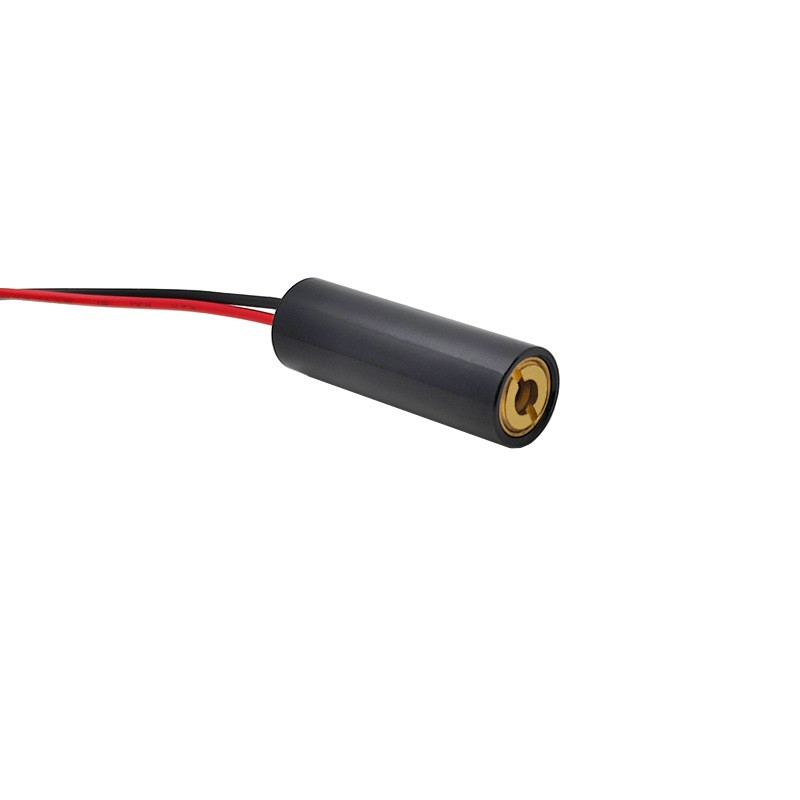

  • Compact Φ10×30mm red dot laser module with 670nm wavelength and 10mW output (Class IIIa), featuring an adjustable focus collimating lens (optical glass or PMMA) and built-in APC constant current driver.

    The 670nm diode emits a pure, bright red dot with excellent visibility—ideal for precision alignment, positioning references, barcode scanning, and OEM integration in measuring instruments and industrial equipment.

    • Inquiry Send Email

    Description



    10X30mm 670nm 10mW red laser module adjustable focus laser modules

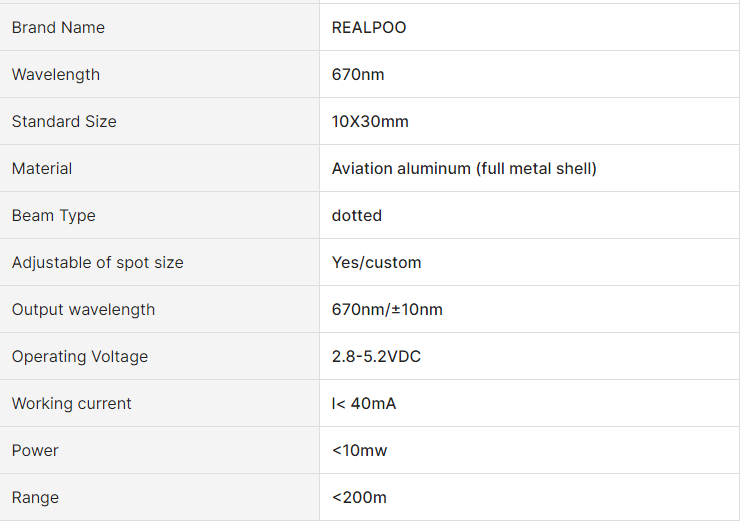

    Specifications
    • Wavelength: 670nm ±10nm (Pure Red)
    • Output Power: 10mW (CW, Class IIIa / Class 2 available)

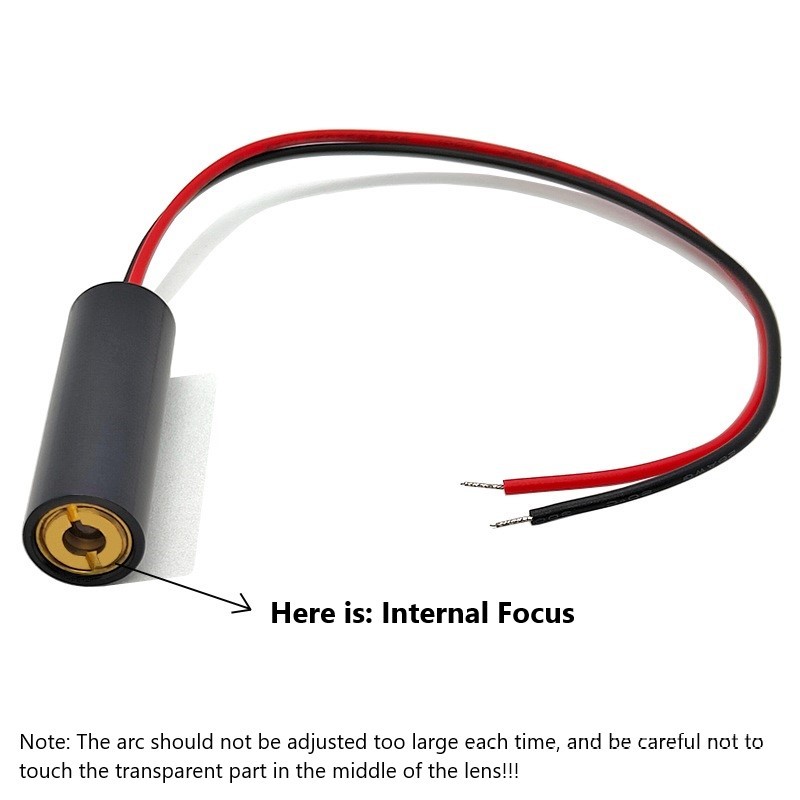

    • Beam Pattern: Dot (Spot), focus adjustable via front cap
    • Lens: Optical Glass or PMMA Collimating Lens (user focusable)
    • Operating Voltage: DC 2.8V–5.2V (typical 3V or 5V)
    • Operating Current: <80mA
    • Spot Size: Adjustable (e.g. ≤1.0mm @ 1m after focus)
    • Beam Divergence: <1.0 mrad

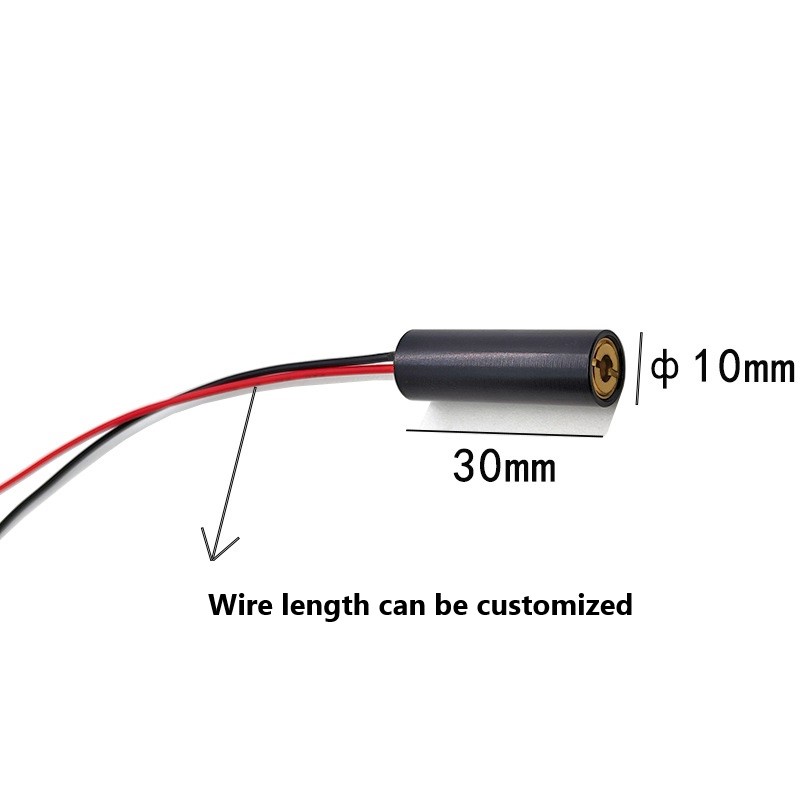

    • Housing: Φ10×30mm Black Anodized Aluminum (ESD & reverse polarity protected)
    • Lead Wire: Red(+)/Black(−) 100–150mm or JST connector (optional)
    • Working Temp.: -10°C to +50°C
    • Storage Temp.: -40°C to +80°C
    • Lifetime: >8,000 hrs
    Applications
    • Industrial machine alignment & positioning
    • Laser level, measuring tool & spirit level indicator
    • Barcode scanner / CCD reader light source
    • SMT PCB board alignment & optical experiment reference
    • DIY electronics, Arduino & Raspberry Pi projects
