660nm 50mw cross red laser module

660nm 50mw cross laser module

50mw cross laser module

660nm cross laser module

custom cross laser module

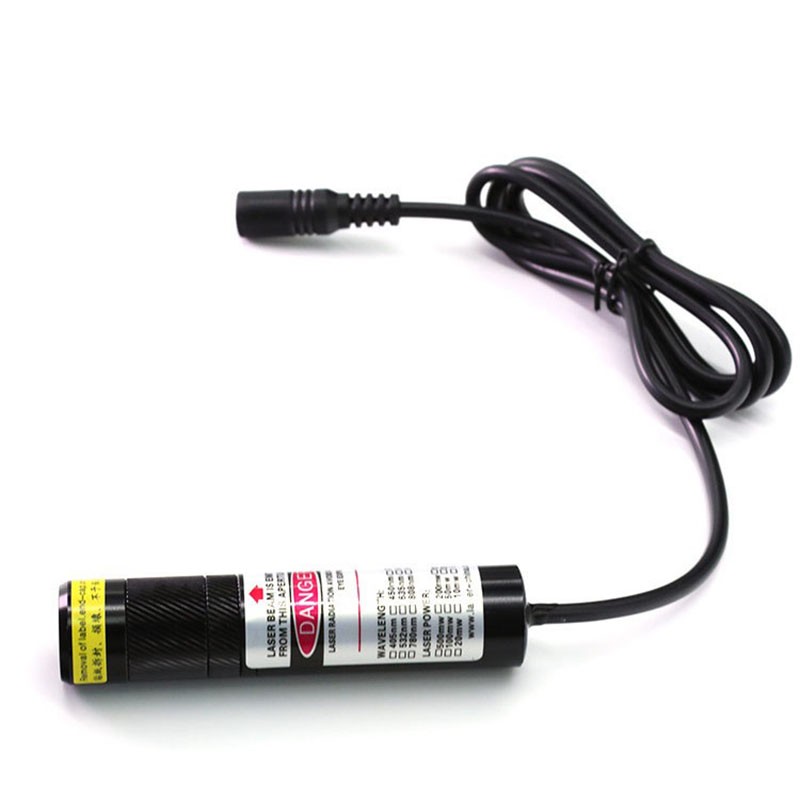

Industrial-grade red cross line laser module with 660nm wavelength and 50mW output (Class 3B). Equipped with a high-quality glass sinusoidal or coated cross cylindrical lens and built-in APC constant current driver, it projects two perpendicular lines with accurate 90-degree intersection.

The 50mW power level ensures high visibility in bright environments, making it ideal for precise alignment, positioning, and OEM integration in industrial machinery.

Description

660nm 50mw cross line adjustable red laser diode 2D3D infrared locator cross mark laser transmitter head

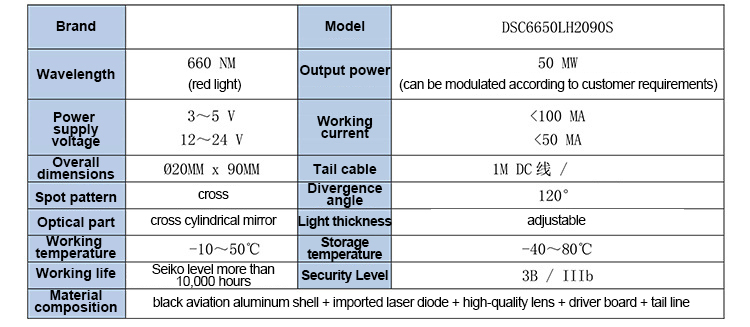

Specifications

Wavelength: 660nm ±10nm (Pure Red)
Output Power: 50mW (CW, Class 3B)
Laser Pattern: Cross Line (90° perpendicular crosshair)

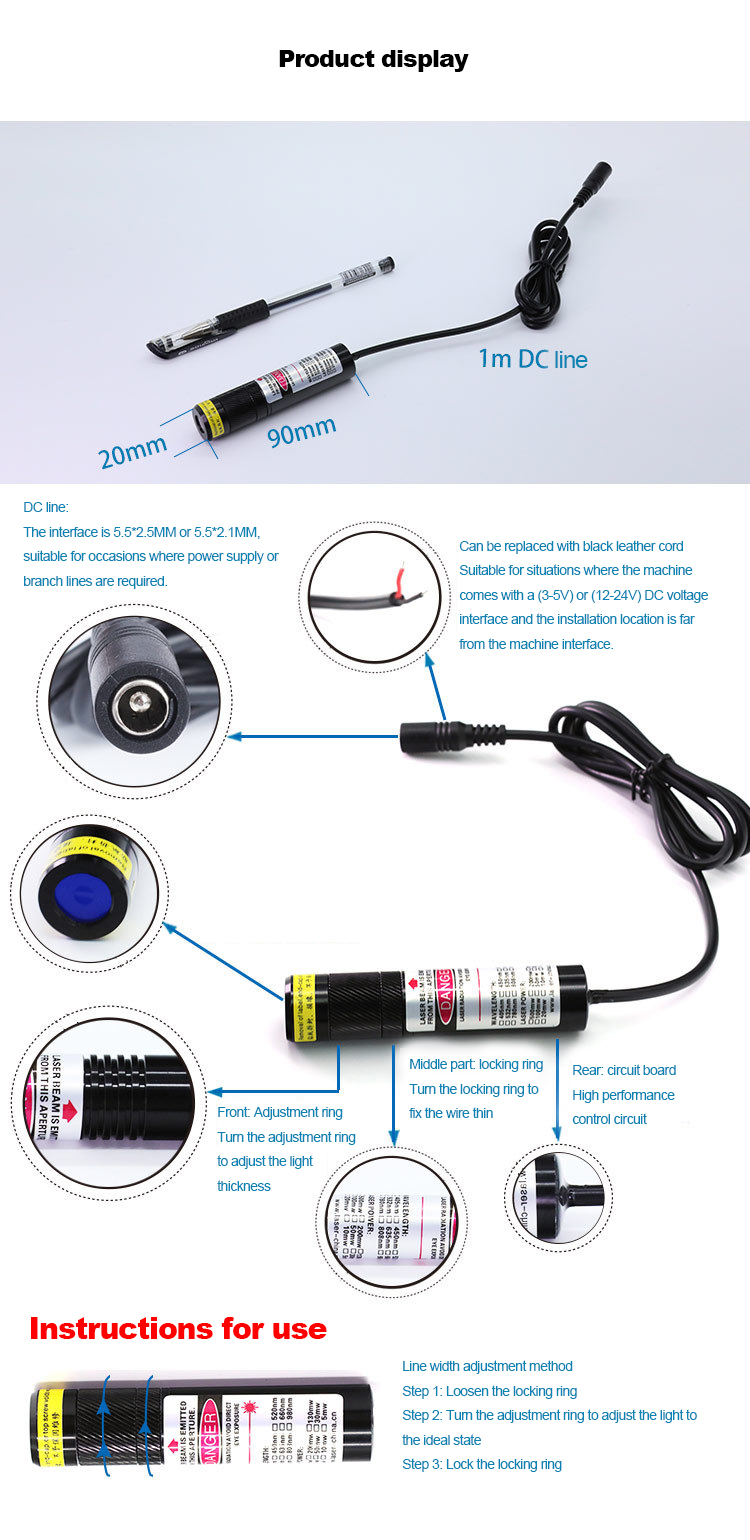

Lens: Optical Glass Cross Cylindrical Lens (focus adjustable)
Fan Angle: 10°–110° (Typical options: 45°, 75°, 90°)
Operating Voltage: DC 3V–24V (Wide voltage optional)
Operating Current: <180mA
Beam Divergence: <2 mrad
Housing: Metal (Aluminum/Brass/Stainless Steel), IP67 waterproof options available
Working Temp.: -10°C to +50°C
Lifetime: >8,000 hrs

Applications

Garment production & embroidery machine crosshair positioning
Heat transfer & screen printing fabric alignment
Woodworking & stone sawing cross cutting guides
Industrial assembly line inspection & car wheel alignment
Scientific experiment reference light source

⚠️ Caution

Class 3B visible red laser — direct eye exposure will cause permanent retinal damage. NEVER stare into the beam or view through optical instruments. Always wear appropriate 660nm-rated laser safety glasses during setup and operation.
