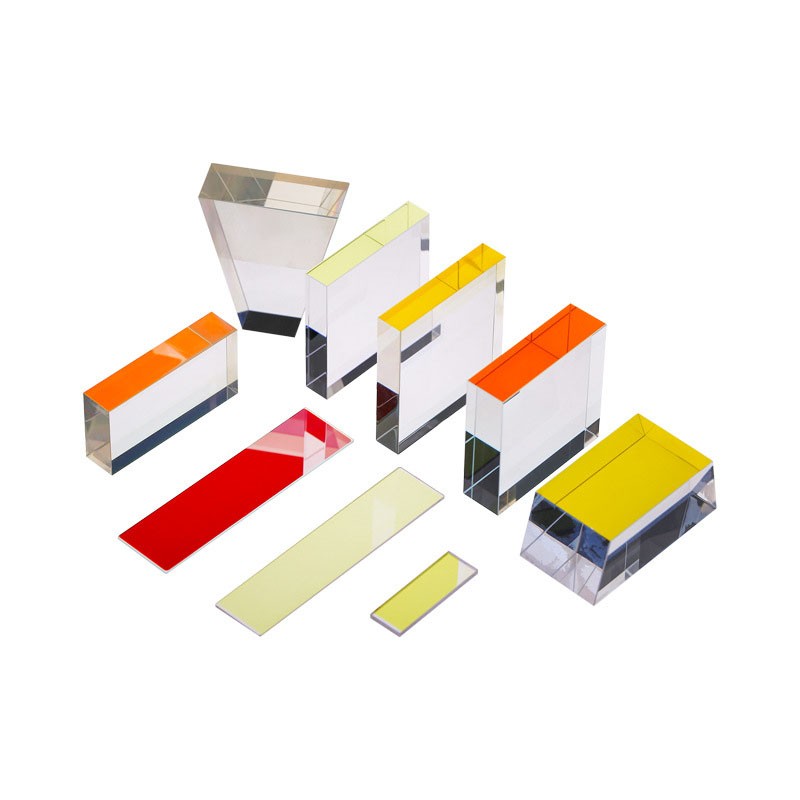

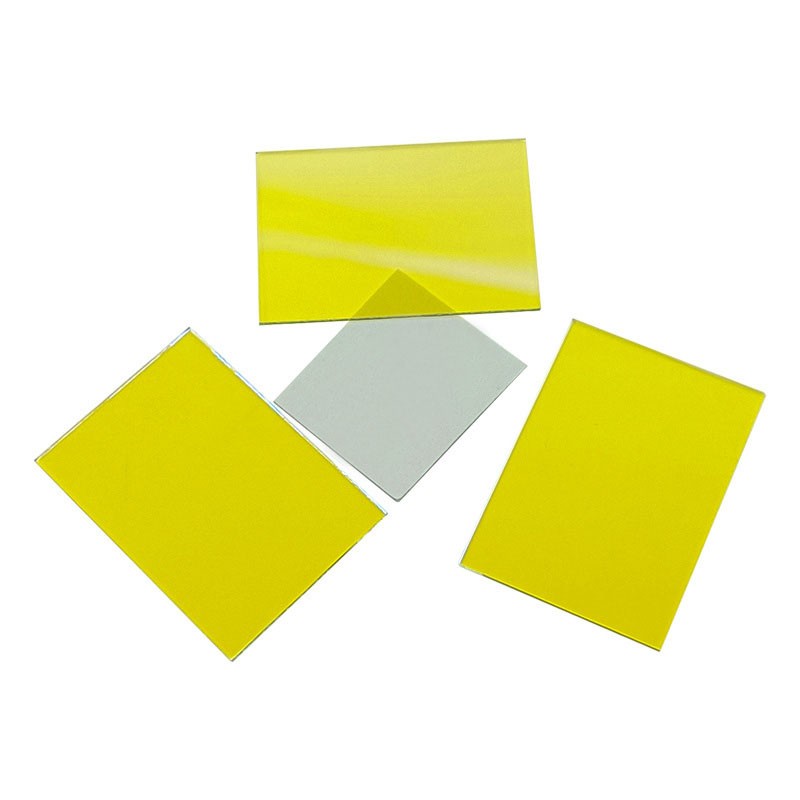

510nm long wave pass filter orange yellow transparent quartz glass optical filter

510nm long wave pass filter orange yellow transparent quartz glass optical filter

glass optical filter

custom optical filter

factory offer optical filter

510nm optical filter

long wave pass (heat-absorbing / color-separation) interference filter with a 510 nm cut-on wavelength — it blocks / reflects short wavelengths below 510 nm (UV + violet–green) and transmits orange, yellow, red, and NIR above 510 nm.

Deposited with durable dielectric multilayer on UV Fused Silica (JGS1) or high-temp optical glass, this filter is suitable for color separation in microscopy, RGB beam combiners, IR-visible discrimination, and photographic / machine-vision orange-yellow channel extraction.

Custom cut-on (500 / 530 / 550 nm), size, and mechanical mount available.

Description

510nm long wave pass filter orange yellow transparent quartz glass optical filter

Specifications:

Filter Type: Long Wave Pass (LWP) / Orange-Yellow Transmitting Cut Filter
Cut-on Wavelength (50% T point): 510 nm ± 5 nm (500 / 520 / 530 / 550 nm on request)
Transmission Band: >510–700 nm (Typ. Tavg ≥ 85–90%); extends to NIR if uncoated/AR'd
Blocking Band: 300–510 nm (UV + Violet–Green), Blocking Level ≥ OD2–OD4 (customizable)
Substrate Material: UV Fused Silica (JGS1 — temp-resistant, UV-transmitting) / Borofloat / K9 (on request)
Substrate Diameter: 10 mm – 300 mm (common Ø25.4 / Ø50.8 / Ø75 mm)
Substrate Thickness: 1.0 / 2.0 / 3.0 mm (typical 2–3 mm)
Surface Quality: 60-40 / 40-20 Scratch-Dig
Surface Flatness: λ/4 @ 632.8 nm (windows)
Parallelism: ≤ 1 arcmin (standard); ≤ 10 arcsec (precision)
Coating Durability: Withstands 150°C+ (silica substrate), humidity & solvent resistant per MIL-C-675C
Edge Treatment: Ground / beveled; optional edge blackening

Factory custom optical filter,can cutom as your required,

please contact our sales manager

Contact: Rebecca Xu

EmailL: rebecca@supplieroptical.com

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.
We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.
Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
Contact:Rebecca Xu
