Factory Supply coated glass filter Red light narrow band filter 625-665nm band pass K9 red glass optical filter

Factory Supply coated glass filter Red light narrow band filter 625-665nm band pass K9 red glass optical filter

glass optical filter

custom optical filter

factory offer optical filter

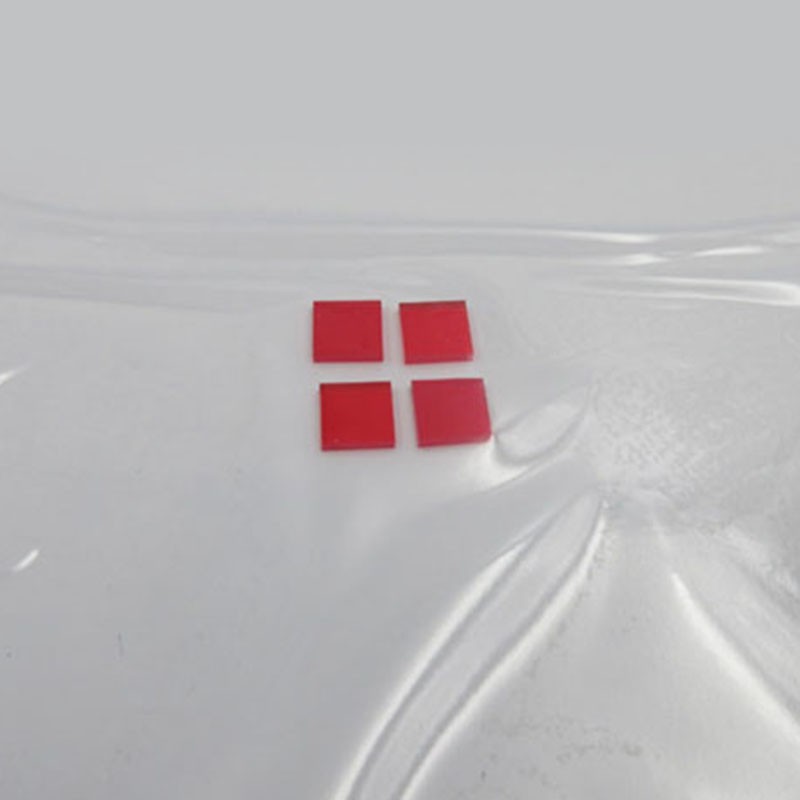

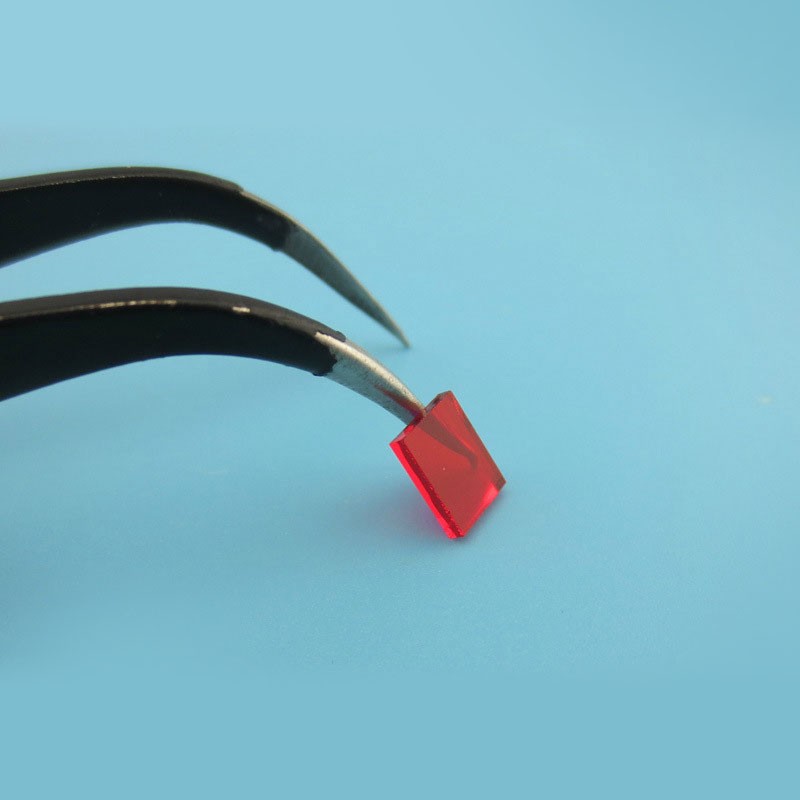

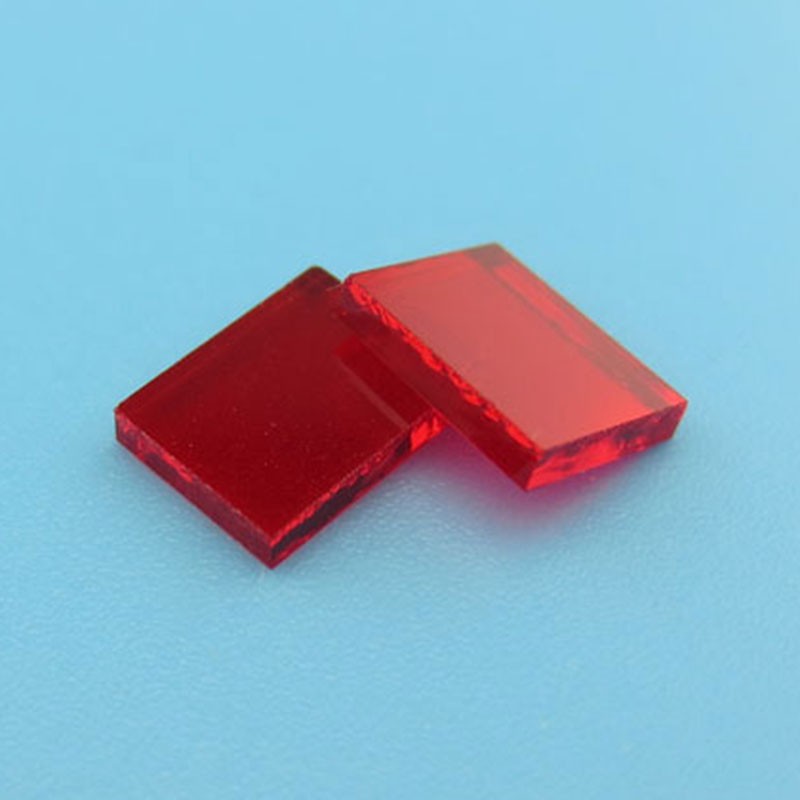

Factory-produced red narrow bandpass interference filter fabricated on high-quality K9 (N-BK7) optical glass, designed to transmit a selectable passband within the 625–665 nm red region (typical CWL 635nm or 650nm) while blocking UV, visible blue/green, and NIR wavelengths.

Hard dielectric coating via ion-assisted deposition ensures high environmental stability. Available as filter windows, or integrated onto plano-convex / aspheric lenses (filter-coated lens) for red LED/LD isolation, line scan illumination, and machine vision color separation.

Description

Factory Supply coated glass filter Red light narrow band filter 625-665nm high transmittance band pass K9 red glass optical filter

Specifications:

Passband Range (CWL options): 625–665 nm (typical Center Wavelength 635 nm / 650 nm ± 2 nm)
Half Bandwidth (FWHM): 10 nm / 20 nm / 30 nm (custom 5–50 nm on request)
Peak Transmittance (Tpeak): ≥ 40%–60% (typical; >70% possible with optimized design)
Blocking Range: 300–1100 nm (or specified sub-ranges)
Blocking Level (Cut-off Depth): ≥ OD3 / OD4 standard (OD5–OD6 optional)
Substrate Material: K9 (Chinese equiv. to N-BK7), polished both sides

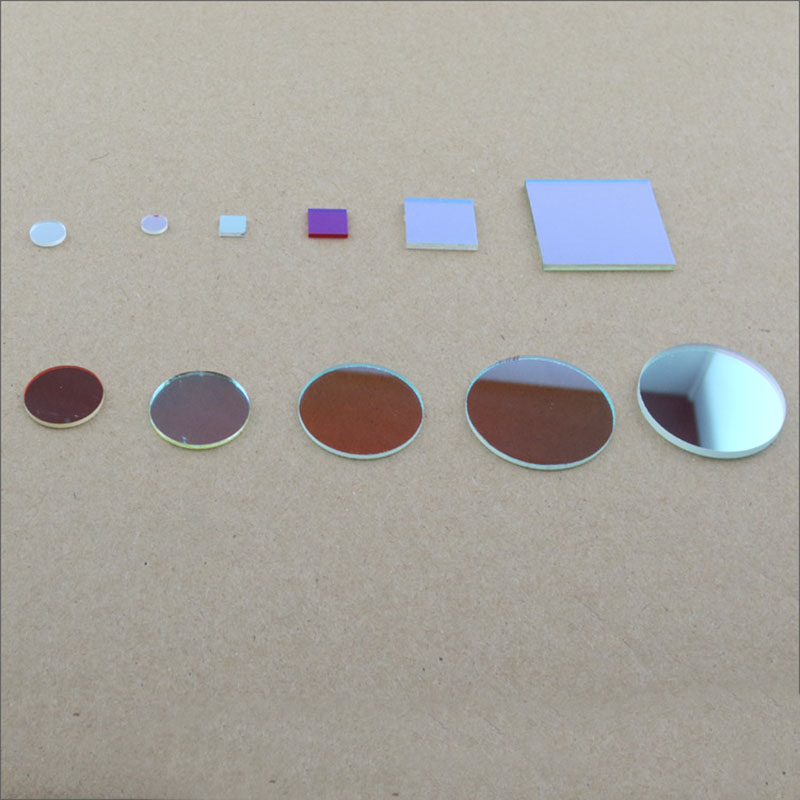

Substrate Form: Plano-Plano Filter Window / Plano-Convex Lens with filter on flat side / Aspheric Lens + Filter Coating (on request)
Substrate Diameter: 10 mm – 150 mm (common: Ø12.7 / Ø25.4 / Ø50 mm)
Substrate Thickness: 1.0 / 2.0 / 3.0 mm (windows); per lens design if integrated
Surface Quality: 60-40 / 40-20 Scratch-Dig
Surface Flatness (Window): λ/4 @ 632.8 nm
Parallelism: ≤ 1 arcmin (standard); ≤ 10 arcsec (precision)
Incidence Angle: 0° ± 5° (custom tunable with AOI)
Coating Durability: Meets MIL-C-675C humidity & adhesion; solvent resistant

Factory custom optical filter,can cutom as your required,

please contact our sales manager
