Description

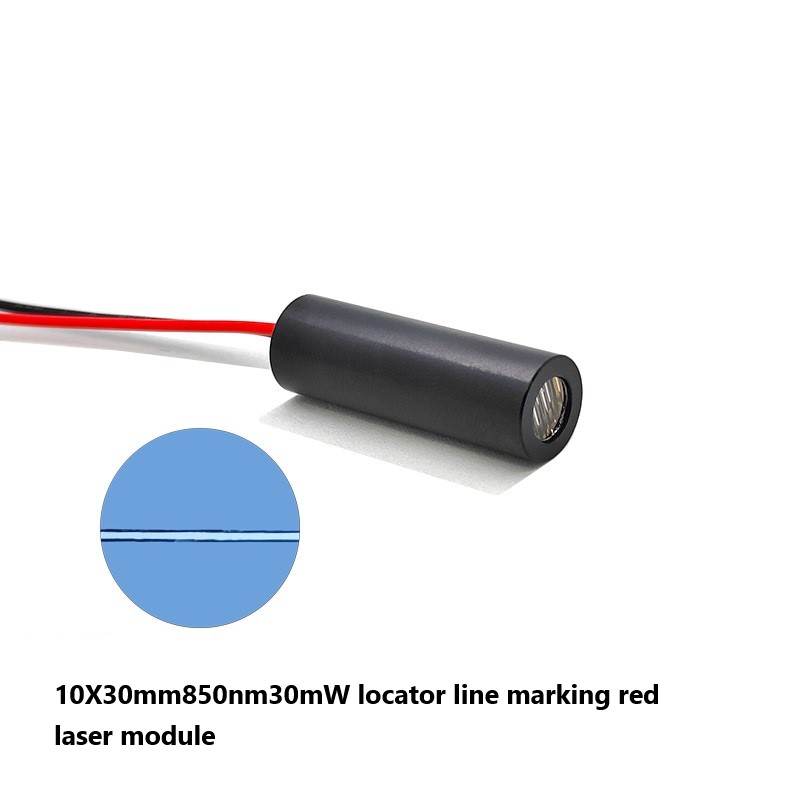

10X30mm 850nm 30mW locator clothing factory cutting bed one-line laser module for marking positioning equipment

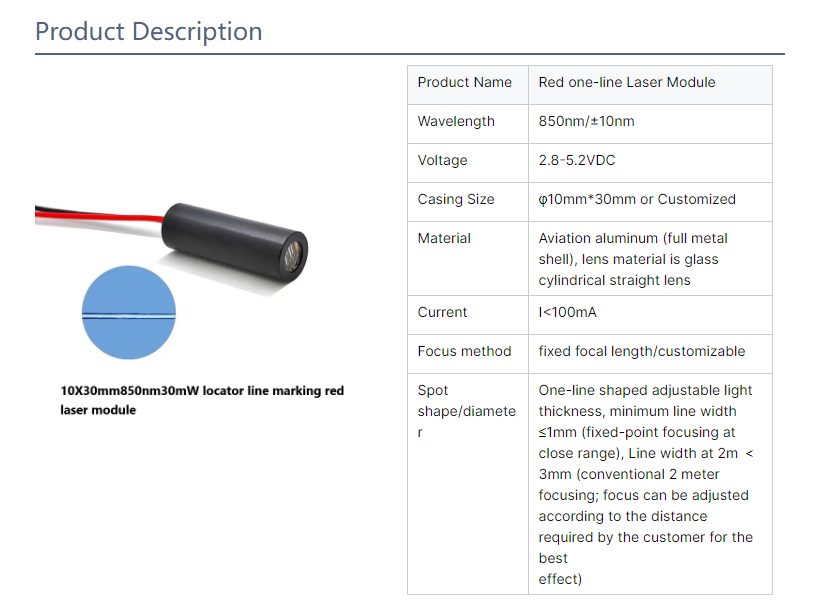

Specifications
-
Wavelength: 850nm ±10nm (Near-Infrared / Invisible to naked eye)
-
Output Power: 30mW (CW, Class 3B)
-

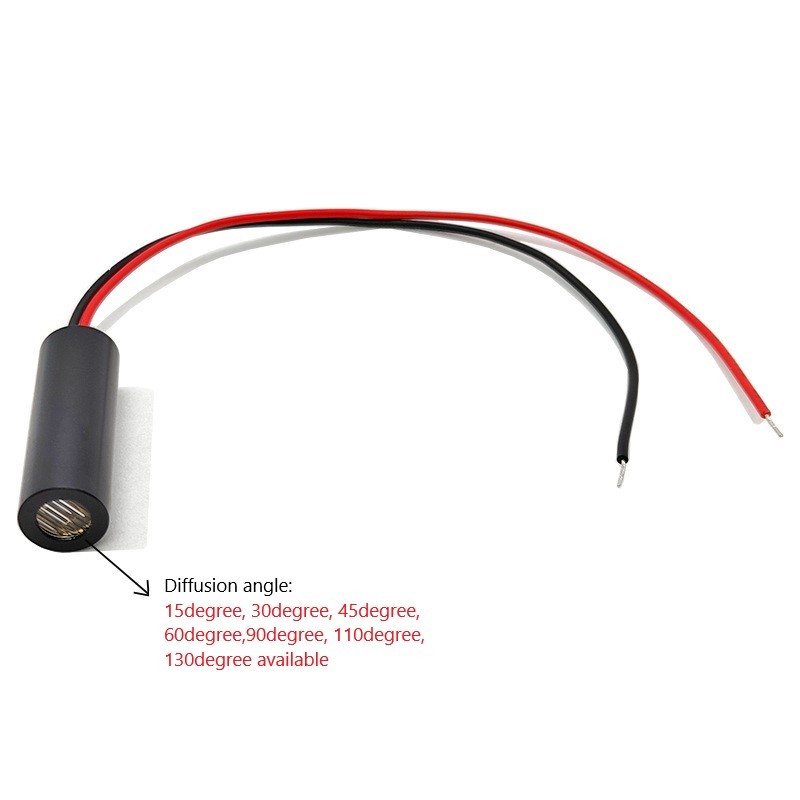

Laser Pattern: Line (fan angle optional: 10°–120°, typical 45°/60°/90°)
-
Lens: Optical Glass or PMMA Cylindrical Lens (focus adjustable)
-
Operating Voltage: DC 2.8V–5V (typical 3V/5V; 12V optional with driver)
-
Operating Current: <100mA
-
Line Width: Adjustable (e.g. ≤1mm @ 1m)
-

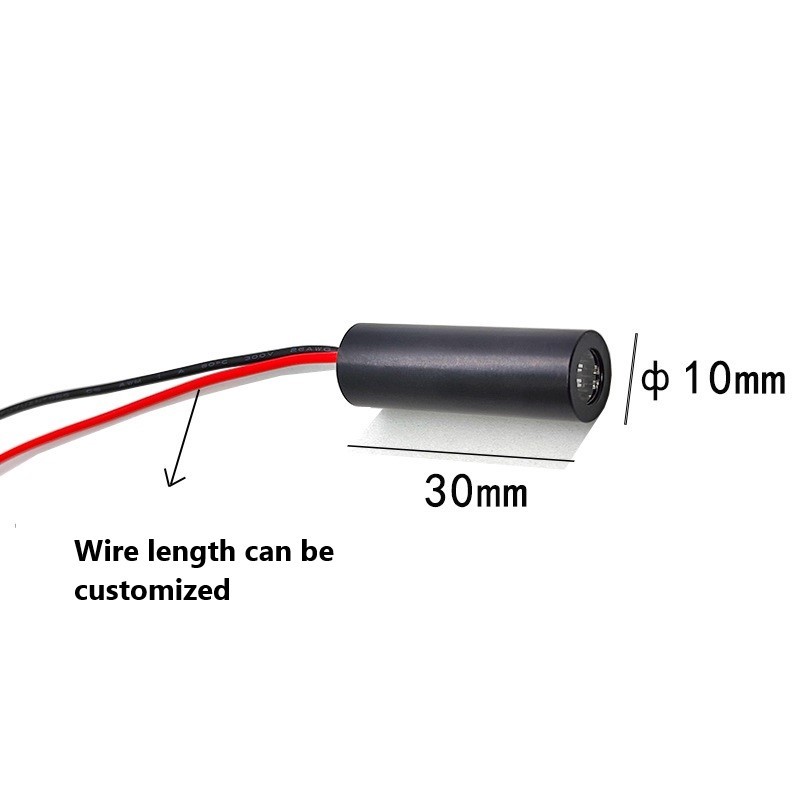

Housing: Φ10×30mm Black Anodized Aluminum/Copper (ESD & reverse polarity protected)
-
Lead Wire: Red(+)/Black(-) 100–150mm or JST connector (optional)
-
Working Temp.: -10°C to +50°C
-
Storage Temp.: -40°C to +80°C
-
Lifetime: >8,000 hrs
Applications
-
Interactive multi-touch screen / IR touch frame
-
Machine vision inspection & seam tracking
-
3D scanning & profilometry reference line
-
Industrial alignment & positioning (IR reference)
-
Scientific optical experiment & LDS systems
