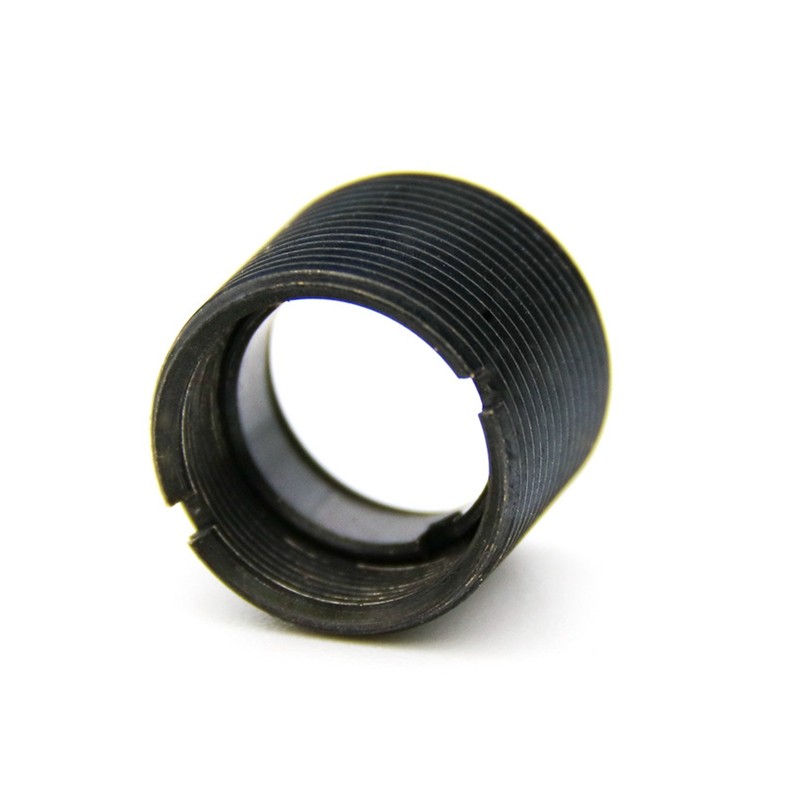

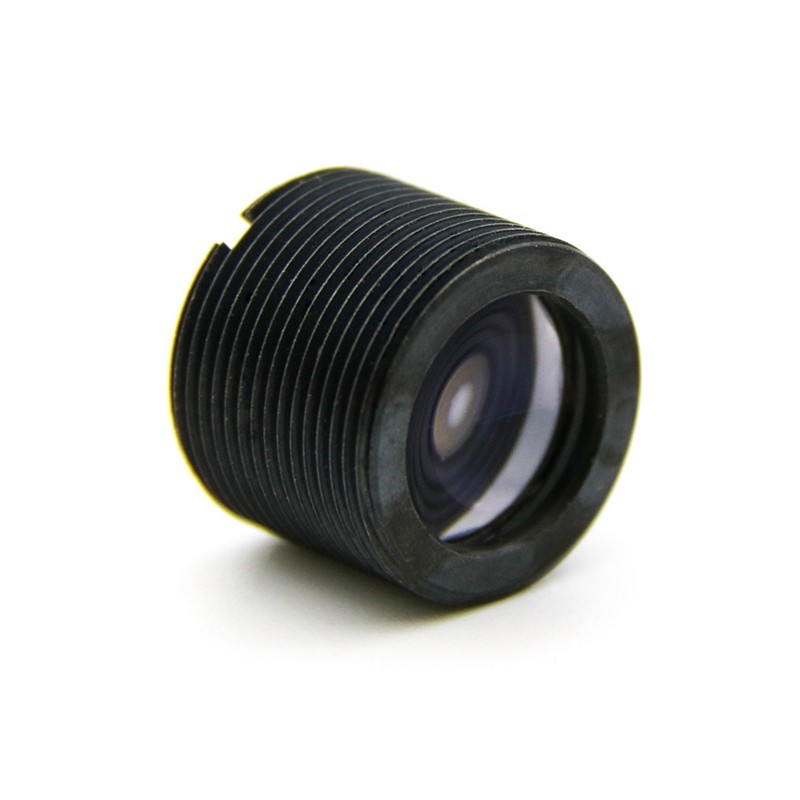

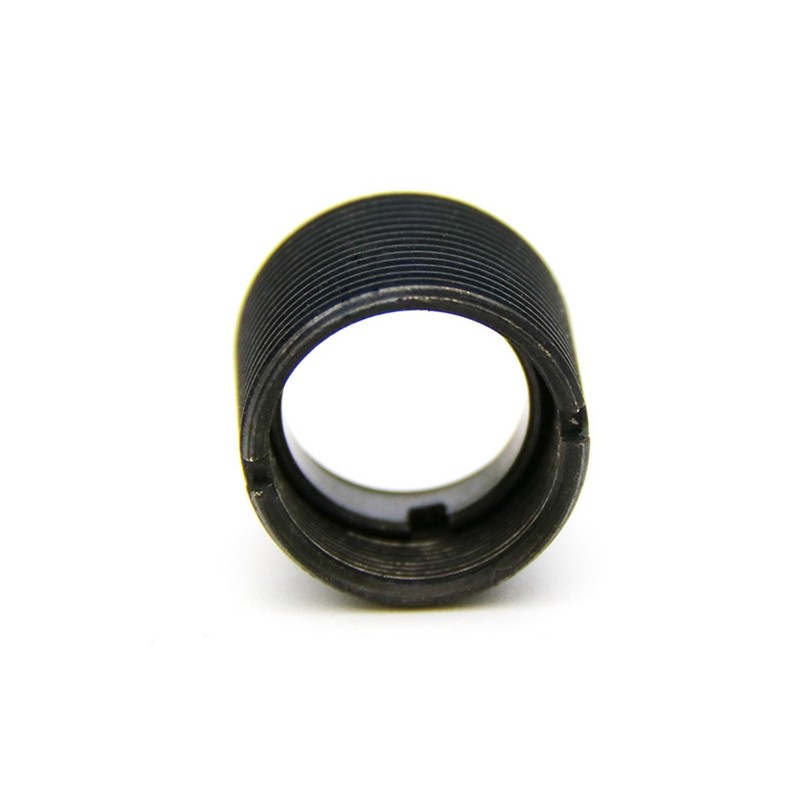

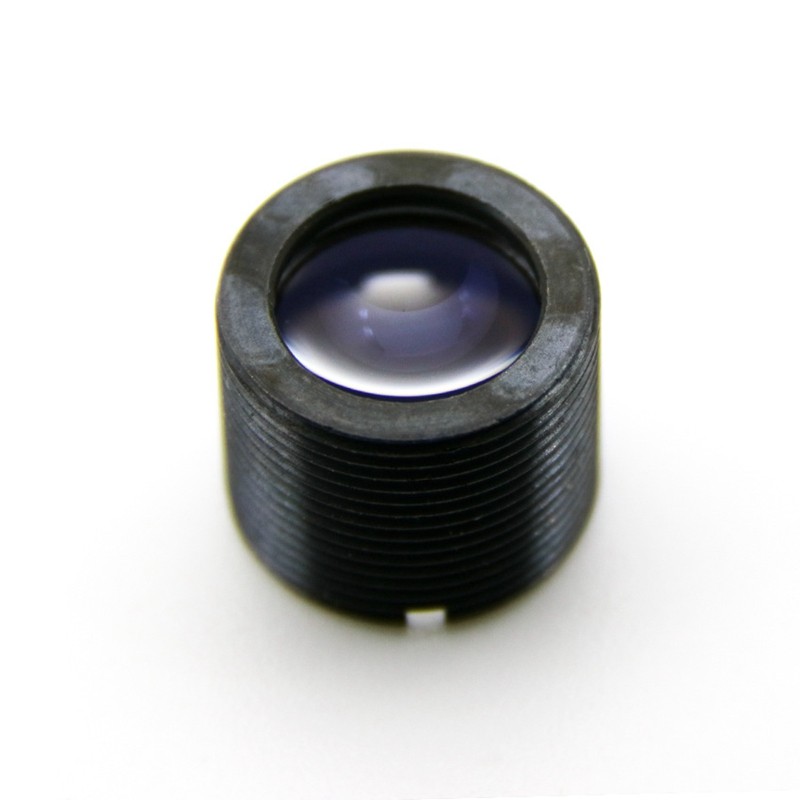

M10×P0.5 Collimating Lens for 635nm/650nm Red Laser Diodes — EFL 11.2mm, Glass Aspheric
Our M10-threaded red-laser collimator lenses with 11.2 mm effective focal length are optimized for 630–680 nm red laser diodes (635/650 nm typical).
Featuring a precision molded glass aspheric element with >97% transmission BBAR coating at 635/650 nm and a fine-thread M10×0.5 metal housing for focus adjustment,
these assemblies deliver tightly collimated beams with reduced divergence for long-distance pointers, industrial alignment tools, and OEM red LD packaging.
Custom EFL (8.0 / 15.0 mm etc.), threads (M9/M12/M14), and coatings for green (520 nm) or visible broadband available on request.

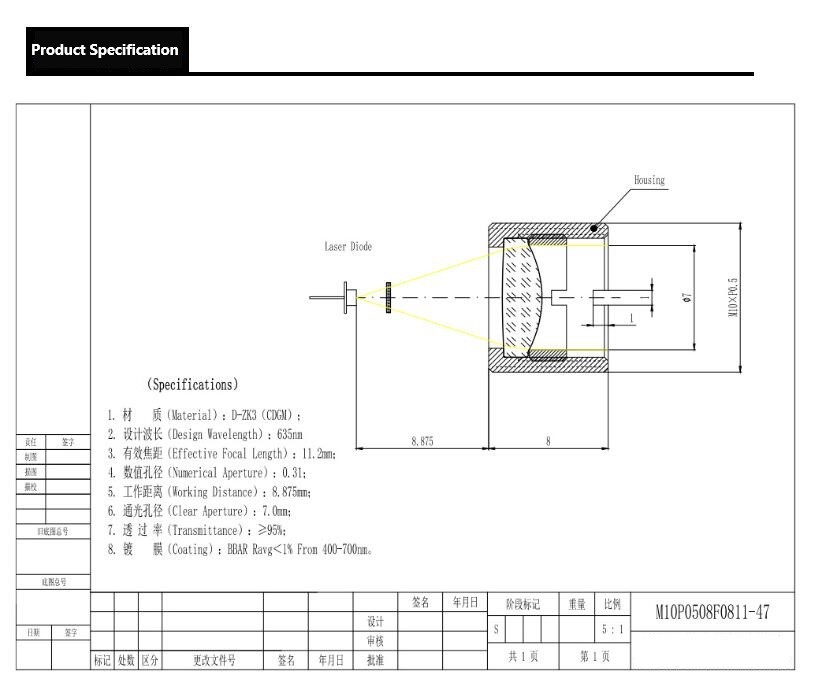

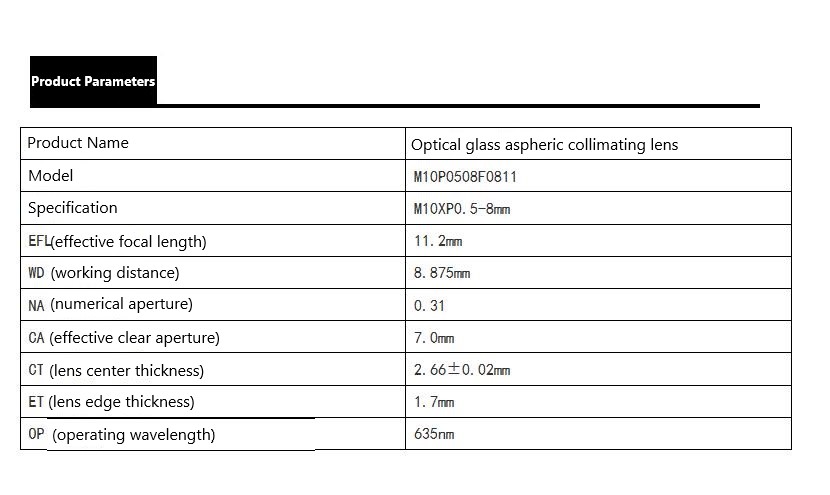

Specifications:
-
Mount / Thread: M10 × P0.5 (fine pitch), full or half thread; barrel length typically 10–13 mm
-
Effective Focal Length (EFL): 11.2 mm (±2% tolerance)
-
Design Wavelength: 630–680 nm (optimized @ 635 nm or 650 nm)
-
Lens Element: Molded glass aspheric (L-BAL35 / N-BK7 / D-ZK3 grade) or high-quality plano-convex
-
Clear Aperture (CA): Ø5.5 – Ø6.5 mm (typical Ø6.0 mm)
-
Numerical Aperture (NA): 0.20 – 0.28 (matches typical 5.6 mm / 9 mm TO-can red LD)
-
Working Distance (WD): ≈ 9.2 – 10.0 mm (adjustable by thread depth)
-
Coating: BBAR @ 630–680 nm (Ravg < 0.5% per surface; Rs < 0.3% @ 635/650 nm), MgF₂ optional
-
Housing Material: Nickel-plated brass or black-anodized aluminum
-
Transmission: ≥ 97% @ design wavelength
-
Surface Quality: 60-40 / 40-20 Scratch-Dig
For Collimating lens, the focal length we have 3.77mm,4.02mm, 4.39mm,6mm,6.2mm ,6.5mm,8mm, 8.3mm, 9.8mm, 10mm,11.2mm and 12mm.
Check the stock lenses in the following files.
