laser module for shoes factory

Cross Line Laser Module

Crosshair Laser Module

Laser Cross Module

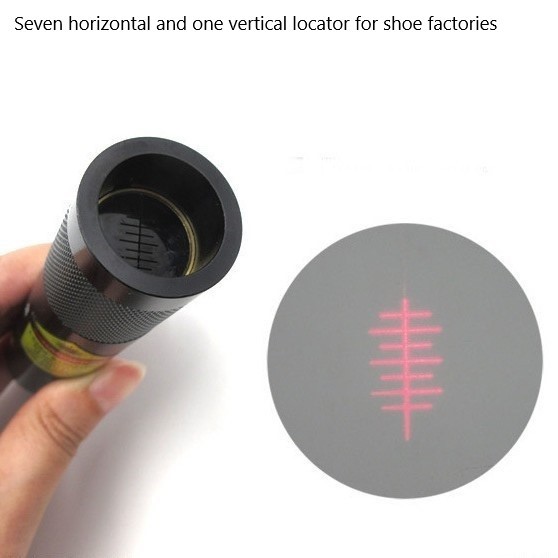

Industrial red line / cross laser module specifically designed for footwear manufacturing — available in Φ12×40mm or Φ16×60mm black anodized aluminum housing with 635nm/650nm wavelength and 5mW–50mW output options.

Equipped with a focus-adjustable optical glass cylindrical or cross lens and built-in APC constant current driver, it projects a bright, straight, and uniform laser line or 90° crosshair on leather, fabric, EVA sheet,

and synthetic materials — greatly improving cutting accuracy and stitching alignment on shoe pattern cutting tables and sewing stations.

Description

We officially releases its latest high-precision cross line laser module, engineered specifically for shoe factories requiring accurate positioning during production.

This advanced crosshair laser module projects a bright, stable cross pattern—perfect for shoe upper alignment, stitching guidance, cutting positioning, and assembly accuracy.

Built with industrial-grade components, the new module ensures long-term stability, low power consumption, and exceptional marking consistency. Designed to enhance workflow efficiency, it has quickly become an essential tool for modern shoe-making machines and automated production lines.

Specifications

Wavelength: 635nm (high brightness) / 650nm (standard red) ±10nm
Output Power: 5mW / 10mW / 30mW / 50mW (CW, Class II–IIIb)

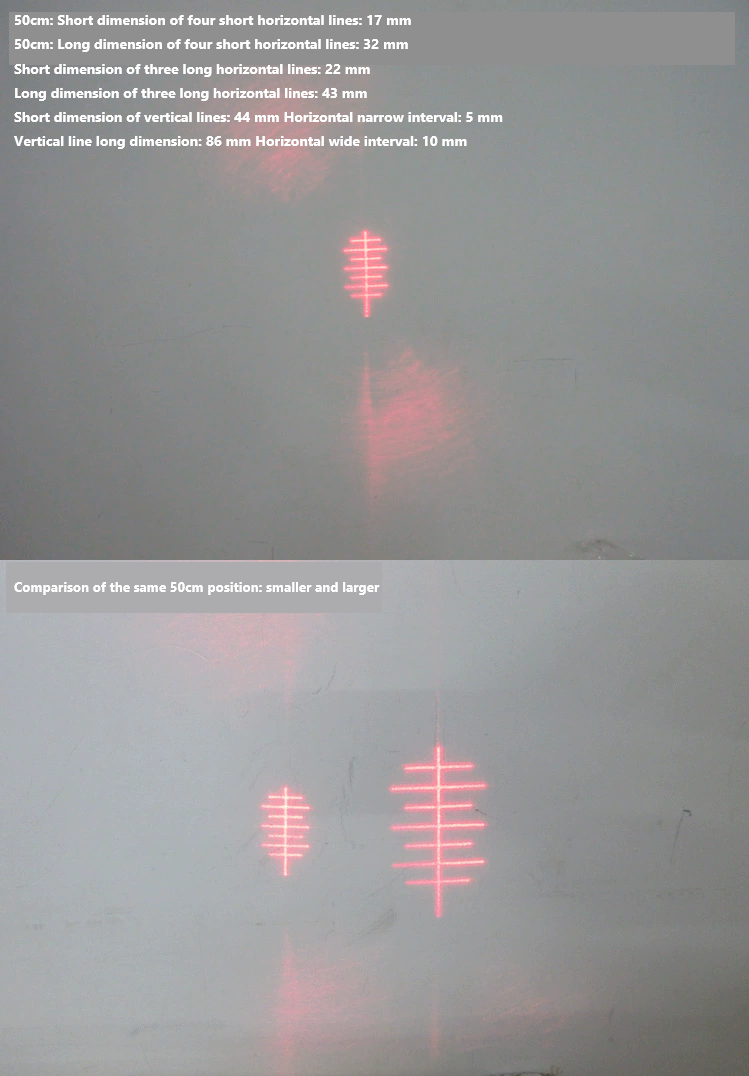

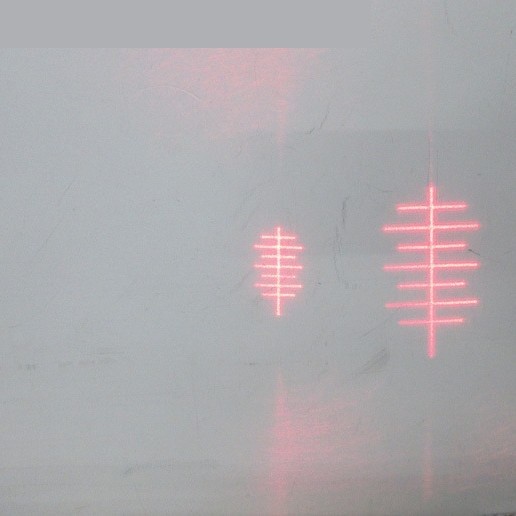

Laser Pattern: Single Line (for cutting/trimming guide) or Cross Line (for stitching/positioning); Dot optional
Fan Angle: 15°–110° (typical 45°/60°/90° for shoe cutting table)
Lens: Optical Glass Cylindrical / Cross Cylindrical Lens (focus adjustable)
Operating Voltage: DC 3V–5V (12V/24V wide voltage optional)
Operating Current: <100mA (typical)
Line Width: ≤1.0mm @ 1m (adjustable via focus ring)
Housing: Φ12×40mm or Φ16×60mm Black Anodized Aluminum (ESD protected; IP65 potting optional)

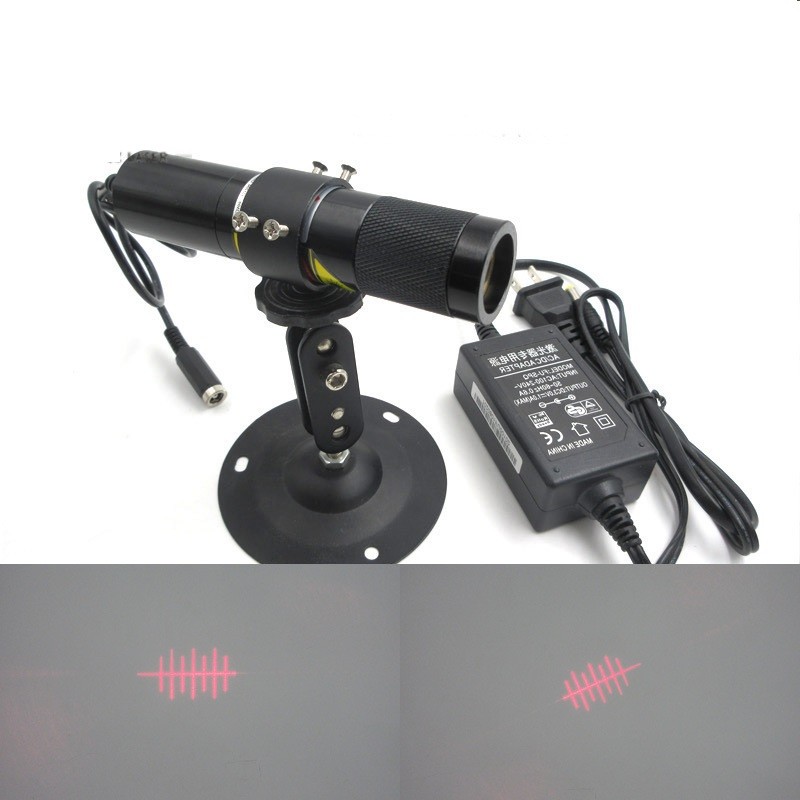

Mount: M6/M8 side screw hole or panel-mount thread (custom bracket available)
Lead Wire: Red(+)/Black(−) 100–200mm or JST connector
Working Temp.: -10°C to +50°C
Lifetime: >8,000–10,000 hrs

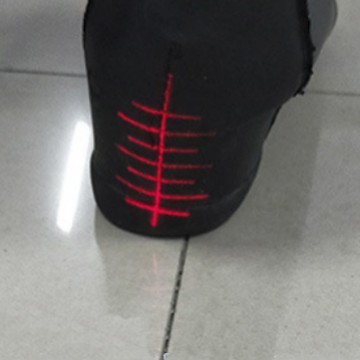

Applications — Shoes Factory / Footwear Industry

Shoe upper / sole pattern cutting table guide line (replaces chalk/ink lines)
Stitching / skiving / folding alignment on sewing / lasting machines (cross line version)
Leather / synthetic / fabric nesting & layout marking
Insole / outsole positioning & registration reference
Multi-head laser bar for full-width shoe material alignment
OEM retrofit onto existing cutting benches and shoe-making machinery
