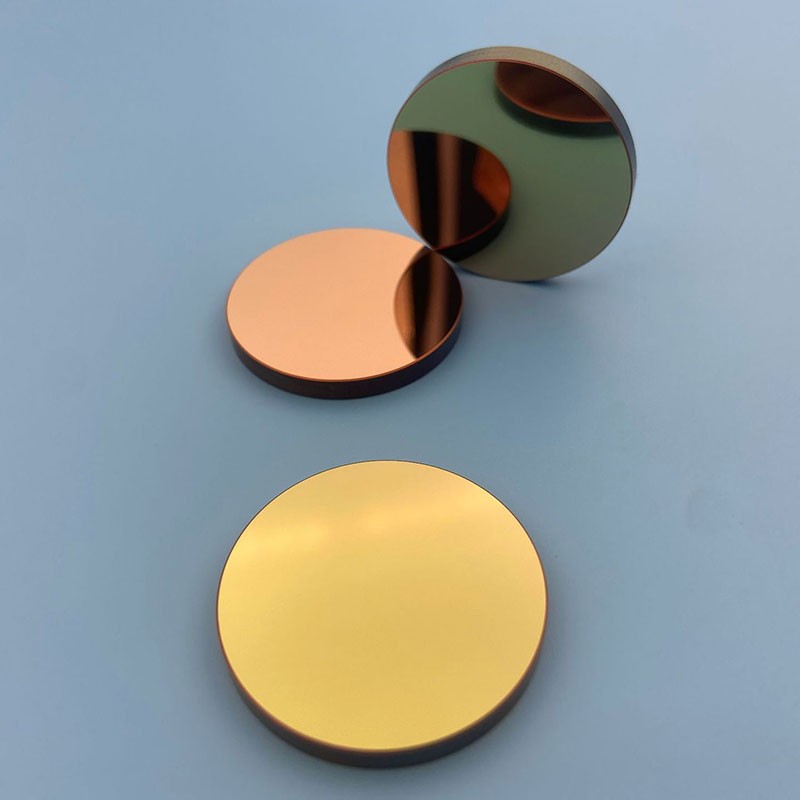

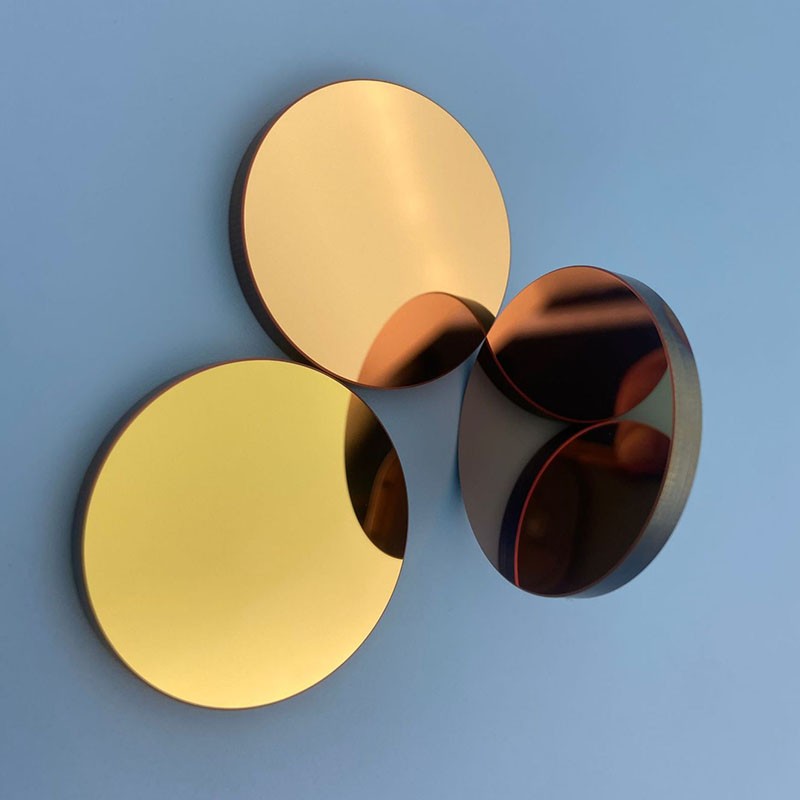

Broadly Used Silicon Import parts optical Silicon Reflective Mirror lenses

  • Reflective Lenses
  • silicone reflective mirror
  • Custom laser optical glass reflective lens
  • Silicon Reflective lenses

  • OEM-customized optical mirrors fabricated from single-crystal Silicon (Si) — a lightweight, high-thermal-conductivity, mechanically robust infrared-compatible substrate — with protected Gold (standard for MWIR/LWIR), protected Silver (VIS–NIR enhanced), or broadband dielectric coating per application.

    Si mirrors are the preferred choice for Mid-Wave Infrared (MWIR 3–5 µm) thermal imaging systems, high-power CO₂ or fiber laser beam steering (where low absorption is critical),

    aerospace dome/seekers, and FLIR fold mirrors. Available as plane, spherical concave/convex, or off-axis configurations in diameters from 10 mm to 300 mm, with customizable surface flatness (λ/10–4λ), edge blackening, and mechanical mounting.

    • Inquiry Send Email

    Description



    Broadly Used Silicon Import parts optical Silicon Reflective Mirror lenses

    Specifications
    • Substrate Material: Single Crystal Silicon — Float Zone (FZ) or Czochralski (CZ); <100> or <111> orientation
    • Mirror Type: Plane / Spherical Concave / Convex / Off-Axis Parabolic (on request)
    • Coating Options:
      — Protected Gold (Au + SiO₂): Ravg >98% @ 2–20 µm; standard for IR
      — Protected Silver (Ag + dielectric): Ravg >97% @ 450–2000 nm; for VIS–NIR–SWIR
      — Broadband Dielectric: Ravg >99% @ specified band (custom)
      — Enhanced Aluminum (on request)
    • Diameter Range: 10 mm – 300 mm (common Ø25.4 / Ø50.8 / Ø76.2 / Ø100 mm)
    • Diameter Tolerance: +0.0 / −0.1 mm (precision ±0.02 mm available)
    • Thickness: 3 mm – 30 mm (typical 3 / 5 / 6 / 10 mm; aspect ratio per stiffness need)
    • Surface Flatness (Plane): λ/10, λ/4, or 4–6λ @ 632.8 nm (λ/4 @ 10.6 µm equivalent available)
    • Surface Quality: 60-40 / 40-20 Scratch-Dig (IR-grade relaxed to 80-50 on request)
    • Centration (Curved): ≤ 3 arcmin
    • Bevel: 0.2–0.5 mm × 45°
    • Damage Threshold (Au coated): >5 J/cm² @ 10.6 µm, 100 ns pulse
    • Operating Temp: −196 °C ~ +400 °C (inert/dry atmosphere recommended for long-term)
    • Edge Treatment: Ground edge; optional edge blackening for stray light suppression


    We are professional manufacture on the optical lenses &lasers for over 20 years experience.
    With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

    We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.

    Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.


    Please contact for any custom needs,
    Contact:Rebecca Xu
