Description

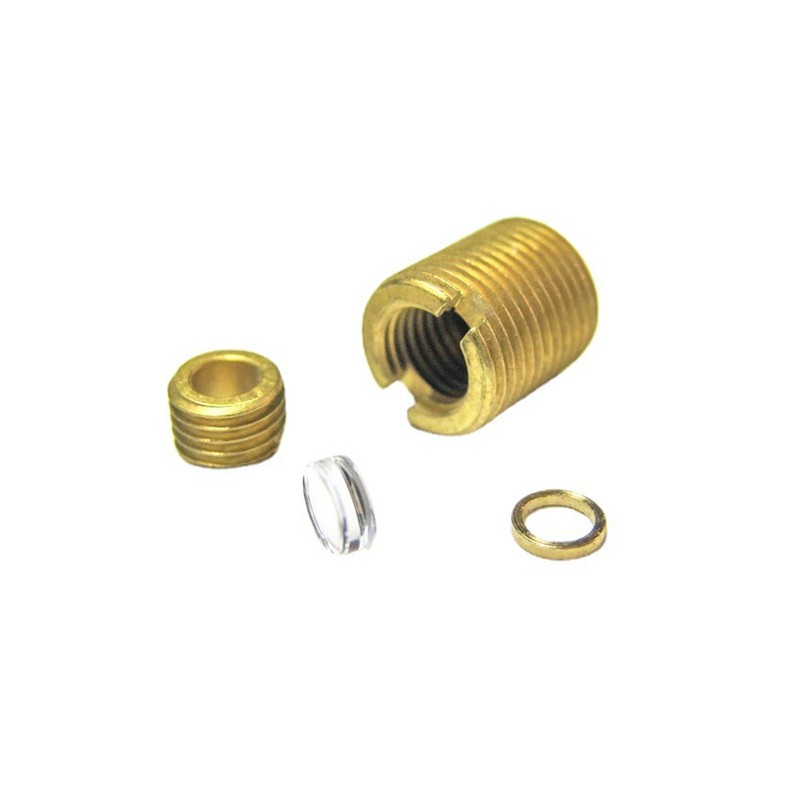

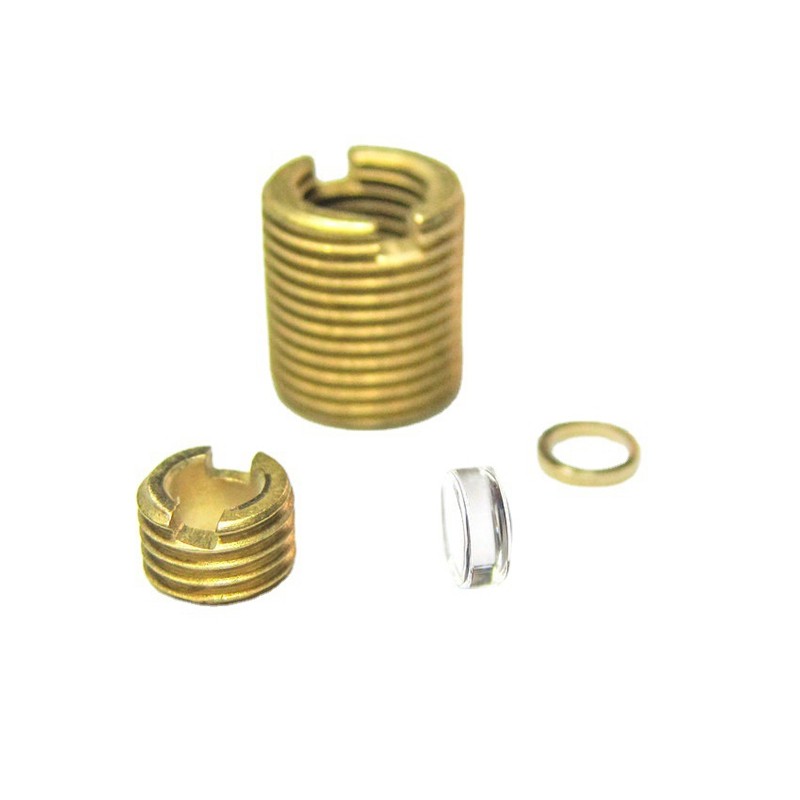

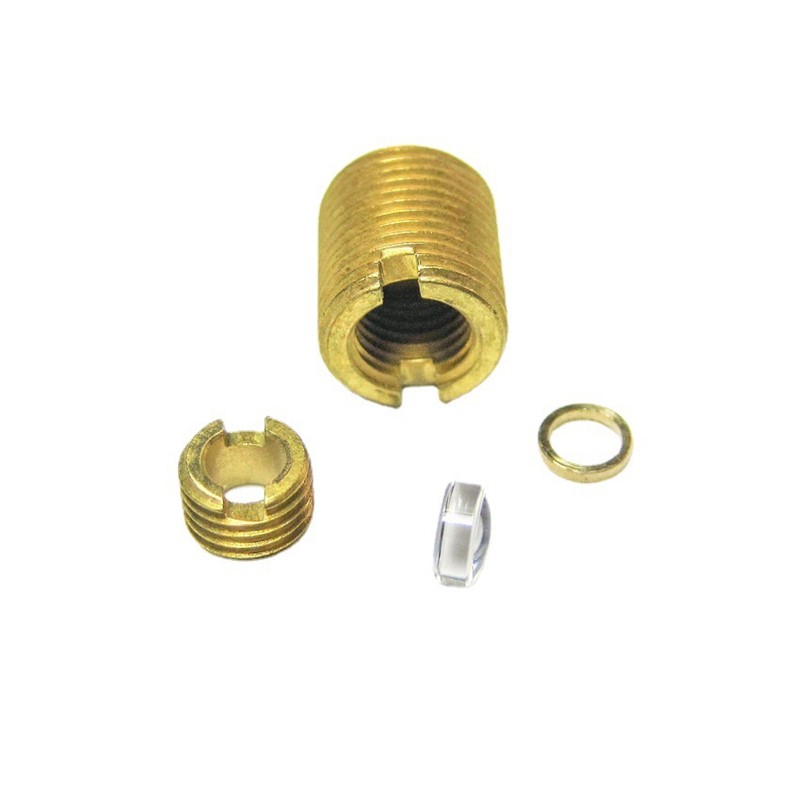

Ultra-Short Focal Length Collimating Lenses for 635nm/650nm Red Laser Diodes — EFL 3.77mm
Our M9/M10/M12/M14 threaded laser collimator lenses with 3.77 mm effective focal length are optimized for 630–680 nm red laser diodes, delivering tight beam collimation in minimal package space.
’Featuring a molded glass aspheric element with >97% transmission BBAR coating at 635 nm and precision fine-thread metal housing for focus adjustment, these collimators are the preferred choice for compact dot/line laser modules, industrial alignment tools, and OEM LD packaging.
Custom thread sizes (M6–M14), EFL values (2.0 / 4.05 / 6.2 / 8.0 mm etc.), and coating bands available on request.
Specifications:

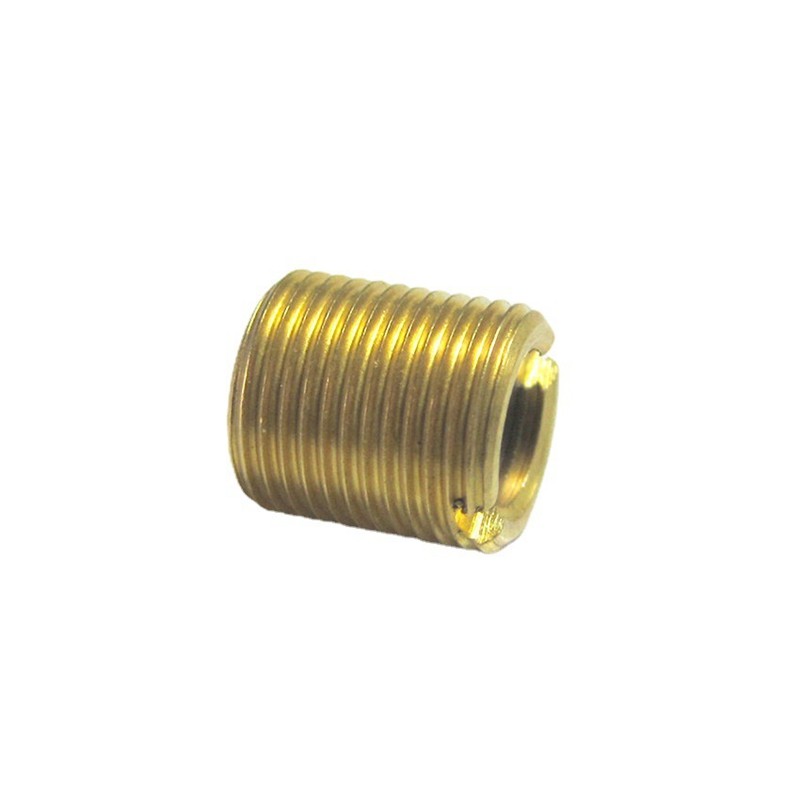

Mount / Thread Options: M9×P0.5 / M10×P0.5 / M12×P0.5 / M14×P0.5 (full or half thread; brass nickel-plated or black-anodized Al)
Effective Focal Length (EFL): 3.77 mm (±2% tolerance)
Design Wavelength: 630–680 nm (optimized @ 635 nm or 650 nm)
Lens Element: Molded glass aspheric (material: L-BAL35 / D-ZK3 / H-LaK series)
Clear Aperture (CA): Ø2.0 – Ø2.4 mm (typical Ø2.4 mm for EFL 3.77 mm)
Numerical Aperture (NA): 0.30 – 0.33 (matches typical 5.6 mm / 9 mm TO-can LD)
Working Distance (WD): ≈ 2.5 – 2.9 mm (distance from lens vertex to LD facet)
Barrel Length: 5 mm / 6.5 mm / 8 mm (typical 6.5 mm or 8 mm overall)
Coating: BBAR @ 630–680 nm (Ravg < 0.5% per surface, single-layer MgF₂ optional)
Transmission: ≥ 97% @ design wavelength
Surface Quality: 60-40 or 40-20 Scratch-Dig
Recommended LD: 5.6 mm / 9 mm TO-can red LD, emitter size ≈ 3×1 μm to 50×1 μm
For Collimating lens, the focal length we have 3.77mm,4.02mm, 4.39mm,6mm,6.2mm ,6.5mm,8mm, 8.3mm, 9.8mm, 10mm,11.2mm and 12mm.

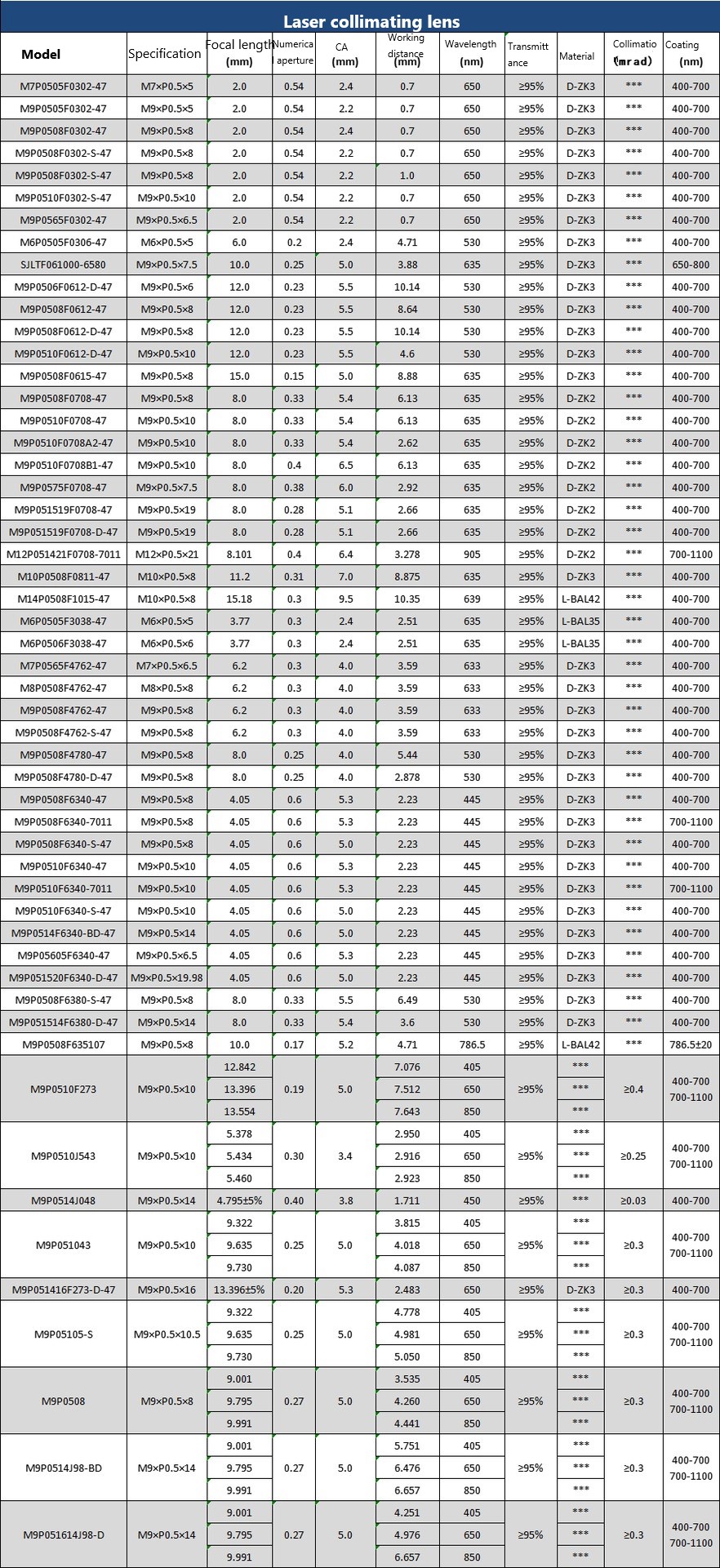

Check the stock lenses in the following files.
