12X40mm 450nm 1mW5mW10mW laser module

dot laser module

12X40mm450nm1mW laser module

450nm 1mW laser module

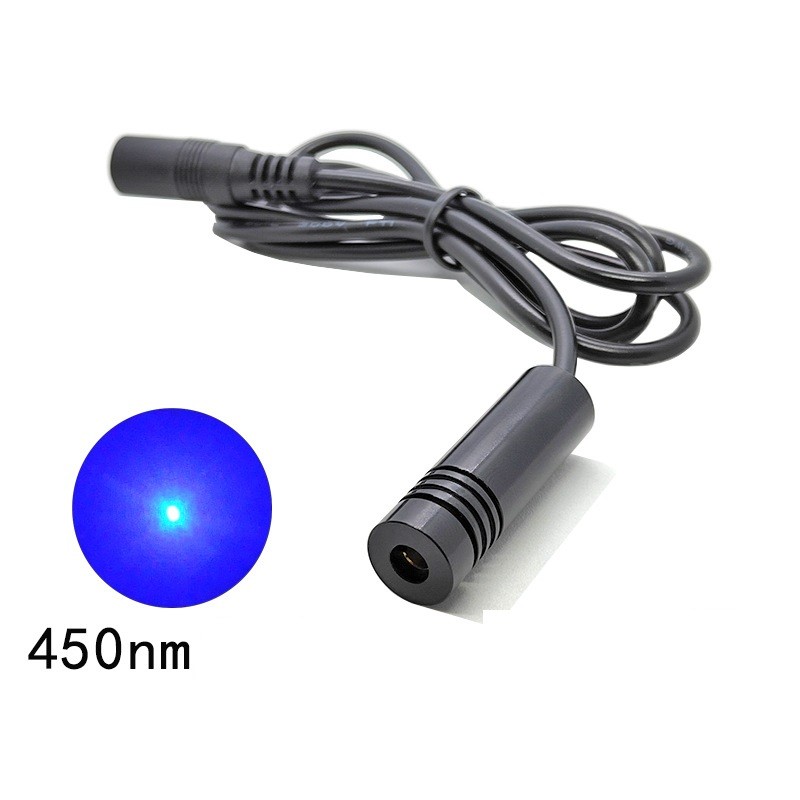

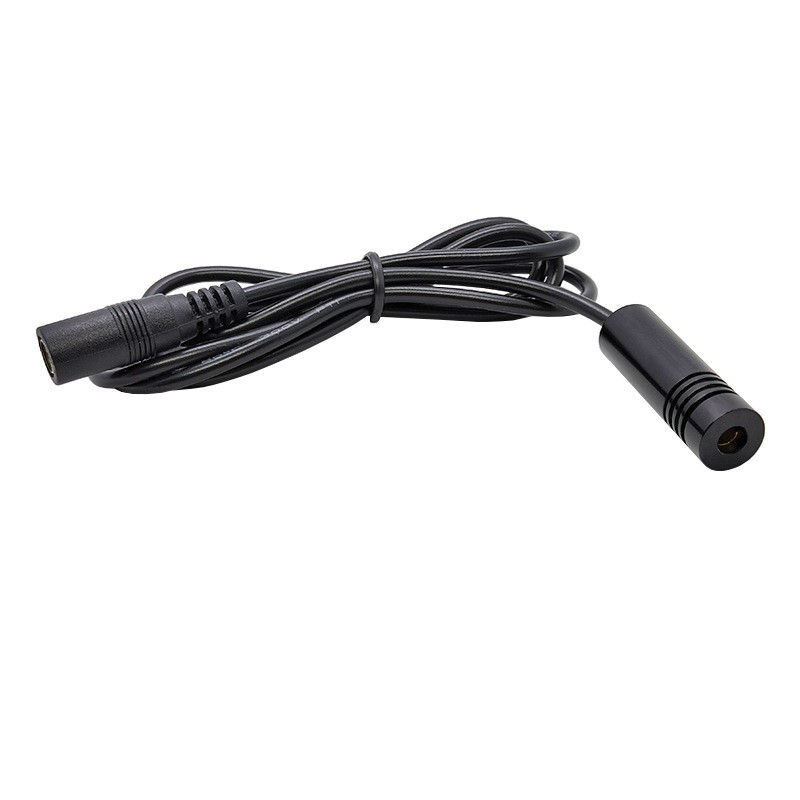

Compact Φ12×40mm true blue laser diode module with 450nm wavelength, available in 1mW (Class 2) / 5mW (Class 3R) / 10mW (Class 3B) output options.

Features a focus-adjustable collimating glass lens and built-in APC constant current driver.

The 450nm blue beam provides good visibility for special-effect lighting, alignment references, fluorescence excitation, and OEM integration in compact equipment.

Description

12X40mm450nm1mW5mW10mW external focus pure blue laser module 450nm

Specifications

Wavelength: 450nm ±10nm (True Blue / InGaN Diode)
Output Power: 1mW / 5mW / 10mW (CW, Class II / IIIa / IIIb available)
Beam Pattern: Dot (Spot) — Line / Cross optional on request
Lens: Multi-coated Optical Glass Collimating Lens (focus adjustable via front cap)
Operating Voltage: DC 3V–5V (typical 3.3V/5V; 12V version optional with driver)
Operating Current: <40mA (1–5mW) / <80mA (10mW)
Spot Size: Adjustable (e.g. ≤1.0mm @ 1m after focus)
Beam Divergence: <1.2 mrad

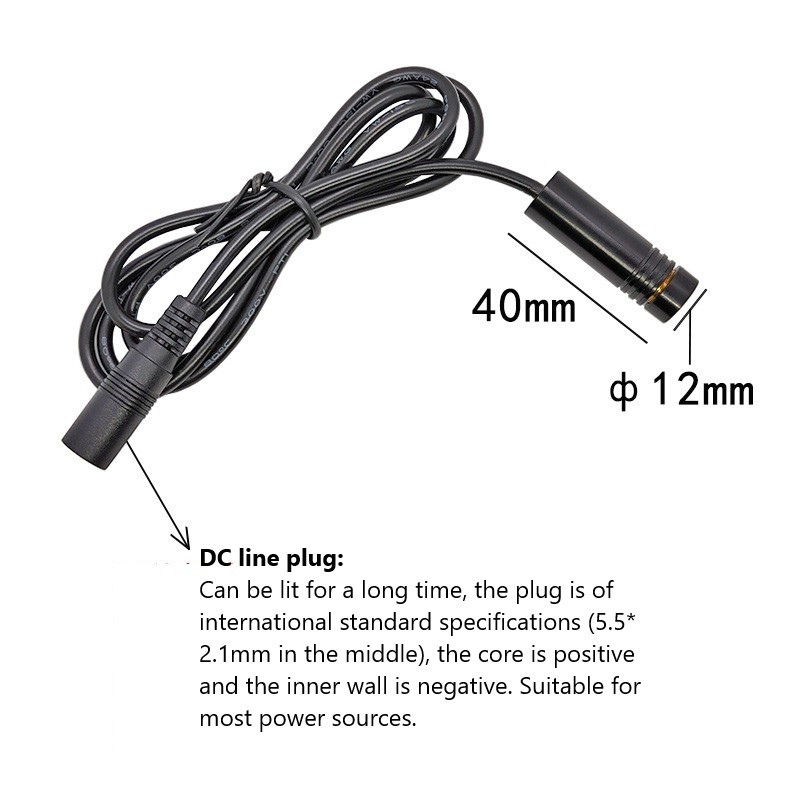

Housing: Φ12×40mm Black Anodized Aluminum (ESD & reverse polarity protected)
Lead Wire: Red(+)/Black(−) 100–150mm or JST connector (optional)
Working Temp.: -10°C to +50°C
Storage Temp.: -40°C to +80°C
Lifetime: >8,000 hrs
