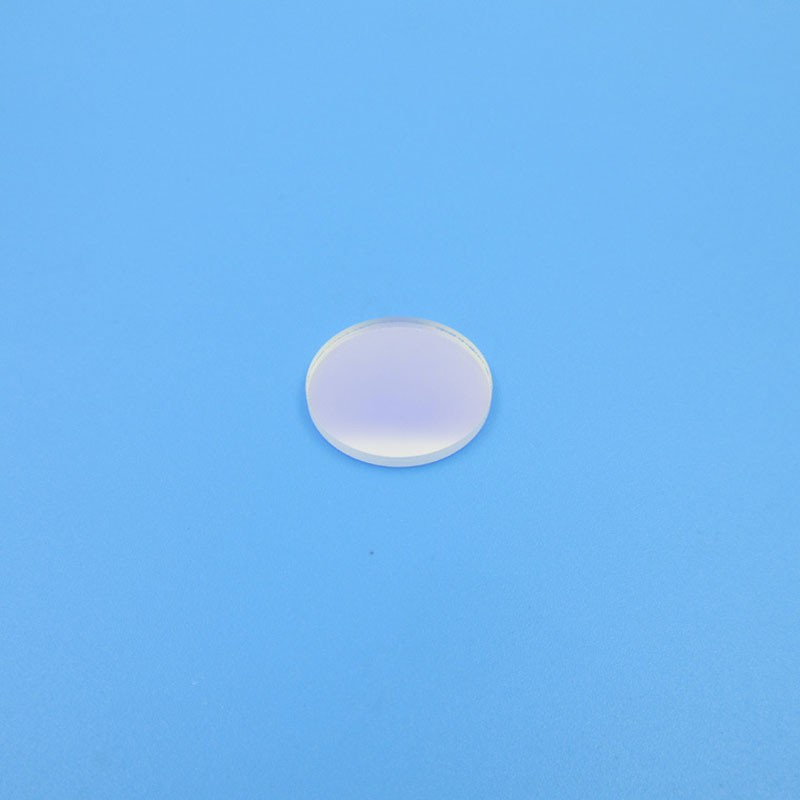

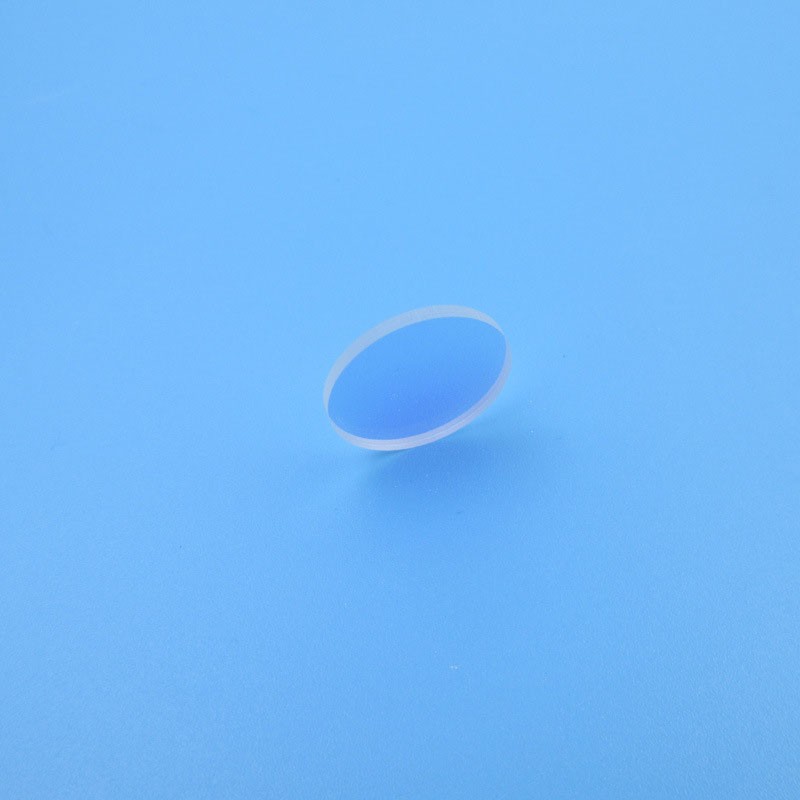

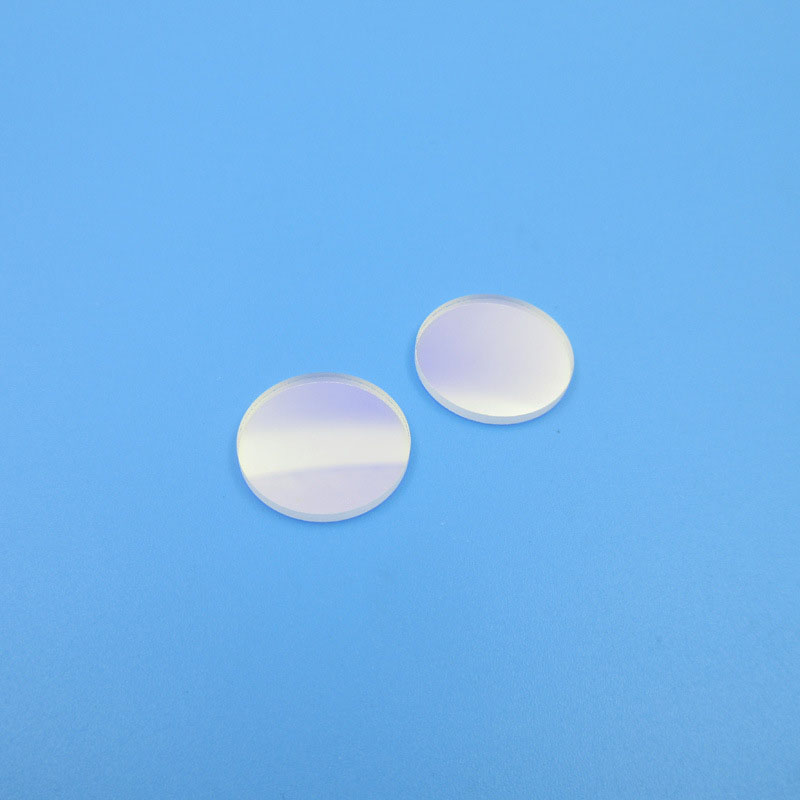

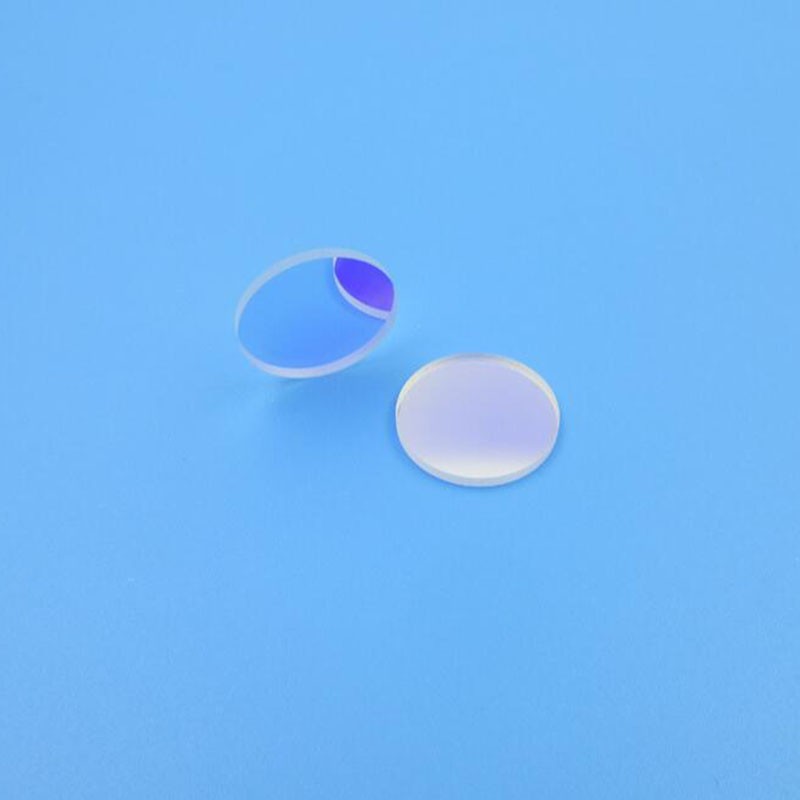

380nm-500nm pass filter 20*1.7mm optical glass filter

380nm-500nm pass filter 20*1.7mm optical glass filter

glass optical filter

custom optical filter

factory offer optical filter

380nm-500nm optical filter

Precision optical filter designed to transmit the blue-violet to cyan region (380–500 nm) while blocking green, red, and near-infrared wavelengths (>500–1100 nm).

Constructed from absorption color glass (BG-series / blue glass) or interference-coated substrate, with typical visible transmission >80% in passband and deep attenuation outside.

The 20 mm diameter × 1.7 mm format is commonly used in fluorescence excitation, blue channel separation, UV-VIS spectroscopy, and machine vision blue-light isolation. Available as unmounted window or mounted in retaining ring.

Description

**380nm-500nm pass filter 20*1.7mm optical glass filter manufacturer customized**

Specifications

Filter Type: Blue Transmitting Band Pass (Absorption Glass or Interference+Broadband)

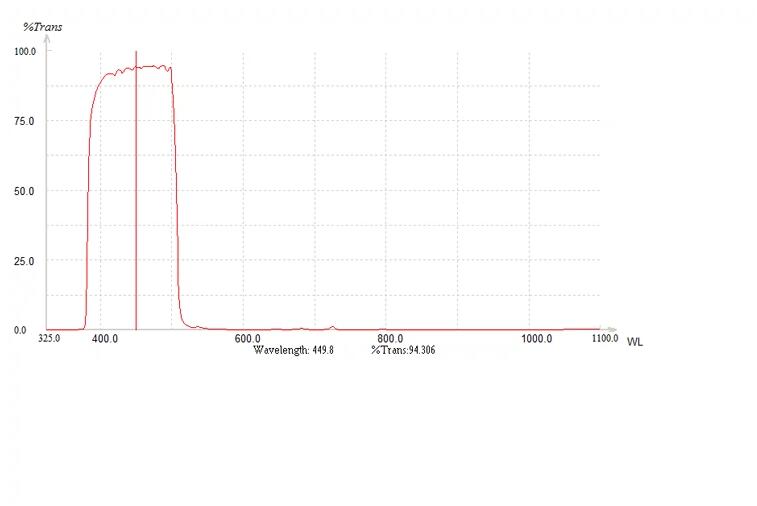

Passband: 380–500 nm (peak typically 420–470 nm)

Average Transmission (Passband): ≥ 70%–85% (glass type dependent)

Blocking Band: 500–1100 nm (visible red+NIR + UV <380 nm if specified)

Blocking Level: ≤ 1%–5% T (Absorption glass); OD3–OD4 (interference type)

Substrate Material: Blue Absorption Glass (Schott BG38/BG3 equivalent) or N-BK7 + interference coating

Diameter: 20 mm (+0.0 / −0.1 mm)

Thickness: 1.7 mm (±0.1 mm); other thicknesses on request

Surface Quality: 60-40 / 40-20 Scratch-Dig

Surface Flatness: λ/4 @ 632.8 nm (interference type); λ/2–2λ (absorption glass typical)

Parallelism: ≤ 3 arcmin (standard)

Edge Treatment: Ground / beveled 0.2×45°

Factory custom optical filter,can cutom as your required,

please contact our sales manager
