Industrial red cross line laser module with 660nm wavelength and 50mW output (Class 3B), equipped with a focus-adjustable optical glass cross cylindrical lens and built-in APC constant current driver.

It projects a bright, sharp 90° perpendicular red crosshair—more visible than 650nm at equal power—ideal for garment/embroidery machine positioning, woodworking saw guides, tile layout marking, and OEM alignment equipment.

Description

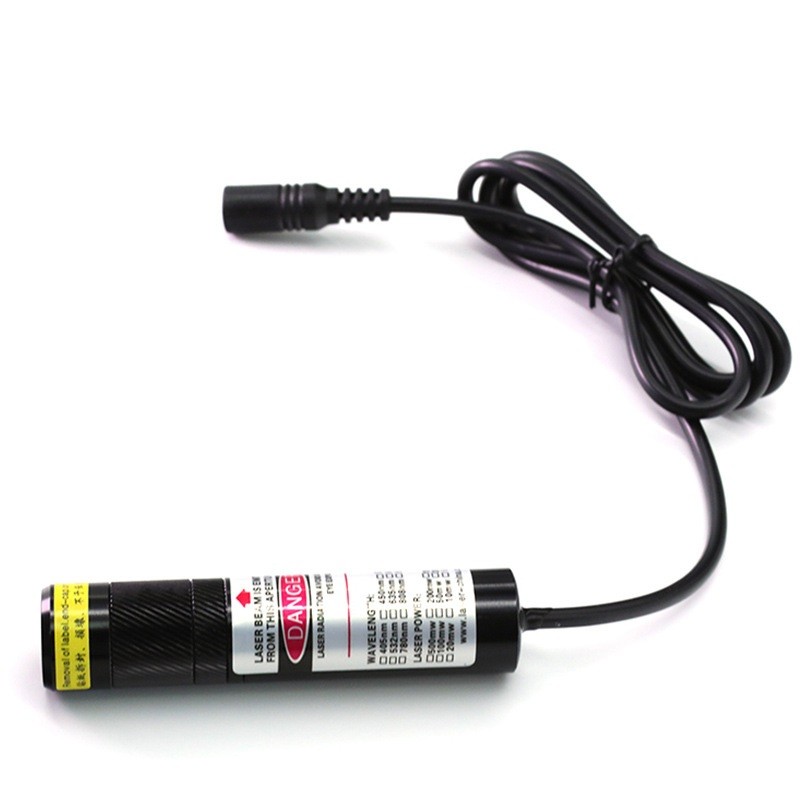

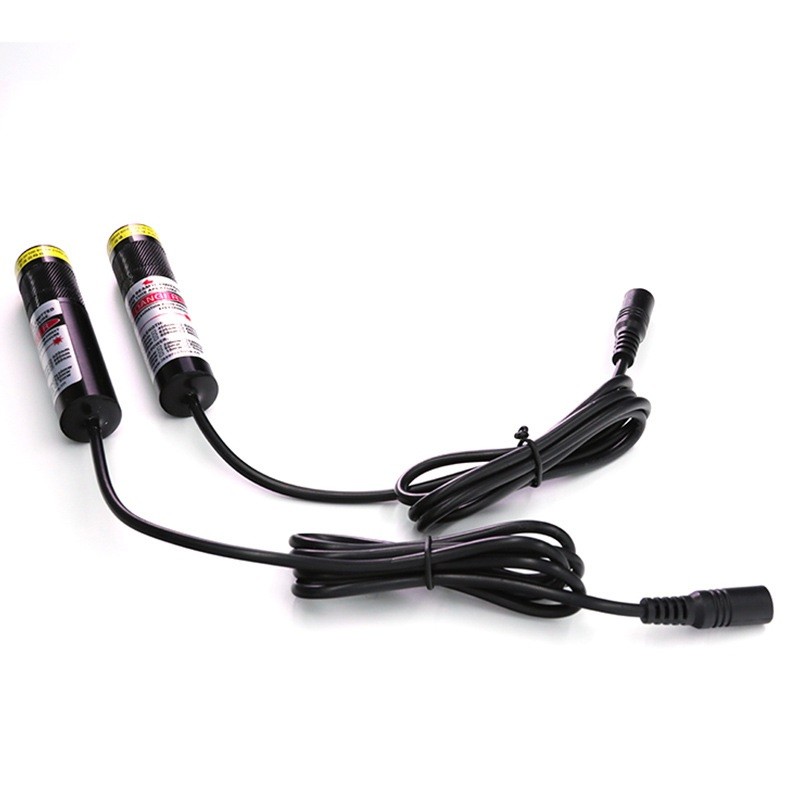

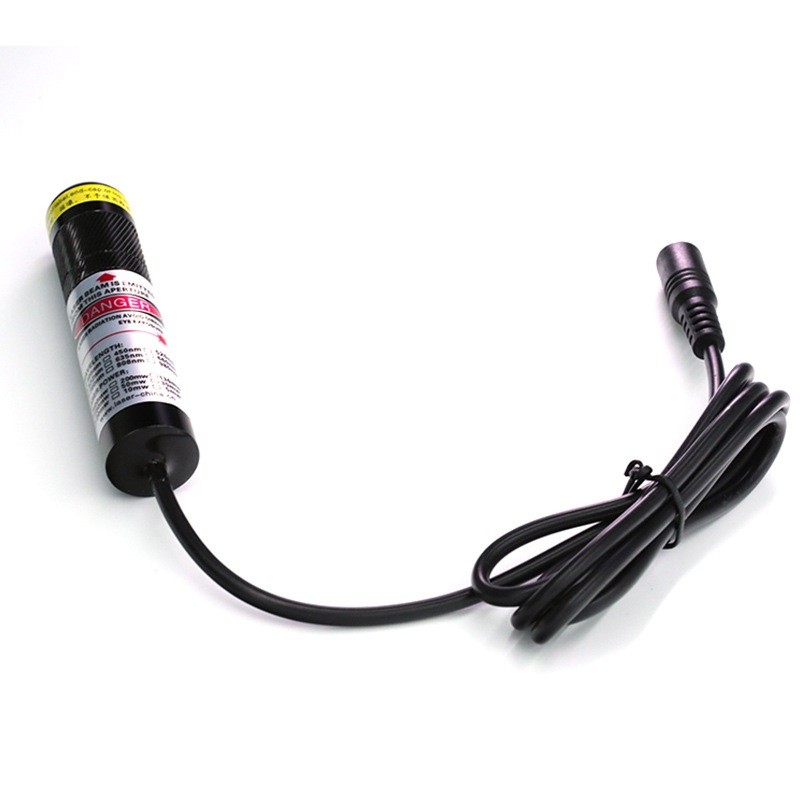

660nm 50mw cross red laser positioning light adjustable ring laser transmitter head

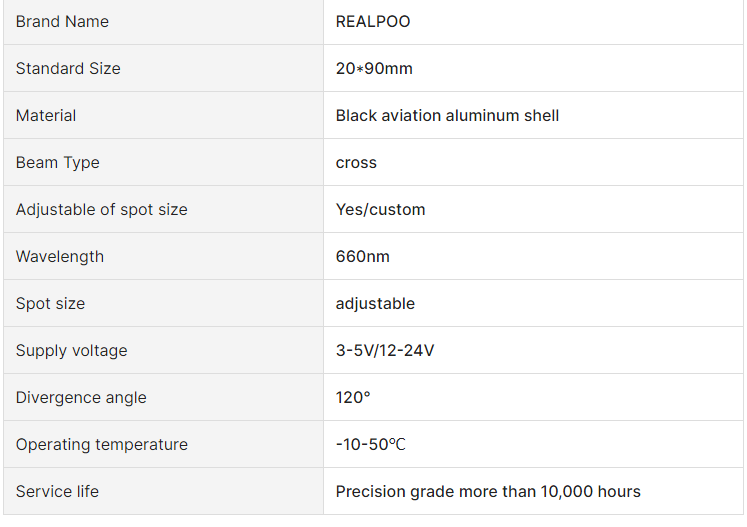

Specifications

Wavelength: 660nm ±5nm (Pure Red, high-visibility)
Output Power: 50mW (CW, Class 3B / Class IIIb)

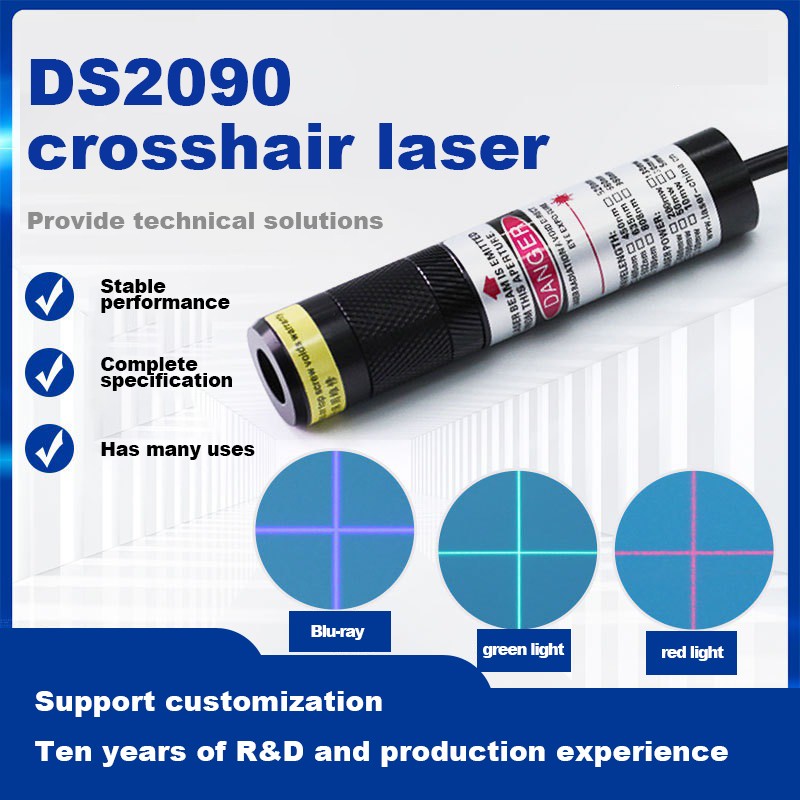

Laser Pattern: Cross Line (90° perpendicular crosshair)
Lens: Optical Glass Cross Cylindrical Lens (focus adjustable via front cap)
Operating Voltage: DC 3V–5V (typical) or DC 12V/24V wide voltage optional
Operating Current: <180mA
Cross Width / Line Width: ≤1.5mm @ 1m (adjustable via focus ring)
Fan Angle: Optional 15°–110° (typical 45°/60°/90°)
Housing: Φ12×40mm or Φ16×60mm Black Anodized Aluminum (ESD & reverse polarity protected; IP65/IP67 optional)
Lead Wire: Red(+)/Black(−) 100–150mm or JST connector (optional)
Working Temp.: -10°C to +50°C
Storage Temp.: -40°C to +80°C
Lifetime: >8,000 hrs
