100mw 200mw high brightness single word laser 26*110mm 660nm laser module

100mw laser module

26*110mm 660nm laser head

110mm line laser module

Heavy-duty Φ26×110mm high-brightness red line laser module with 660nm wavelength, available in 100mW and 200mW output options (Class 3B/Class 4).

Features a multi-coated optical glass cylindrical lens, built-in APC/ACC constant current driver, and external focus adjustment.

The large 26mm aluminum alloy housing with copper heatsink core provides superior heat dissipation for 24/7 continuous operation.

IP67 sealed design enables stable performance in harsh industrial environments including dust, humidity, and water splash.

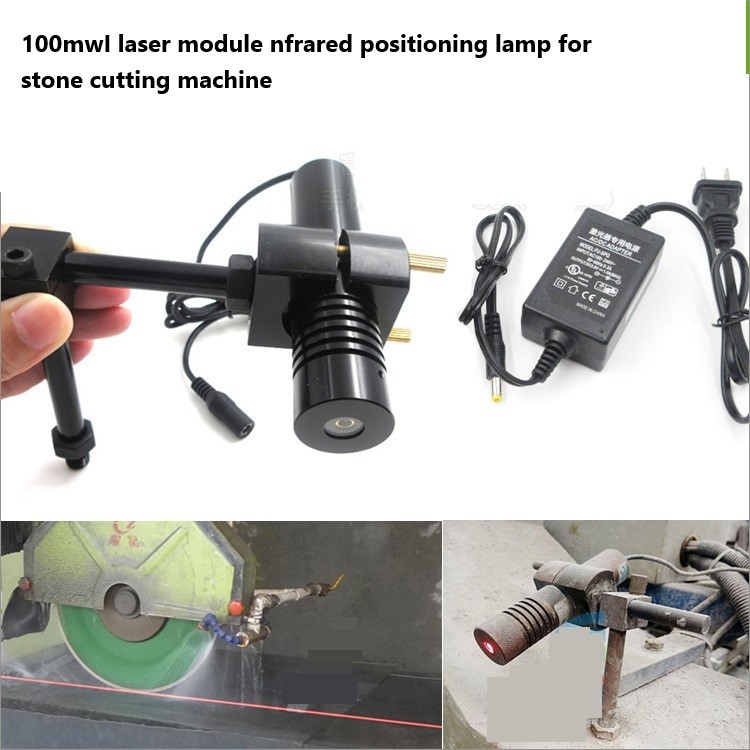

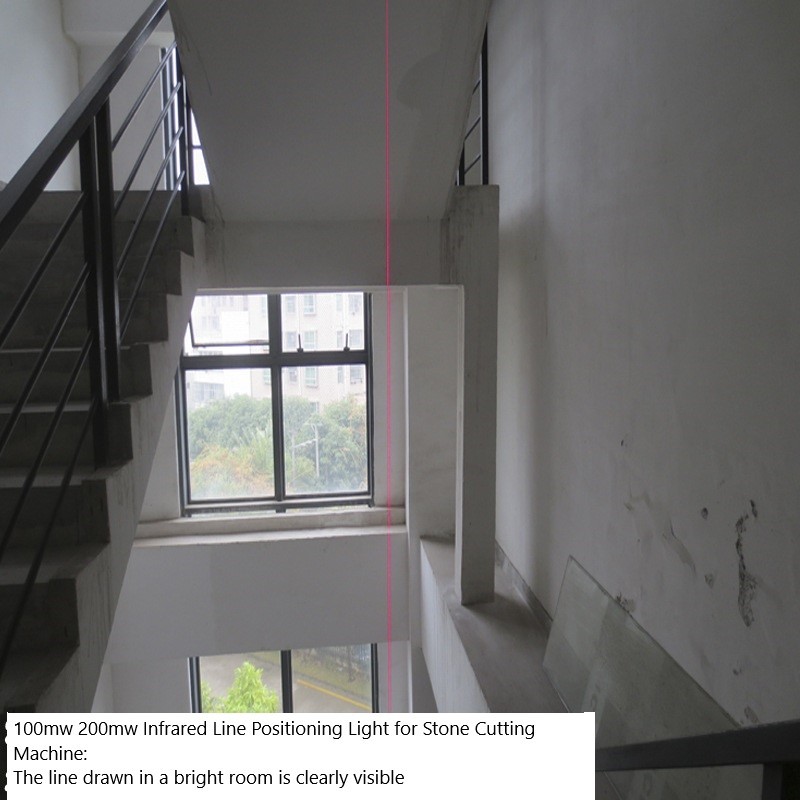

Projects an ultra-bright, uniform red laser line—ideal for stone cutting, woodworking, metal fabrication, and machine vision alignment.

100mw 200mw high brightness single word laser 26*110mm 660nm laser head infrared laser positioning light

Specifications

Wavelength: 660nm ±5nm (Deep Red, high visibility)
Output Power: 100mW / 200mW (CW, Class 3B / Class 4)
Laser Pattern: Single Line (fan angle adjustable: 10°–135°); Dot / Cross optional
Lens: Multi-coated Optical Glass Cylindrical Lens (external focus adjustable without tools)
Operating Voltage: DC 3V–5V (wide voltage; 12V/24V optional with external driver)
Operating Current: <350mA (100mW) / <650mA (200mW)
Line Width: ≤2mm @ 3m (adjustable via focus ring)
Beam Divergence: <2.0 mrad

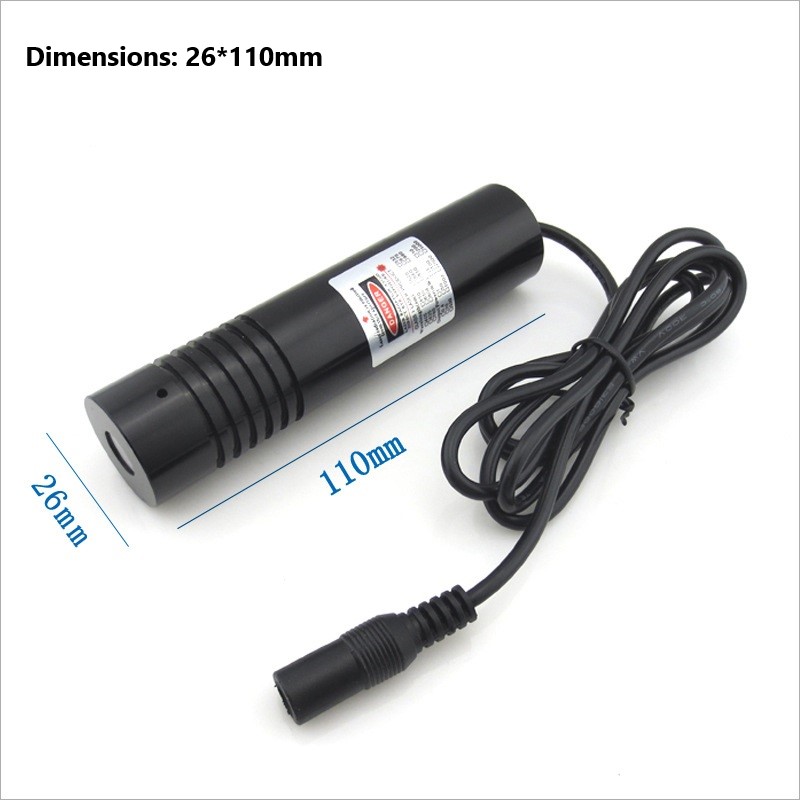

Housing: Φ26×110mm Black Anodized Aluminum Alloy (copper heatsink core, IP67 sealed)
Protection: ESD, Reverse Polarity, Over-temperature Protection
Lead Wire: Red(+)/Black(−) 200–300mm or waterproof connector (optional)
Working Temp.: -10°C to +50°C
Storage Temp.: -40°C to +80°C
Lifetime: >8,000 hrs
Modulation: TTL / Analog modulation optional (up to 50kHz)
