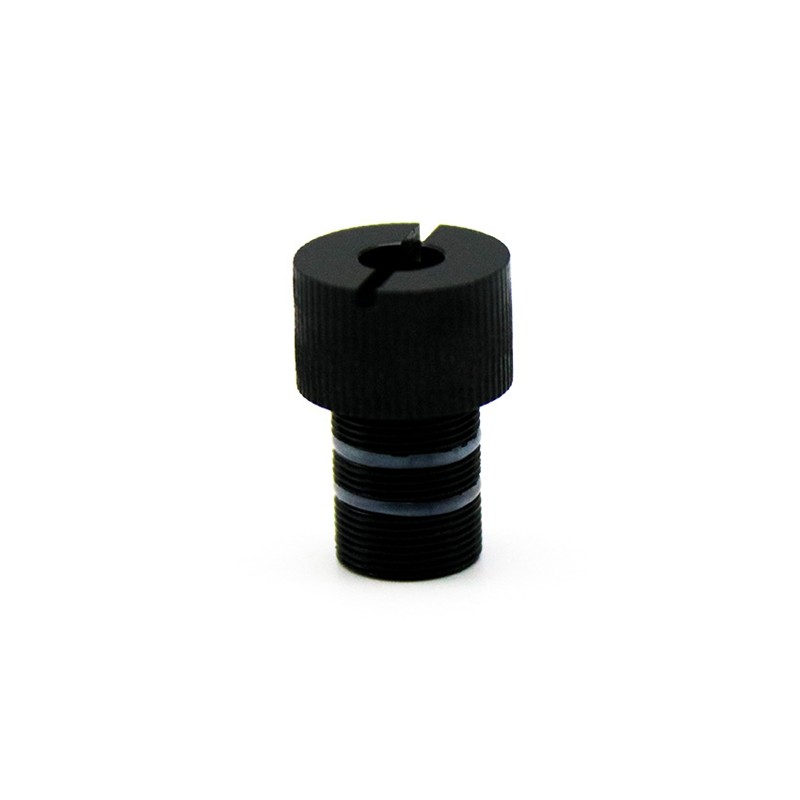

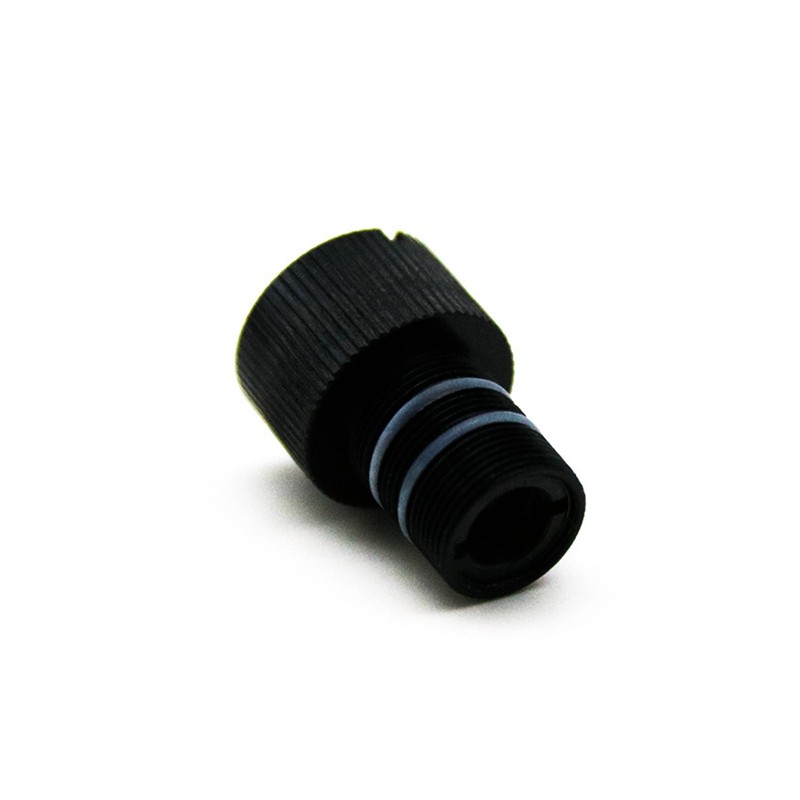

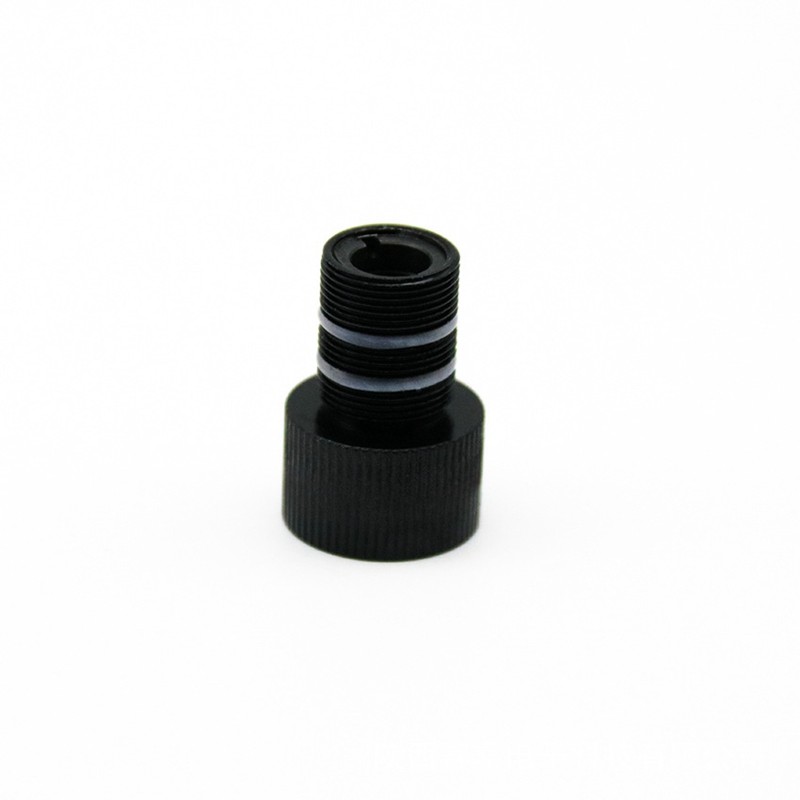

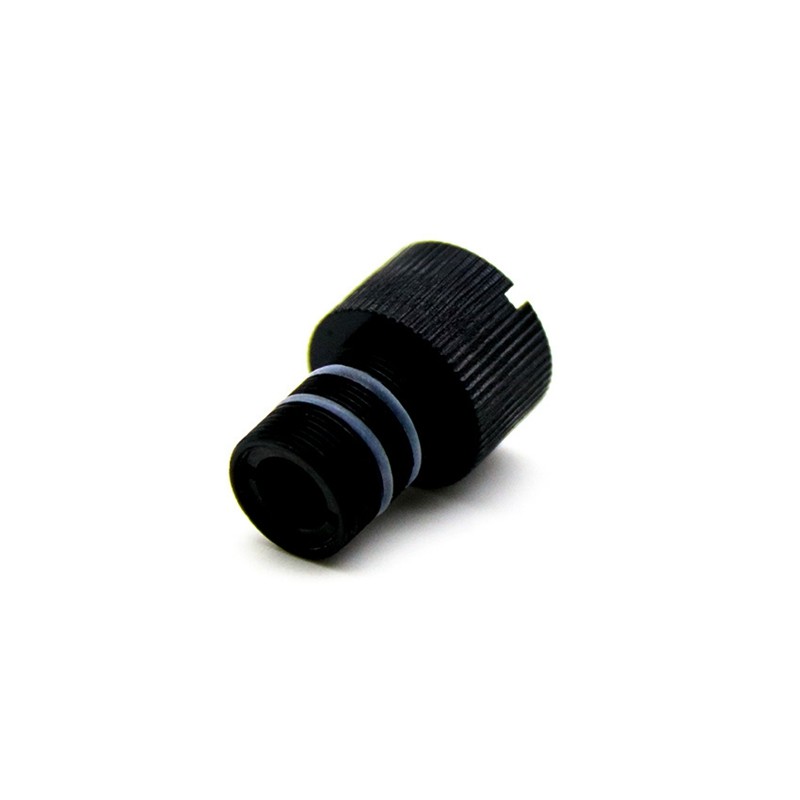

M9×P0.5 Visible Broadband Collimating Lens — EFL 8.0mm, BBAR 400–700nm
Our M9-threaded visible broadband collimator lenses with 8.0 mm effective focal length are engineered for 400–700 nm laser diodes including violet, blue, green, and red emitters.
Featuring a molded glass aspheric element with >96% average transmission BBAR coating across the full visible spectrum and a precision M9×0.5 fine-thread metal housing for focus adjustment,
these compact assemblies deliver low-divergence collimated beams for multi-wavelength/RGB laser modules, pointers, alignment tools, and OEM VIS LD packaging.
Custom EFL (3.77 / 4.05 / 6.2 / 9.795 / 13.55 mm etc.), threads (M6/M10/M12/M14), and narrow-band coatings available on request.

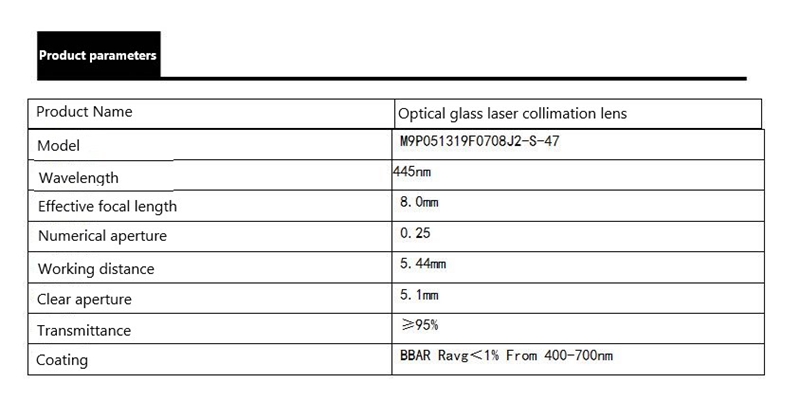

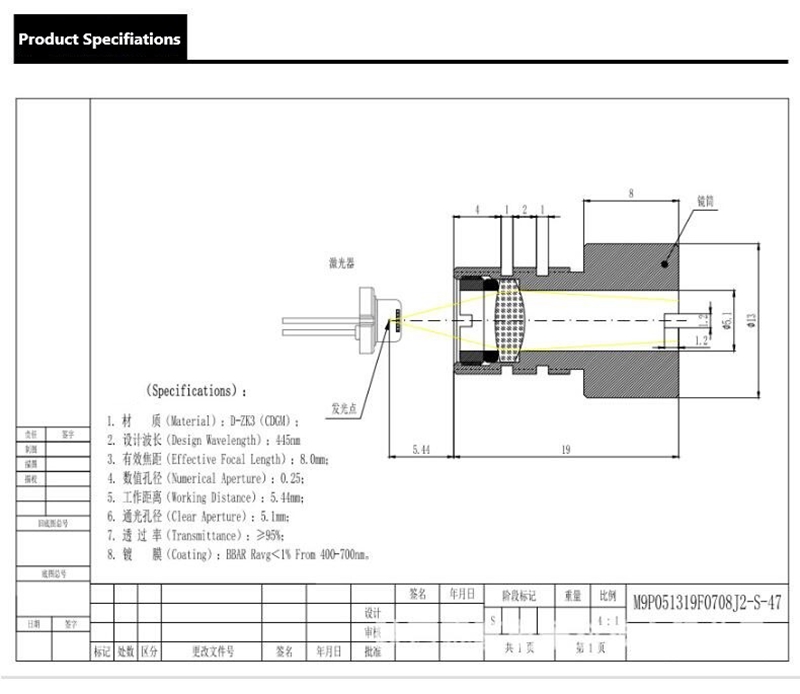

Specifications:
Mount / Thread: M9 × P0.5 (fine pitch), full or half thread; barrel length typically 10 mm / 13 mm optional
Effective Focal Length (EFL): 8.0 mm (±2% tolerance)
Design Wavelength Band: 400–700 nm (VIS broadband; compatible with 405–650 nm LD)
Lens Element: Single molded glass aspheric (N-BK7 / L-BAL35 / D-ZK3) or AR-coated plano-convex
Clear Aperture (CA): Ø5.0 – Ø6.0 mm (typical Ø5.5 mm)
Numerical Aperture (NA): 0.22 – 0.32 (matches typical 5.6 mm / 9 mm TO-can visible LD)
Working Distance (WD): ≈ 6.2 – 7.0 mm (adjustable by thread depth)
Coating: BBAR @ 400–700 nm (Ravg < 0.75–1.0% per surface; Rs < 0.5% in peak sub-bands)
Housing Material: Nickel-plated brass or black-anodized aluminum
Transmission: ≥ 96% avg. over 400–700 nm
Surface Quality: 60-40 / 40-20 Scratch-Dig
For Collimating lens, the focal length we have 3.77mm,4.02mm, 4.39mm,6mm,6.2mm ,6.5mm,8mm, 8.3mm, 9.8mm, 10mm,11.2mm and 12mm.
Check the stock lenses in the following files.
