650nm10mW cross laser module 12X40mm red laser module head

  • 650nm10mW cross laser module
  • custom laser module
  • 12*40mm laser module
  • red laser module factory wholesale

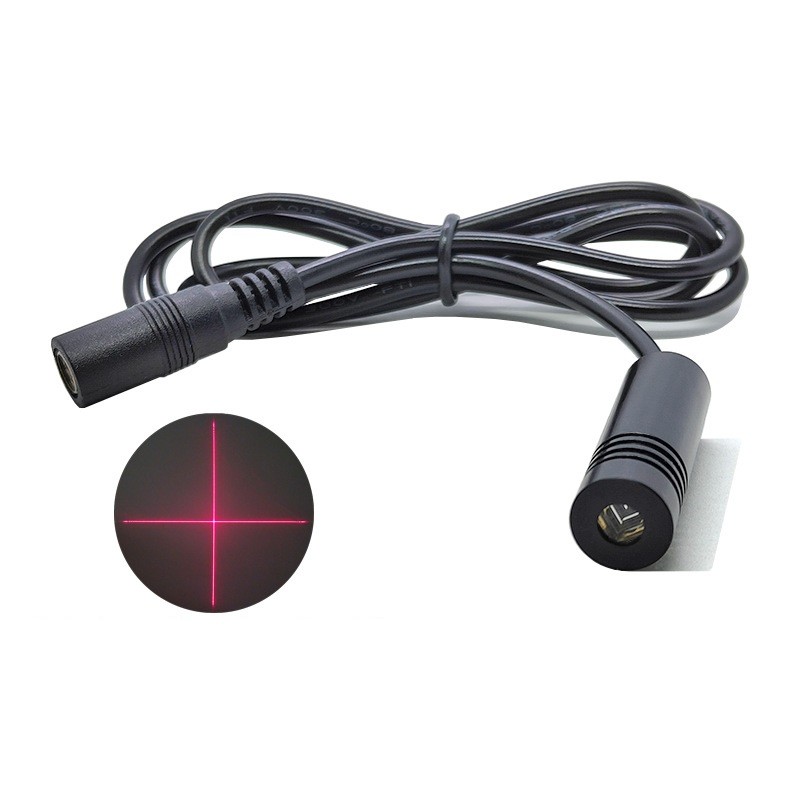

  • Compact Φ12×40mm red cross line laser module with 650nm wavelength and 10mW output, equipped with a focusable cross cylindrical lens (optical glass or PMMA) and built-in APC constant current driver.

    It projects a clear, perpendicular red crosshair for precision alignment and positioning—widely used in sewing machines, woodworking saws, textile cutters, and OEM equipment.

    • Inquiry Send Email

    Description



    650nm10mW cross laser module 12X40mm red laser module head

    Specifications
    • Wavelength: 650nm ±10nm (Visible Red)
    • Output Power: 10mW (Class IIIa)

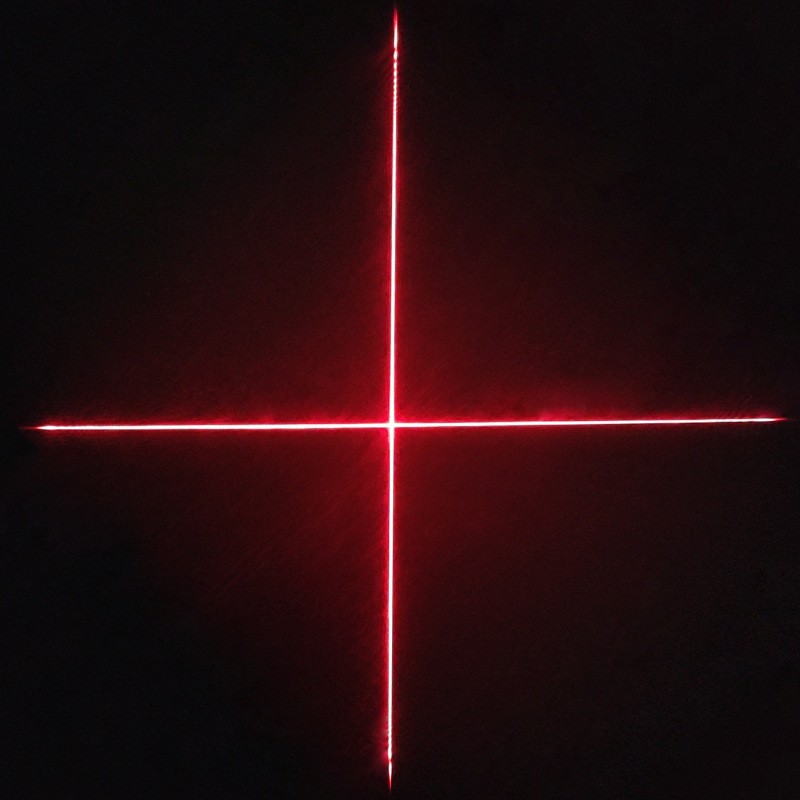

    • Laser Pattern: Cross Line (90° perpendicular crosshair)

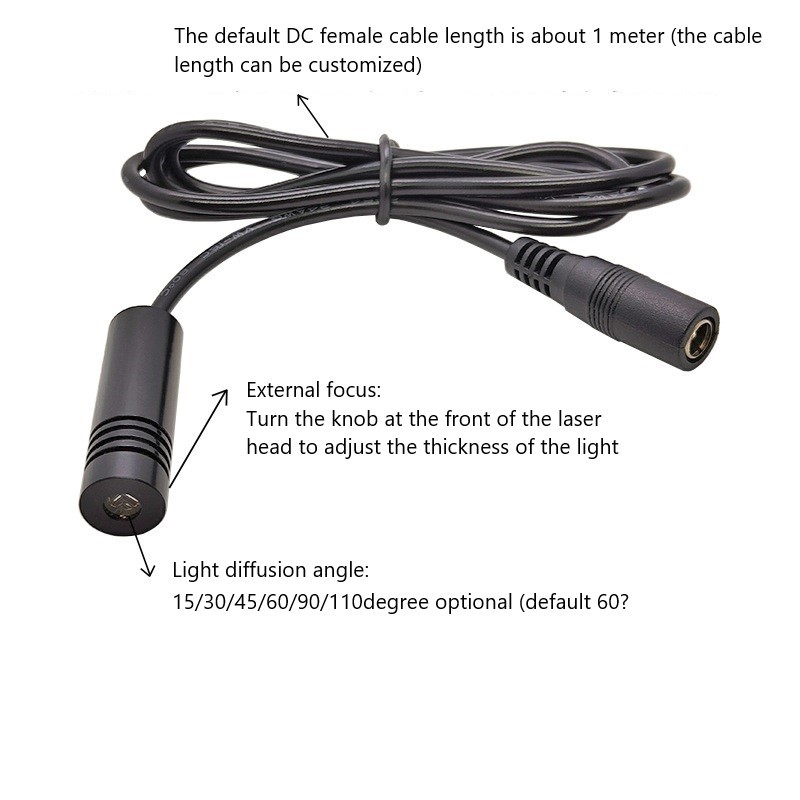

    • Lens: Optical Glass / PMMA Cross Cylindrical Lens (focus adjustable)
    • Operating Voltage: DC 3V–5V (or 12V/24V wide voltage optional)
    • Operating Current: ≤40mA
    • Cross Width: ≤1.0mm @ 1m (adjustable via focus ring)

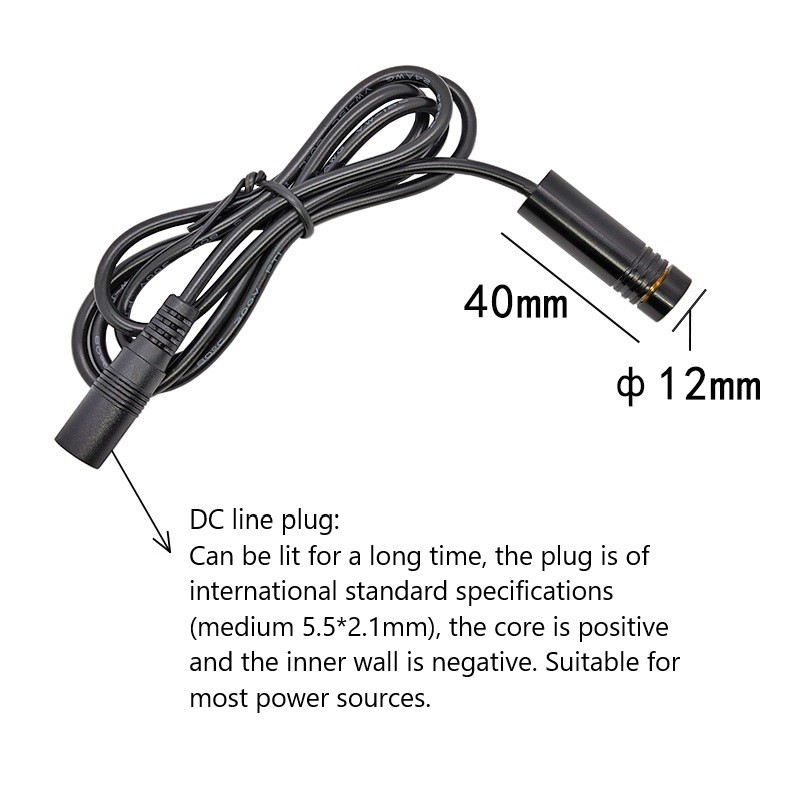

    • Housing: Φ12×40mm Black Anodized Aluminum (shock & ESD protected)
    • Lead Wire: Red/Black 100–150mm (or connector optional)
    • Working Temp.: -10°C to +50°C
    • Lifetime: >8,000 hrs
    Applications
    • Sewing / Embroidery / Textile machine crosshair positioning
    • Woodworking & Stone sawing alignment guides
    • Printing, packaging & SMT PCB board alignment
    • Laser level & layout marking cross reference
    • DIY electronics & machine vision positioning aids
