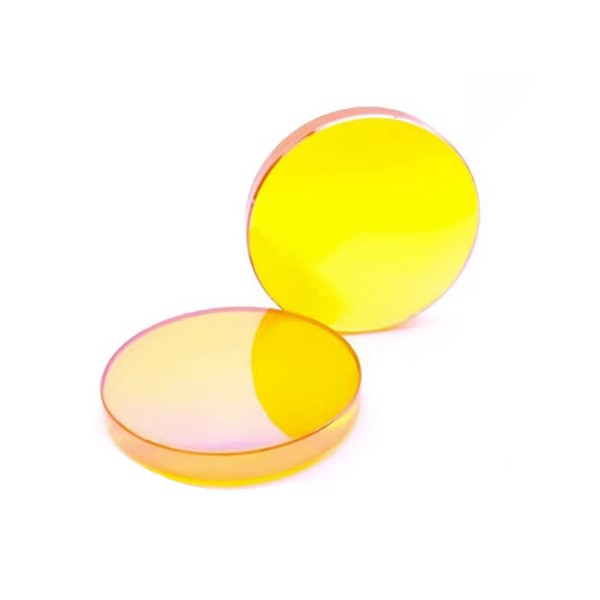

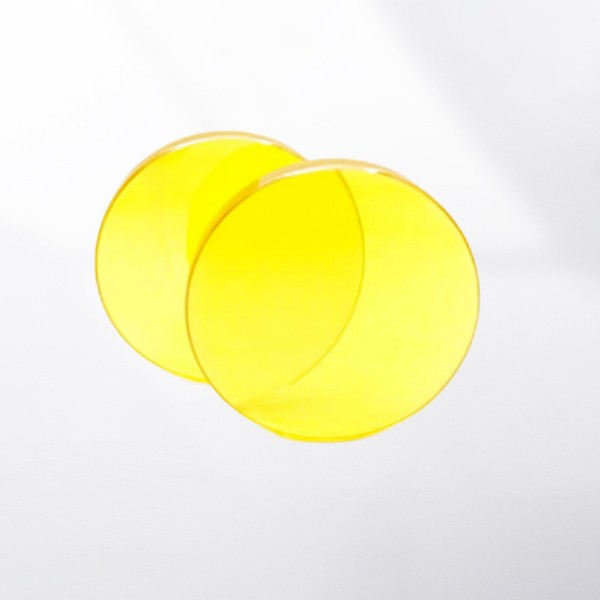

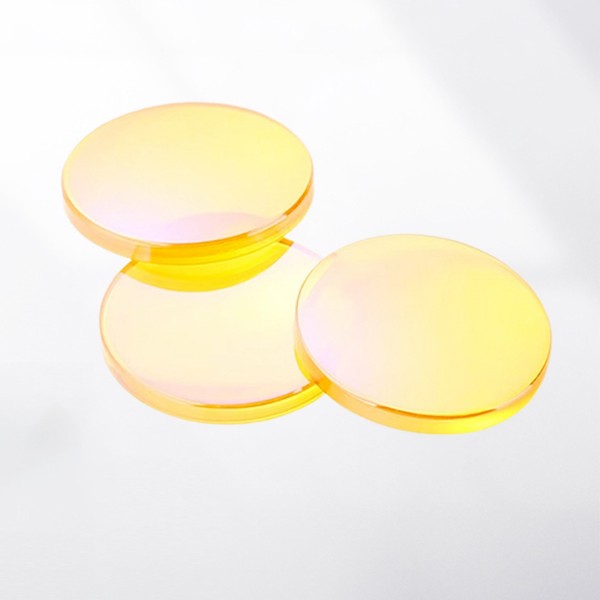

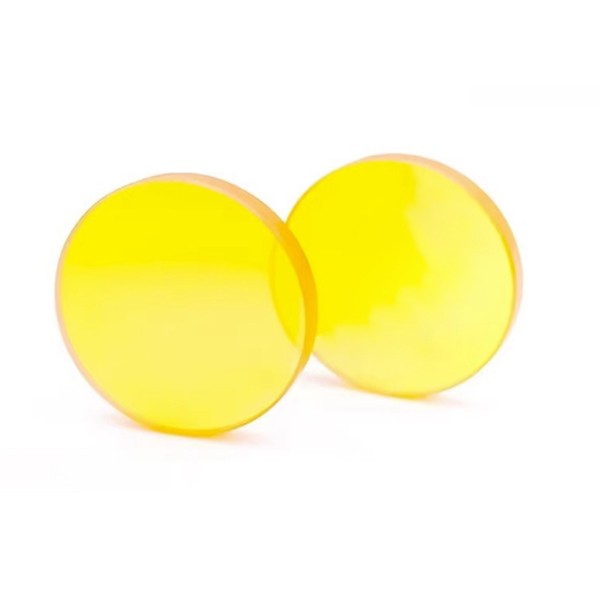

20mm 25mm Beam Combiner ZnSe CO2 Laser Beam Combiner

  • ZnSe Laser Beam Combiner
  • CO2 Laser Beam Combiner 20mm 25mm
  • CO2 Laser Optical Components

  • CO₂ laser beam combiner is a precision ZnSe optical element designed to merge two or more infrared laser beams into a single coaxial output path.

    With transmission exceeding 99% at 10.6µm and a low-reflection AR coating optimized for the 9–11µm band, the combiner minimizes insertion loss while maintaining beam quality (M²) on the combined axis.

    Available in standard 20mm and 25mm diameters, it mounts directly into existing 1-inch or 30mm lens tubes and optomechanical holders without adapter hardware.

    • Inquiry Send Email

    Description

    Specifications:

    • Material: ZnSe (Zinc Selenide)
    • Beam Diameter: 20mm / 25mm (customizable)
    • Wavelength Range: 10.6µm (CO2 laser)
    • Transmission: >98% typical at 10.6µm
    • Coating: AR/HR coatings optimized for CO2 lasers
    • Power Handling: High power compatible (depends on coating and size)
    • Surface Quality: 40-20 scratch-dig (standard)
    • Clear Aperture: ≥90% of diameter
    • Angle: Usually 45° incidence (customizable)

    Applications:

    • CO2 laser beam combining
    • High-power laser systems
    • Material processing (cutting, welding, engraving)
    • Medical laser systems
    • Infrared laser research
    • Optical experiments and labs
    • Multi-laser alignment systems

    Custom Options:

    • Diameter customization (other than 20mm/25mm)
    • Coating type (AR, HR, or dual wavelength)
    • Angle of incidence modification
    • Mounting options for integration
