Description
Visible Broadband Glass Collimating Lens — EFL 15.0mm, BBAR 400–700nm
Our 15.0 mm EFL visible broadband collimator lenses are engineered for 400–700 nm laser diodes requiring reduced beam divergence for medium-to-long range applications.

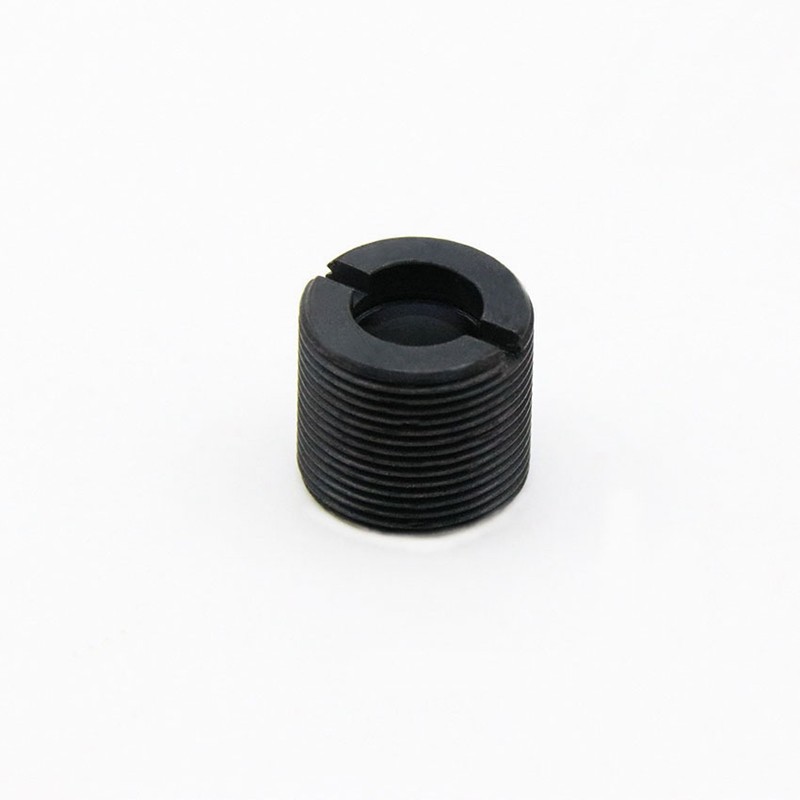

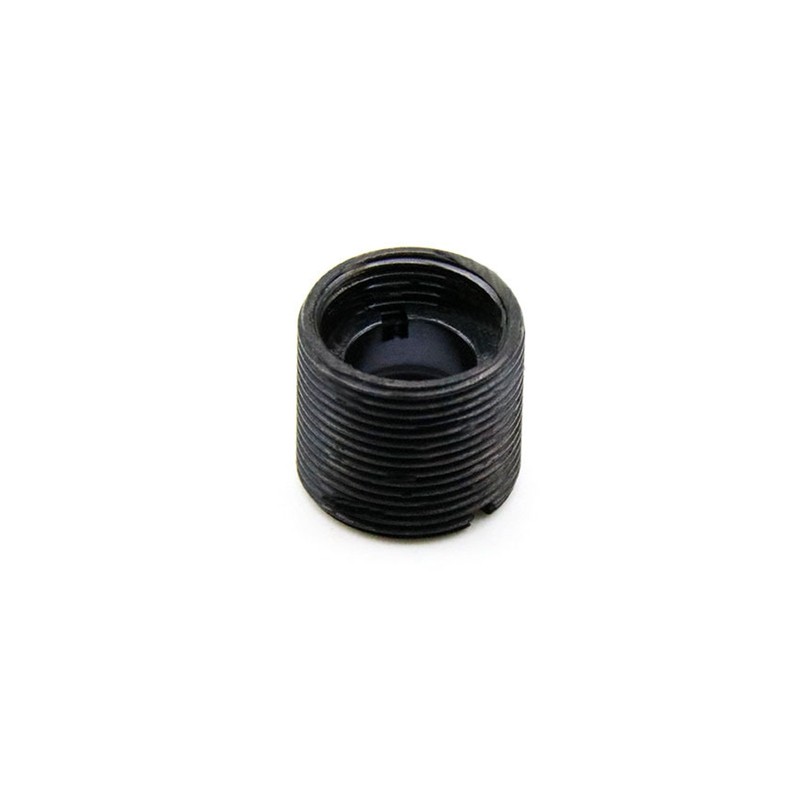

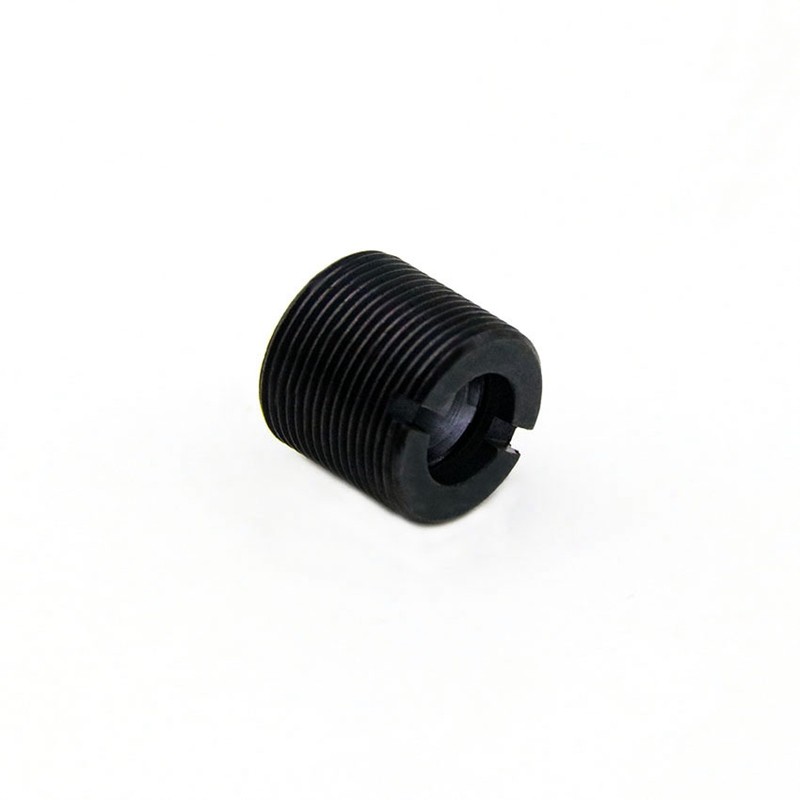

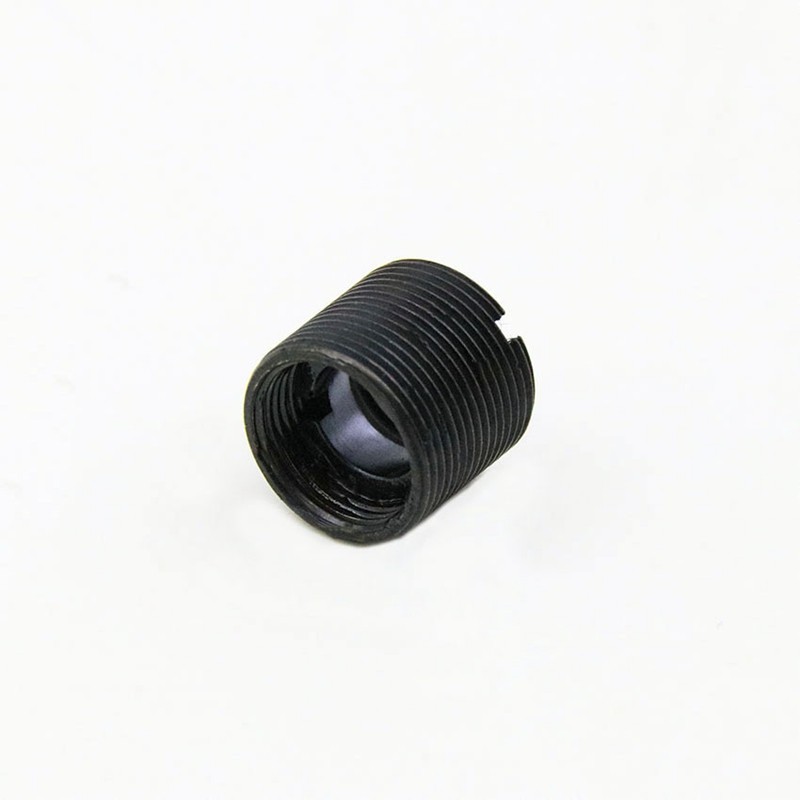

Featuring a precision optical glass aspheric element with >96% average transmission BBAR coating across the full visible spectrum, these lenses are supplied as unmounted singlets or pre-assembled in M9×P0.5 / M10×P0.5 threaded metal barrels with focus-adjustment capability.
Ideal for long-distance pointers, industrial alignment tools, structured light projectors, and OEM VIS LD packaging.
Custom EFL (3.77 / 4.05 / 6.2 / 8.0 / 9.795 / 13.55 mm etc.), element diameters, and narrow-band coatings available on request.

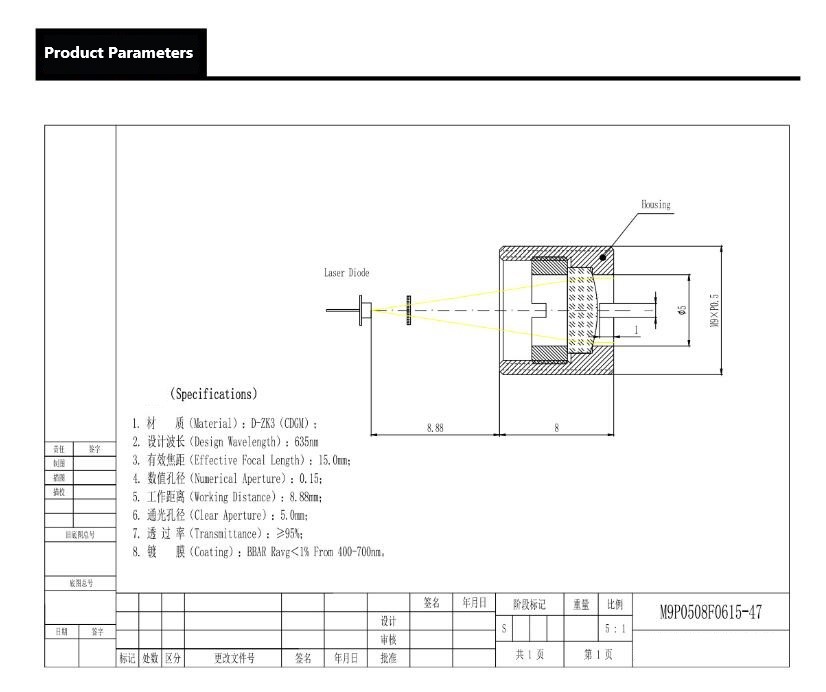

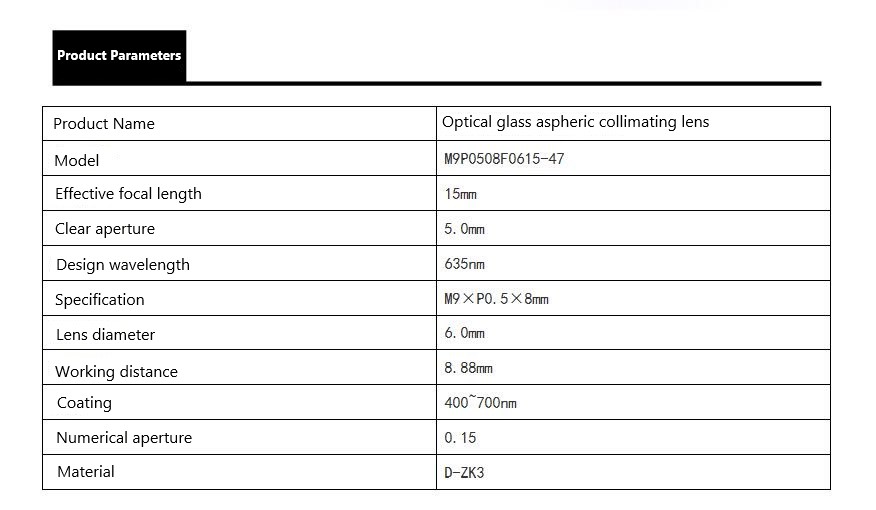

Specifications:
-
Mount Compatibility: Designed for M9×P0.5 / M10×P0.5 threaded collimator barrels (supplied as assembled unit or unmounted lens on request)
-
Effective Focal Length (EFL): 15.0 mm (±2% tolerance)
-
Design Wavelength Band: 400–700 nm (VIS broadband; compatible with 405–650 nm LD)
-
Lens Element: Molded optical glass aspheric (N-BK7 / L-BAL35 / D-ZK3) or AR-coated plano-convex singlet
-
Element Diameter: Ø6.0 mm typical (options: Ø5.0 / Ø6.33 / Ø7.0 mm)
-
Clear Aperture (CA): ≥ 85% of element diameter (≈ Ø5.1 mm for Ø6.0 mm)
-
Numerical Aperture (NA): 0.18 – 0.26 (matches typical 5.6 mm / 9 mm TO-can visible LD)
-
Working Distance (WD): ≈ 12.5 – 13.5 mm (adjustable in threaded barrel)
-
Coating: BBAR @ 400–700 nm (Ravg < 0.75–1.0% per surface; Rs < 0.5% in peak sub-bands); narrow-band V-coating optional
-
Housing (if assembled): Nickel-plated brass or black-anodized aluminum, M9×P0.5 or M10×P0.5
-
Transmission: ≥ 96% avg. over 400–700 nm
-
Surface Quality: 60-40 / 40-20 Scratch-Dig
For Collimating lens, the focal length we have 3.77mm,4.02mm, 4.39mm,6mm,6.2mm ,6.5mm,8mm, 8.3mm, 9.8mm, 10mm,11.2mm and 12mm.
Check the stock lenses in the following files.
