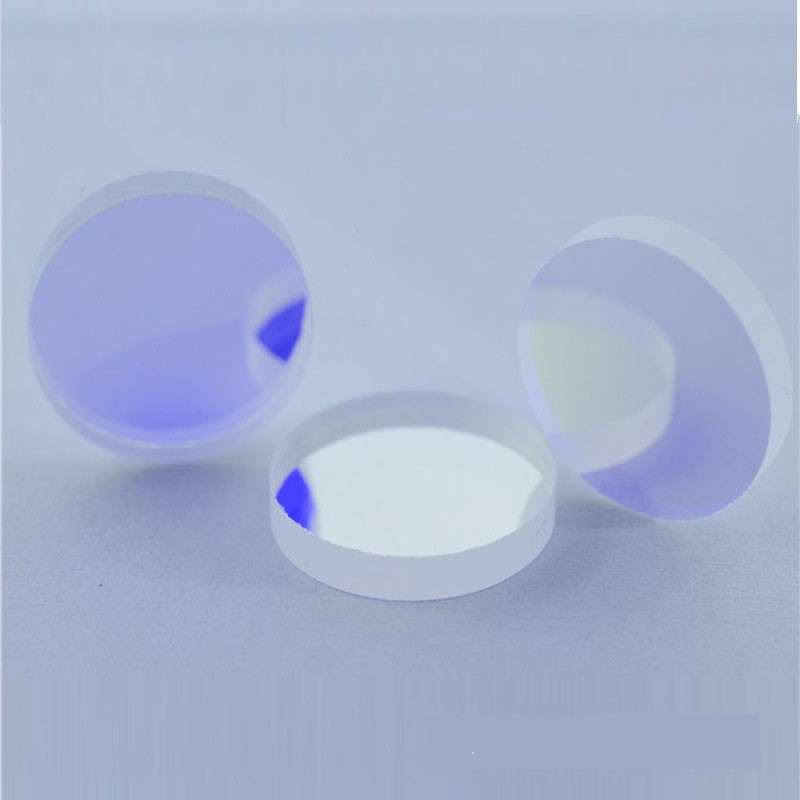

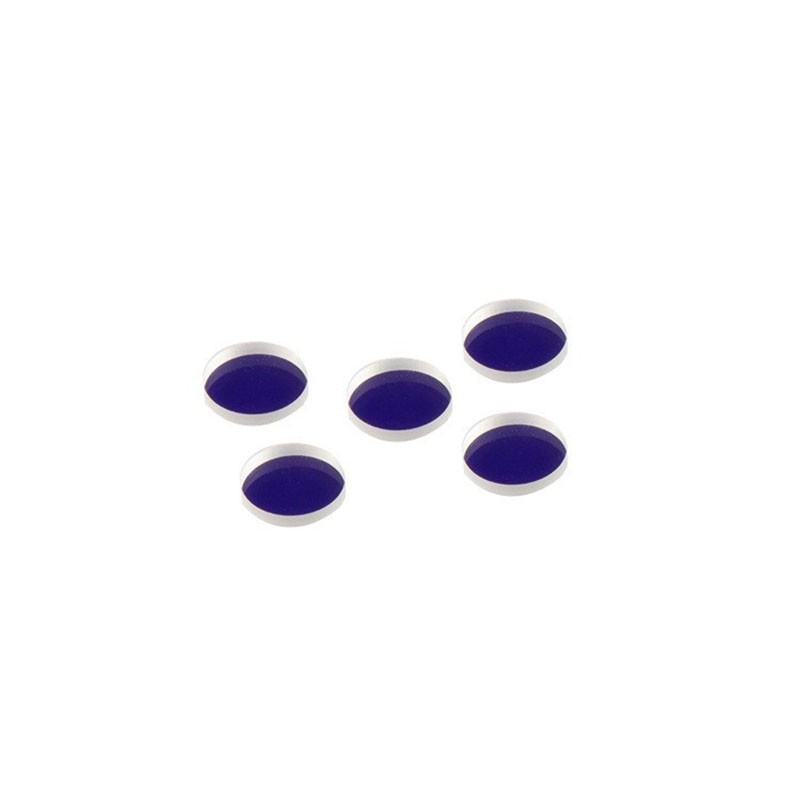

473nm Filter Mirror Dichroic Glass Filter narrow band optical filter

473nm Filter Mirror Dichroic Glass Filter narrow band optical filter

glass optical filter

custom optical filter

factory offer optical filter

473nm optical filter

Precision optical filter family centered at 473 nm (deep blue / DPSS laser line), available in three configurations: narrow bandpass filter (transmit 473 nm, block others), notch dichroic mirror (reflect 473 nm, transmit others), and cold mirror (short wave pass — reflect visible, transmit IR).

Fabricated on UV-grade fused silica or N-BK7 substrate with hard dielectric multilayer coating via ion-assisted deposition. Ideal for 473 nm DPSS laser purification, fluorescence microscopy (GFP / FITC alternative), Raman spectroscopy, flow cytometry, and laser-based display systems.

Fully customizable in diameter, thickness, and mounting configuration.

Description

473nm Filter Mirror Dichroic Glass Filter narrow band optical filter

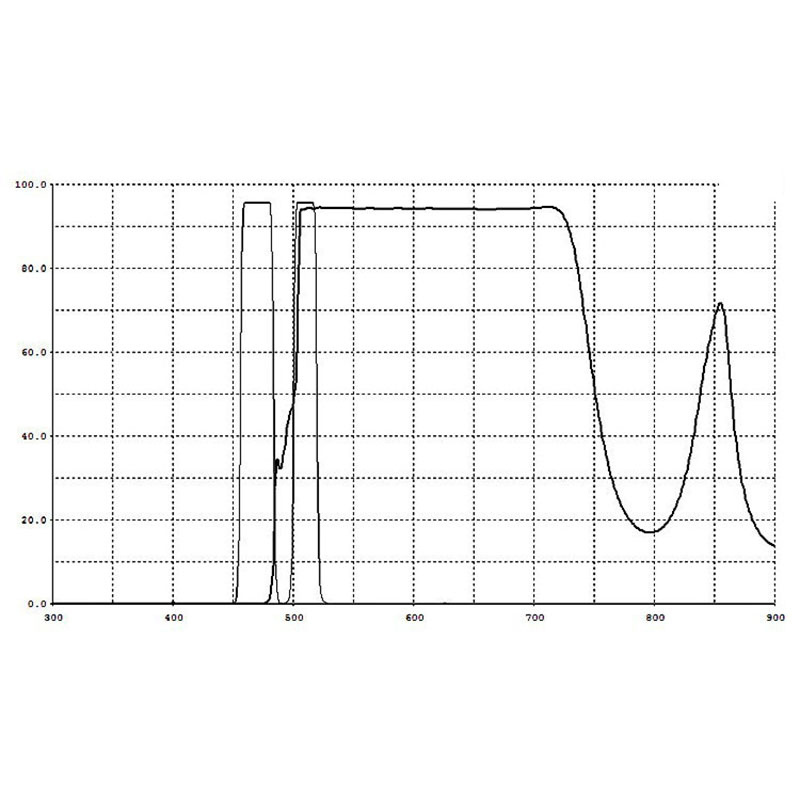

Specifications (Bandpass Version)

Center Wavelength (CWL): 473 nm ± 2 nm (470 / 475 nm on request)

Half Bandwidth (FWHM): 1.5 nm / 3 nm / 5 nm / 10 nm / 20 nm / 27 nm (custom)

Peak Transmittance (Tpeak): ≥ 85%–93% (narrower FWHM = lower T; ≥ 58% @ 1.5 nm FWHM)

Blocking Range: 200–1200 nm (or specified sub-ranges)

Blocking Level (Cut-off Depth): ≥ OD6–OD7 (0.0001%–0.00001%) standard

Substrate Material: UV Fused Silica (JGS1) / N-BK7 (K9)

Substrate Diameter: 10 mm – 100 mm (common Ø12.7 / Ø25.4 / Ø50 mm)

Substrate Thickness: 1.0 / 2.0 / 3.0 mm

Surface Quality: 60-40 / 40-20 Scratch-Dig

Surface Flatness: λ/4 or λ/10 @ 632.8 nm

Parallelism: ≤ 1 arcmin (standard); ≤ 10 arcsec (precision)

Incidence Angle: 0° ± 5° (bandpass); 45° ± 2° (dichroic)

Coating Durability: Meets MIL-C-675C (humidity, adhesion, wipe resistance)

Edge Treatment: Ground / beveled; optional edge blackening

Factory custom optical filter,can cutom as your required,

please contact our sales manager
