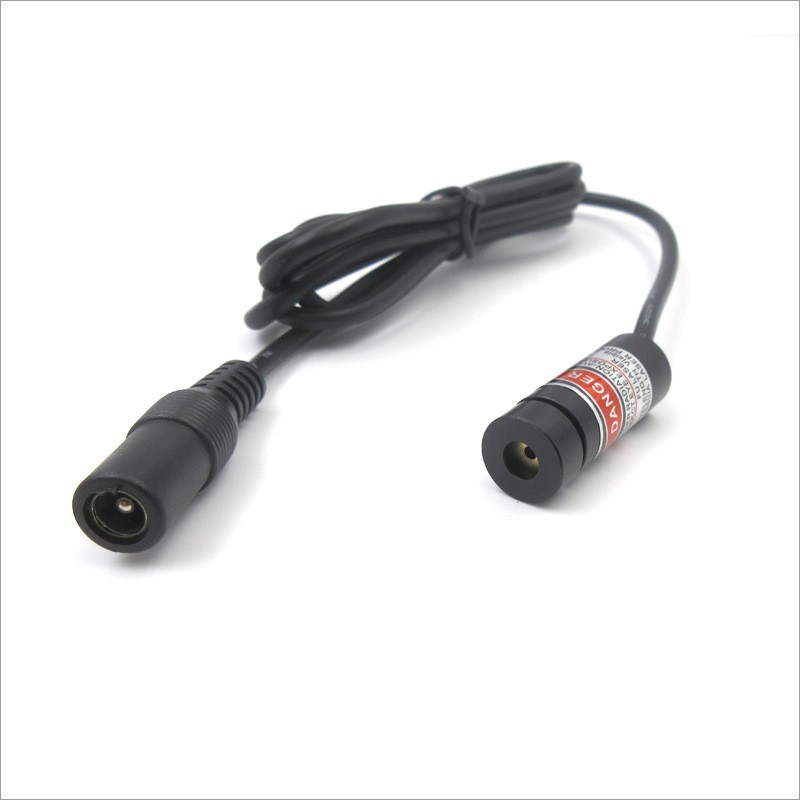

Seiko-grade 12mm diameter 32mm length 650nm red light laser module

Seiko-grade 12mm diameter 32mm length 650nm red light laser module

650nm laser module

12mm laser module

custom 650nm laser module pointer

Seiko-grade (precision industrial) Φ12×32mm red dot laser module with 650nm wavelength, available in low to medium power (1mW–5mW typical; up to 30mW on request).

Built with a Japan-spec laser diode, multi-coated glass collimating lens, and high-stability APC constant current driver in a tightly tolerance Ø12mm brass/aluminum cylindrical housing.

The compact 32mm body is designed for seamless panel-mount or OEM integration into measuring instruments, alignment devices, and precision equipment requiring a reliable, long-life red reference dot.

Description

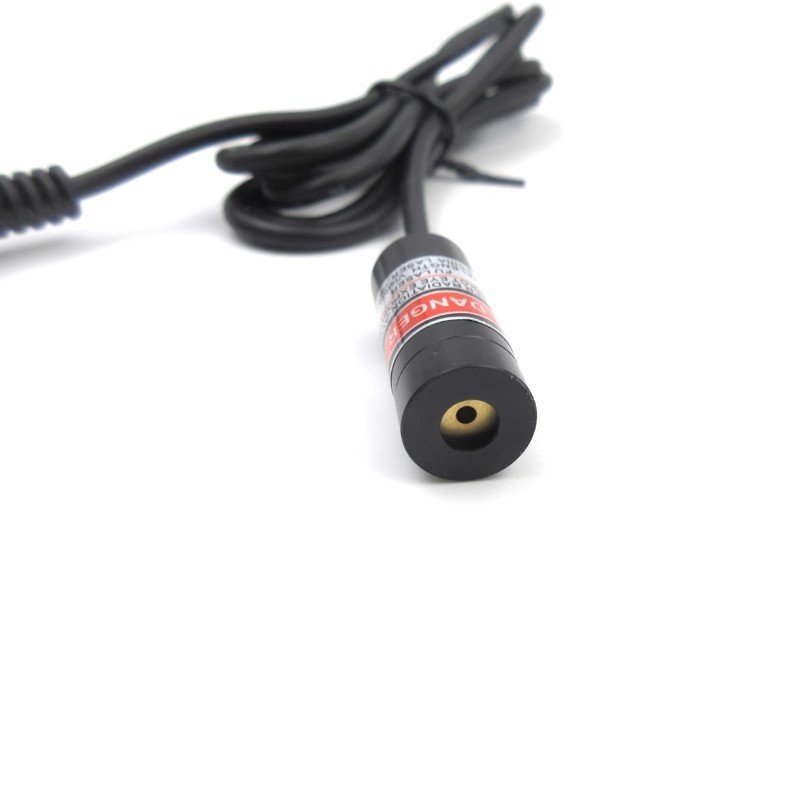

Seiko-grade 12mm diameter 32mm length 650nm externally adjustable red light point laser lamp

Specifications

Wavelength: 650nm ±5nm / ±10nm (Visible Red)
Output Power: 1mW / 3mW / 5mW (Class II/IIIa); 10mW–30mW optional
Beam Pattern: Dot (Spot) — Line / Cross optional on request
Lens: Multi-coated Optical Glass Collimating Lens (focus adjustable or factory pre-focused)
Operating Voltage: DC 3V / 5V (typical); 12V version with driver optional
Operating Current: <40mA (5mW version)
Spot Size: ≤1.0mm @ 1m (adjustable)
Beam Divergence: <1.0 mrad
Housing: Φ12×32mm (Dia.12mm × Length 32mm) Black Anodized Brass or Aluminum, precision machined (panel-mount threads optional)
Lead Wire: Red(+)/Black(−) 100mm or JST connector (customizable)
Working Temp.: -10°C to +50°C
Storage Temp.: -40°C to +80°C
Lifetime: >10,000 hrs
Custom Options: Power, focus-lock, anti-reverse/polarity protection, wire length, connector type, waterproof potting (IP65)

Applications

Precision industrial alignment & positioning
Measuring instruments & spirit level indicators
Laser level & layout marking equipment
SMT PCB board alignment & optical experiment reference
Medical/analytical instrument indicator dot
OEM integration in compact machinery & detection devices

Detailed Images

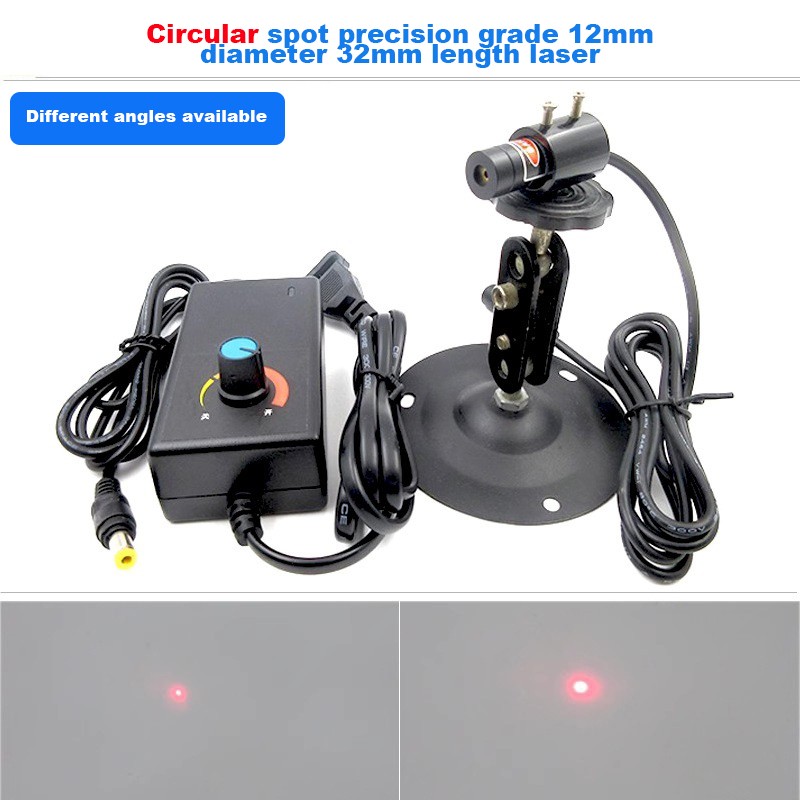

Circular spot precision grade 12mm diameter 32mm length 650nm 0.4mw externally modulated red light spot laser (model FU650AD0.4-JGJ1232) (The complete set includes: laser + bracket + 1-3V adjustable power supply) Working voltage: DC 2.8-5.2 (V) can be customized Working current: ≤20mA Spot size at the light outlet: 1.8mm Spot size at 1 meter: 1.8mm Spot size at 3 meters: 2mm Spot size at 5 meters: 2.5mm -------------------------------------------------- -------------------------------------------------- - Circular spot precision grade 12mm diameter 32mm length 650nm 5mw externally modulated red light spot laser (model FU650AD5-JGJ1232) (The complete set includes: laser + bracket + 1-3V adjustable power supply) Working voltage: DC 2.8-5.2 (V) can be customized Working current: ≤35mA Spot size at the light outlet: 1.8mm Spot size at 3 meters: 2mm Spot size at 5 meters: 2.5mm Spot size at 10 meters: 5mm -------------------------------------------------- -------------------------------------------------- - Circular spot precision grade 12mm diameter 32mm length 635nm 5mw externally modulated red light spot laser (model FU635AD5-JGJ1232) (The complete set includes: laser + bracket + 1-3V adjustable power supply) Working voltage: DC 2.8-5.2 (V) can be customized Working current: ≤50mA Spot size at the light outlet: 1.8mm Spot size at 5 meters: 2.5mm Spot size at 10 meters: 5mm Spot size at 20 meters: 15mm -------------------------------------------------- -------------------------------------------------- - Circular spot precision grade 12mm diameter 32mm length 650nm 30mw externally modulated red light spot laser (model FU650AD30-JGJ1232) (The complete set includes: laser + bracket + 1-3V adjustable power supply) Working voltage: DC 2.8-5.2 (V) can be customized Working current: ≤80mA Spot size at the light outlet: 1.8mm Spot size at 10 meters: 5mm Spot size at 20 meters: 15mm Spot size at 30 meters: 20mm -------------------------------------------------- -------------------------------------------------- - Circular spot precision grade 12mm diameter 32mm length 650nm 50mw externally modulated red light spot laser (model FU650AD50-JGJ1232) (The complete set includes: laser + bracket + 1-3V adjustable power supply) Working voltage: DC 2.8-5.2 (V) can be customized Working current: ≤120mA Spot size at the light outlet: 1.8mm Spot size at 10 meters: 5mm Spot size at 30 meters: 20mm Spot size at 50 meters: 30mm -------------------------------------------------- -------------------------------------------------- - Circular spot precision grade 12mm diameter 32mm length 650nm 100mw externally modulated red light spot laser (model FU650AD100-JGJ1232) (The complete set includes: laser + bracket + 1-3V adjustable power supply) Working voltage: DC 2.8-5.2 (V) can be customized Working current: ≤150mA Spot size at the light outlet: 1.8mm Spot size at 10 meters: 5mm Spot size at 50 meters: 30mm Spot size at 100 meters: 60mm -------------------------------------------------- -------------------------------------------------- - Circular spot precision grade 12mm diameter 32mm length 650nm 200mw externally modulated red light spot laser (model FU650AD200-JGJ1232) (The complete set includes: laser + bracket + 1-3V adjustable power supply) Working voltage: DC 2.8-3.2 (V) can be customized Working current: ≤260mA Spot size at the light outlet: 1.8mm Spot size at 10 meters: 5mm Spot size at 100 meters: 60mm Spot size at 200 meters: 120mm -------------------------------------------------- -------------------------------------------------- - Other parameters: Wavelength: 650nm red light/635nm red light (can be customized) Power: 0.4-200mw (optional) Overall dimensions: 12*32mm (can be customized) Spot mode: dot shape (can be made into a line or cross line effect) Optical lens: collimated point focusing lens advantage: ◆ Precision-grade product, the irradiated dots have less stray light, less halo, and good light shape; ◆ The size of the red dot is adjustable from 0.4 mm to several centimeters to meet your different usage requirements; ◆ The 635nm/650nm wavelength laser is pure red, clear and bright, soft and non-glaring; ◆ Brand new imported tube core, Taiwan lens, can be turned on 24 hours a day; ◆ Intelligent driver board with imported IC can supply power in a wide range, other voltages can be customized; ◆ The interior is filled with heat-dissipating silica gel and AB glue, which can not only fully dissipate heat, but also be shock-proof and anti-fall; ◆ The shell is made of aviation aluminum with insulating paint, which can not only fully dissipate heat, but also be shock-proof, drop-proof and anti-static; ◆ High temperature resistant and corrosion resistant wires, suitable for use in all weather and all environments; ◆ Wavelength, power, wire length, working distance, spot effect, etc. can all be customized according to customer requirements. Whatever you want is available here!
