10X30mm 1064nm red laser module Customized 5mW dot laser module

10X30mm 1064nm red laser module Customized 5mW dot laser module

1064nm red laser module

1064nm 5mw laser module

10X30mm 1064nm red laser module

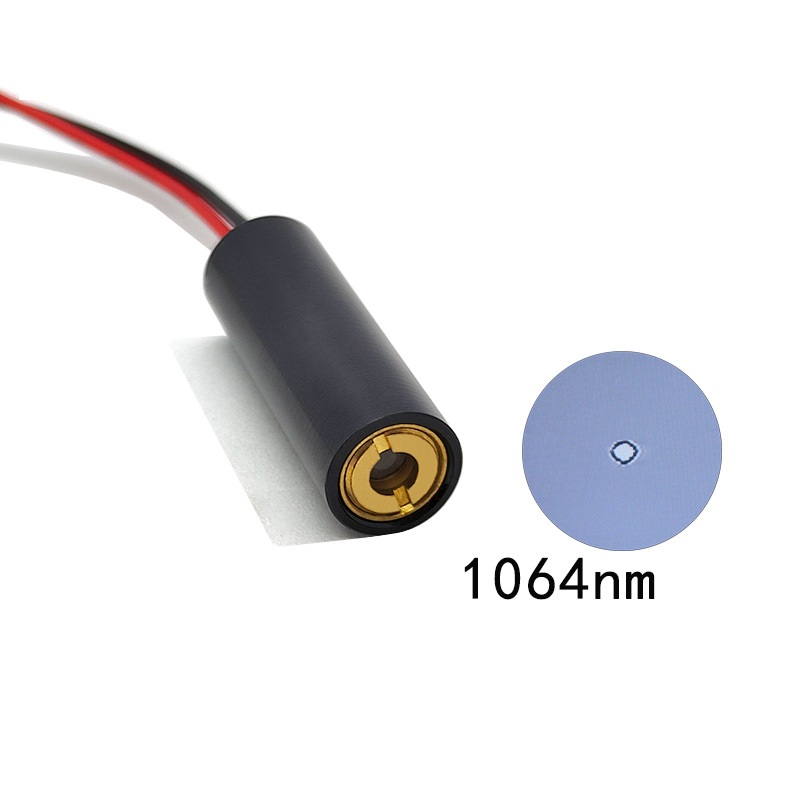

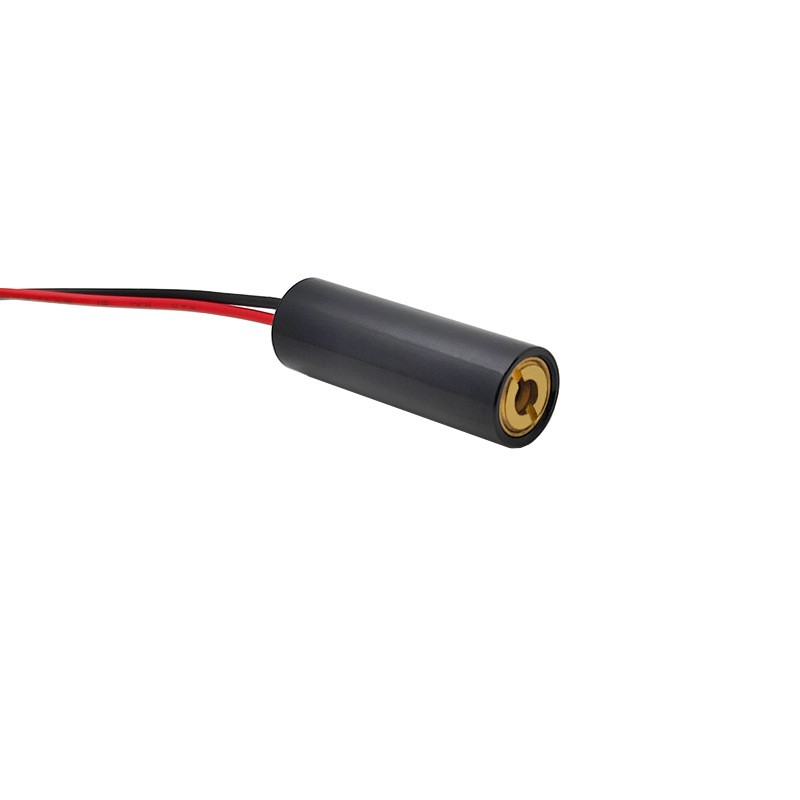

Miniature Φ10×30mm near-infrared (IR) dot laser module with 1064nm wavelength and ≤5mW output, featuring an adjustable focus collimating lens and built-in constant current driver.

The 1064nm IR beam is invisible to the naked eye—designed for optical lab testing, alignment referencing, Raman/fluorescence system auxiliary alignment, and customized OEM instrumentation requiring a compact invisible point source.

Description

10X30mm 1064nm red laser module Customized 5mW dot laser module

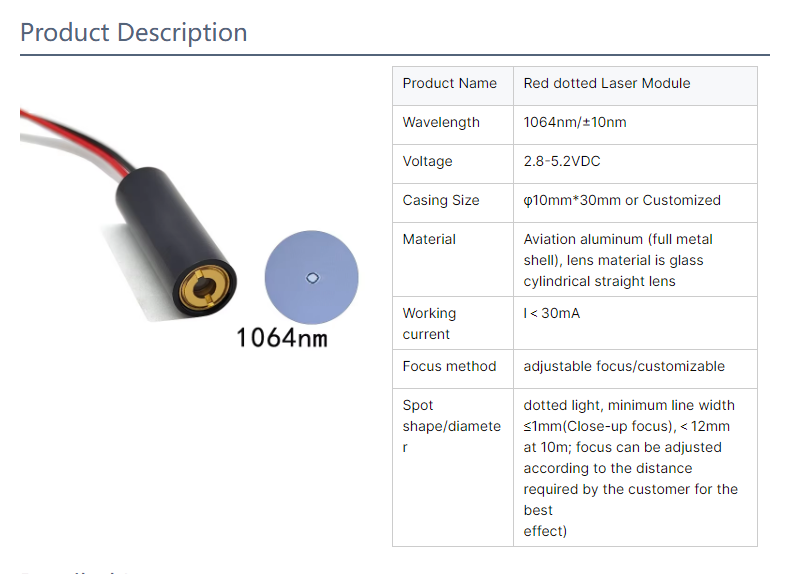

Specifications

Wavelength: 1064nm ±10nm (Near-Infrared / Invisible)
Output Power: ≤5mW (CW, Class 3R)
Beam Pattern: Dot (Spot), focus adjustable via front cap
Lens: Coated Glass or PMMA Collimating Lens (user focusable)
Operating Voltage: DC 2.8V–5V (typical 3V / 5V)
Operating Current: <30mA
Spot Size: Adjustable (collimated dot, e.g. ≤1mm @ 1m)

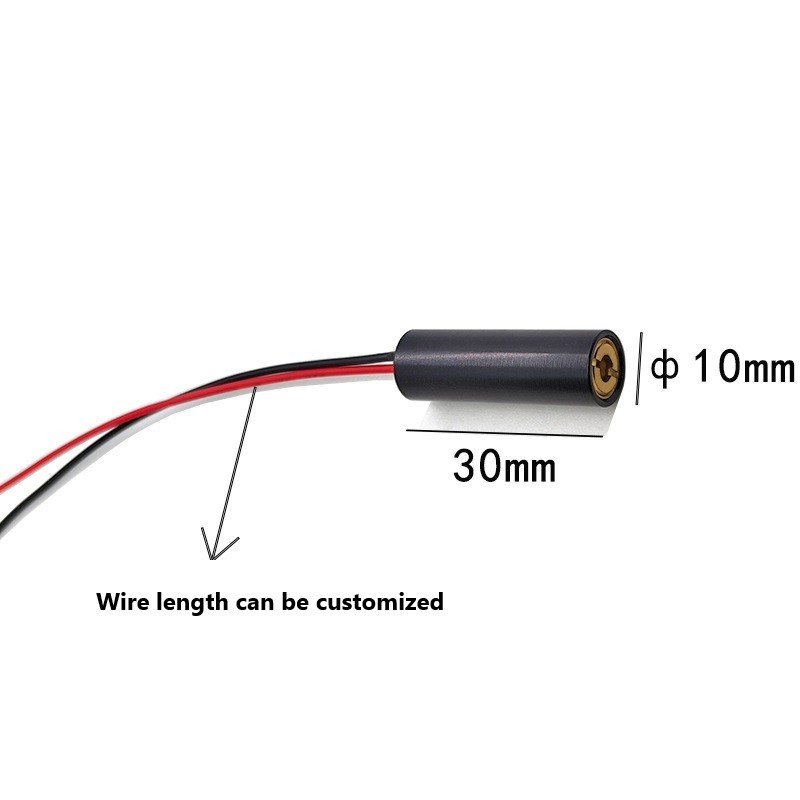

Housing: Φ10×30mm Black Anodized Brass/Aluminum (ESD protected)
Lead Wire: Red(+)/Black(−) 100–150mm or JST connector (customizable)
Working Temp.: -10°C to +50°C
Storage Temp.: -40°C to +80°C
Lifetime: >10,000 hrs
Custom Options: Voltage (3V/5V/12V), lead length, connector type, focus lock, potting for dust/water resistance
