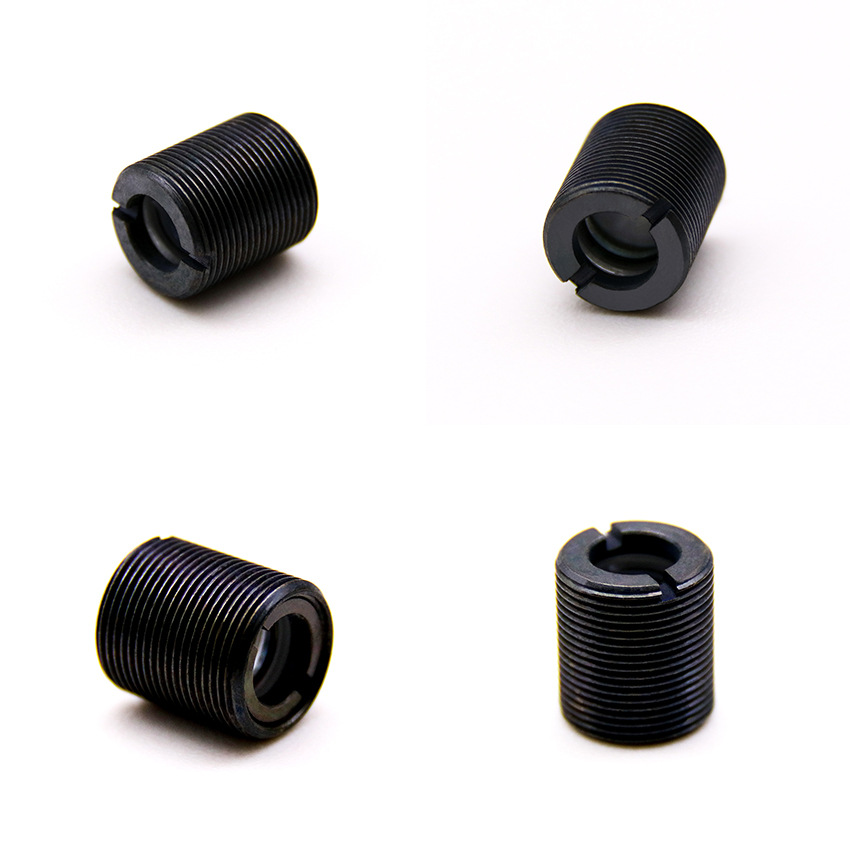

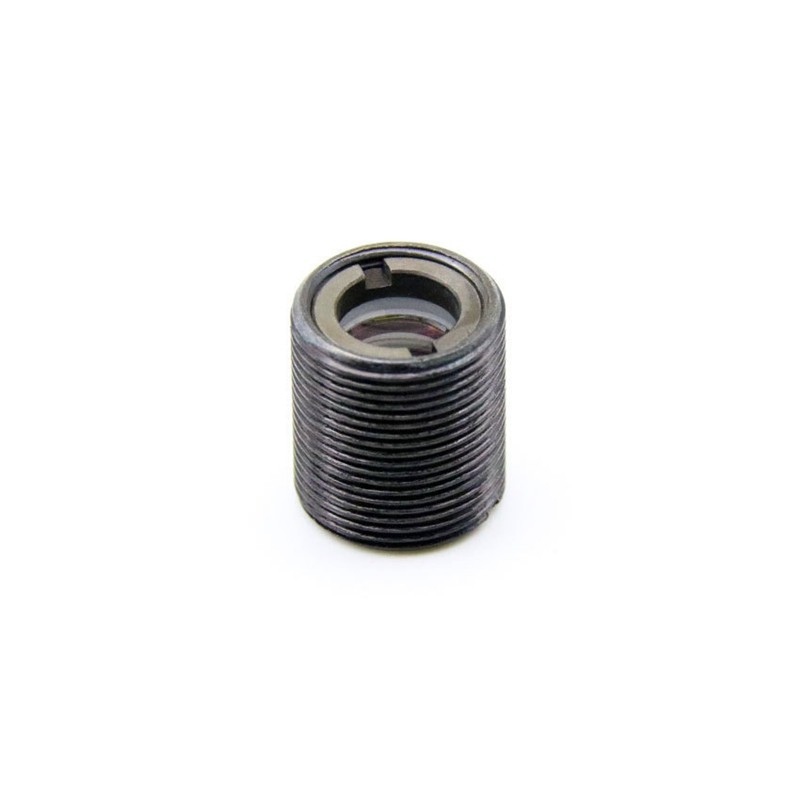

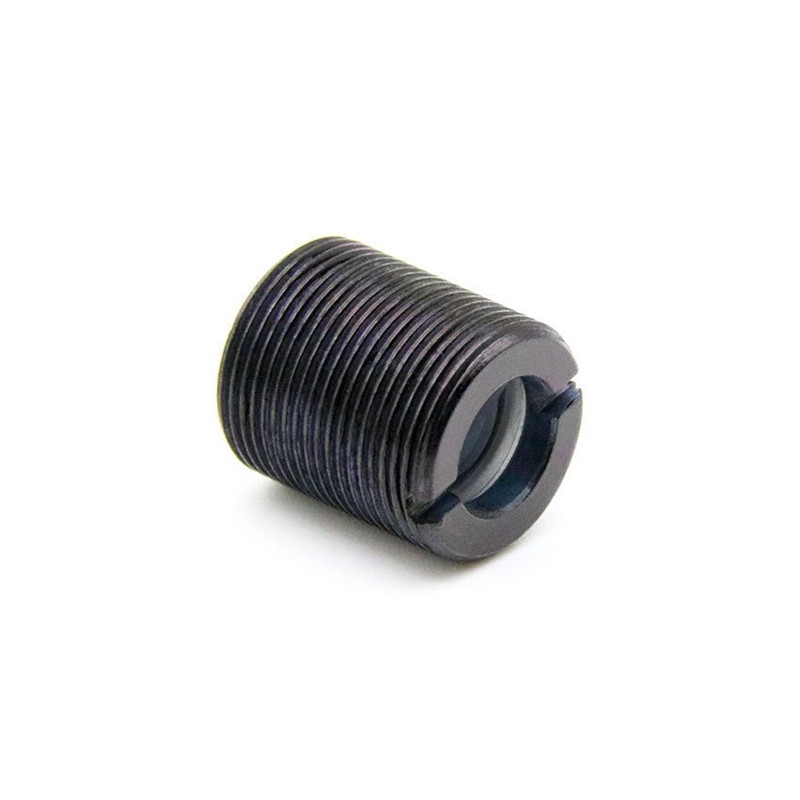

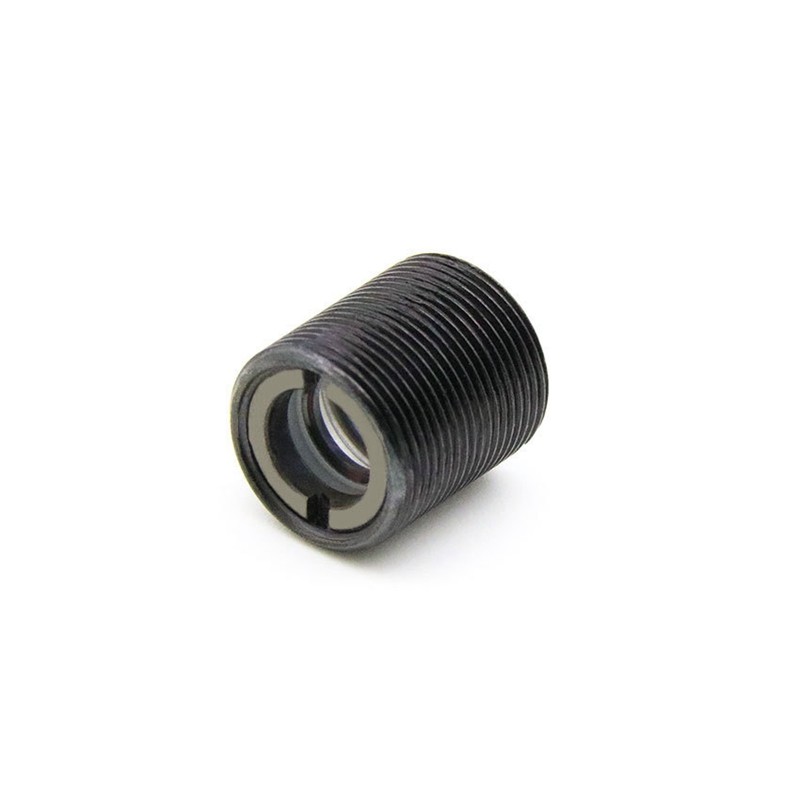

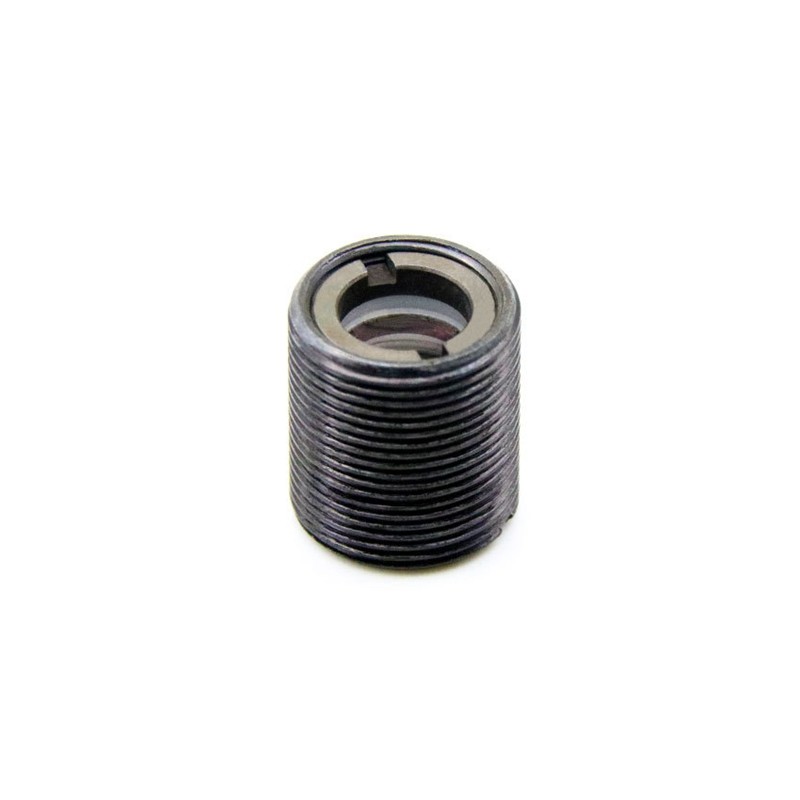

M9×P0.5 NIR Collimating Lens for 850nm Laser Diodes — EFL 13.554mm
Our M9-threaded NIR collimator lenses with 13.554 mm effective focal length are engineered for 830–870 nm laser diodes, specifically optimized at 850 nm.
Featuring a precision glass aspheric element with >97% transmission BBAR coating at 850 nm and a fine-thread M9×0.5 metal housing for in-situ focus adjustment, these compact assemblies deliver low-divergence collimated beams for LIDAR transmitters, IR illuminators, and OEM NIR LD packaging.
Custom EFL (8.0 / 18.0 / 24.0 mm etc.), threads (M6/M10/M12), and coating bands (905 nm / 940 nm / 1064 nm) available on request.
Specifications:
-
Mount / Thread: M9 × P0.5 (fine pitch), full or half thread; overall length ≈ 10 mm
-
Effective Focal Length (EFL): 13.554 mm (±2% tolerance)
-
Design Wavelength: 830–870 nm (optimized @ 850 nm)
-
Lens Element: Molded glass aspheric or AR-coated N-BK7 / Fused Silica plano-convex
-
Clear Aperture (CA): Ø5.5 – Ø6.5 mm (typical Ø6.0 mm)
-
Numerical Aperture (NA): 0.22 – 0.32 (matches typical 5.6 mm / 9 mm TO-can NIR LD)
-
Working Distance (WD): ≈ 11.0 – 12.2 mm (adjustable by thread depth)
-
Coating: BBAR @ 830–870 nm (Ravg < 0.5% per surface; Rs < 0.3% @ 850 nm)
-
Housing Material: Nickel-plated brass or black-anodized aluminum
-
Transmission: ≥ 97% @ design wavelength
-
Surface Quality: 60-40 / 40-20 Scratch-Dig
-
Recommended LD: 5.6 mm / 9 mm TO-can NIR LD (850 nm), typical multimode emitter
