Description

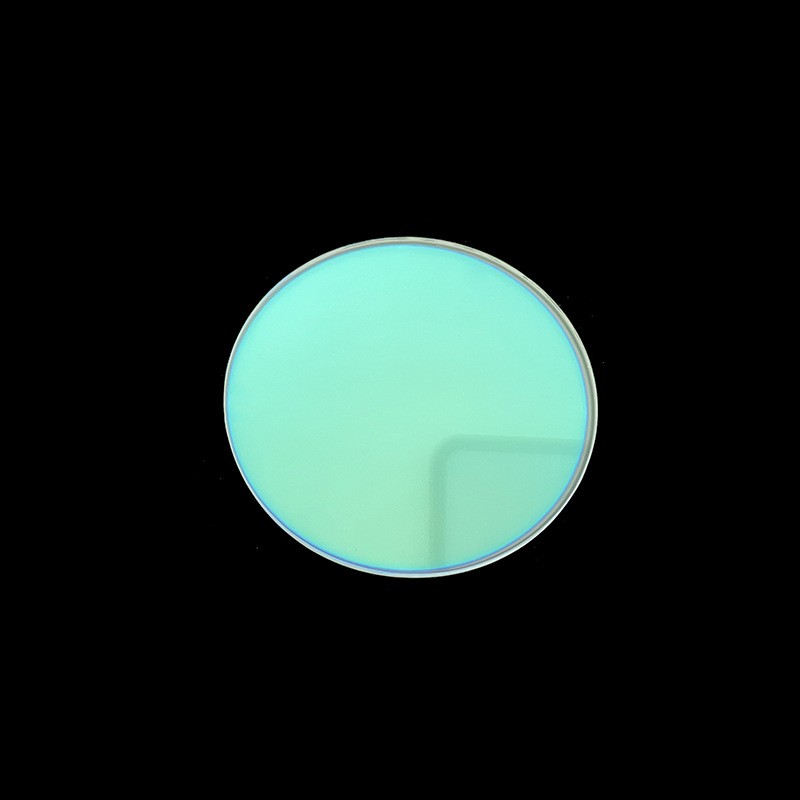

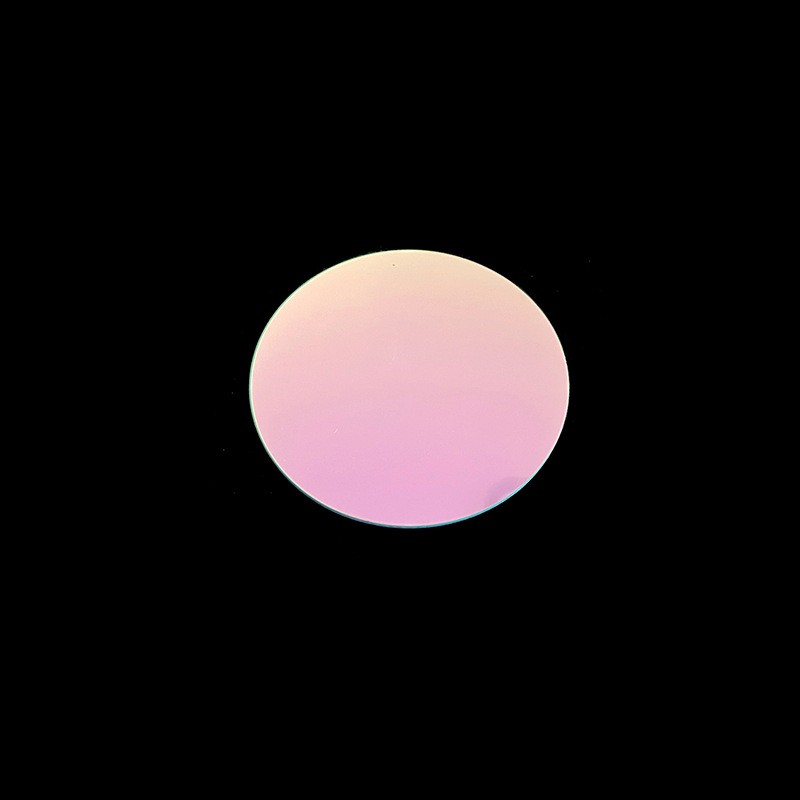

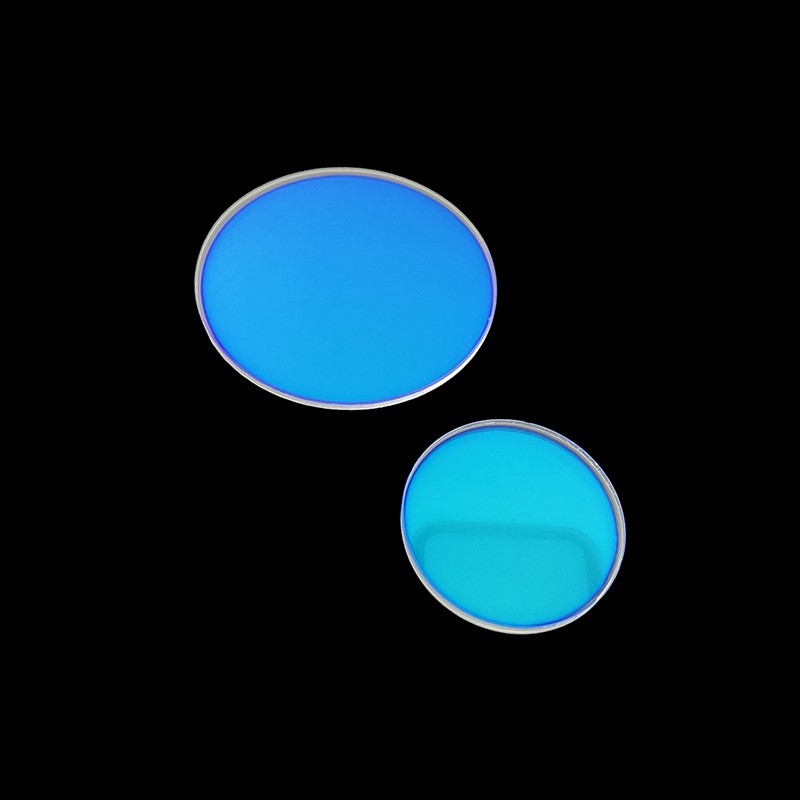

390nm excitation filter for biomedical fluorescence testing custom optical filter
Specifications
-
Center Wavelength (CWL): 390 nm ± 2 nm (385 / 395 / 400 nm on request)
-
Half Bandwidth (FWHM): 10 nm / 15 nm / 20 nm / 30 nm (custom 5–50 nm)
-
Peak Transmittance (Tpeak): ≥ 35%–55% (all-dielectric on FS; >60% possible with optimized design)
-
Blocking Range: 200–1100 nm (or 300–700 nm + 750–1100 nm split blocking)
-
Blocking Level (Cut-off Depth): ≥ OD4 (0.01%) standard; OD5–OD6 optional
-
Substrate Material: UV Fused Silica (JGS1 — essential for <400 nm transmission) / UV-grade N-BK7 (on request)
-
Substrate Form: Plano-Plano Filter Window / Plano-Convex Lens with filter on flat side / Aspheric Lens + Filter Coating / Dichroic Set component
-
Substrate Diameter: 10 mm – 150 mm (common Ø12.7 / Ø25.4 / Ø50 mm)
-
Substrate Thickness: 1.0 / 2.0 / 3.0 mm (windows); per lens design if integrated
-
Surface Quality: 60-40 / 40-20 Scratch-Dig
-
Surface Flatness (Window): λ/4 @ 632.8 nm
-
Parallelism: ≤ 1 arcmin (standard); ≤ 10 arcsec (precision)
-
Incidence Angle: 0° ± 5° (AOI-tuned design on request; dichroic version @ 45°)
