12X50mm 532nm 10mW green line laser module 532NM laser head

  • 532nm 10mW green laser module
  • 532nm laser module
  • custom green dot laser module
  • 12*50mm laser module head

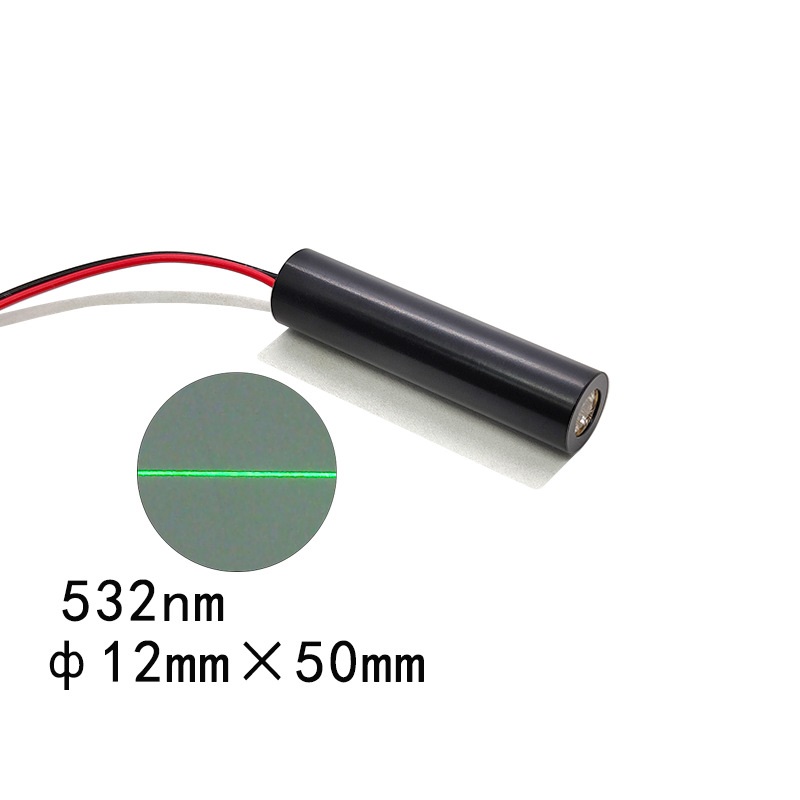

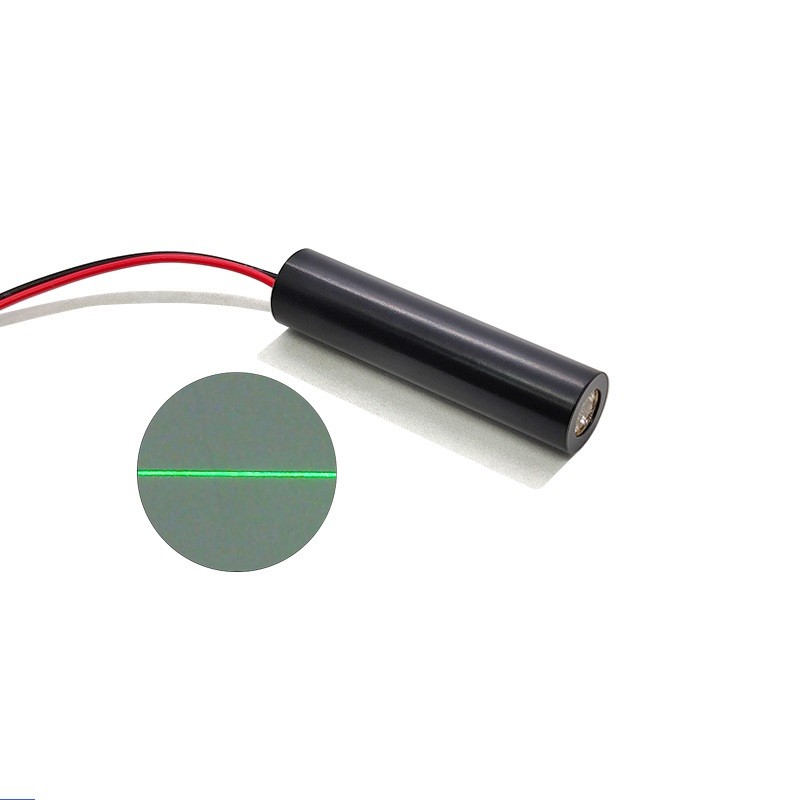

  • Compact Φ12×50mm green DPSS line laser module with 532nm wavelength and 10mW output, built with Nd:YVO₄+KTP crystal, APC constant current driver, and a focusable cylindrical glass lens.

    The 532nm green line is the most visible wavelength to the human eye—brighter than equivalent red lasers—making it ideal for precision alignment, leveling instruments, tile/wall layout marking, and OEM integration in measuring tools.

    • Inquiry Send Email

    Description


    12X50mm532nm10mW green line laser module 532NM laser head

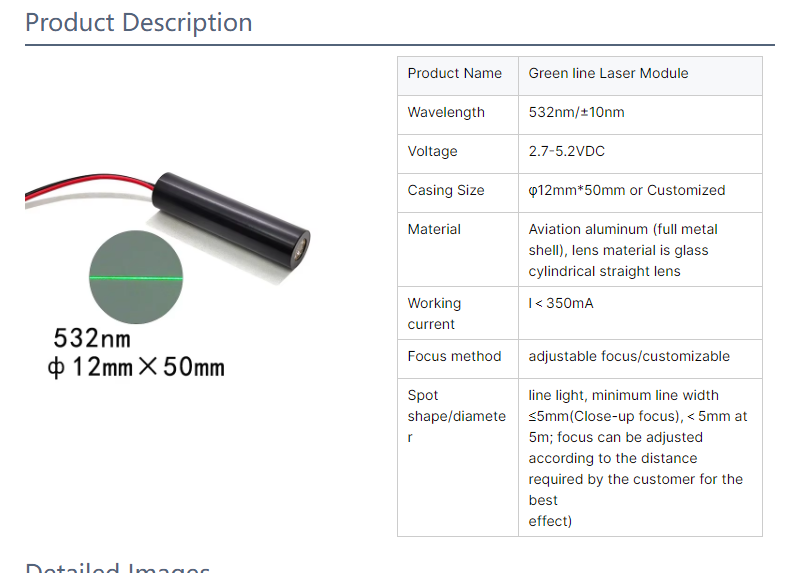

    Specifications
    • Wavelength: 532nm ±5nm (True Green DPSS)
    • Output Power: 10mW (CW, Class IIIa / Class 3R available)
    • Laser Pattern: Single Line (fan angle optional: 15°–90°, typical 45°/60°)
    • Lens: Optical Glass Cylindrical Lens (focus adjustable or fixed focus)
    • Operating Voltage: DC 2.8V–3.3V / 3.7V–5V (with driver IC)
    • Operating Current: 200–350mA
    • Line Width: ≤1.5mm @ 3m (adjustable via focus)
    • Beam Divergence: 0.1–1.0 mrad
    • Transverse Mode: TEM₀₀

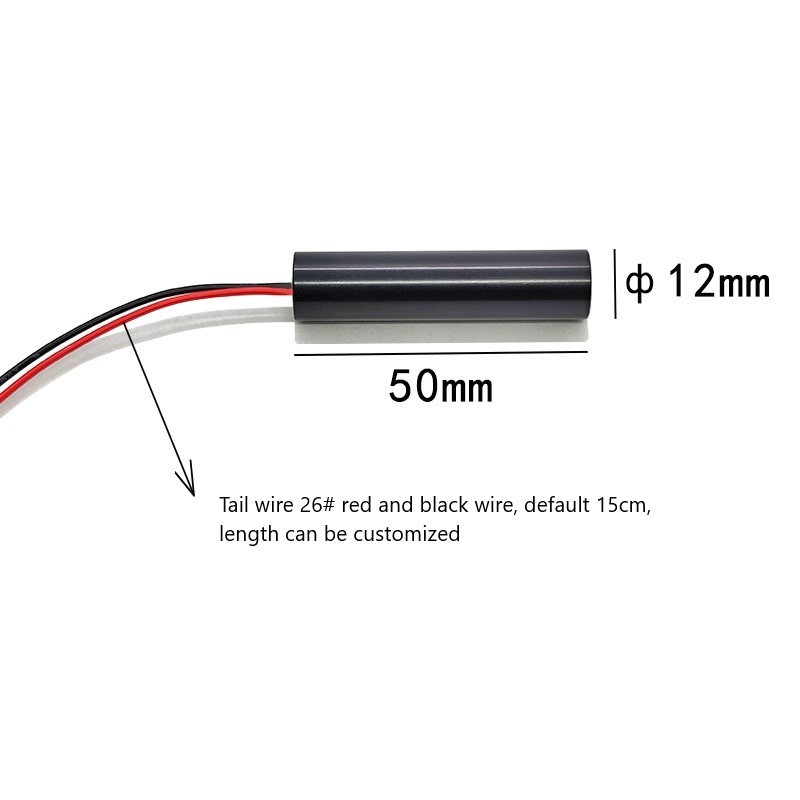

    • Housing: Φ12×50mm Black Anodized Aluminum or Brass (heatsink equipped)
    • Lead Wire: Red(+)/Black(−) 100–150mm or JST connector (optional)
    • Warm-up Time: <5 sec
    • Working Temp.: +10°C to +40°C
    • Lifetime: >5,000–8,000 hrs
    Applications
    • Laser level & layout marking (tile, wall, ceiling)
    • Electric tool & measuring instrument alignment line
    • Woodworking / Stone / Textile cutting guide line
    • Machine vision & optical experiment reference
    • Stage lighting effect & demonstration
    • OEM integration in surveying & positioning equipment
