910nm narrow band filter custom 22mm 36mm 39mm optical filter

910nm narrow band filter custom 22mm 36mm 39mm optical filter

glass optical filter

custom optical filter

factory offer optical filter

910nm optical filter

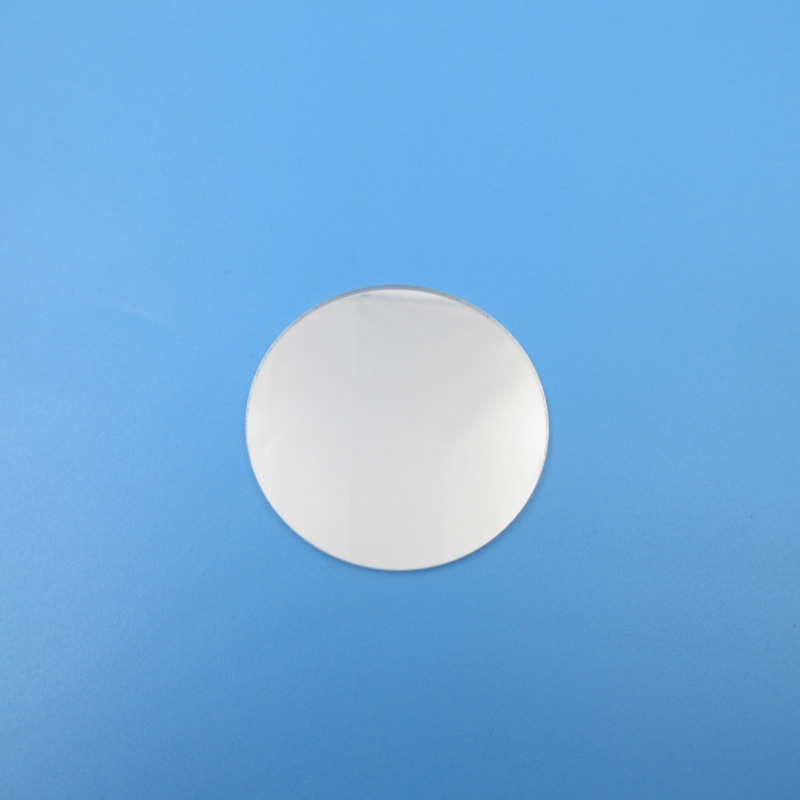

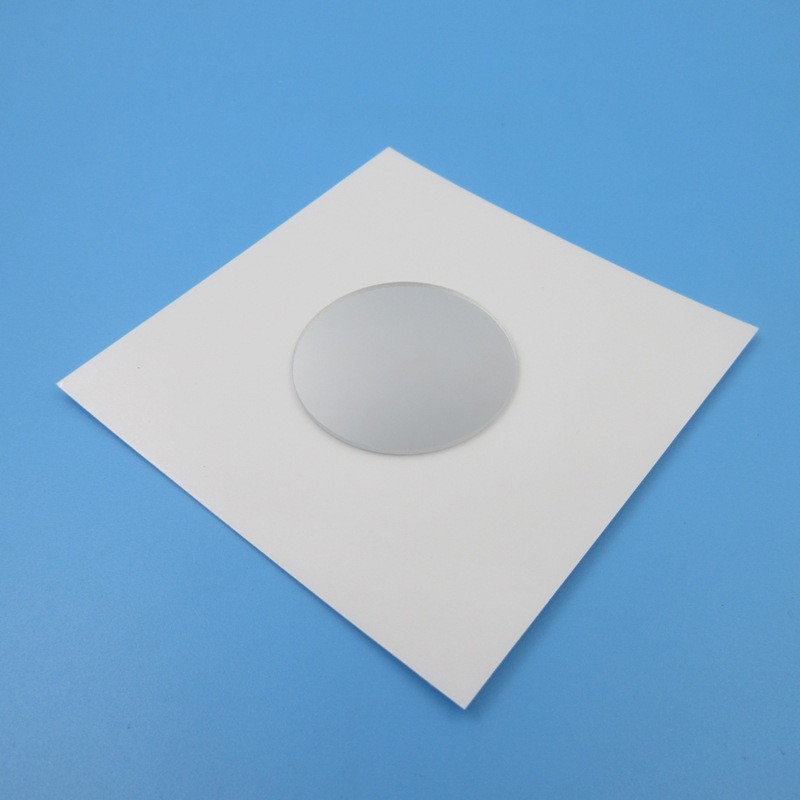

Precision narrow bandpass interference filter centered at 910 nm (near-infrared), designed to transmit a sharp 910 nm ± band while blocking visible light and out-of-band NIR.

Hard-coated via ion-assisted deposition on optical glass with steep edges and deep out-of-band blocking. The 910 nm wavelength is completely invisible to the human eye, making it ideal for covert night vision, IR illumination isolation, and industrial sensing.

Fully customizable in diameter (22mm, 36mm, 39mm, or any custom size) and bandwidth for OEM integration.

Description

910nm narrow band filter custom 22mm 36mm 39mm optical filter

Specifications

Center Wavelength (CWL): 910 nm ± 2 nm
Half Bandwidth (FWHM): 10 nm / 20 nm / 30 nm (customizable from 5–80 nm)
Peak Transmittance (Tpeak): ≥ 85%–92% (typical)
Blocking Range: 400–880 nm & 940–1200 nm
Blocking Level (Cut-off Depth): ≥ OD4 (0.01%) standard; OD5–OD6 optional
Substrate Material: Optical glass (BK7/K9) or fused silica
Custom Dimensions: Diameter 22 mm / 36 mm / 39 mm (or any size up to 200 mm); thickness typically 1.0–2.0 mm
Surface Quality: 60-40 / 40-20 Scratch-Dig
Surface Flatness: λ/4 @ 632.8 nm
Parallelism: ≤ 1 arcmin (standard); ≤ 10 arcsec (precision)
Incidence Angle: 0° ± 5° (AOI-tuned design on request)
Coating Durability: Meets MIL-C-675C (humidity, adhesion, wipe resistance)
Edge Treatment: Ground / beveled; optional edge blackening

Factory custom optical filter,can cutom as your required,

please contact our sales manager
