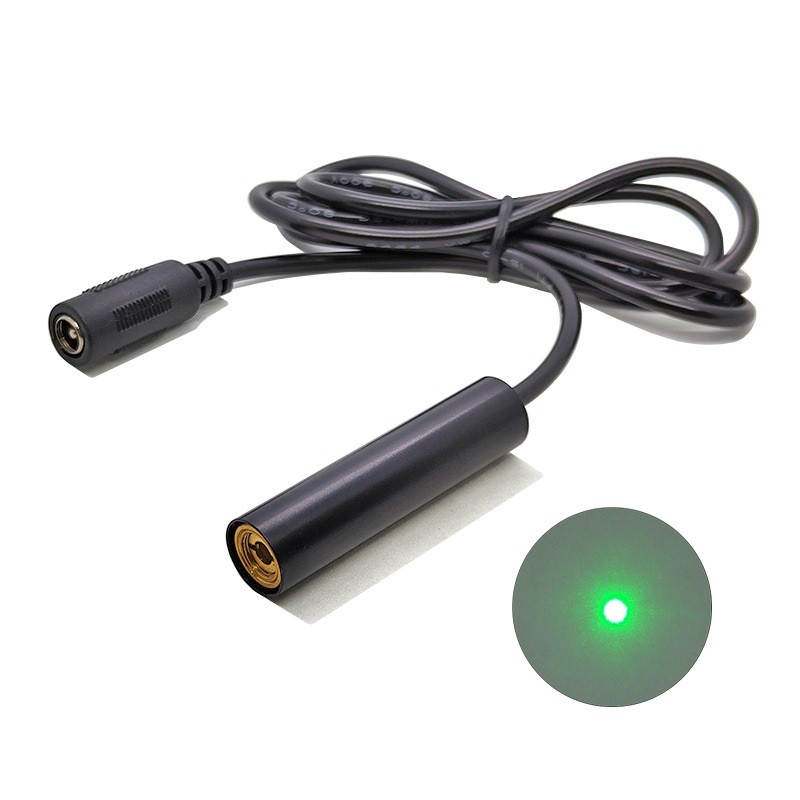

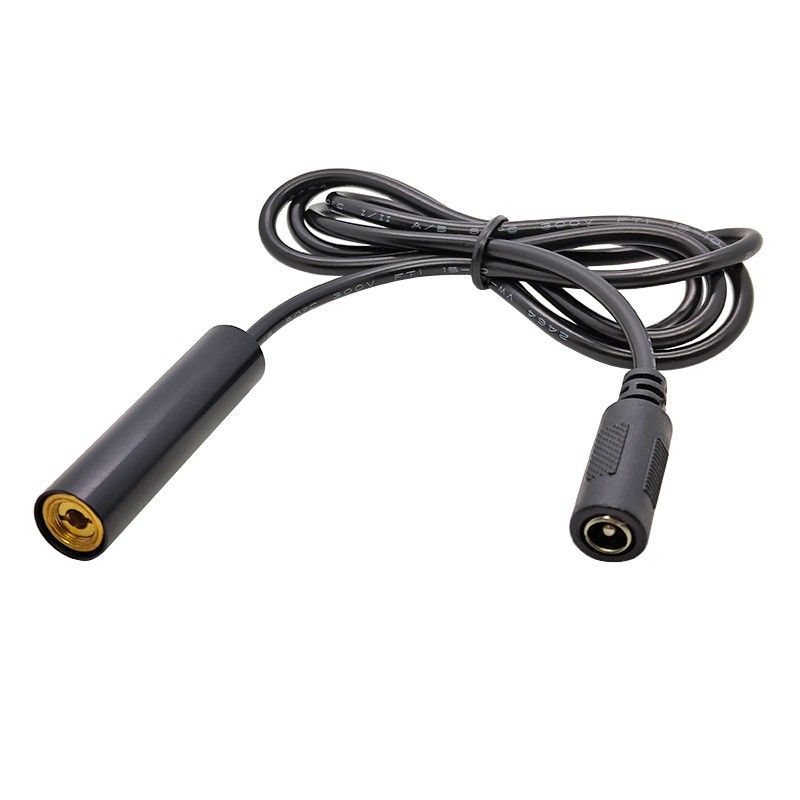

12X50mm laser module 532nm 50mW green laser module

  • 532nm 50mW green laser module
  • 532nm laser module
  • custom green dot laser module
  • 532nm laser module head

  • Industrial Φ12×50mm green DPSS laser module with 532nm wavelength and 50mW output, built with high-quality Nd:YVO₄+KTP crystal, APC constant current driver, and a focusable collimating glass lens.

    The 532nm green beam is the most visible wavelength to the human eye—brighter than red at equal power—making it ideal for precision alignment, leveling instruments, surveying references, and OEM integration in measuring equipment.

    • Inquiry Send Email

    Description


    12X50mm laser module 532nm 50mW green laser module

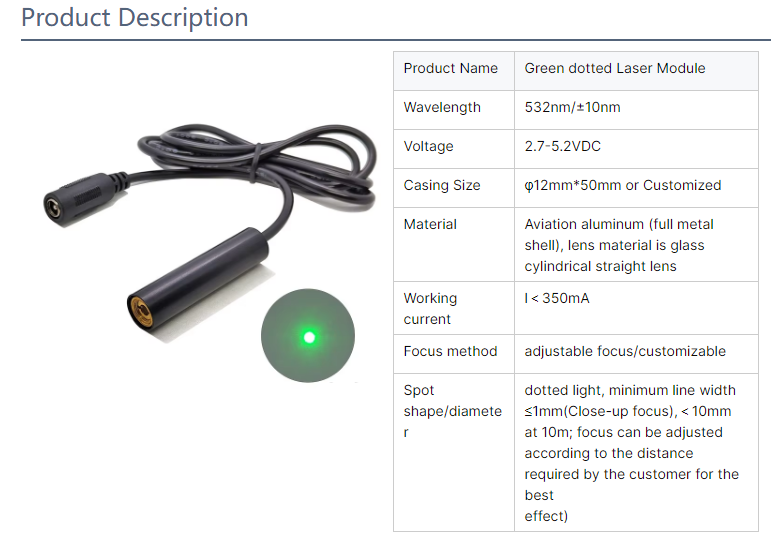

    Specifications
    • Wavelength: 532nm ±5nm (True Green, DPSS)
    • Output Power: 50mW (CW, Class IIIb)
    • Beam Pattern: Dot (Spot) — Line / Cross optional
    • Lens: High-quality Glass Collimating Lens (focus adjustable on request)
    • Operating Voltage: DC 3V (typical) or 3.7V–4.2V with driver IC
    • Operating Current: 260–400mA
    • Spot Size: ≤1.0mm @ 1m (adjustable via focus)
    • Beam Divergence: 0.1–1.0 mrad

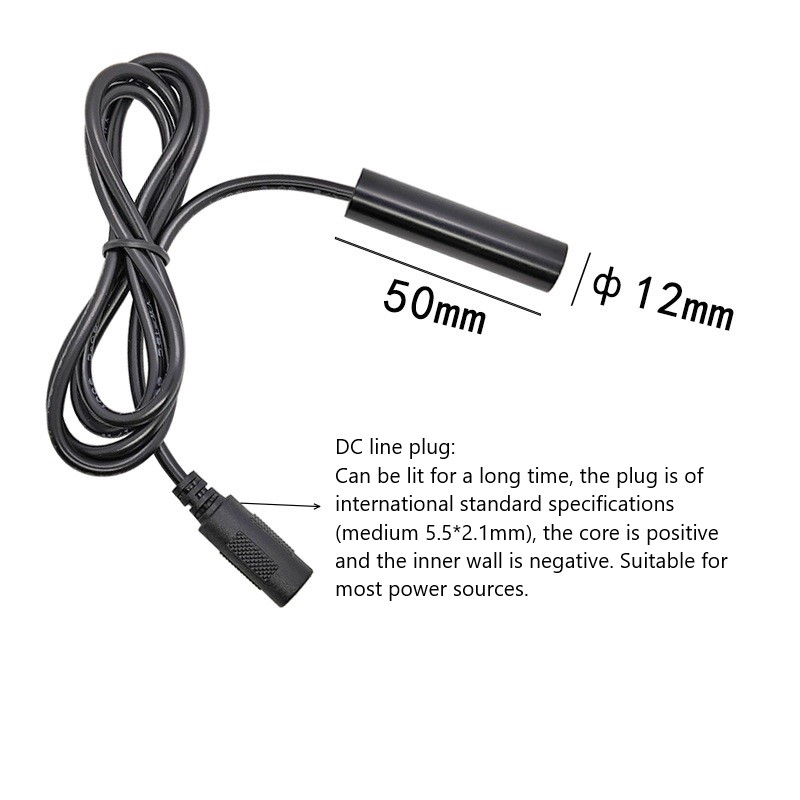

    • Housing: Φ12×50mm Black Anodized Aluminum or Brass (with heatsink)
    • Lead Wire: Red(+)/Black(−) 100–150mm or JST connector (optional)
    • Working Temp.: +10°C to +40°C (DPSS green module, avoid overheating)
    • Lifetime: >5,000–8,000 hrs
    Applications
    • Construction leveling & surveying reference beam
    • Measuring instruments & distance meter auxiliary alignment
    • Woodworking / Stone / Metal cutting guide dot
    • Laser level, layout marker & optical pointing aid
    • Scientific experiment & OEM equipment integration
