Description

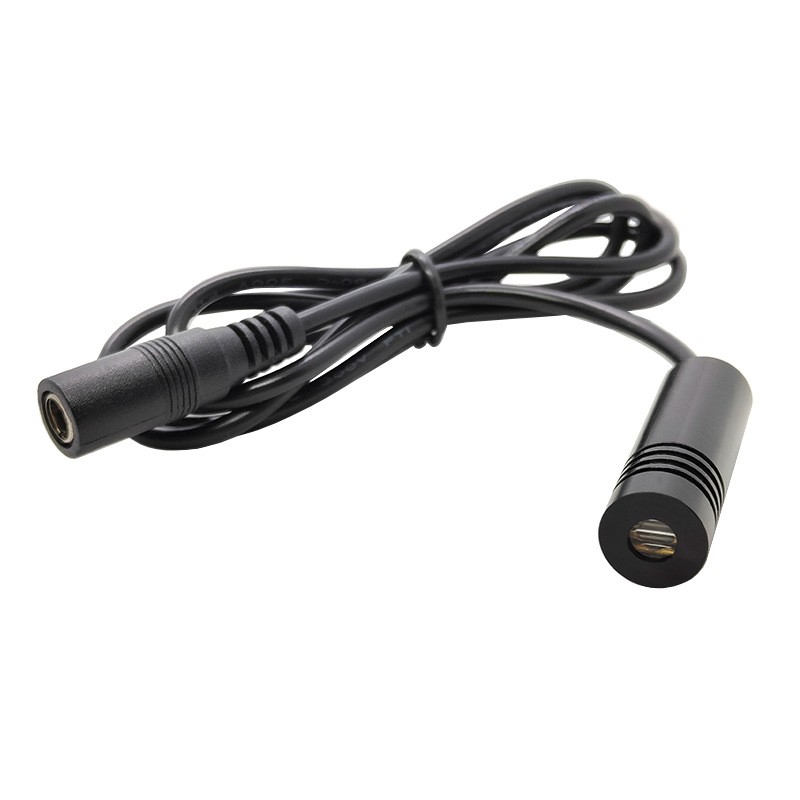

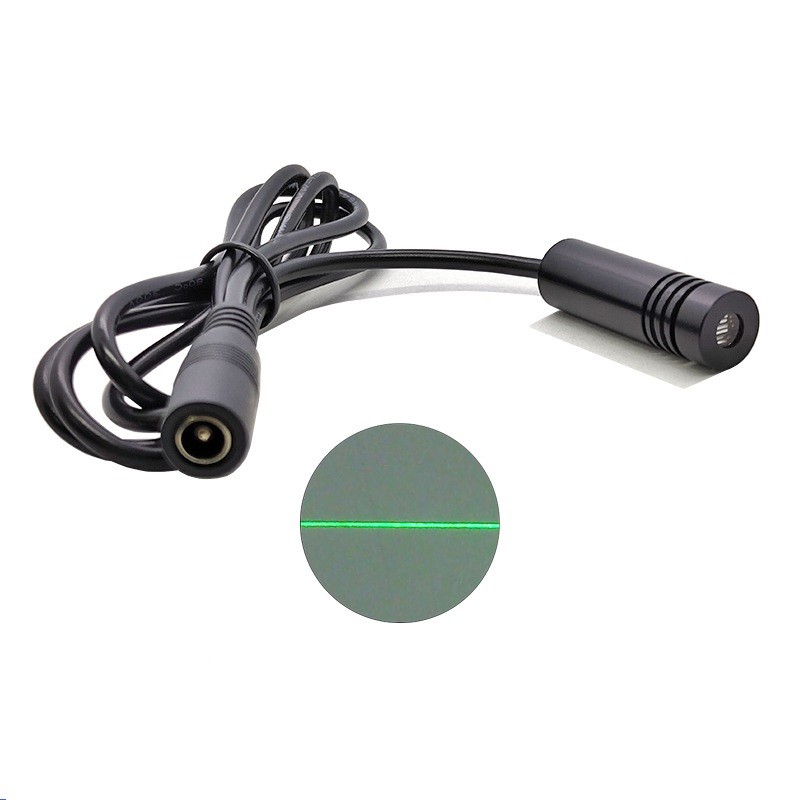

12X40mm locator 520nm5mW line laser module external focus green laser module DC port

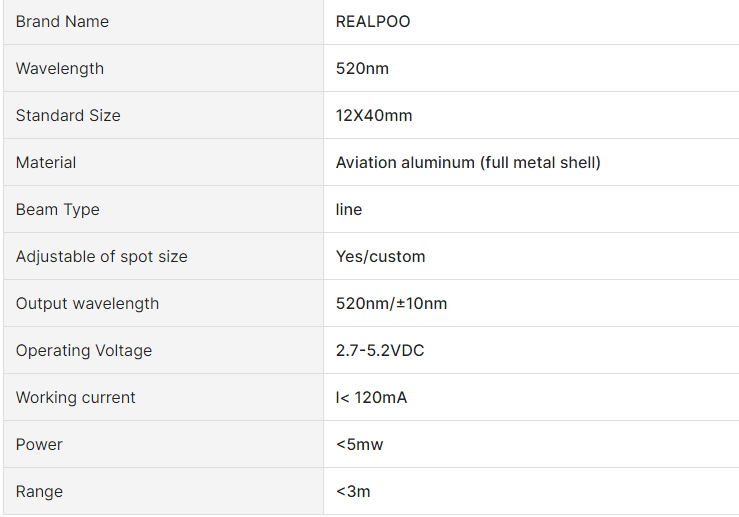

Specifications
-
Wavelength: 520nm ±10nm (True Green Diode — most eye-visible green)
-
Output Power: 5mW (CW, Class IIIa / Class 2 available)
-
Laser Pattern: Single Line (fan angle optional: 15°–110°, typical 45°/60°)
-
Lens: Optical Glass or PMMA Cylindrical Lens (focus adjustable via front cap)
-
Operating Voltage: DC 3V / 3–5V (typical 5V; 12V version optional with driver)
-
Operating Current: <60mA
-
Line Width: ≤1.0mm @ 1m (adjustable via focus ring)
-
Beam Divergence: <1.0 mrad
-

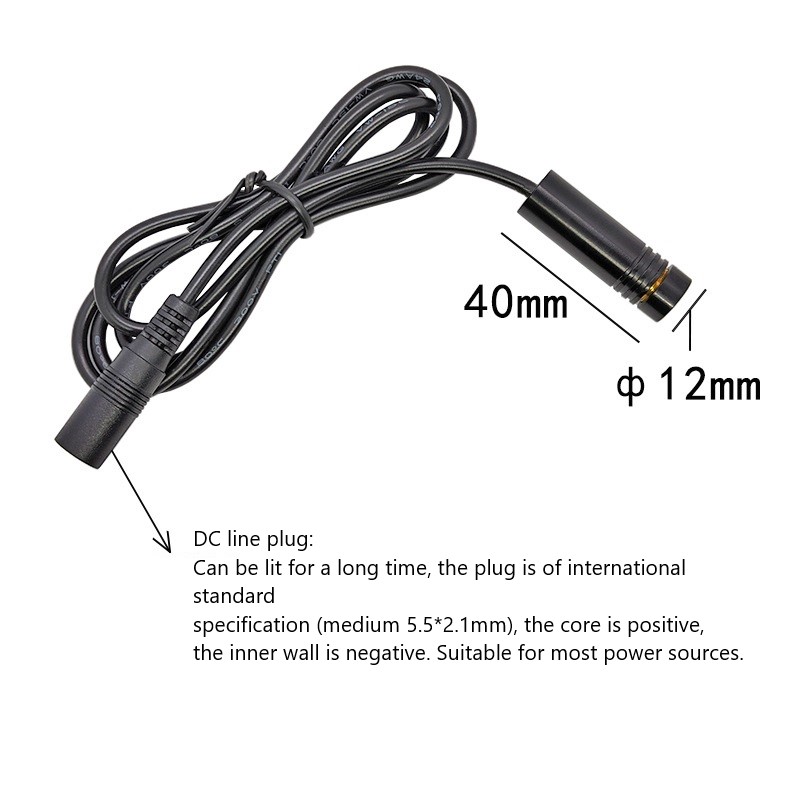

Housing: Φ12×40mm Black Anodized Aluminum (ESD & reverse polarity protected)
-
Lead Wire: Red(+)/Black(−) 100–150mm or JST connector (optional)
-
Working Temp.: -10°C to +50°C
-
Storage Temp.: -40°C to +80°C
-
Lifetime: >8,000 hrs
Applications
-
Tile / Wall / Ceiling layout & laser level guide lines
-
Woodworking / Stone / Textile cutting guide line
-
Sewing & embroidery machine positioning reference
-
Measuring tool & spirit level line indicator
-
Machine vision & optical experiment reference line
-
OEM integration in construction & alignment equipment
