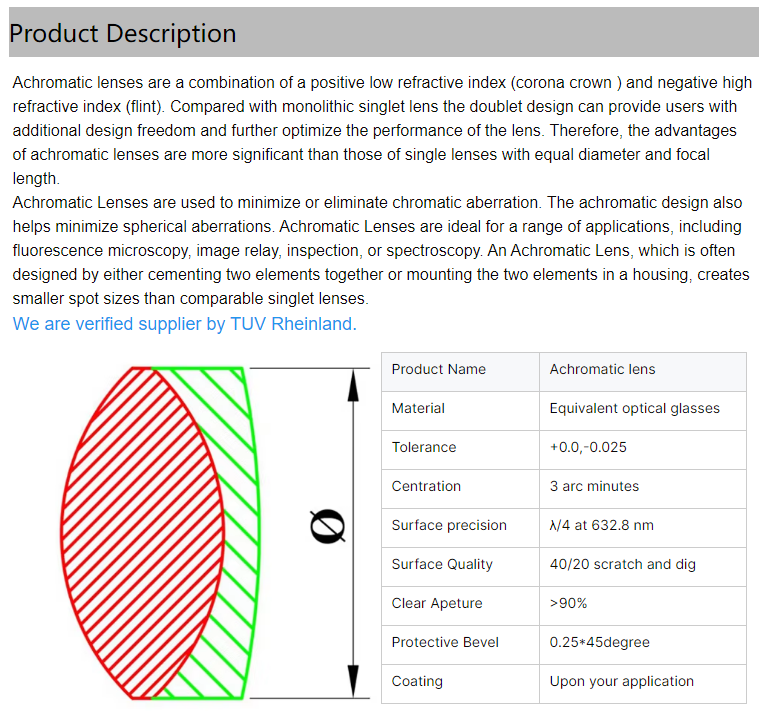

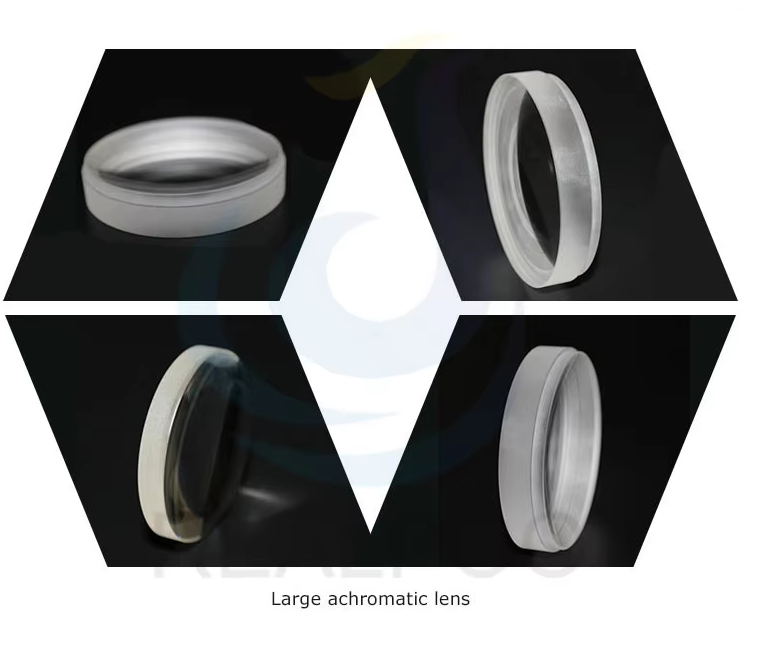

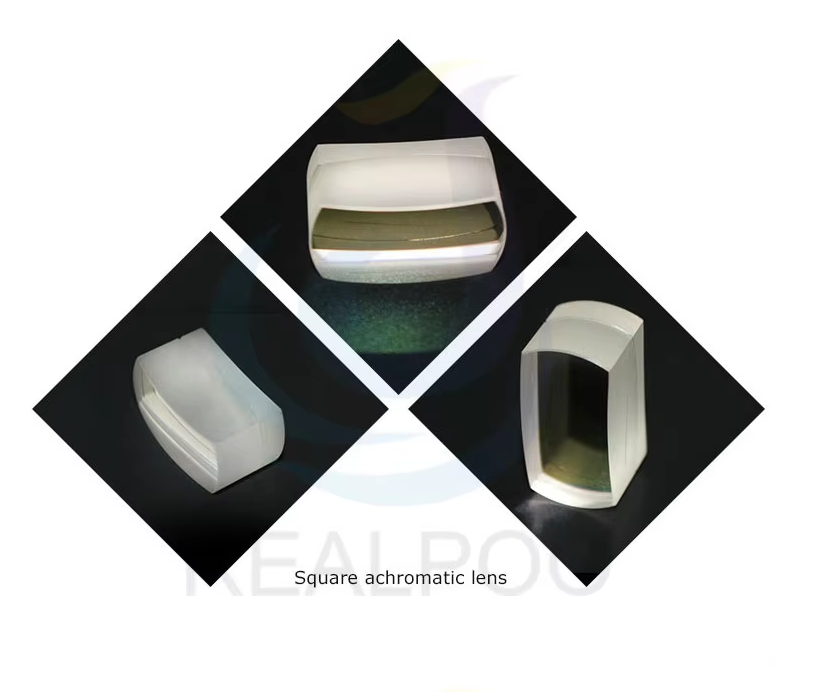

High-precision cemented achromatic doublet (and triplet option) lens assembly, composed of positive crown and negative flint optical glass, designed to correct axial chromatic aberration and spherical aberration over the visible spectrum (typically 400–700nm or customized bands).

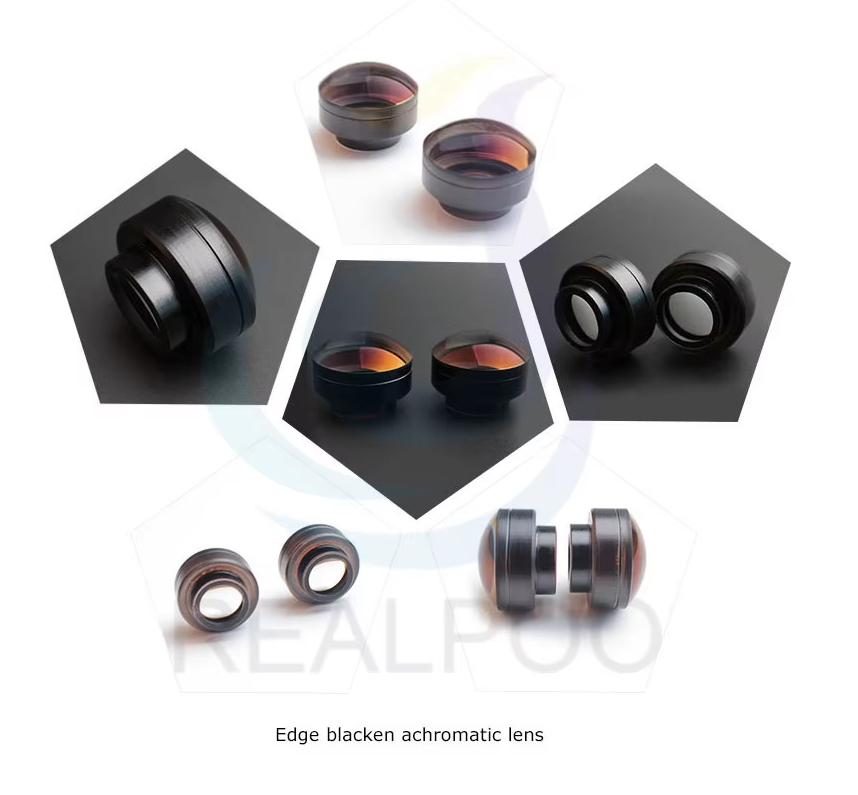

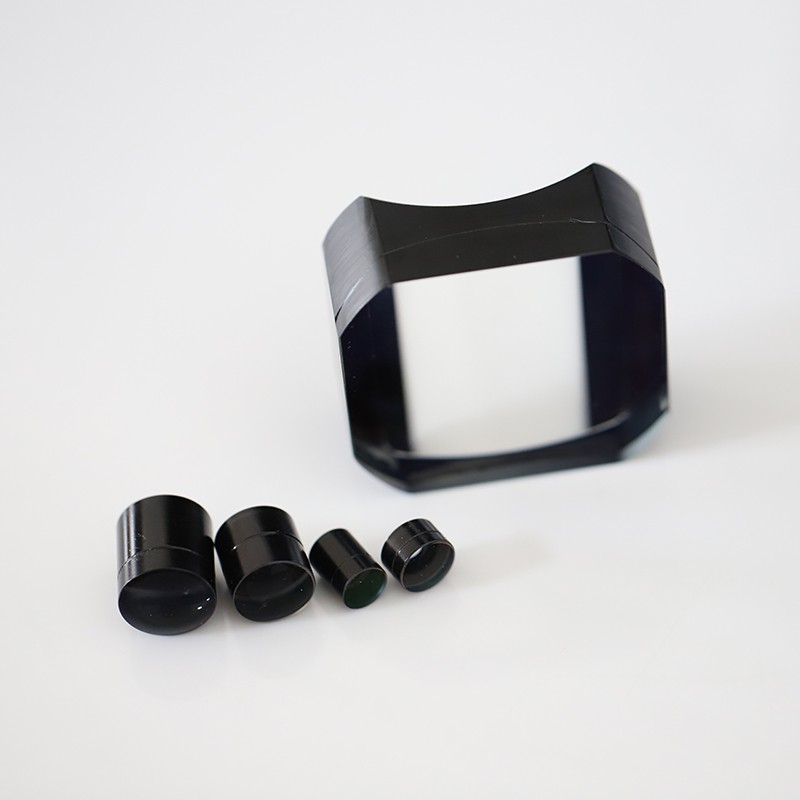

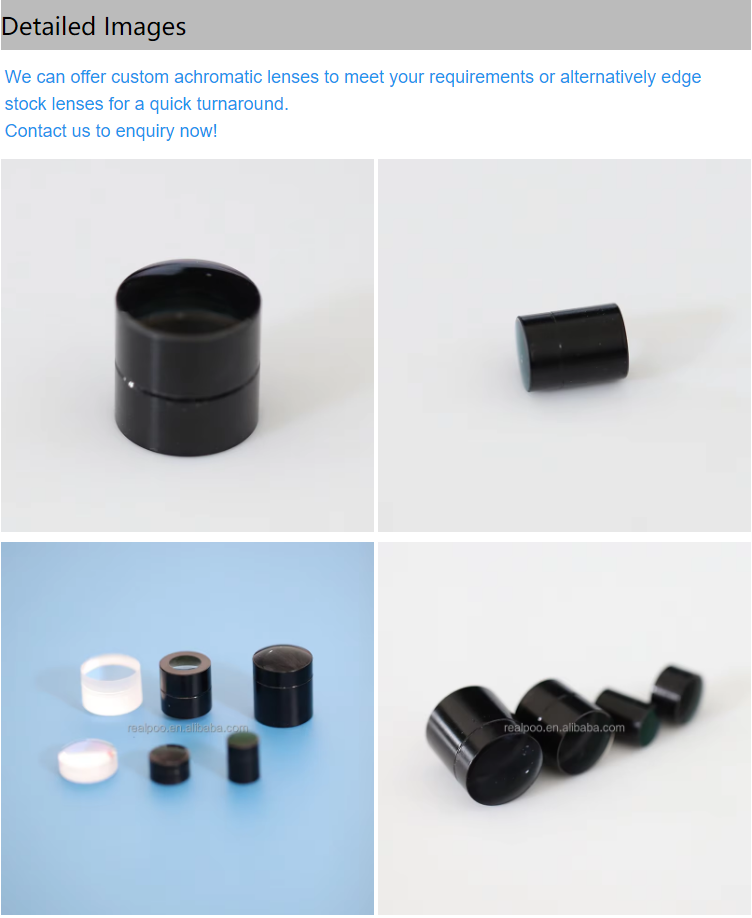

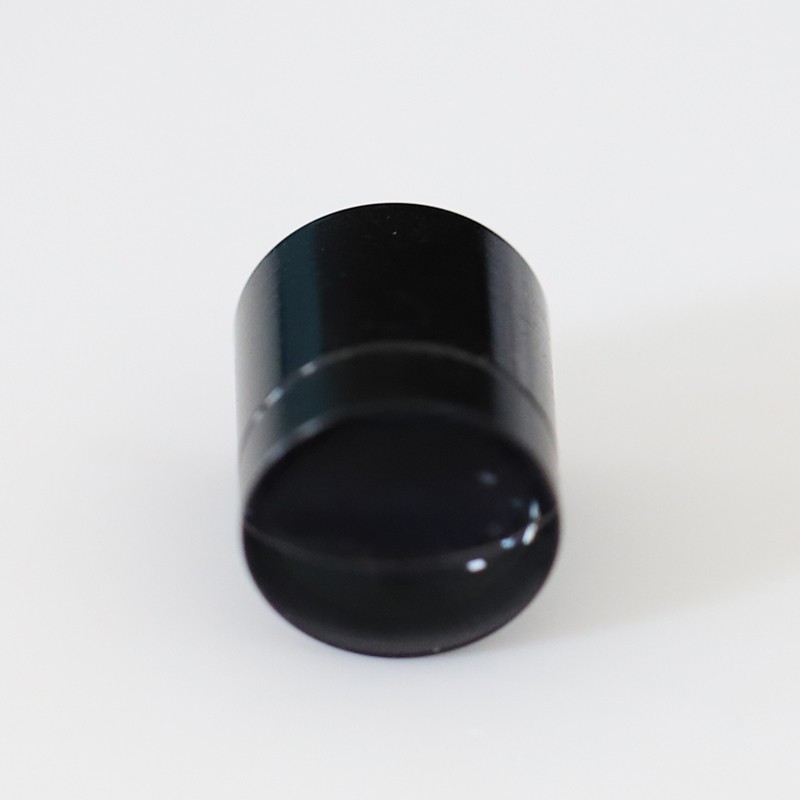

All lenses are fine-annealed, centration-matched, cemented with low-stress optical adhesive, and feature edge blackening (black ink or painted periphery) to suppress stray light and ghost reflections.

Ideal for high-resolution imaging, collimators, microscope objectives, laser focusing systems, and machine vision lenses. Available in multiple focal lengths, diameters, AR coatings, and custom centration grades for OEM optical designs.

Description

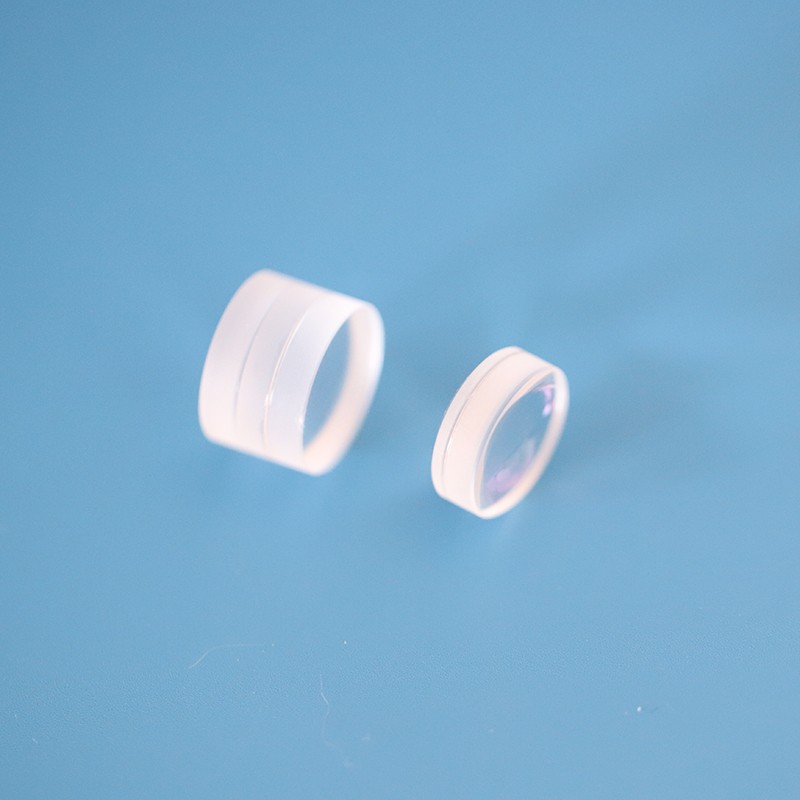

Precision processing achromatic lens,triplet lens with edge blacken

Specifications:

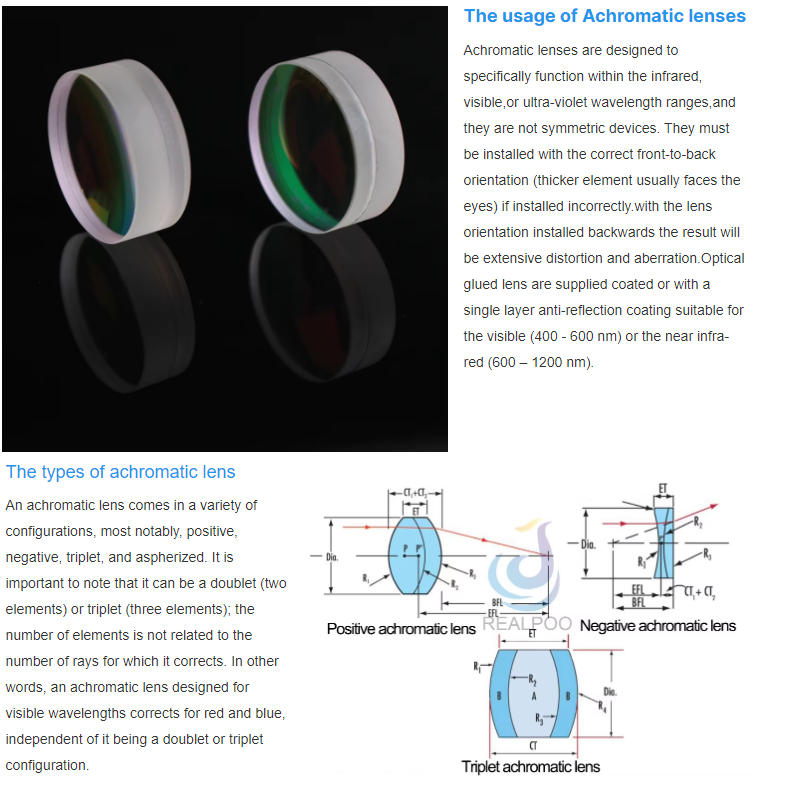

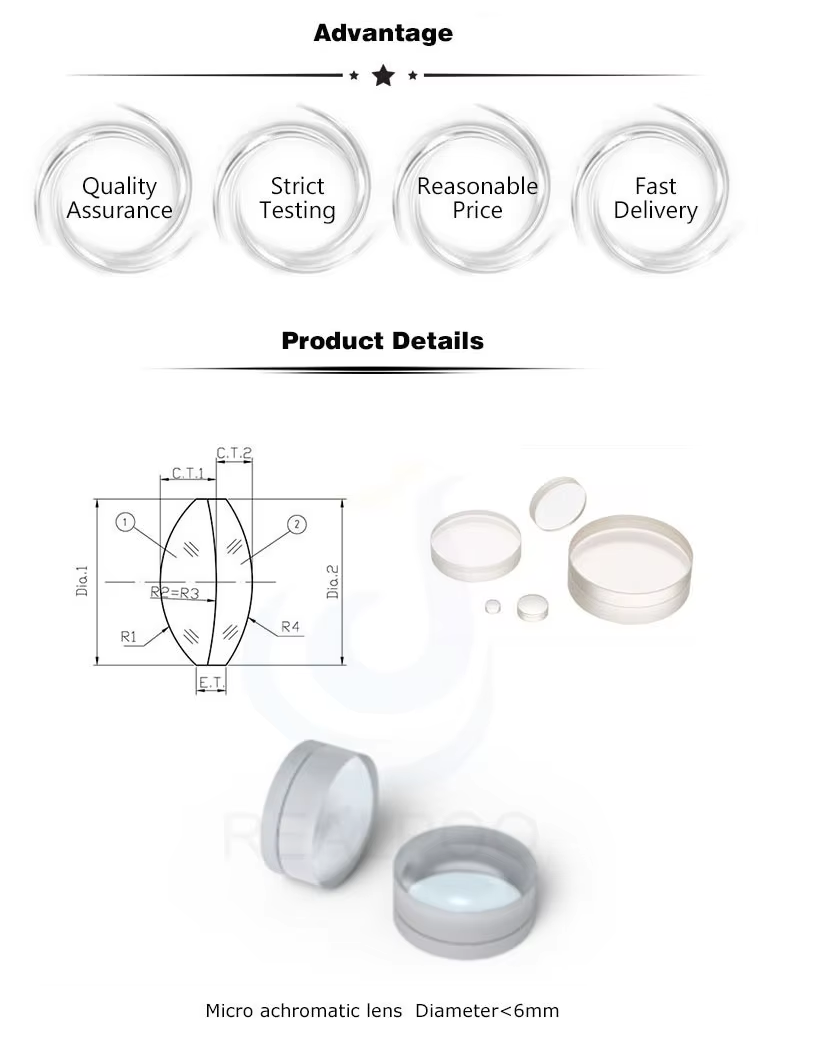

Lens Type: Cemented Achromatic Doublet (Crown + Flint) / Achromatic Triplet (3-Element Cemented)

Material Combination: N-BK7 + SF2 / N-BK7 + SF5 / N-BK7 + LaSFN9 / Custom Low-Dispersion Pair

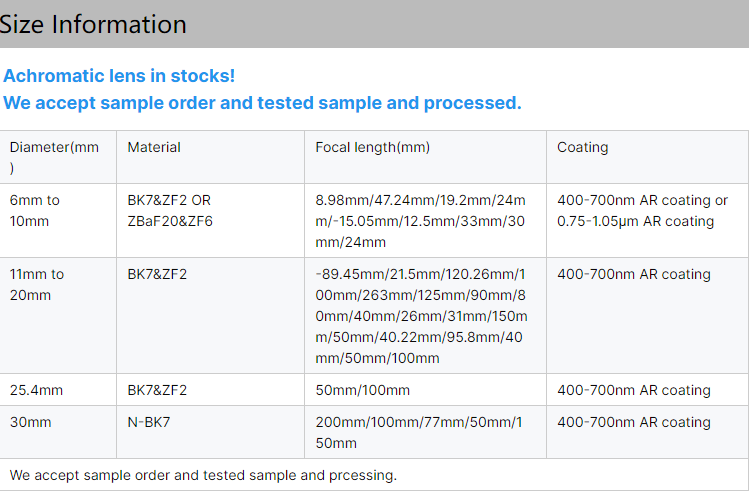

Diameter (Clear Aperture): 6.35mm / 10mm / 12.7mm / 15mm / 20mm / 25.4mm / 30mm / 50mm / Custom

Focal Length (EFL): 10mm – 500mm (f/ratio customizable)

Focal Length Tolerance: ±1% / ±0.5%

Center Thickness Tolerance: ±0.1mm

Centration (Decenter): <3 arc min (Standard) / <1 arc min (Precision)

Surface Figure (Each Element): λ/4 @ 632.8nm (λ/10 available)

Surface Quality (Scratch-Dig): 60-40 / 40-20 / 20-10

Clear Aperture: ≥90% of diameter

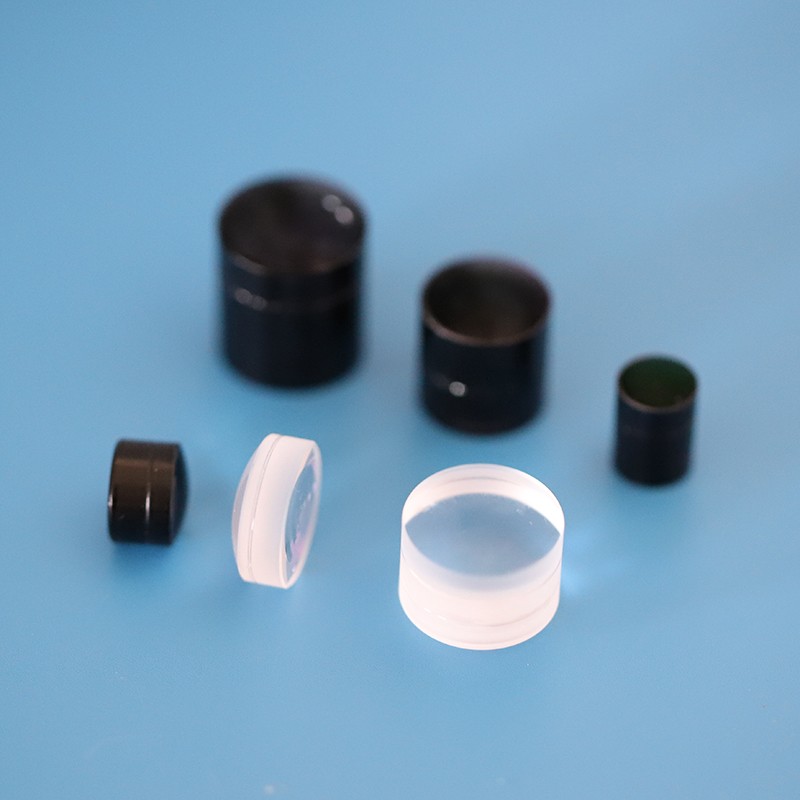

Edge Treatment: Edge Blackened (Black Paint / Ink on Outer Periphery) to Minimize Stray Light

Cement: UV-Curable Optical Epoxy / Thermally Cured Optical Adhesive (Low Stress, High Transmission)

Coating: Uncoated / MgF₂ AR / Broadband AR 400–700nm (Ravg<0.5%) / V-Coating @ 532nm / 633nm / 1064nm / Custom

Operating Wavelength Range: Visible 400–700nm (Standard), IR or UV bands available

Operating Temperature: -40°C to +80°C

Applications:

High-resolution imaging lenses and camera objectives

Microscope and telescope objective lens assemblies

Collimators, beam expanders, and condenser systems

Laser diode focusing and beam shaping modules

Machine vision and AOI (Automated Optical Inspection) optics

Spectroscopic and analytical instrument optics

OEM custom optical lens assemblies requiring low chromatic error

Scientific research and lab-grade optical setups

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.

Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
