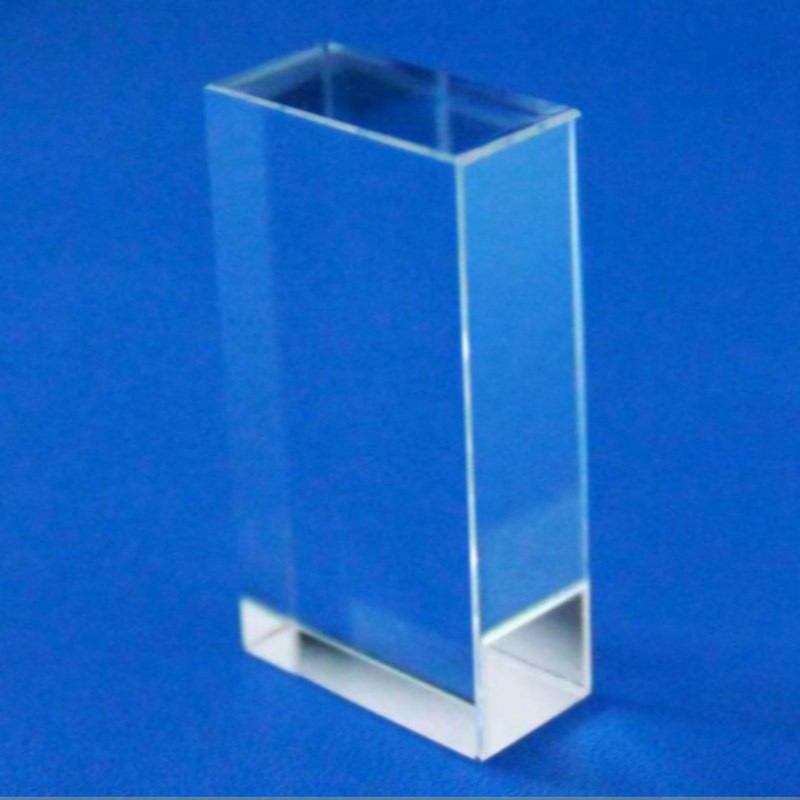

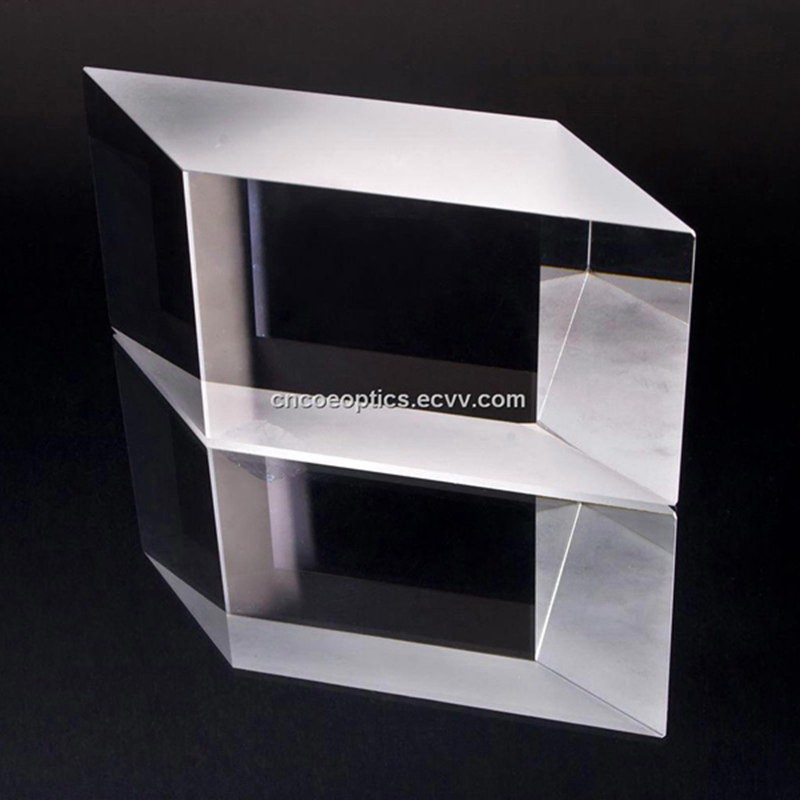

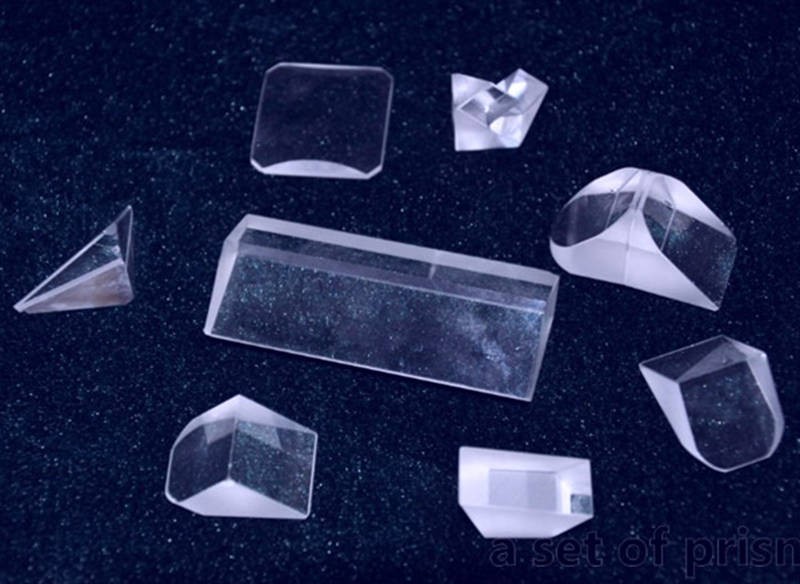

Custom Optical BK7 / K9 Glass Half Penta Prism for Optical Instruments

Custom Optical BK7 / K9 Glass Half Penta Prism for Optical Instruments

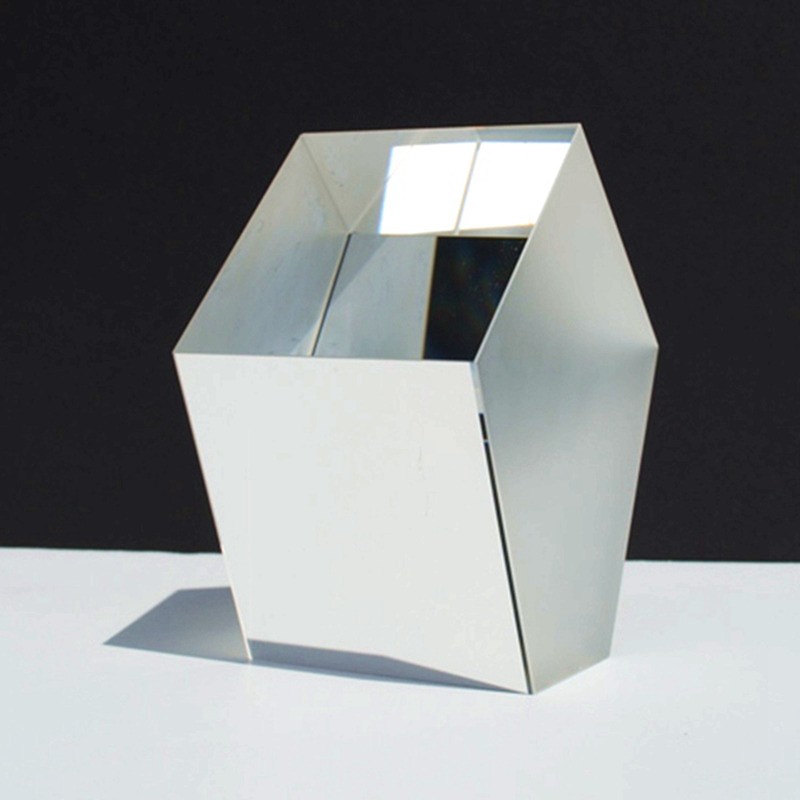

Optical glass half penta prism

custom penta prism

penta optical prism

penta angle prism coated

Custom Optical BK7/K9 Half Penta Prism with HR coating for optical instruments. High-precision beam deviation, N-BK7 glass, customizable size & coating.

Description

Factory custom Optical glass penta prism optical prism

Detailed Specifications:

Material: N-BK7 Optical Glass (Standard), H-K9L (K9) or other grades available.
Beam Deviation: Precisely 45° (Typical configuration, resulting in 90° beam deflection).
Dimension Tolerance: Typically ±0.1mm, High Precision: ±0.05mm.
Angle Tolerance: Standard: ±3 arcminutes, Precision: <±1 arcminute.
Surface Flatness: Standard: λ/4 @ 632.8nm, High Precision: λ/10.
Surface Quality: Standard: 60-40 Scratch-Dig, High Quality: 40-20 (MIL-PRF-13830B).
Clear Aperture: >90% of designated face.
Coating on Hypotenuse (Reflective Face): Protected Aluminum (Standard), Enhanced Aluminum, Silver, or High-Reflectivity Dielectric Coating optional.
Coating on Legs (Entry/Exit Faces): Optional Broadband Anti-Reflection (AR) Coating (e.g., MgF₂ for 400-700nm).
Chamfer: Protective 0.2mm x 45° bevel on all sharp edges (customizable).

Applications:

Optical Alignment Tools: Used in autocollimators, alignment telescopes, and bore sights.
Surveying & Metrology: Key component in theodolites, levels, and other precision measuring instruments.
Viewing & Sighting Systems: Integrated into binoculars, periscopes, and viewfinders for compact optical path design.
Laser Systems: For beam folding and steering in compact laser engraving, marking, or alignment setups.
Industrial & Machine Vision: For directing the field of view in inspection cameras and sensors.
