Customized 70 90 110 degrees Powell Prism Optical Prism BK7 optical prism manufacture

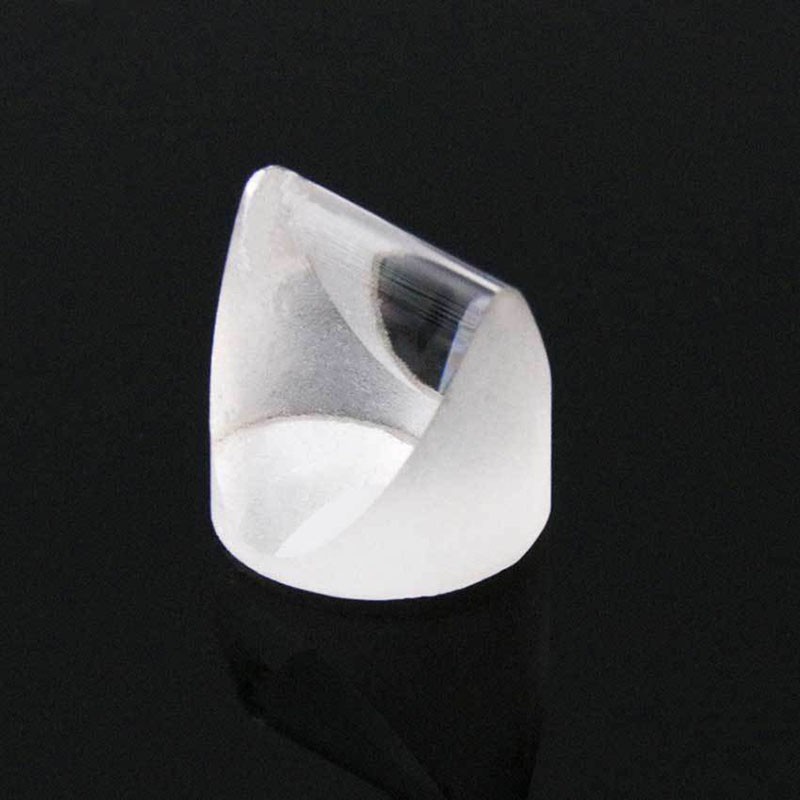

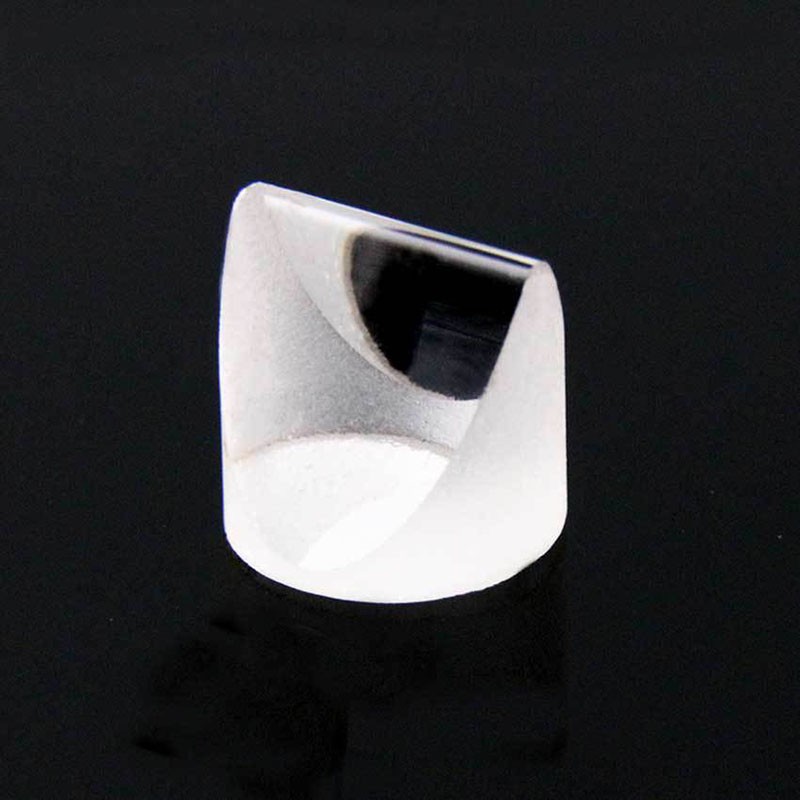

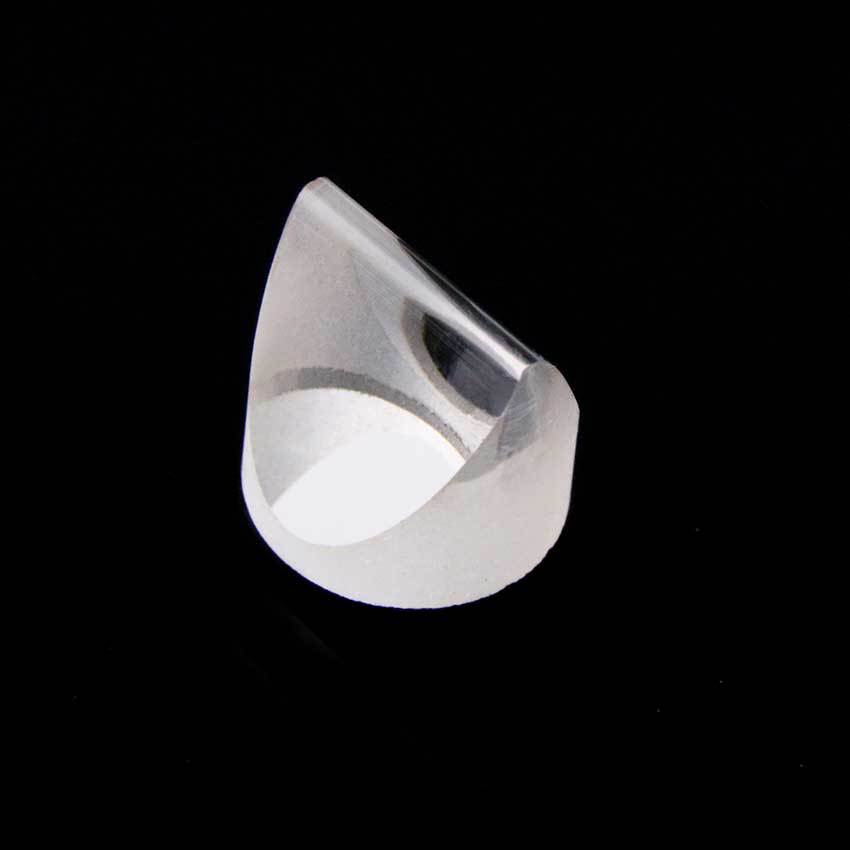

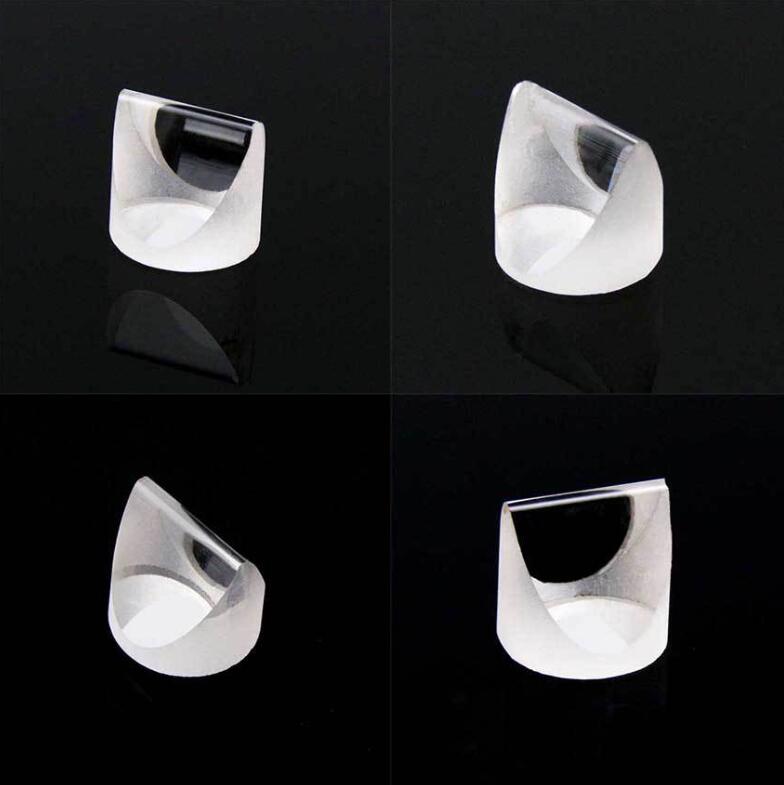

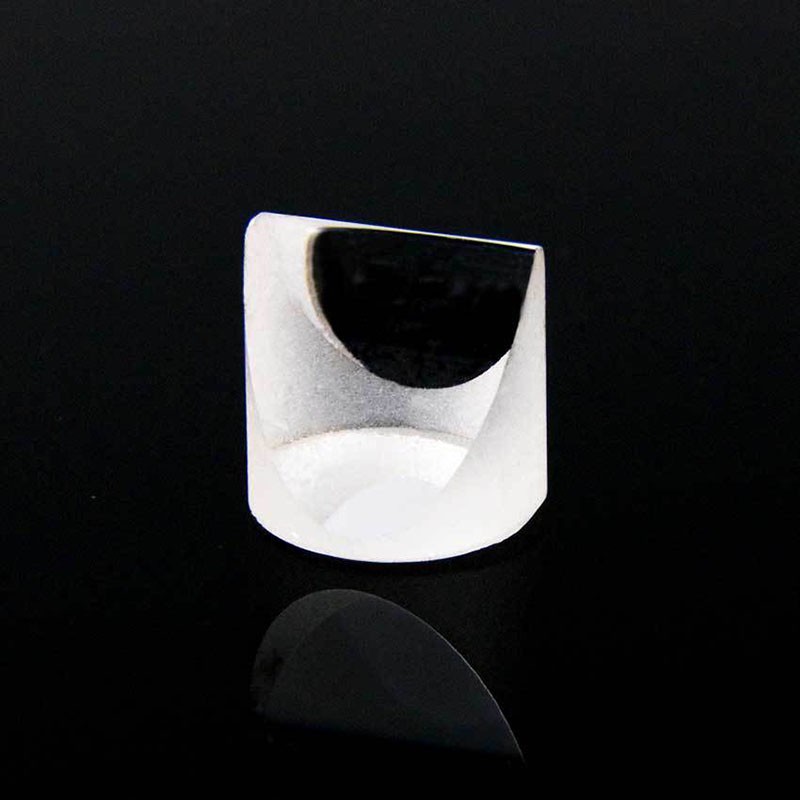

High-Precision Optical Powell Prism for Uniform Laser Line Generation
Optical Powell Prisms are specialized optical components designed to transform a collimated laser beam into a highly uniform laser line with consistent intensity distribution.
Compared with conventional cylindrical lenses, Powell prisms provide superior line uniformity and improved illumination efficiency, making them ideal for precision laser applications.
Key Specifications
- Material: Optical Glass (BK7, Fused Silica, or Customized Materials)
- Wavelength Range: 405nm – 1064nm (Customizable)
- Fan Angle: 5° – 120°
- Diameter: 5mm – 25mm
- Surface Quality: 60-40 Scratch-Dig or Better
- Surface Accuracy: λ/4 @ 632.8nm
- Coating Options: AR Coating, Broadband AR Coating, Custom Coatings
- Angle Tolerance: ±0.1° to ±0.5°
- Custom Designs Available
Features
- Generates highly uniform laser lines
- Excellent energy distribution across the entire line
- High optical transmission efficiency
- Compact and durable design
- Suitable for visible, UV, and infrared laser systems
- Custom fan angles and wavelengths available
We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.
We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.
Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.
Please contact for any custom needs,
Contact:Rebecca Xu
