10X30mm 940nm 200mW laser module

940nm 200mW laser module

940nm dot laser module

200mw laser module customized

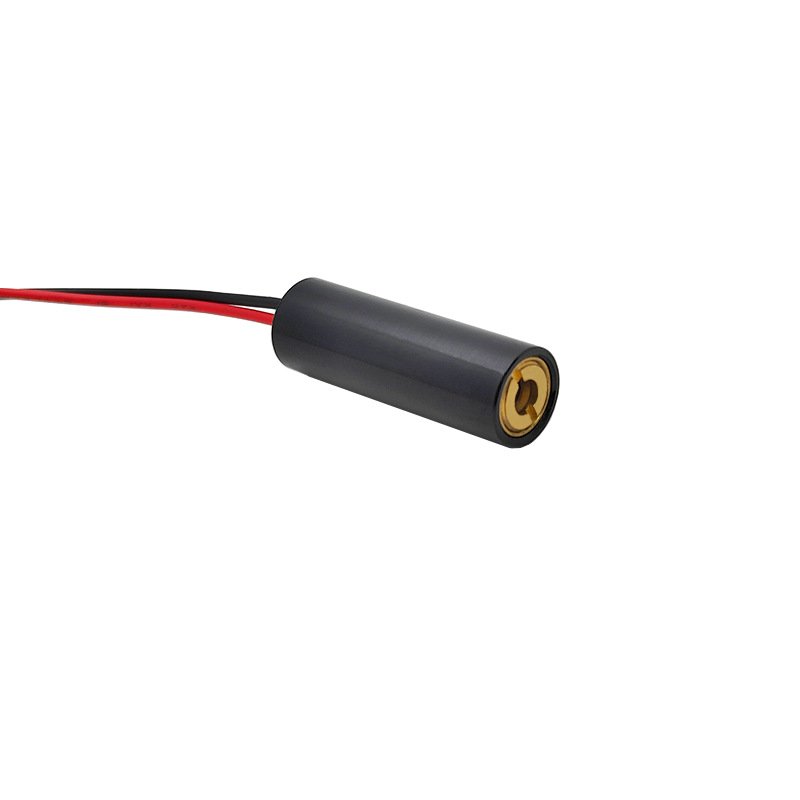

Compact Φ10×30mm near-infrared (IR) laser diode module with 940nm wavelength and 200mW output, featuring an adjustable focus collimating or cylindrical lens and built-in APC constant current driver.

The 940nm beam is completely invisible to the naked eye—ideal for night vision illumination, IR touch frames, LDS/LiDAR systems, 3D sensing, machine vision, and security sensor applications requiring a stable, high-power invisible IR source.

Description

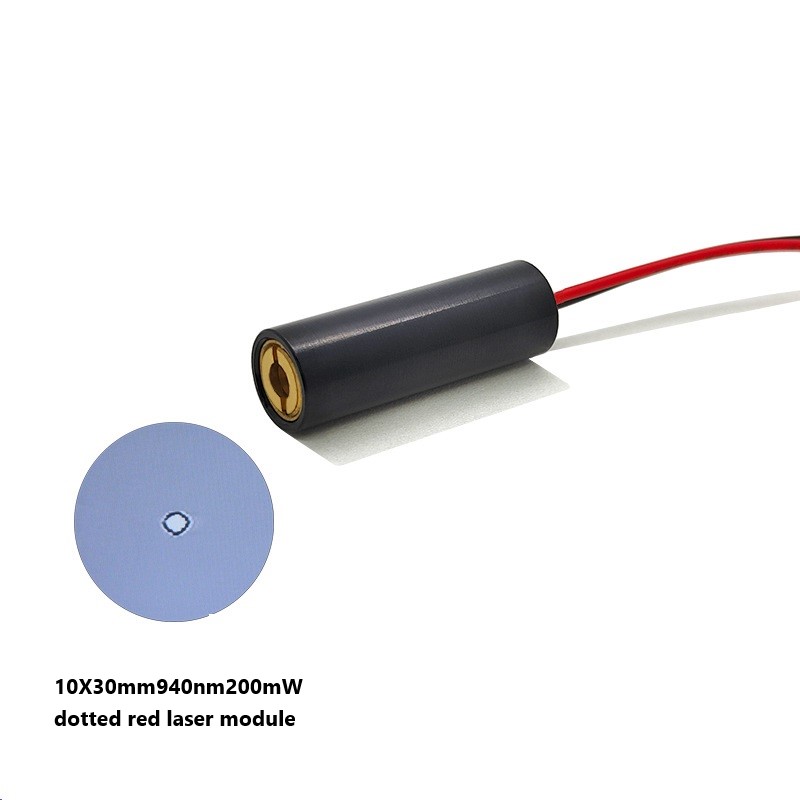

10X30mm940nm200mW laser red light indicator dotted laser module head

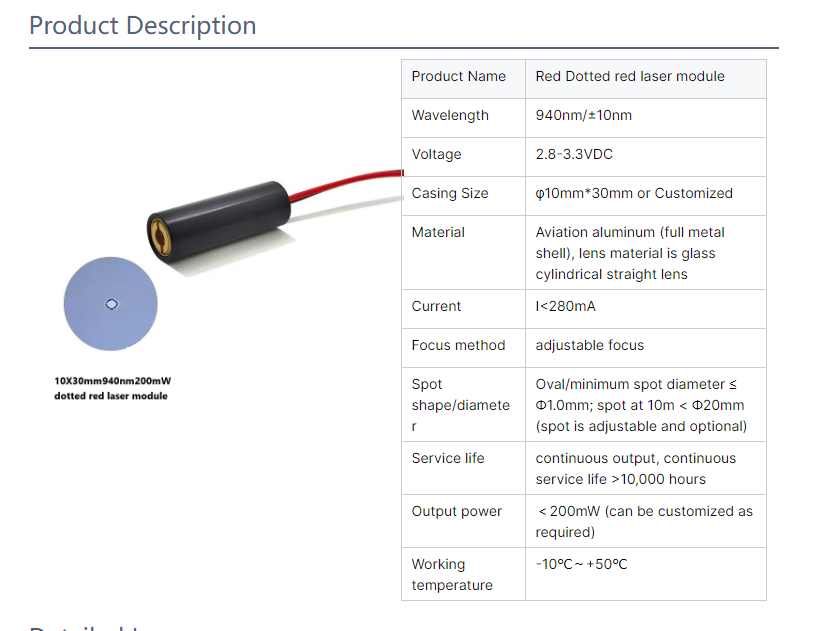

Specifications

Wavelength: 940nm ±10nm (Near-Infrared / Invisible to naked eye)
Output Power: 200mW (CW, Class 3B)
Beam Pattern: Dot (Spot) — Line / Cross optional

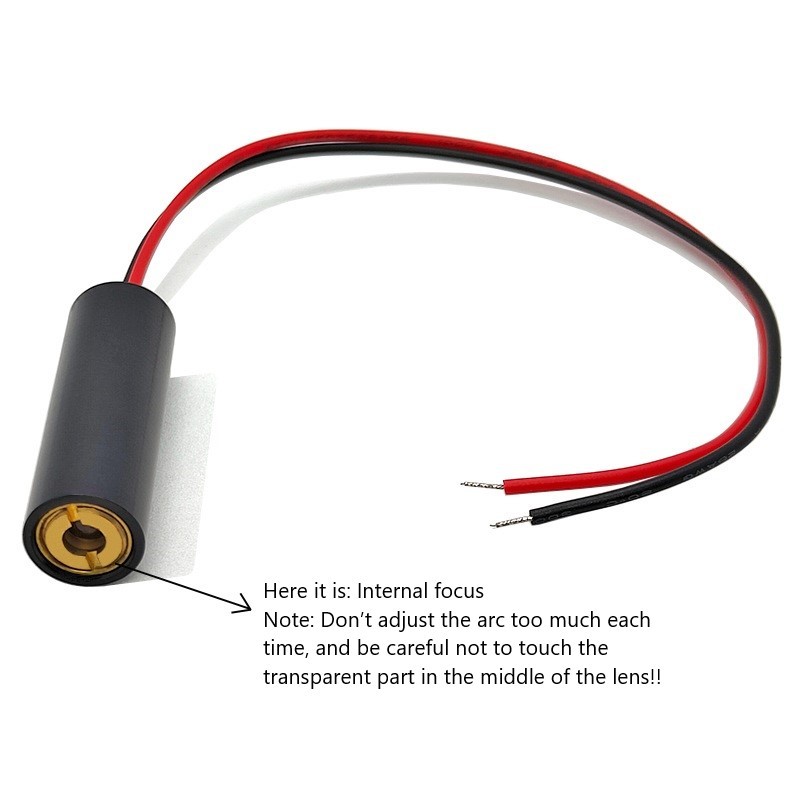

Lens: Coated Glass or PMMA (focus adjustable via front cap)
Operating Voltage: DC 2.8V–5V typical (5V/12V optional with driver)
Operating Current: <300mA
Spot / Line Width: Adjustable (≤1mm @ 1m for focused dot)

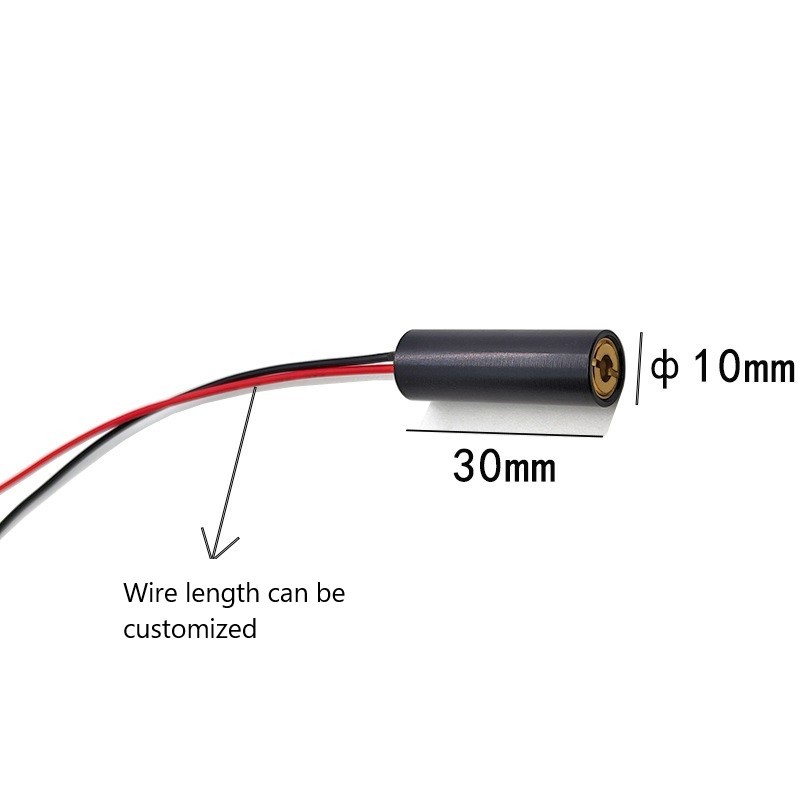

Housing: Φ10×30mm Black Anodized Aluminum/Brass (ESD & reverse polarity protected)
Lead Wire: Red(+)/Black(-) 100–150mm or JST connector (optional)
Working Temp.: -10°C to +50°C
Storage Temp.: -40°C to +80°C
Lifetime: >8,000–10,000 hrs
