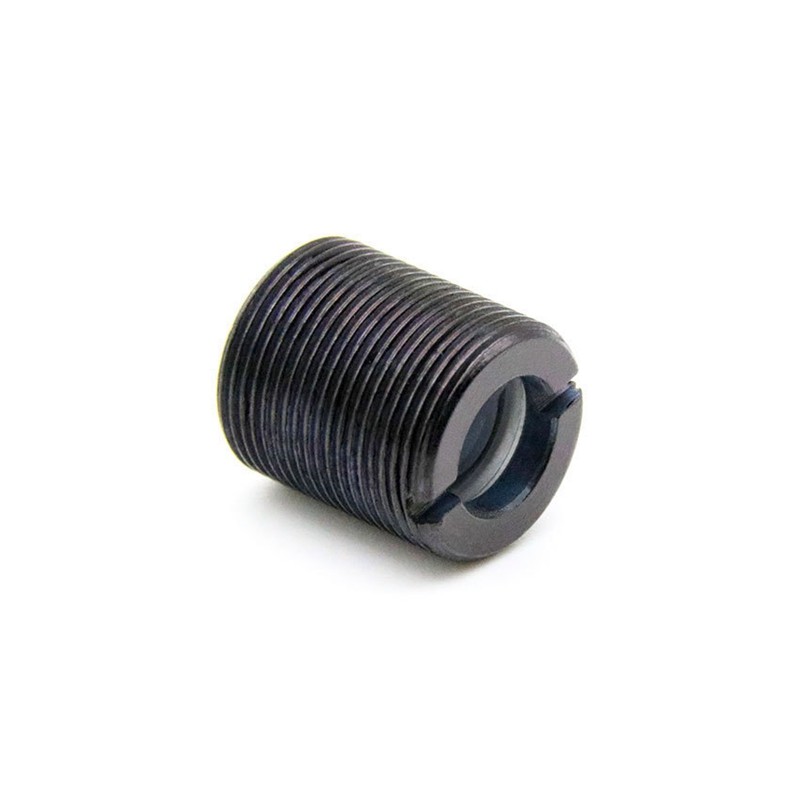

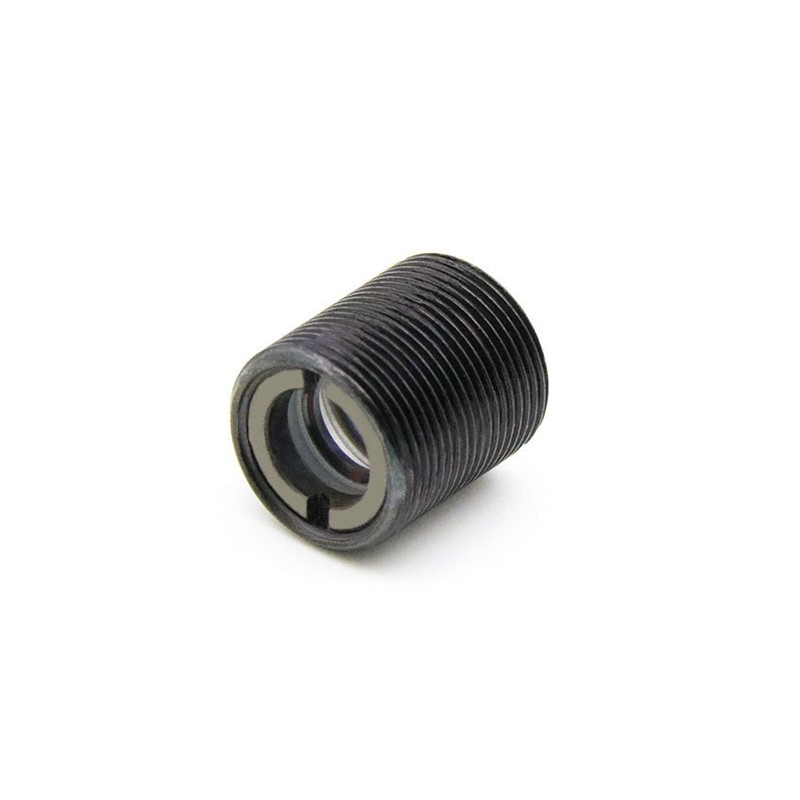

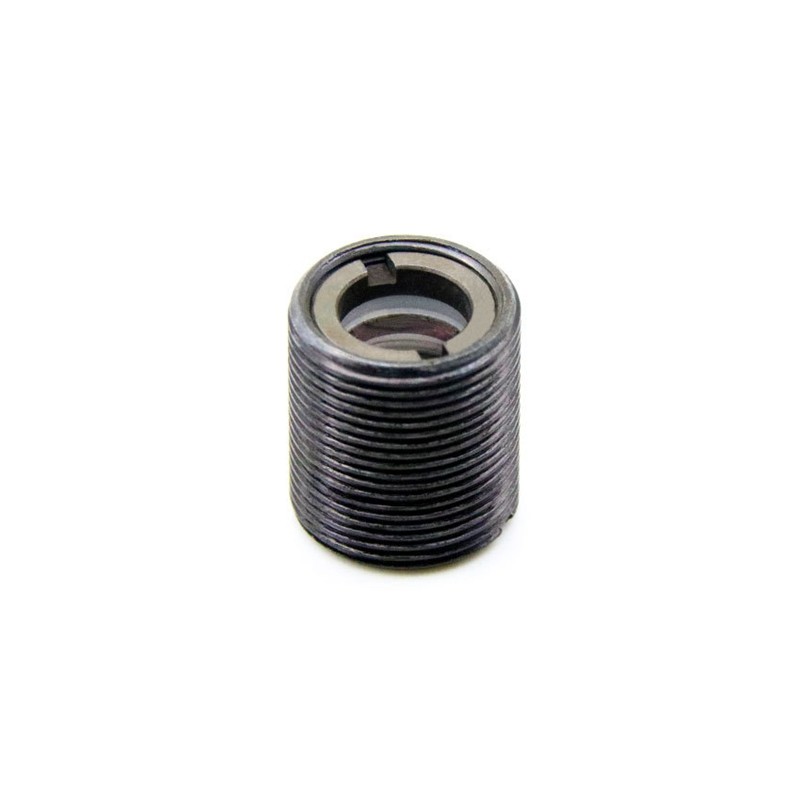

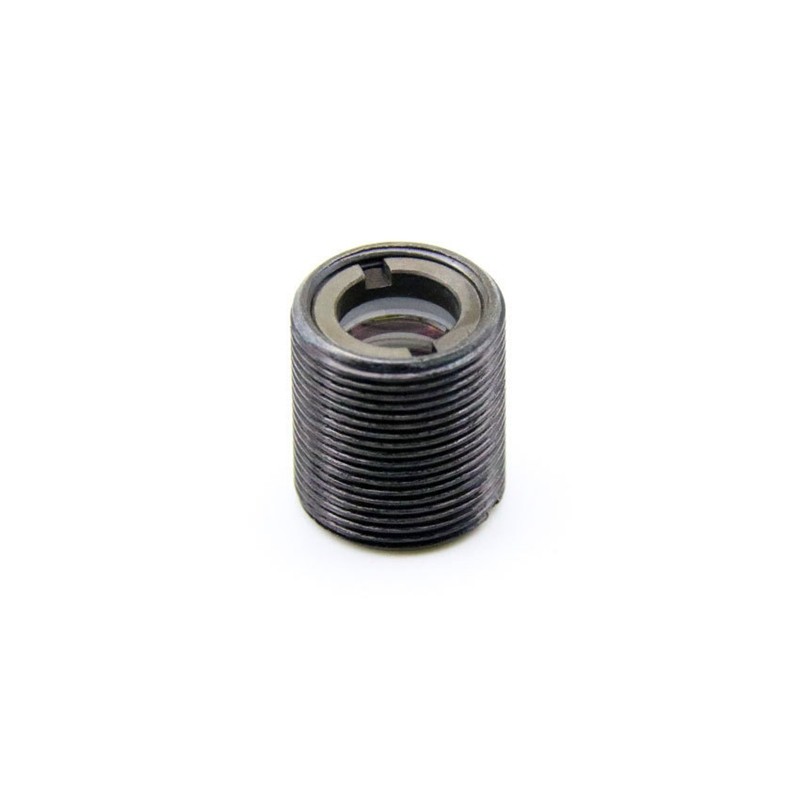

M9×P0.5 Visible Broadband Collimating Lens — EFL 9.795mm, BBAR 400–700nm
Our M9-threaded visible broadband collimator lenses with 9.795 mm effective focal length are engineered for 400–700 nm laser diodes including violet, blue, green, and red emitters.
Featuring a molded glass aspheric element with >96% average transmission BBAR coating across the full visible spectrum and a precision fine-thread metal housing for focus adjustment,
these assemblies deliver low-divergence collimated beams for multi-wavelength/RGB laser modules, compact pointers, alignment tools, and OEM VIS LD packaging.
Custom EFL (3.77 / 4.05 / 6.2 / 8.0 / 13.55 mm etc.), threads (M6/M10/M12/M14), and narrow-band coatings available on request.
Applications:
Multi-Wavelength / RGB Laser Modules — Single collimator for 405–650 nm LDs in shared housing
Visible Laser Pointers / Modules — Dot, line, cross generators (any VIS color)
Lab / Educational Laser Setups — Broadband VIS collimation from diode mounts
OEM Laser Diode Packages — Screw-in collimator for M9-standard LD holders
Alignment & Positioning Tools — High-visibility guide lights (any VIS wavelength)
Machine Vision Structured Light — Visible line generation for inspection
For Collimating lens, the focal length we have 3.77mm,4.02mm, 4.39mm,6mm,6.2mm ,6.5mm,8mm, 8.3mm, 9.8mm, 10mm,11.2mm and 12mm.
Check the stock lenses in the following files.
