Precision narrow bandpass interference filter centered at 440 nm (deep blue / royal blue spectral region), designed to transmit a sharp 440 nm ± 5–10 nm band while blocking UV (<400 nm) and visible/NIR (>460–1100 nm).

Hard-coated on UV-grade fused silica or N-BK7 glass via ion-assisted deposition for high environmental stability.

Ideal for blue laser diode (445 nm) isolation, fluorescence excitation (CFP / Pacific Blue), marine/aquarium lighting spectral shaping, and machine vision blue channel extraction.

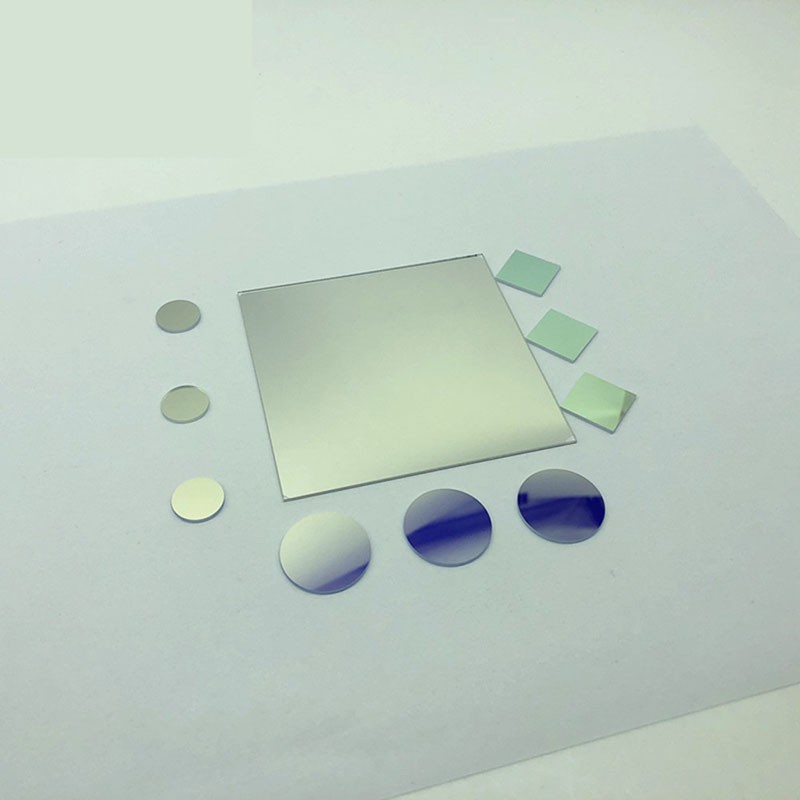

Available as stand-alone filter windows or integrated onto plano-convex / aspheric lenses.

Description

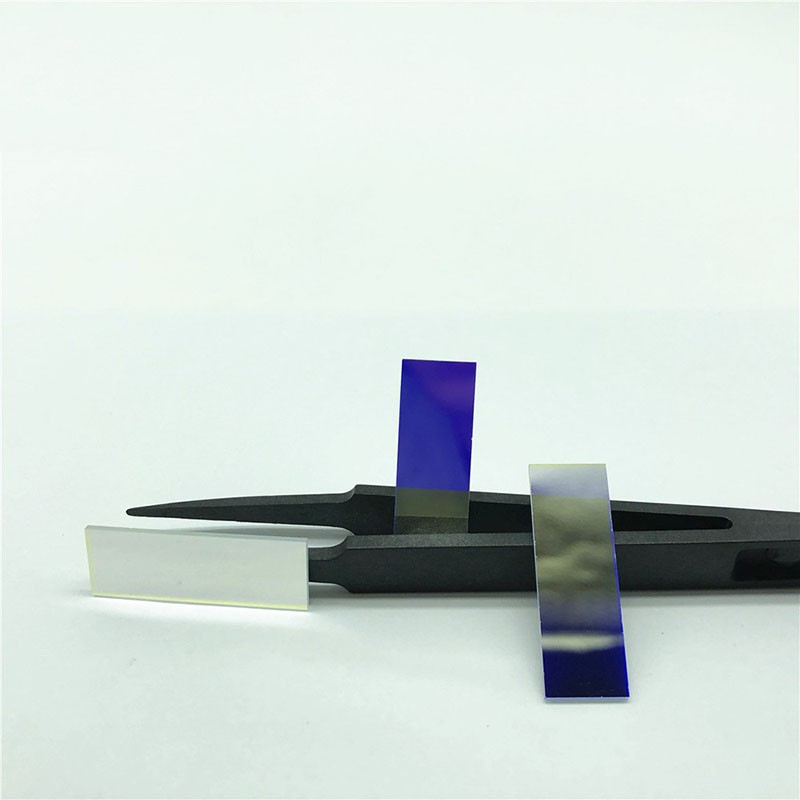

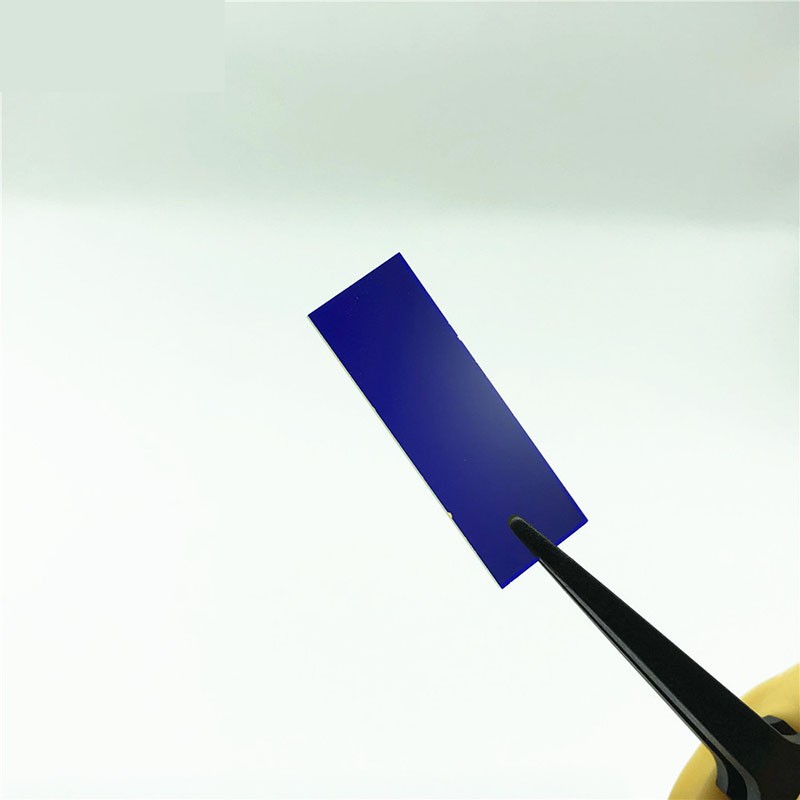

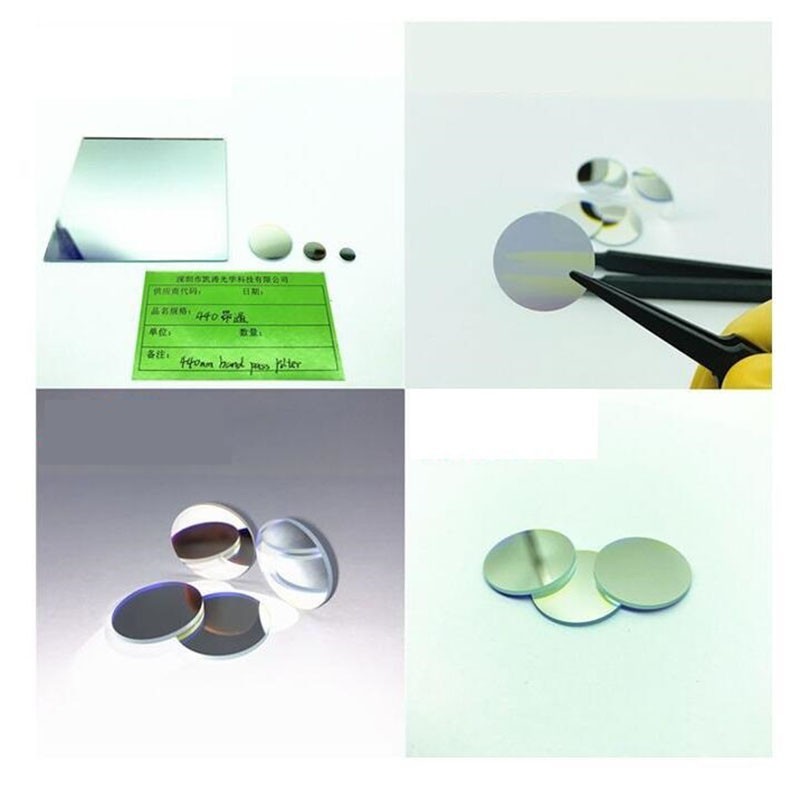

440nm band pass filter narrow band filter custom filter

Specifications:

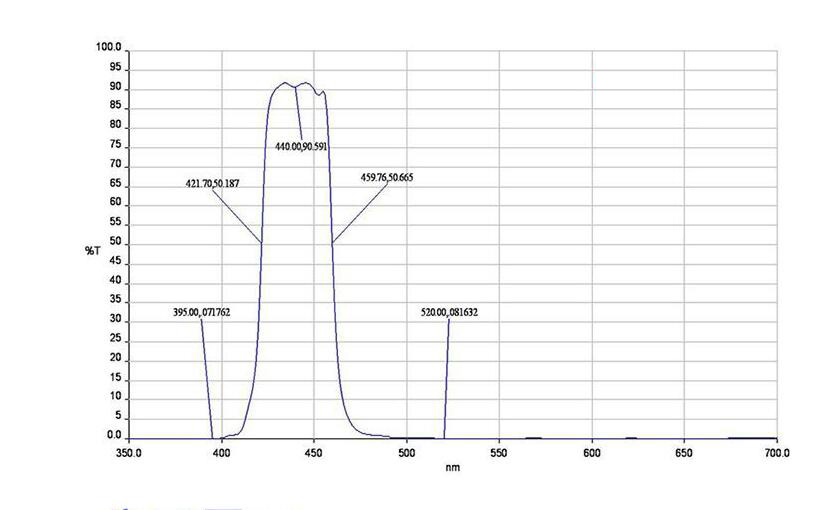

Center Wavelength (CWL): 440 nm ± 2 nm (435 / 445 / 450 nm on request)
Half Bandwidth (FWHM): 10 nm / 20 nm / 30 nm (custom 5–50 nm)
Peak Transmittance (Tpeak): ≥ 45%–65% (all-dielectric; >70% on fused silica)
Blocking Range: 300–1100 nm (or 200–1200 nm on request)
Blocking Level (Cut-off Depth): ≥ OD4 (0.01%) standard; OD5–OD6 optional
Substrate Material: UV Fused Silica (JGS1, preferred for deep UV-blue) or N-BK7 (K9)
Substrate Form: Plano-Plano Filter Window / Plano-Convex Lens with filter coating on flat side / Aspheric Lens + Filter Coating
Substrate Diameter: 10 mm – 150 mm (common Ø12.7 / Ø25.4 / Ø50 mm)
Substrate Thickness: 1.0 / 2.0 / 3.0 mm (windows); per lens design if integrated
Surface Quality: 60-40 / 40-20 Scratch-Dig
Surface Flatness (Window): λ/4 @ 632.8 nm
Parallelism: ≤ 1 arcmin (standard); ≤ 10 arcsec (precision)
Incidence Angle: 0° ± 5° (AOI-tuned design on request)
Coating Durability: Meets MIL-C-675C (humidity, adhesion, wipe resistance)

Factory custom optical filter,can cutom as your required,

please contact our sales manager
