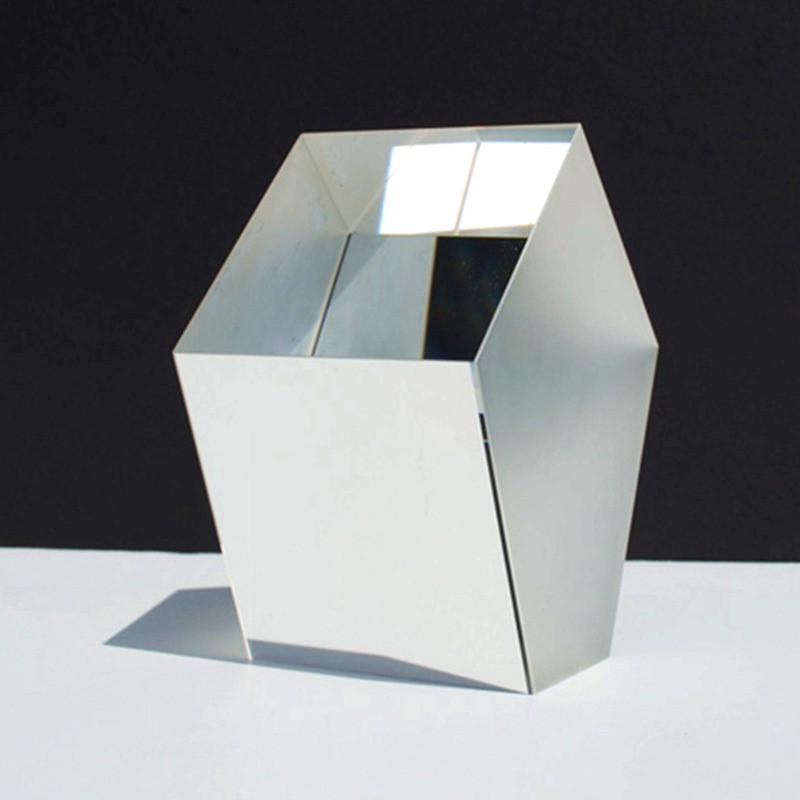

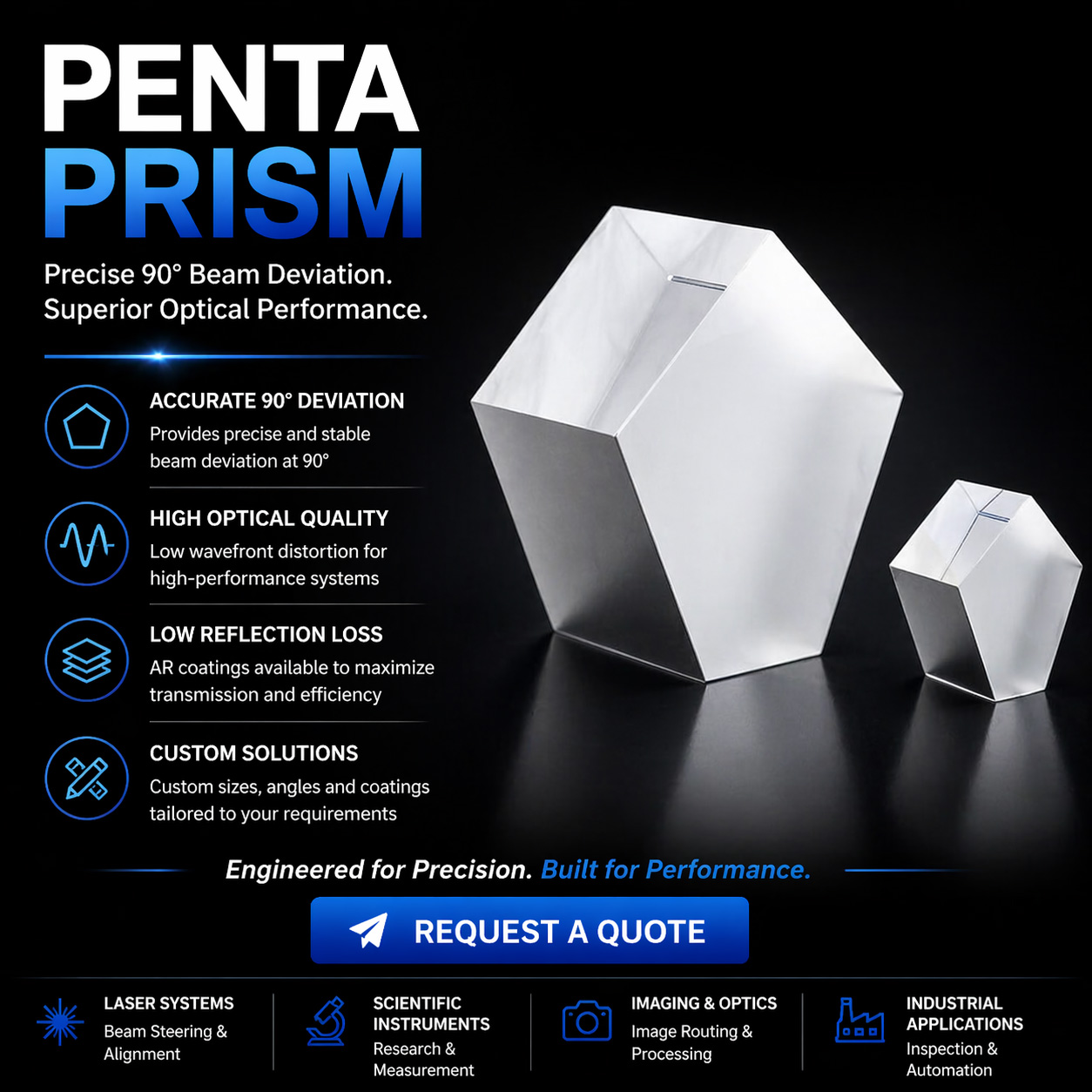

Penta prism is a high-precision optical reflection prism that permanently deviates incident light by a fixed 90° angle, without reversing or flipping the image orientation.

It features stable angular accuracy, low surface distortion and excellent light path consistency. Different from right-angle prisms, penta prisms realize constant 90° beam deflection regardless of incident angle tolerance, ensuring reliable imaging in precise optical systems.

Made of high-quality BK7 optical glass or fused silica with polished high-precision surfaces and anti-reflection coatings, it boasts high light transmittance, low stray light and long service life. Widely used in surveying instruments, rangefinders, industrial metrology, binocular systems and precision alignment equipment, delivering stable, distortion-free optical reflection performance.

Description

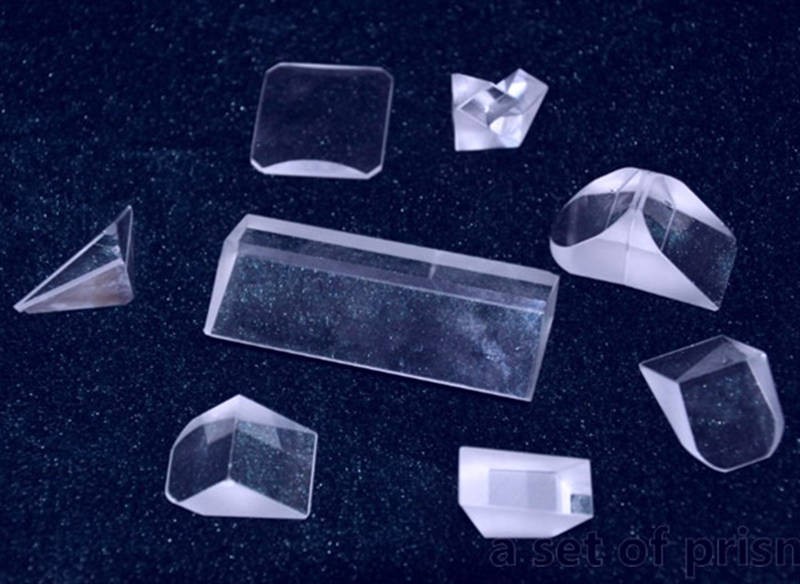

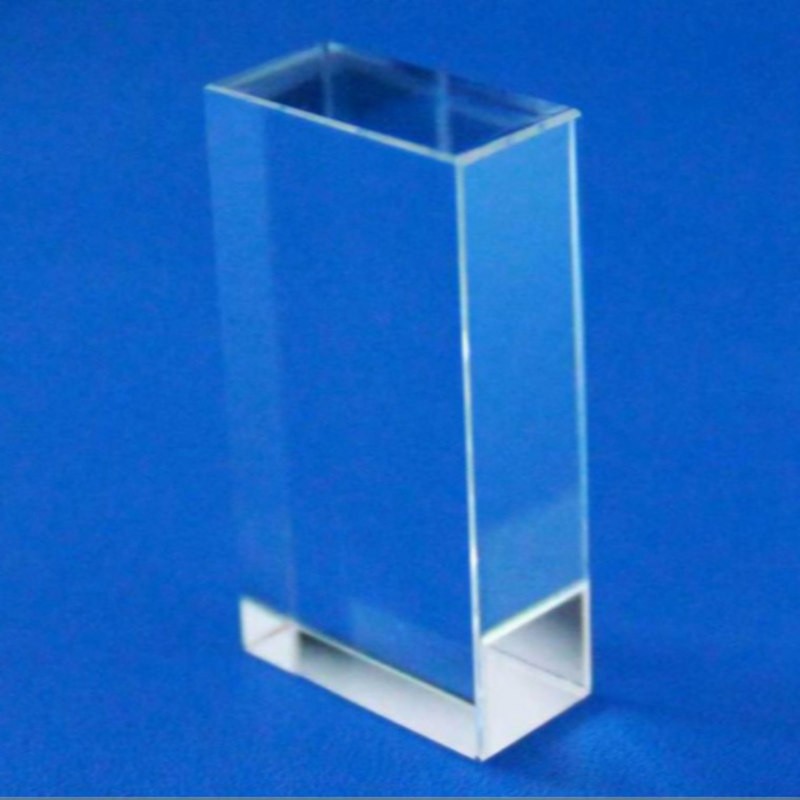

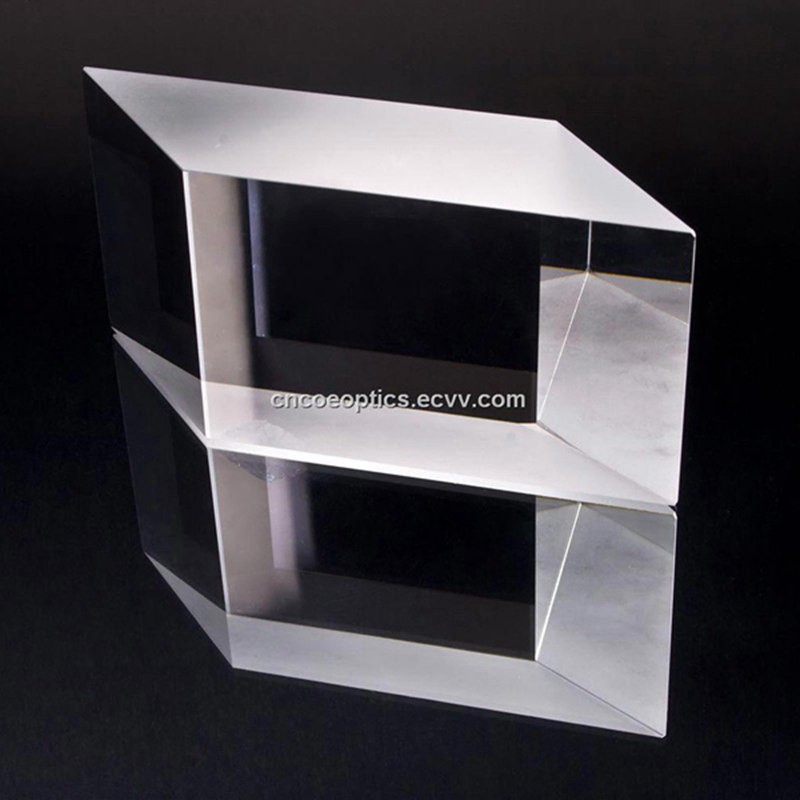

Factory custom Optical glass penta prism optical prism

Specifications:

Material: N-BK7 (nd=1.5168, νd=64.2) / K9 (H-K9L) Crown Glass / B270 / UV Fused Silica / Custom

Prism Type: Penta Prism (Pentagonal Prism, 90° Constant Deviation)

Sub-Type: Standard Penta Prism / Roof (Dachkanten) Penta Prism

Beam Deviation Angle: 90° ±30 arc sec (Standard), ±5 arc sec (High Precision)

Internal Reflection Angles: 45° – 135° – 45° (Geometric Configuration)

Aperture Size (Face Width): 5mm / 10mm / 12.7mm / 15mm / 20mm / 25mm / 30mm / 38mm / 50mm / Custom

Dimension Tolerance: ±0.1mm (±0.05mm available)

Angle Tolerance: ±30 arc sec (Standard), ±10 arc sec / ±5 arc sec (Precision)

Roof Edge Angle Tolerance (Roof Version): 90° ±2–5 arc sec (Phase-corrected coating optional)

Surface Flatness: λ/4 @ 632.8nm (λ/10 available)

Surface Quality (Scratch-Dig): 60-40 / 40-20 / 20-10

Clear Aperture: >85%–90%

Bevel / Chamfer: 0.1–0.3mm × 45°

Coating Options:

Reflective Faces: Protected Aluminum / Enhanced Aluminum / Protected Silver / Dielectric HR + Black Overcoat
Entrance & Exit Faces: Uncoated / MgF₂ AR / Broadband AR 400–700nm / BBAR 350–1100nm / Custom

Transmittance Range: 350nm – 2000nm (BK7/K9)
