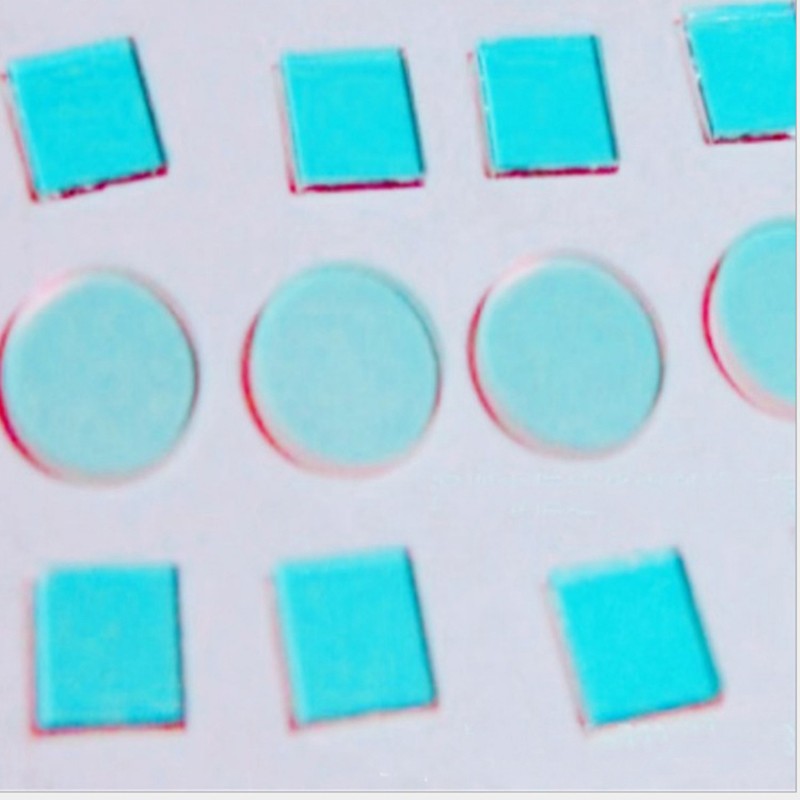

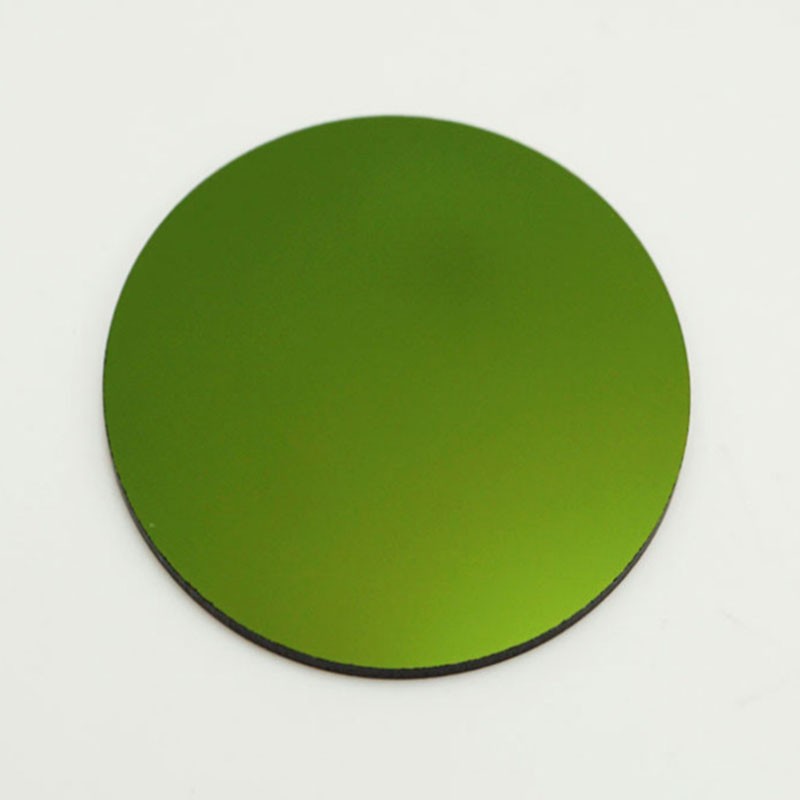

Round high temperature resistant blue-green reflective 550nm short wave pass optical filter factory custom optical filter

Round high temperature resistant blue-green reflective 550nm short wave pass optical filter factory custom optical filter

glass optical filter

custom optical filter

factory offer optical filter

Factory-customized round short wave pass / cold mirror filter designed to reflect visible blue-green light (400–550 nm) and transmit infrared (>550 nm–1200 nm+),

or conversely configured as a hot mirror (per application — this item is a Cold Mirror: reflects SW, passes LW).

Deposited with high-durability dielectric multilayer coatings on heat-resistant substrate (Borofloat / fused silica / high-temp glass), it withstands elevated temperatures in projection, lighting, and laser systems where IR heat must be removed while preserving visible blue-green reflection/imaging.

Fully customizable in diameter (10–300 mm), thickness, cut-on wavelength (500/530/550 nm), and mounting.

Description

Round high temperature resistant blue-green reflective 550nm short wave pass optical filter factory custom optical filter

Specifications:

Filter Type: Short Wave Pass / Cold Mirror (Reflect 400–550 nm / Transmit >550–1200 nm+)
Cut Wavelength (CWL): 550 nm typical (500 / 530 / 560 nm on request)
Reflection Band: 400–550 nm (Ravg ≥ 95%–98%)
Transmission Band: 550–1200 nm (Tavg ≥ 90%–93% unblocked region)
Blocked Band (if variant): IR blocked on request (Hot Mirror version available)
Substrate Material: Borofloat 33 / High-temp K9 / UV Fused Silica (for >450°C stability)
Substrate Diameter: 10 mm – 300 mm (common Ø25.4 / Ø50.8 / Ø75 / Ø100 mm)
Substrate Thickness: 1.0 / 2.0 / 3.0 mm (typical 2–3 mm)
Surface Quality: 60-40 / 40-20 Scratch-Dig
Surface Flatness: λ/4 or λ/10 @ 632.8 nm
Parallelism: ≤ 3 arcmin (standard)
Coating Durability: Withstands 150°C continuous / up to 400°C short term (substrate dependent); meets MIL-C-675C humidity & adhesion
Edge Treatment: Ground / beveled; optional edge blackening

Factory custom optical filter,can cutom as your required,

please contact our sales manager

Contact: Rebecca Xu

EmailL: rebecca@supplieroptical.com

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.
We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.
Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
Contact:Rebecca Xu
