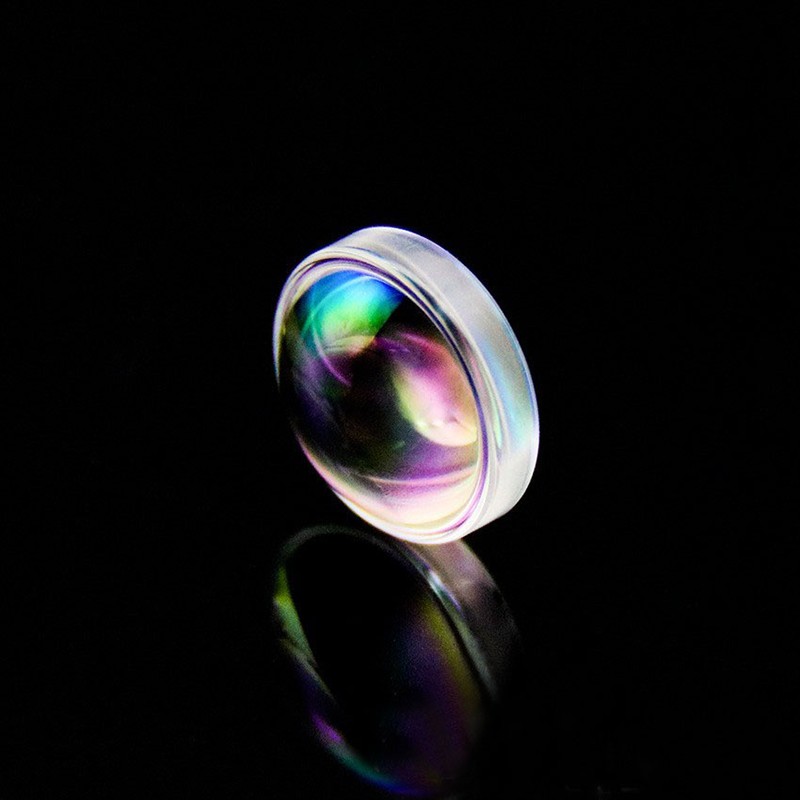

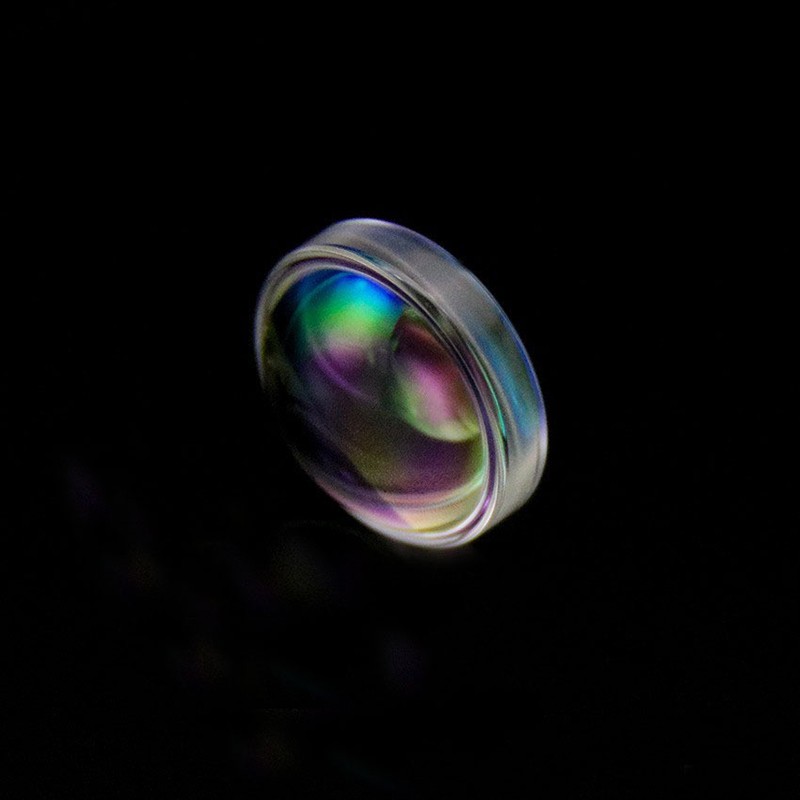

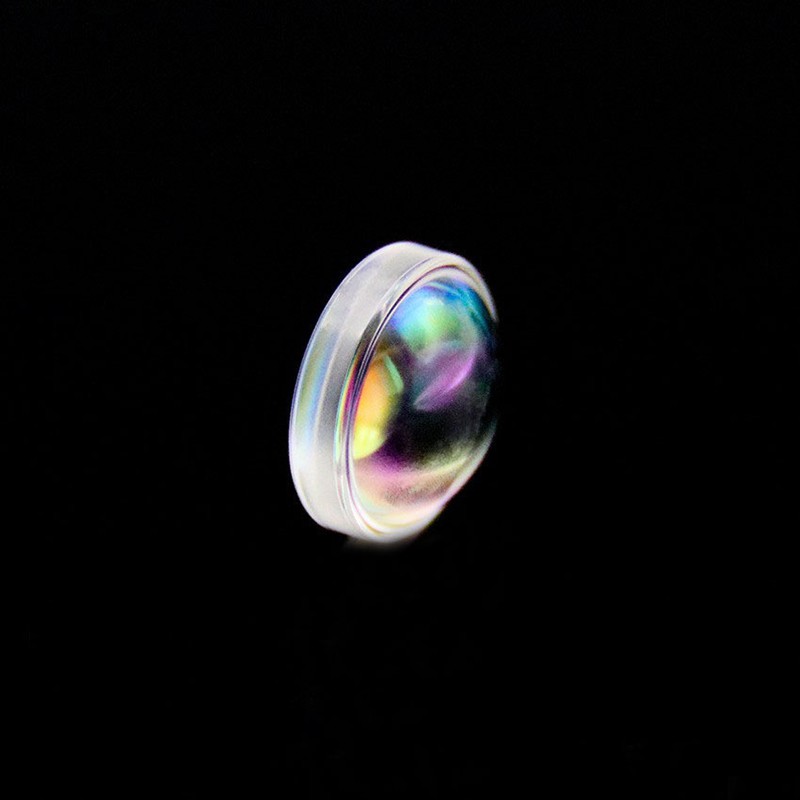

Factory custom 6mm diameter 800-1100nm wavelength 4mm focal length optical glass aspherical lens
Specifications:
Lens Type: Optical Glass Aspherical Singlet Lens (Molded / Ground & Polished)
Material: N-BK7 (nd=1.5168) / K9 (H-K9L) / N-SF Series / NIR-Low-OH⁻ Glass / Custom
Diameter (Clear Aperture): 6mm (Ø6mm)
Effective Focal Length (EFL): 4mm (Custom 2–100mm available)
Back Focal Length (BFL): Specified per design (typically ~3.2–3.8mm)
Numerical Aperture (NA): ~0.67 (approx., depends on beam clearance)
Center Thickness: 1.0mm – 2.8mm (design dependent)
Dimension Tolerance: ±0.02mm / ±0.05mm
Center Thickness Tolerance: ±0.02mm
Surface Figure (Base Sphere): λ/4 @ 632.8nm
Surface Roughness (RMS): <20nm (Molded) / <5nm (Polished)
Surface Quality (Scratch-Dig): 60-40 / 40-20 / 20-10
Clear Aperture: ≥90% of Ø6mm
Edge Treatment: Ground / Edge Blackened (Optional) / Bevel 0.1mm × 45°
Aspheric Coefficients: Optimized for 800–1100nm band (available on request)
Coating Options:
-
Broadband AR 800–1100nm (Ravg<0.5%) ← Standard
-
V-Coating @ 850nm / 940nm / 1064nm
-
Broadband AR 400–700nm / 600–1050nm (Optional)
-
Uncoated (Available)Operating Wavelength: 800–1100nm (NIR Optimized)Transmission: >99% per surface with BBAR coatingOperating Temperature: -40°C to +85°C
Applications:
850nm / 940nm / 1064nm laser diode collimation & focusing
Fiber coupling and free-space NIR micro-optics
Compact NIR imaging and sensor illumination lenses
Biometric / facial-recognition NIR illumination modules
OEM custom NIR laser and photonic modules
Machine vision NIR line/projector optics
R&D prototype NIR beam-shaping systems
