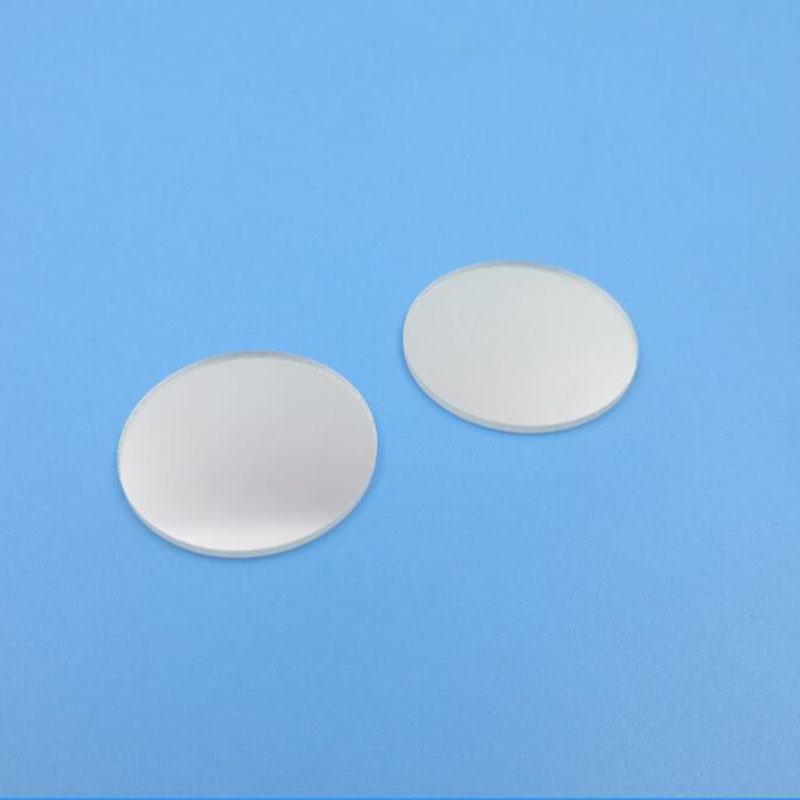

715nm narrow band filter 24*1.1mm optical filter

715nm narrow band filter 24*1.1mm optical filter

glass optical filter

custom optical filter

factory offer optical filter

715nm optical filter

Precision narrow bandpass interference filter centered at 715 nm (red-edge / near-infrared transition region), designed to transmit a sharp 715 nm ± band while blocking visible blue-green-red (<680 nm) and NIR (>750–1100 nm).

Hard-coated on optical glass (BK7/K9 or fused silica) via ion-assisted deposition with steep edges and deep out-of-band blocking. The 715 nm line is commonly used in plant health monitoring (NDVI red-edge), biomedical oximetry reference, and specialized NIR machine vision.

Available as stand-alone filter window or integrated onto custom mounts.

Description

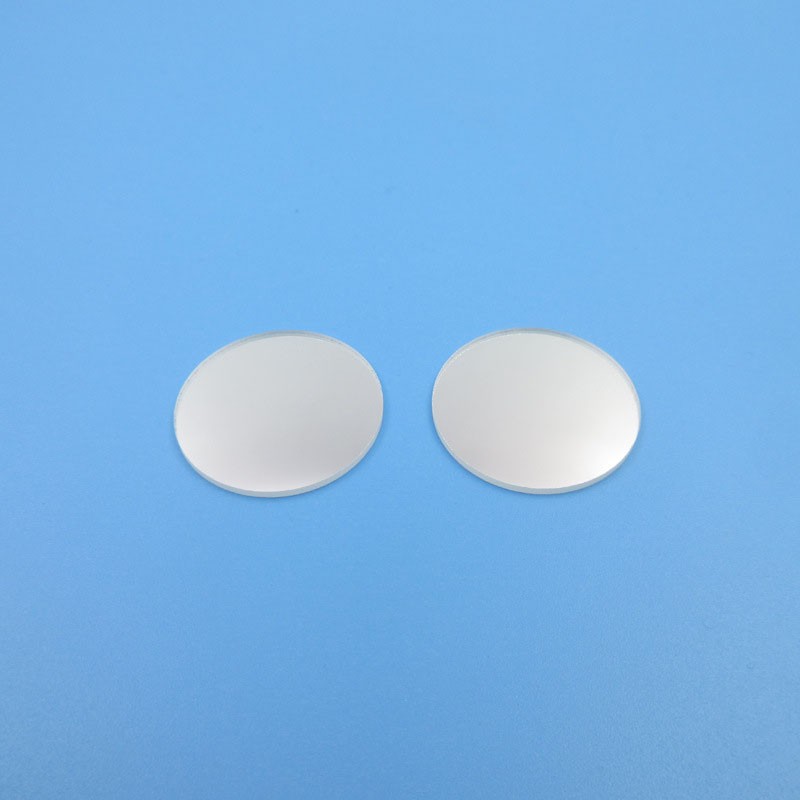

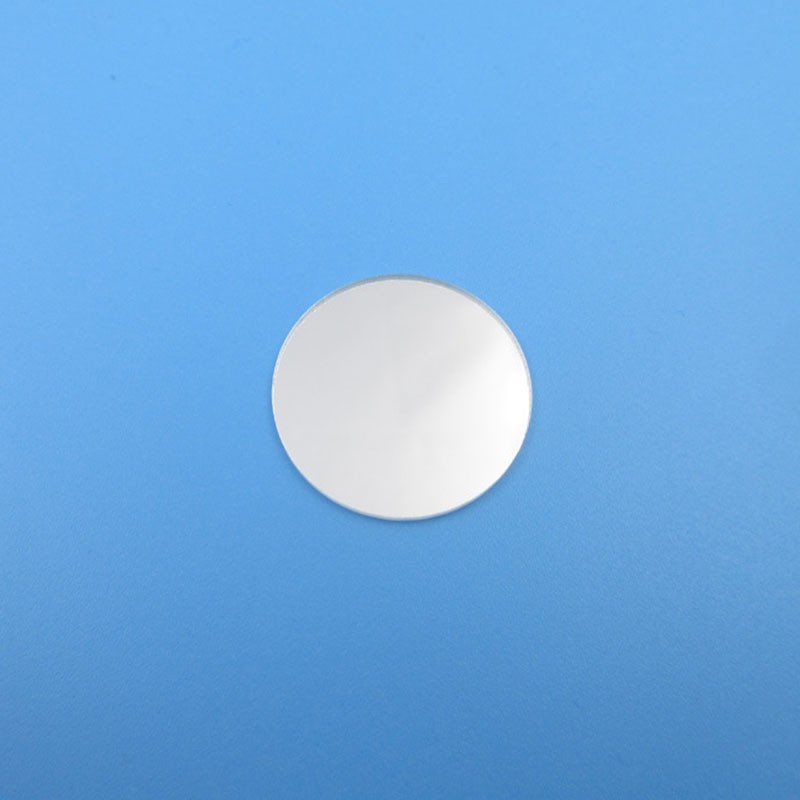

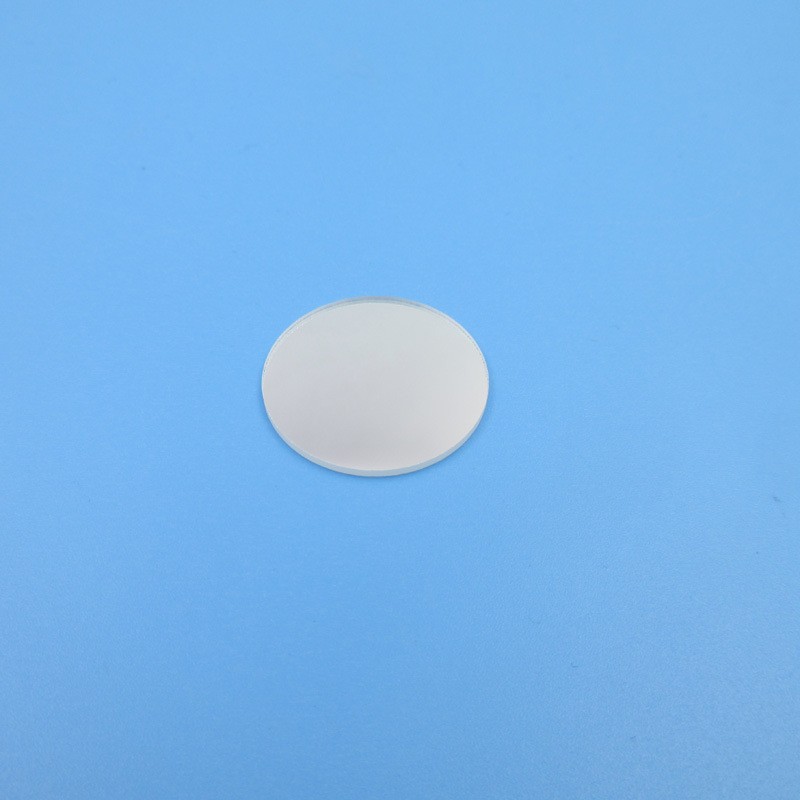

**715nm narrow band filter 24*1.1mm optical filter factory wholesale**

Specifications

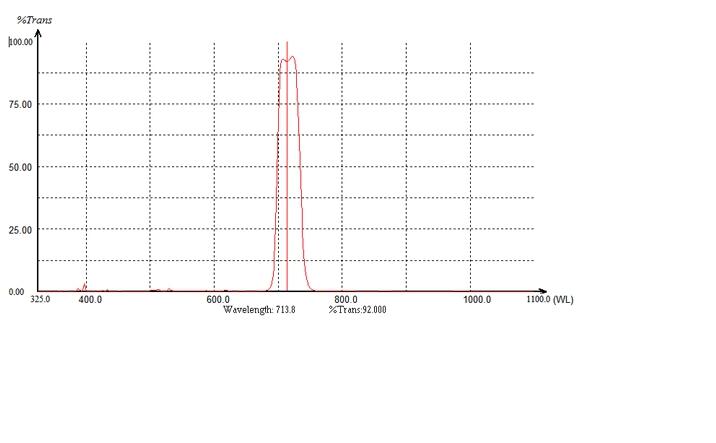

Center Wavelength (CWL): 715 nm ± 2 nm (700 / 730 / 750 nm on request)

Half Bandwidth (FWHM): 10 nm / 20 nm / 30 nm / 40 nm (custom 5–50 nm)

Peak Transmittance (Tpeak): ≥ 80%–90% (typical; >85% premium)

Blocking Range: 300–1100 nm (or 400–1100 nm + UV on request)

Blocking Level (Cut-off Depth): ≥ OD4 (0.01%) standard; OD5–OD6 optional

Substrate Material: N-BK7 (K9) / UV Fused Silica (JGS1 — for UV-capable version)

Substrate Diameter: 24 mm (+0.0 / −0.1 mm)

Substrate Thickness: 1.1 mm (±0.1 mm); 1.0 / 2.0 mm optional

Surface Quality: 60-40 / 40-20 Scratch-Dig

Surface Flatness: λ/4 @ 632.8 nm

Parallelism: ≤ 1 arcmin (standard); ≤ 10 arcsec (precision)

Incidence Angle: 0° ± 5° (AOI-tuned design on request)

Coating Durability: Meets MIL-C-675C(humidity, adhesion, wipe resistance)

Edge Treatment: Ground / beveled 0.2×45°; optional edge blackening

Factory custom optical filter,can cutom as your required,
