Description

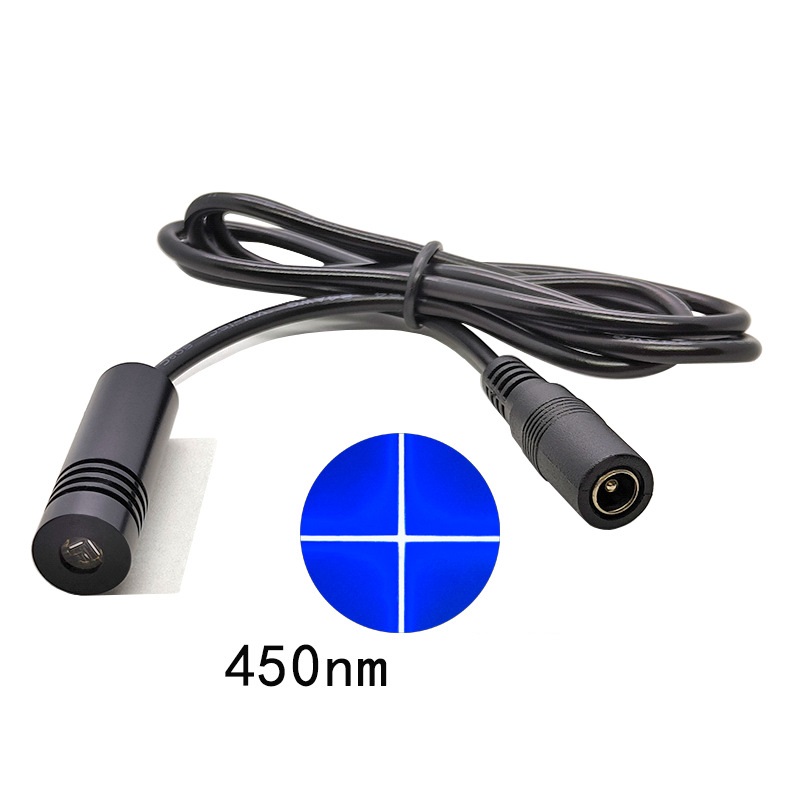

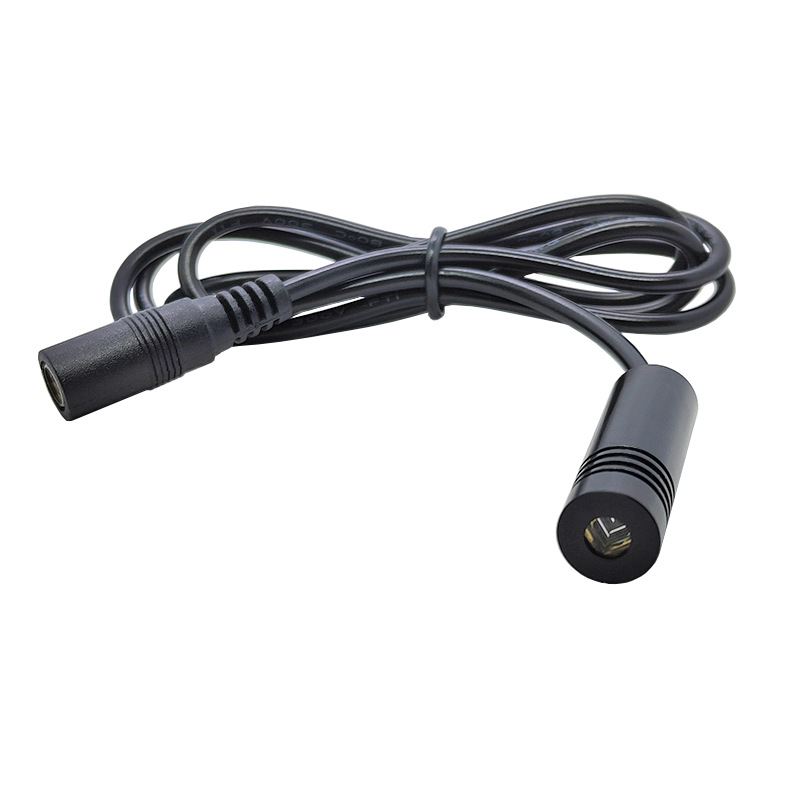

12X40mm450nm1mW5mW10mW external focus cross line pure blue laser module external focus cross line pure blue laser module

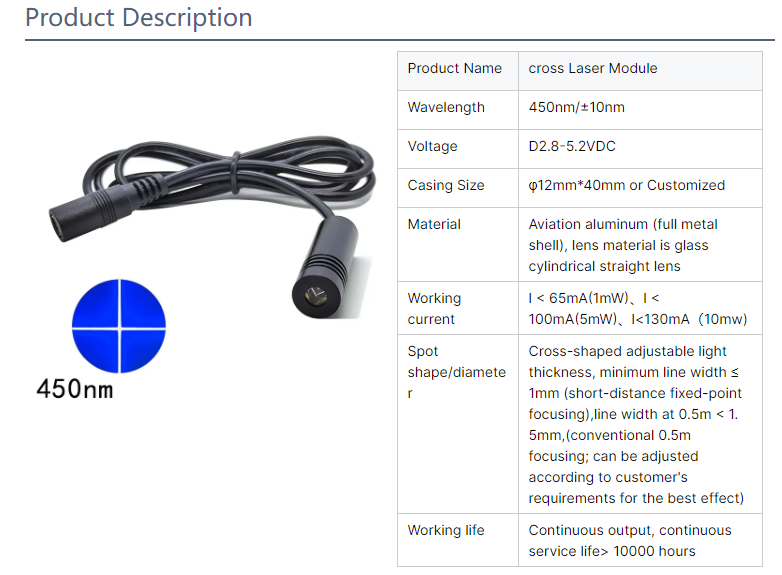

Specifications
Wavelength: 450nm ±10nm (True Blue / InGaN Diode)
Output Power: 1mW / 5mW / 10mW (CW, Class 2 / IIIa / IIIb available)
Laser Pattern: Cross Line (90° perpendicular crosshair)
Lens: Optical Glass or PMMA Cross Cylindrical Lens (focus adjustable via front cap)
Operating Voltage: DC 3V–5V (typical 3.3V/5V; 12V optional with driver)
Operating Current: <40mA (1–5mW) / <80mA (10mW)
Cross Width: ≤1.0mm @ 1m (adjustable via focus ring)
Beam Divergence: <1.2 mrad

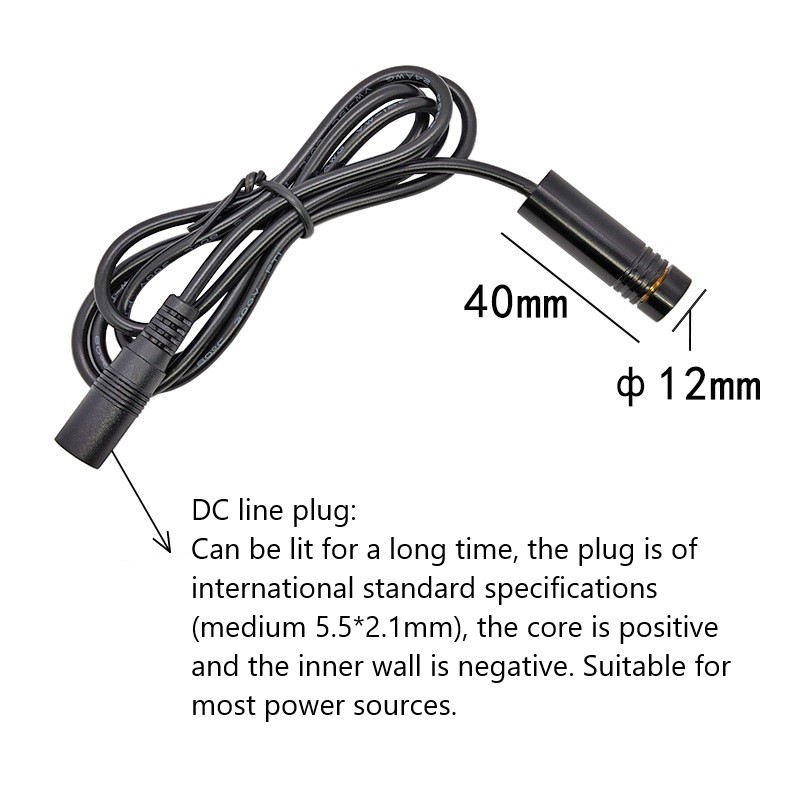

Housing: Φ12×40mm Black Anodized Aluminum (ESD & reverse polarity protected)
Lead Wire: Red(+)/Black(−) 100–150mm or JST connector (optional)
Working Temp.: -10°C to +50°C
Storage Temp.: -40°C to +80°C
Lifetime: >8,000 hrs
Applications
Stage lighting / Special effect blue crosshair source
Machine vision contrast cross reference & inspection aid
Woodworking / Stone sawing cross alignment (decorative/high-contrast use)
Laser level & layout marking blue cross (for reflective surfaces)
Scientific optical experiment alignment aid
OEM integration in custom instrumentation
