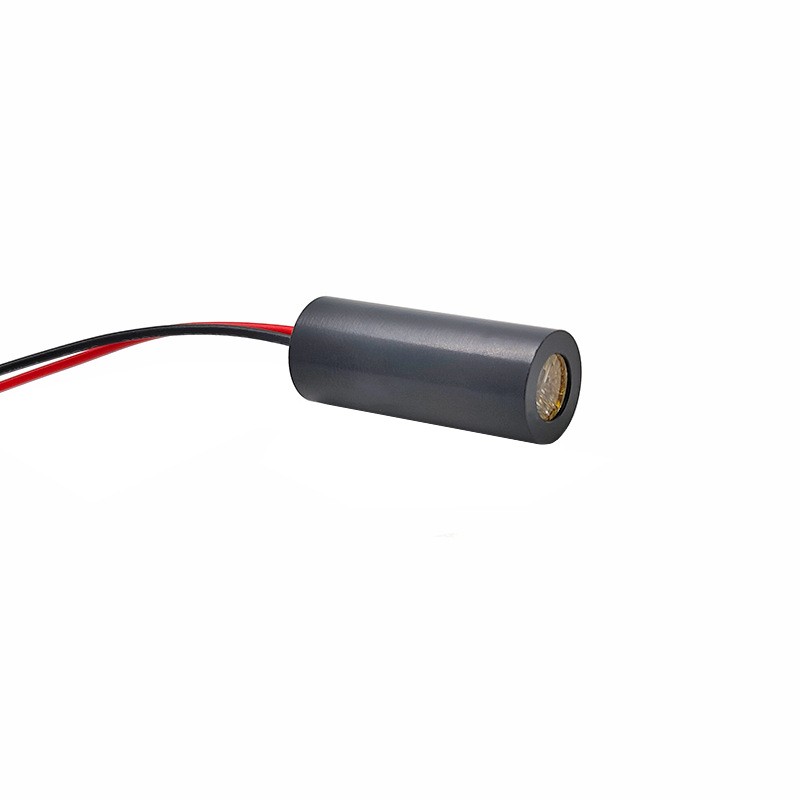

12X30mm 635nm laser head 5mW cross line red laser module

  • 635nm laser head
  • 12X30mm red laser module
  • 5mW cross laser module
  • red laser module

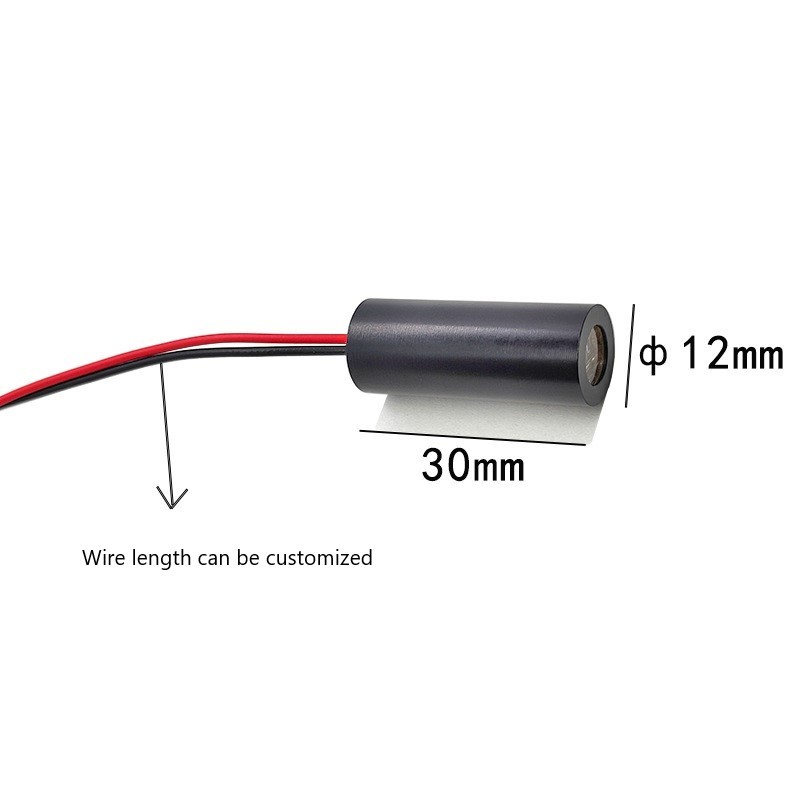

  • Compact Φ12×30mm red cross line laser module with 635nm wavelength and <5mW output, equipped with a high-transmission optical glass lens and built-in APC (Auto Power Control) driver circuit.

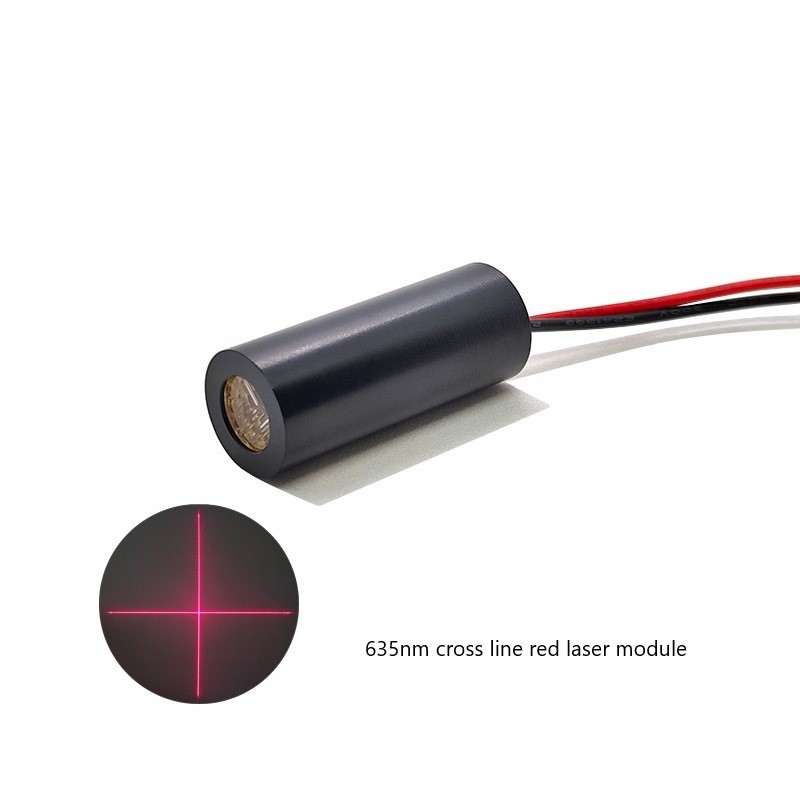

     It projects a bright, sharp, and perpendicular red crosshair—more visible than 650nm equivalents—ideal for precision positioning, alignment, and OEM integration in textile, woodworking, and measuring instruments.

    • Inquiry Send Email

    Description



    12X30mm 635nm laser head 5mW cross line red laser module

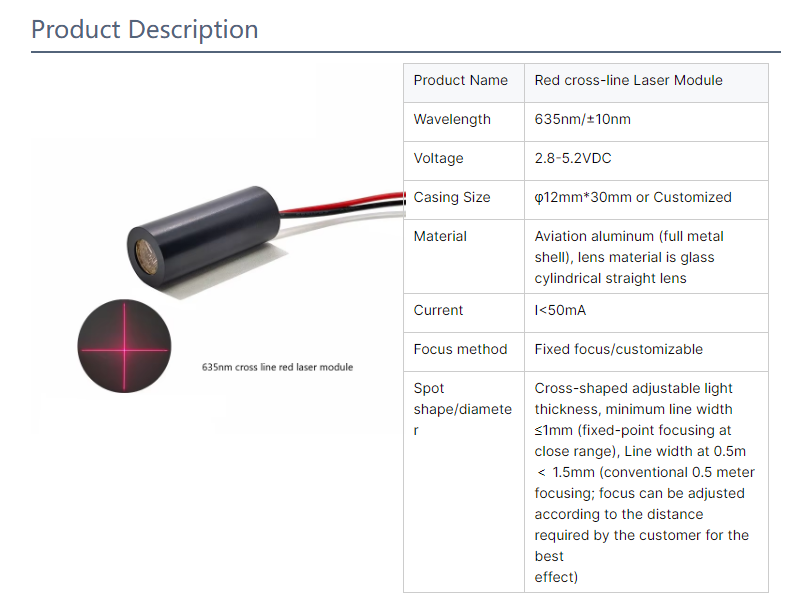

    Specifications
    • Wavelength: 635nm ±5nm (Bright Red)
    • Output Power: ≤5mW (Class IIIa / Class 2 available)
    • Laser Pattern: Cross Line (90° perpendicular crosshair)
    • Lens: Optical Glass Cross Cylindrical Lens
    • Operating Voltage: DC 3V / 3–5V (with APC driver)
    • Operating Current: ≤45mA
    • Cross Size: Adjustable with distance (e.g. ≈cross @ 1m–5m)
    • Spot / Line Width: ≤1.0mm @ 1m (glass lens, sharp edges)
    • Housing: Φ12×30mm Black Anodized Aluminum (shock & ESD protected)
    • Working Temp.: -10°C to +50°C
    • Storage Temp.: -40°C to +80°C
    • Lifetime: >10,000 hrs
    Applications
    • Textile / Garment cutting bed crosshair positioning
    • Woodworking & Stone sawing alignment guides
    • Sewing / Embroidery / Printing machine reference lines
    • Laser level, layout marking & distance measurers
    • PCB board alignment & laboratory optical setups
