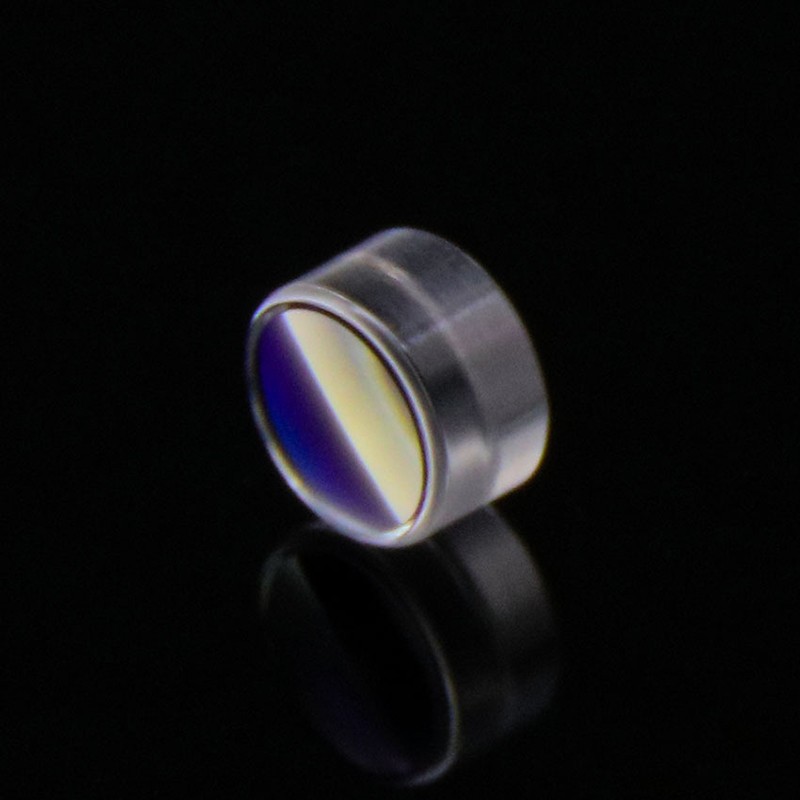

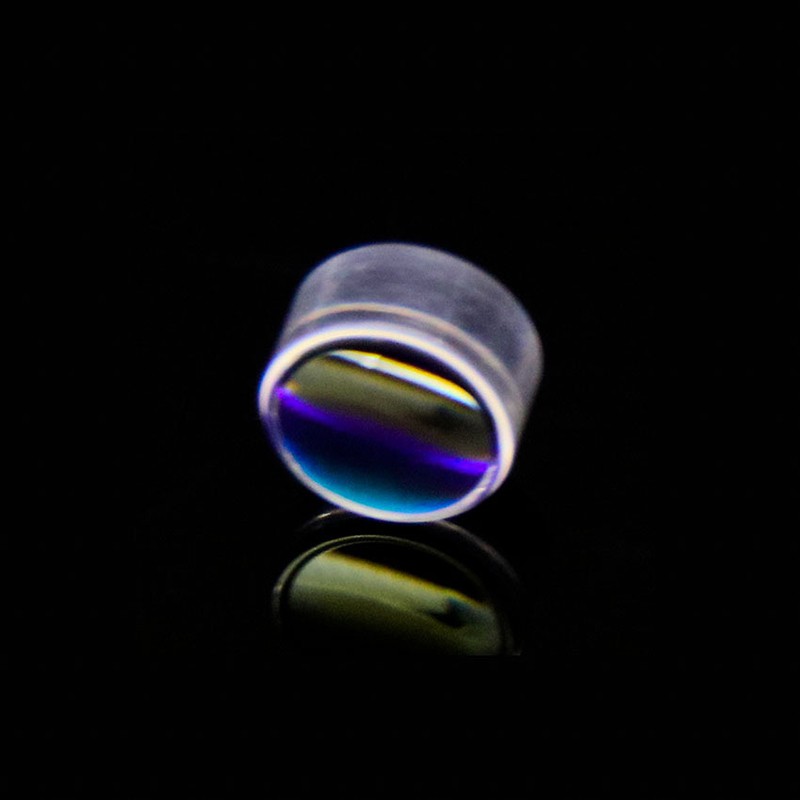

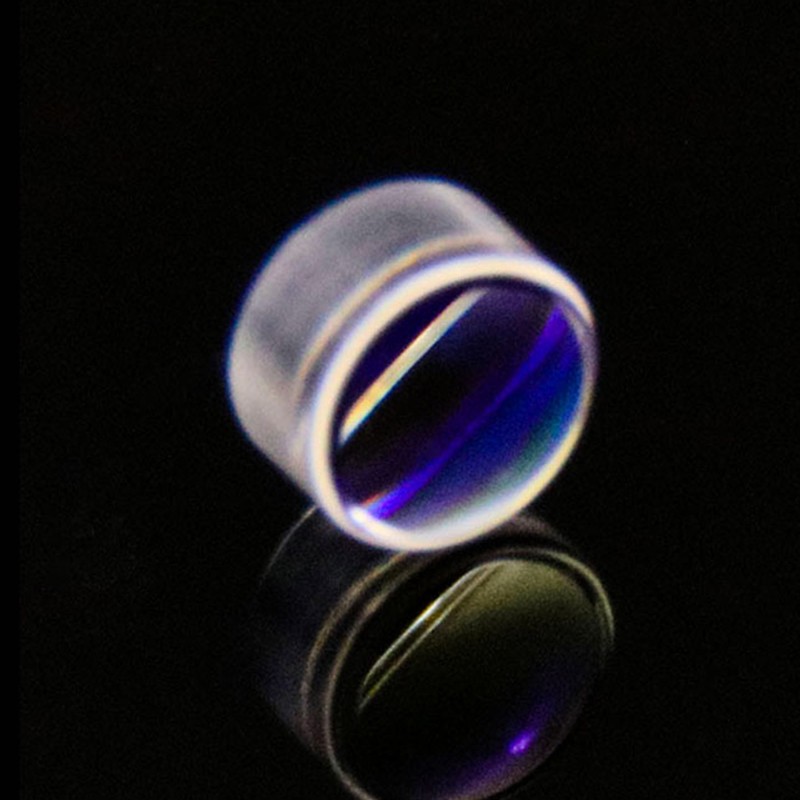

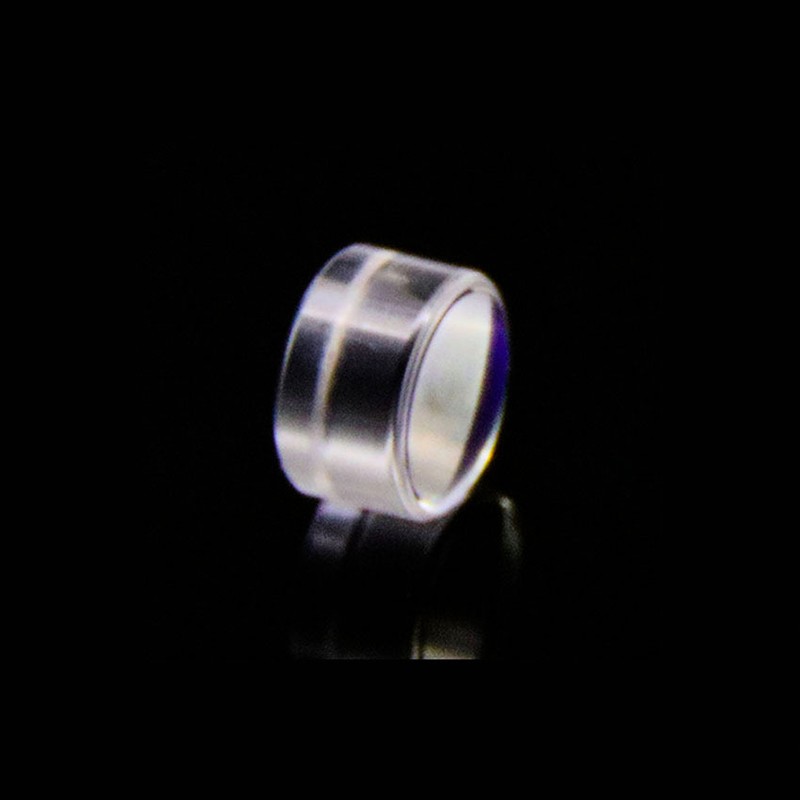

Ultra-compact high-precision aspherical singlet lens made from N-BK7 or K9 optical glass, with 3mm clear aperture, 3.2mm effective focal length and numerical aperture ~0.37, specially designed for small-form-factor laser diode collimation and focusing.

The aspheric profile eliminates spherical aberration and delivers a smaller spot size with higher coupling efficiency than equivalent spherical lenses. Optimized for visible or NIR wavelengths (405/635/650/808/850/940nm V-coat or BBAR available).

Ideal for miniature laser modules, pointer optics, biometric illumination, and OEM micro-optical assemblies.

Description

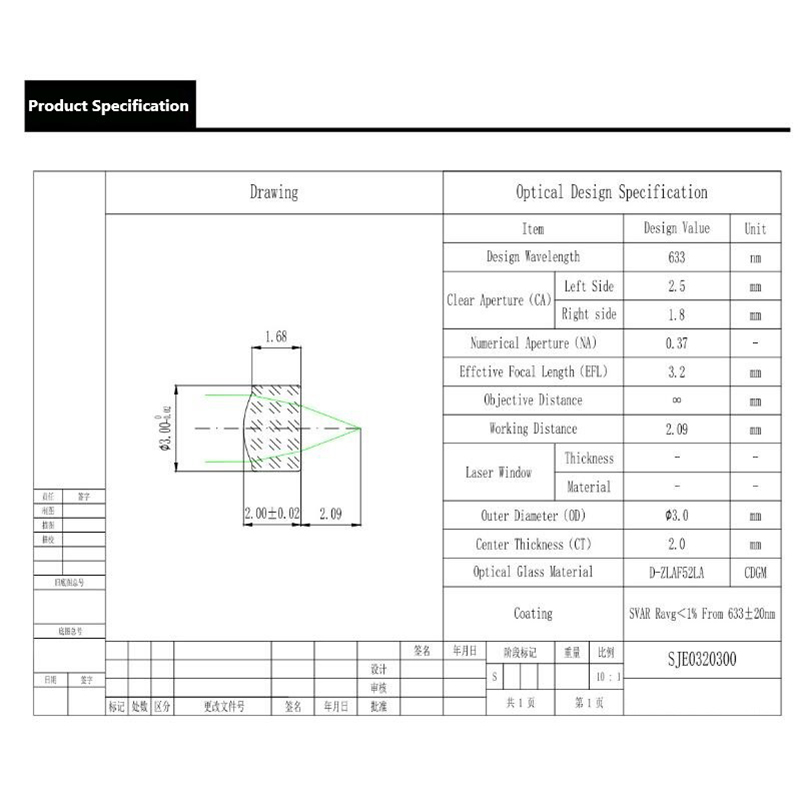

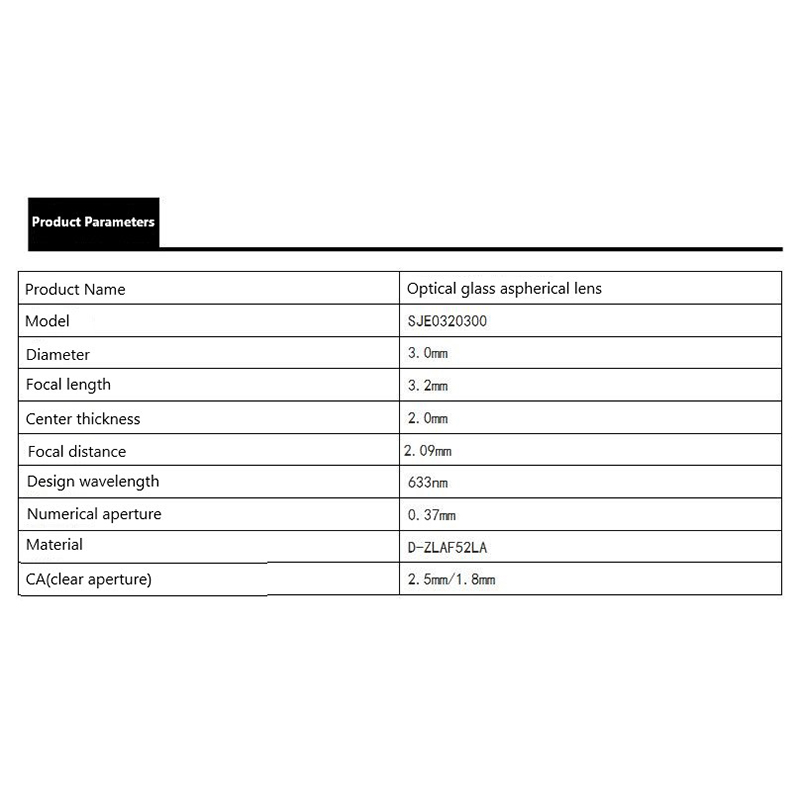

Specifications:

Lens Type: Optical Glass Aspherical Singlet Lens (Molded / Precision Polished)

Material: N-BK7 (nd=1.5168) / K9 (H-K9L) / High-Index Crown (Custom)

Diameter (Clear Aperture): 3mm (Ø3mm)

Effective Focal Length (EFL): 3.2mm (Custom 1.5–50mm available)

Back Focal Length (BFL): Specified per design (typically ~2.5–3.0mm)

Numerical Aperture (NA): 0.37 (Standard) / Custom NA per EFL & Clear Aperture

Center Thickness: 0.8mm – 2.2mm (design dependent)

Dimension Tolerance: ±0.02mm

Center Thickness Tolerance: ±0.02mm

Surface Figure (Base Sphere): λ/4 @ 632.8nm

Surface Roughness (RMS): <20nm (Molded) / <5nm (Polished)

Surface Quality (Scratch-Dig): 60-40 / 40-20 / 20-10

Clear Aperture: ≥90% of Ø3mm

Edge Treatment: Ground / Edge Blackened (Optional) / Bevel 0.05mm × 45°

Aspheric Coefficients: Optimized per wavelength band (available on request)

Coating Options:

V-Coating @ 405nm / 532nm / 635nm / 650nm / 808nm / 850nm / 940nm / 1064nm
Broadband AR 400–700nm / 600–1050nm (Optional)
Uncoated (Available)

Operating Wavelength: VIS / NIR (Custom per application)

Transmission: >99% per surface with AR / V-Coat

Operating Temperature: -40°C to +80°C
