635nm 5mW laser diode 6mm*12mm laser diode module

  • 635nm laser module
  • 635nm 5mw laser module
  • dot laser module
  • 6mm*12mm laser module

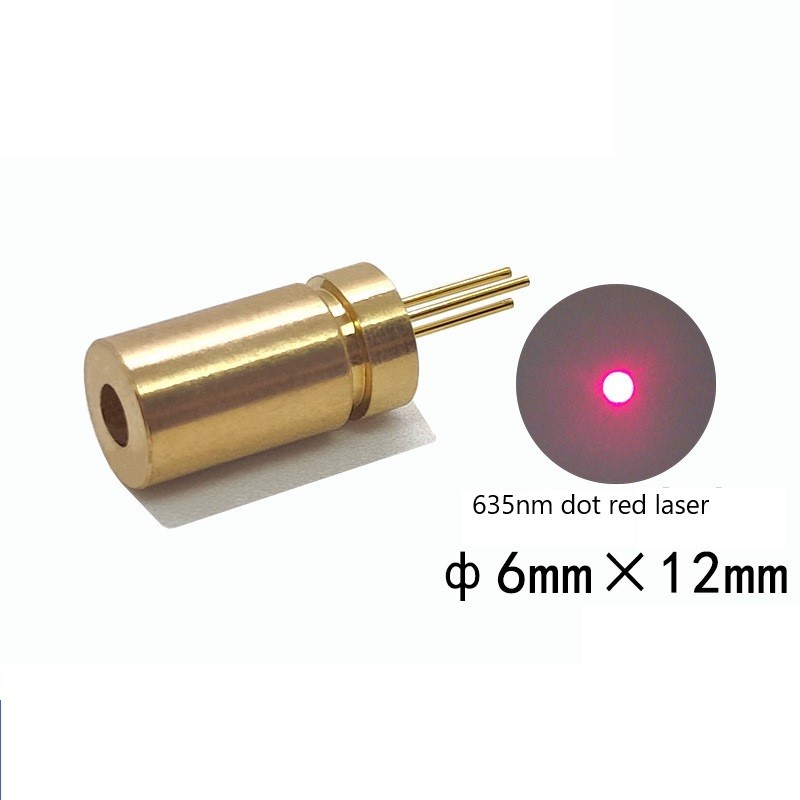

  • Ultra-compact red laser diode module with 635nm wavelength and 5mW output power (Class 3R), housed in a Ø6×12mm miniature brass or aluminum cylindrical case.

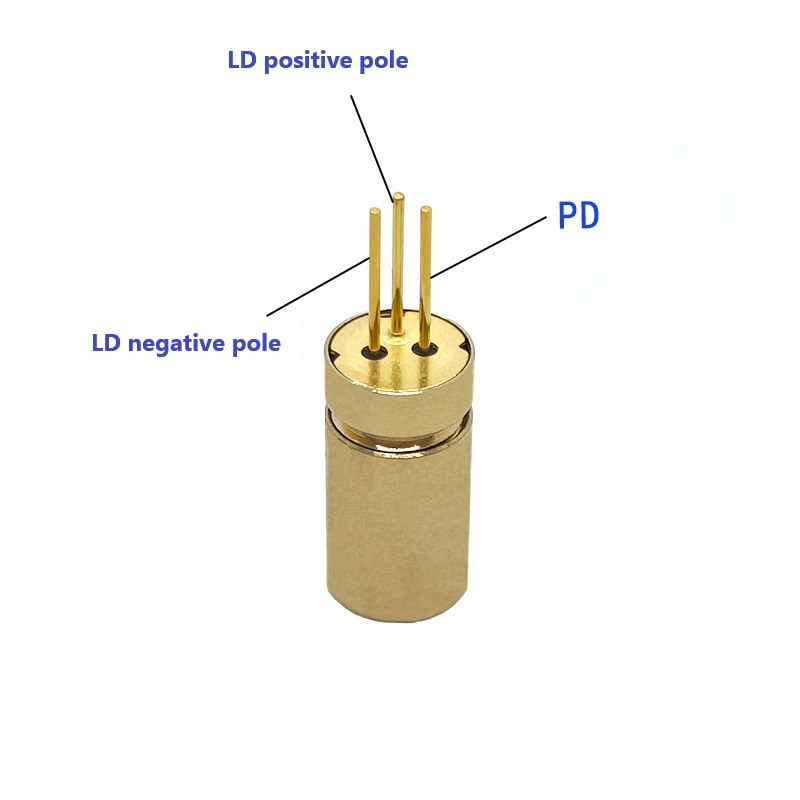

    Integrates a high-stability laser diode, APC driver circuit, and aspherical glass collimating lens to produce a well-defined red dot—line or cross patterns available via interchangeable cap.

    Operates on DC 3V with pre-wired leads. Ideal for space-constrained positioning, alignment, portable instruments, and OEM micro-optical integration.

    • Inquiry Send Email

    Description

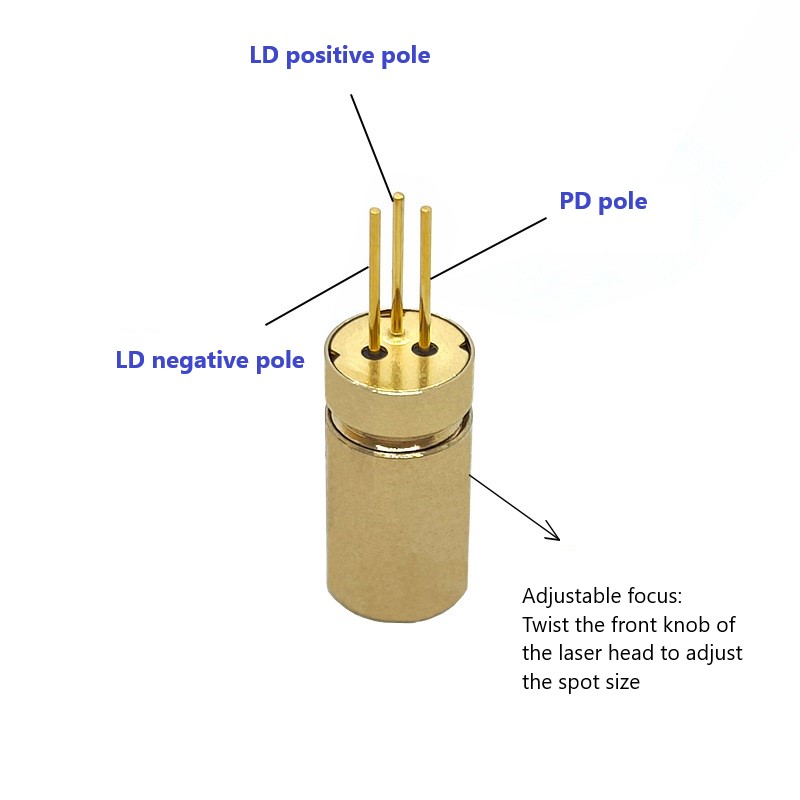

    635nm 5mW laser diode module adjustable focus 6mm*12mm  variable focus laser module

    Wavelength: 635nm (Red)
    Output Power: 5mW (Standard) / 1mW / 3mW / Optional up to 20mW/Custom
    Laser Class: Class 3R (≤5mW) per IEC 60825-1(Class 2 version available)
    Beam Pattern: Dot (Standard) / Line / Cross / Custom (via cap optic)

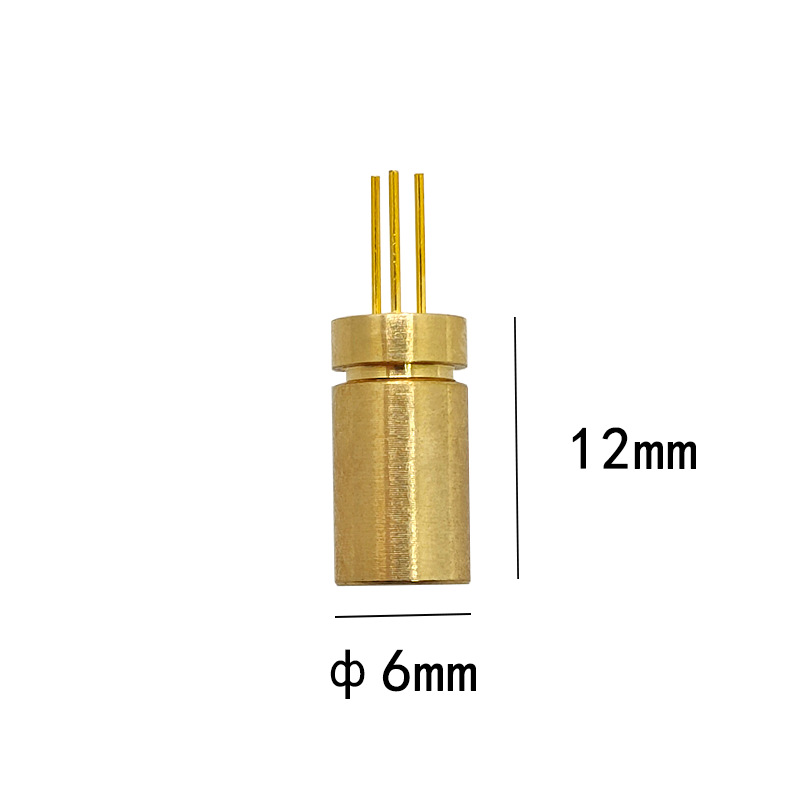

    Module Dimensions: Ø6mm × 12mm (Other sizes: Ø8×17mm / Ø10×30mm / Ø12×30mm/Custom available)
