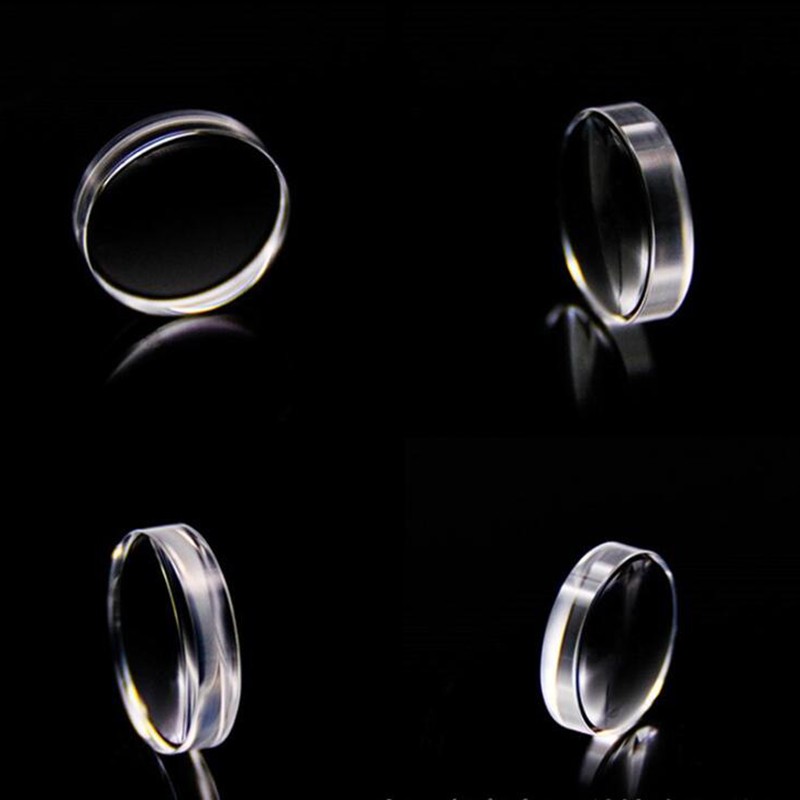

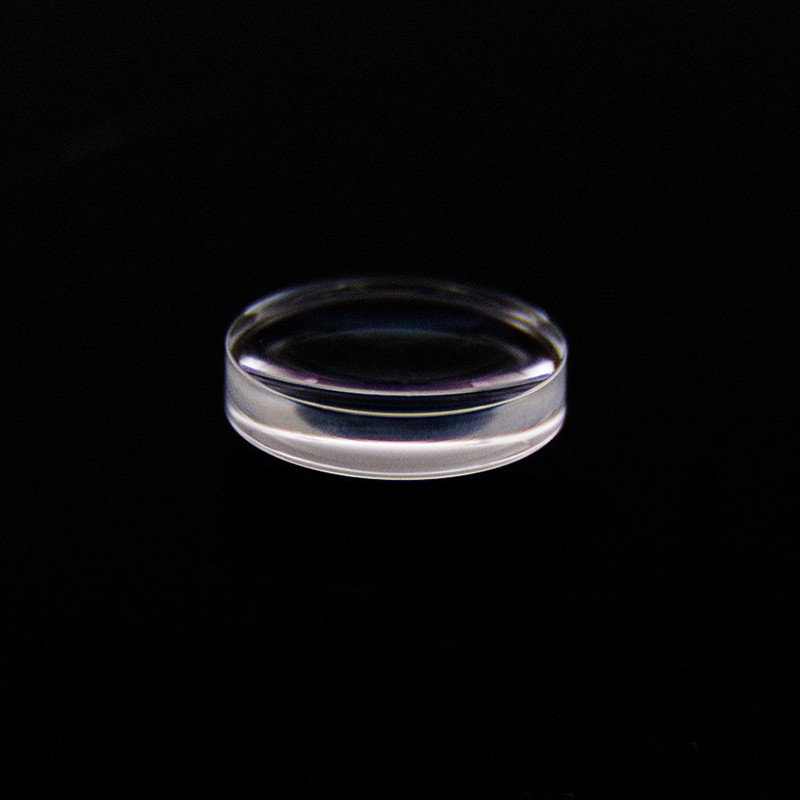

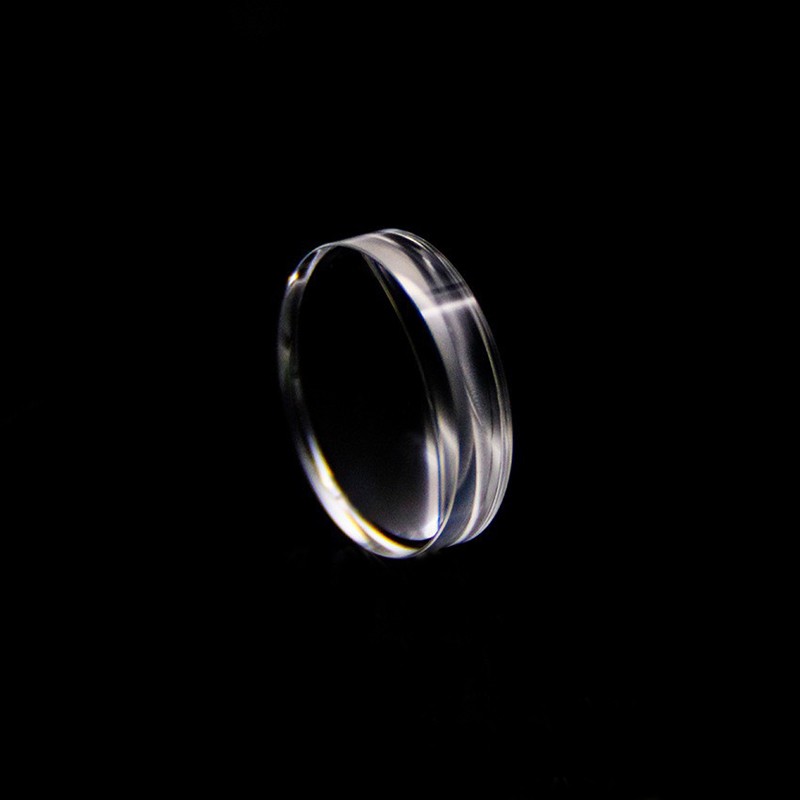

10mm diameter 19mm focal length L-BAL42 optical glass lens aspheric lens

10mm diameter 19mm focal length L-BAL42 optical glass lens aspheric lens

Optical Aspherical Lens

10mm diameter Aspheric Glass Lens

19mm focal length optical aspheric lens

factory offer optical aspheric lens

High-precision optical glass aspherical singlet lens molded or polished from OHARA L-BAL42 low-dispersion crown glass (nd≈1.583, νd≈59.3), with 10mm clear aperture and 19mm effective focal length (f/1.9).

The aspheric profile eliminates spherical aberration and improves spot quality versus standard plano-convex spherical lenses.

L-BAL42 offers excellent partial dispersion characteristics close to fluorite, making it ideal for apochromatic or high-color-fidelity visible imaging, collimators, and condenser systems.

Broadband AR coating 400–700nm or VIS-NIR available. Custom EFL, NA, and coating options supported for OEM lens design.

Description

10mm diameter 19mm focal length L-BAL42 optical glass lens aspheric lens focusing collimating lens

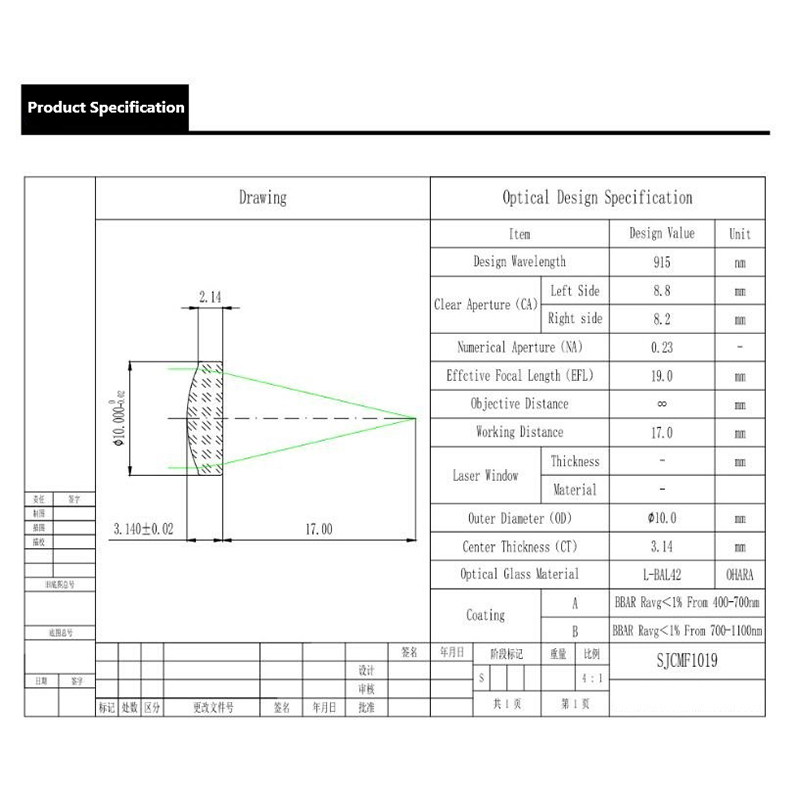

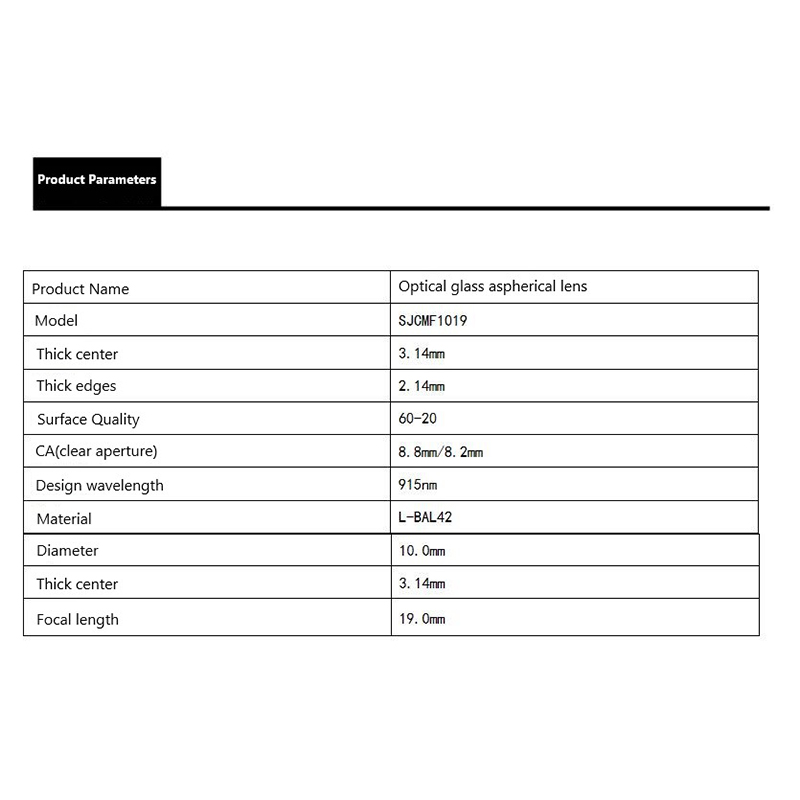

Specifications:

Lens Type: Optical Glass Aspherical Singlet Lens (Molded / Ground & Polished)

Material: L-BAL42 (OHARA) nd=1.5831, νd≈59.3 / Equivalent Low-Dispersion Crown (N-BK7 / D-ZK3 substitute available)

Diameter (Clear Aperture): 10mm (Ø10mm)

Effective Focal Length (EFL): 19mm (Custom 10–200mm available)

Back Focal Length (BFL): Specified per design (typically ~17–18.5mm for EFL=19mm)

Numerical Aperture (NA): ~0.24–0.28 (depends on beam clearance)

Center Thickness: 2.0mm – 5.0mm (design dependent)

Dimension Tolerance: ±0.02mm / ±0.05mm

Center Thickness Tolerance: ±0.02mm

Surface Figure (Base Sphere): λ/4 @ 632.8nm

Surface Roughness (RMS): <20nm (Molded) / <5nm (Polished)

Surface Quality (Scratch-Dig): 60-40 / 40-20 / 20-10

Clear Aperture: ≥90% of Ø10mm

Edge Treatment: Ground / Edge Blackened (Optional) / Bevel 0.1–0.2mm × 45°

Aspheric Coefficients: Optimized per wavelength band (available on request)

Coating Options:

Uncoated
MgF₂ AR @ 550nm
Broadband AR 400–700nm (Ravg<0.5%)
Broadband AR 600–1050nm (VIS-NIR)
V-Coating @ 532nm / 635nm / 850nm / 1064nm / Custom

Operating Wavelength: 400–700nm (VIS Standard), 350–2200nm (Substrate Dependent)

Transmission: >99% per surface with AR coating

Operating Temperature: -40°C to +80°C

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.

We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.

Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.

Please contact for any custom needs,
Contact:Rebecca Xu
