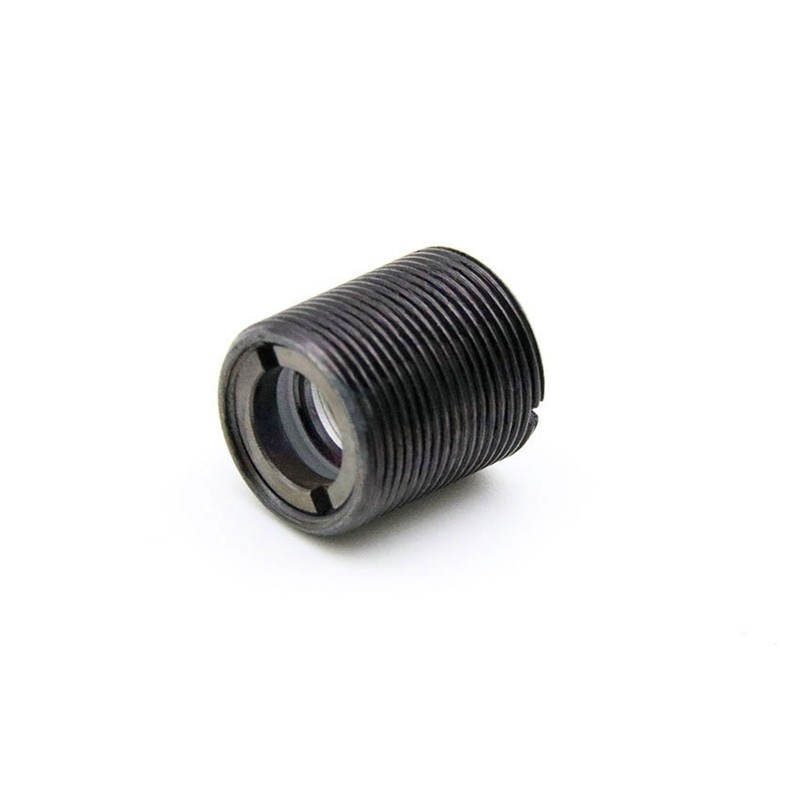

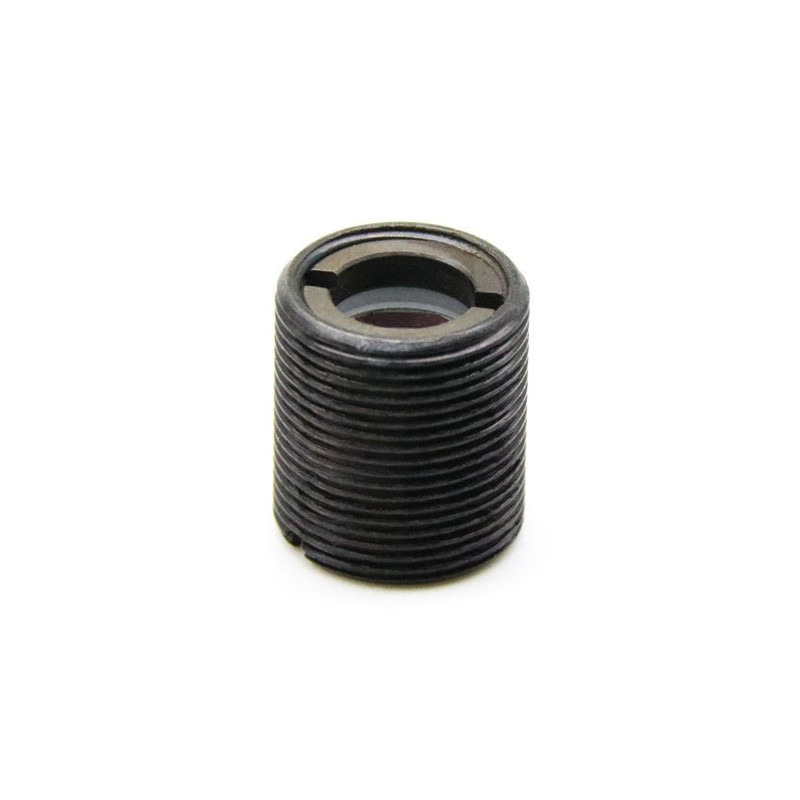

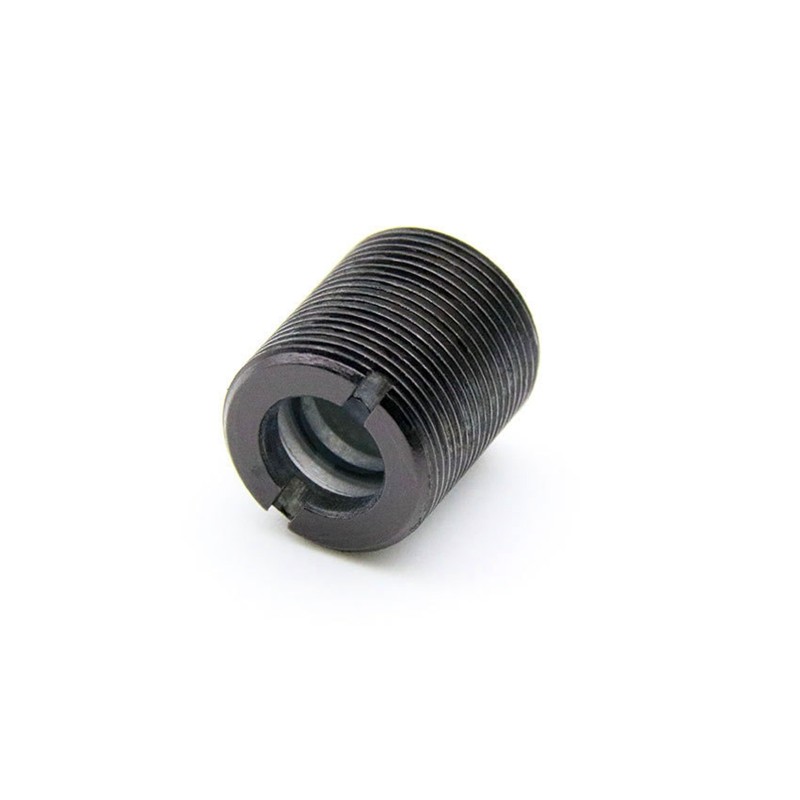

M9×P0.5 Threaded NIR Collimating Lens — EFL 12.842mm, BBAR 700–1100nm
Our M9-threaded NIR collimator lenses with 12.842 mm effective focal length are engineered for 700–1100 nm laser diodes including 780/850/905/980 nm emitters.
Featuring a molded glass aspheric element with >97% transmission BBAR coating and a precision fine-thread metal housing for in-situ focus adjustment, these compact assemblies deliver low-divergence collimated beams in minimal footprint.
Ideal for LIDAR transmitters, fiber-launch pre-collimators, IR illuminator modules, and OEM NIR LD packaging. Custom EFL, thread (M6/M10/M12), and coating bands (e.g. 400–700nm / 1064nm / 1550nm) available on request.

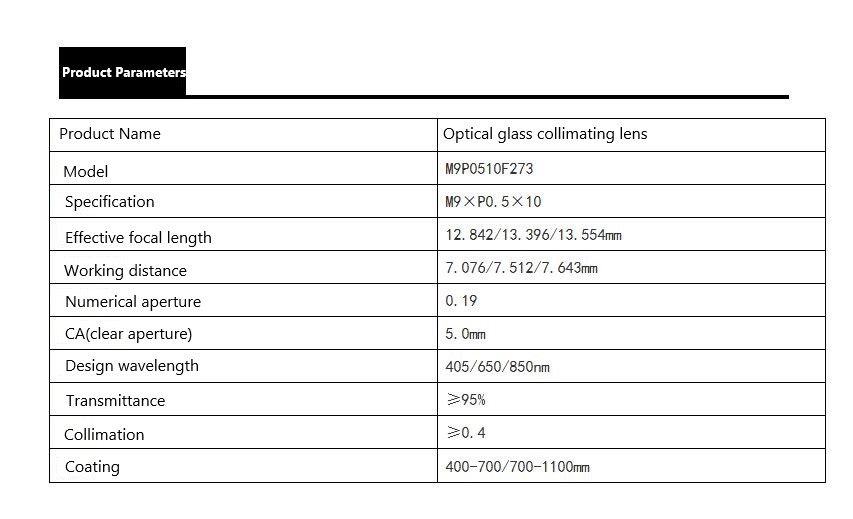

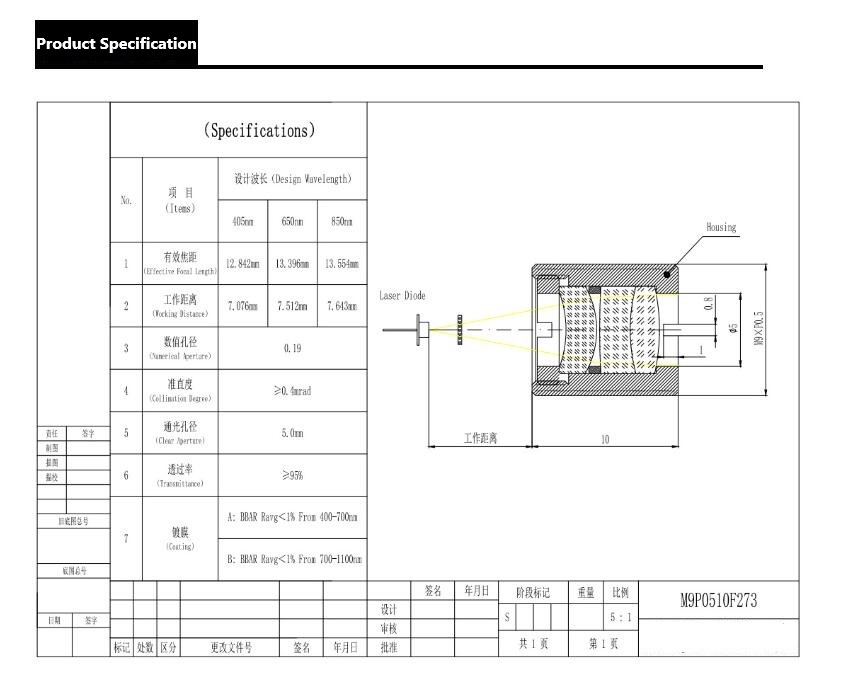

Specifications:
Mount / Thread: M9 × P0.5 (fine pitch), full or half thread; overall length ≈ 10 mm (typical)
Effective Focal Length (EFL): 12.842 mm (common tolerance ±2%)
Design Wavelength Band: 700–1100 nm (optimized for 780/850/905/980 nm typical)
Lens Element: Single molded glass aspheric (preferred) or AR-coated N-BK7 / Fused Silica plano-convex
Clear Aperture (CA): Ø5.0 – Ø6.0 mm (typical Ø5.5 mm)
Numerical Aperture (NA): 0.20 – 0.35 (matches common 5.6 mm / 9 mm TO-can NIR LD)
Working Distance (WD): ≈ 10.0 – 11.2 mm (adjustable by thread depth)
Coating: BBAR @ 700–1100 nm (Ravg < 0.5% per surface; typical Rs < 0.3% @ 850/980 nm)
Housing Material: Nickel-plated brass or black-anodized aluminum
Transmission: ≥ 97% avg. over coated band
Surface Quality: 60-40 / 40-20 Scratch-Dig
Recommended LD Type: 5.6 mm / 9 mm TO-can NIR LD (780/808/850/905/980 nm), emitter width 3–50 μm
For Collimating lens, the focal length we have 3.77mm,4.02mm, 4.39mm,6mm,6.2mm ,6.5mm,8mm, 8.3mm, 9.8mm, 10mm,11.2mm and 12mm.
Check the stock lenses in the following files.
