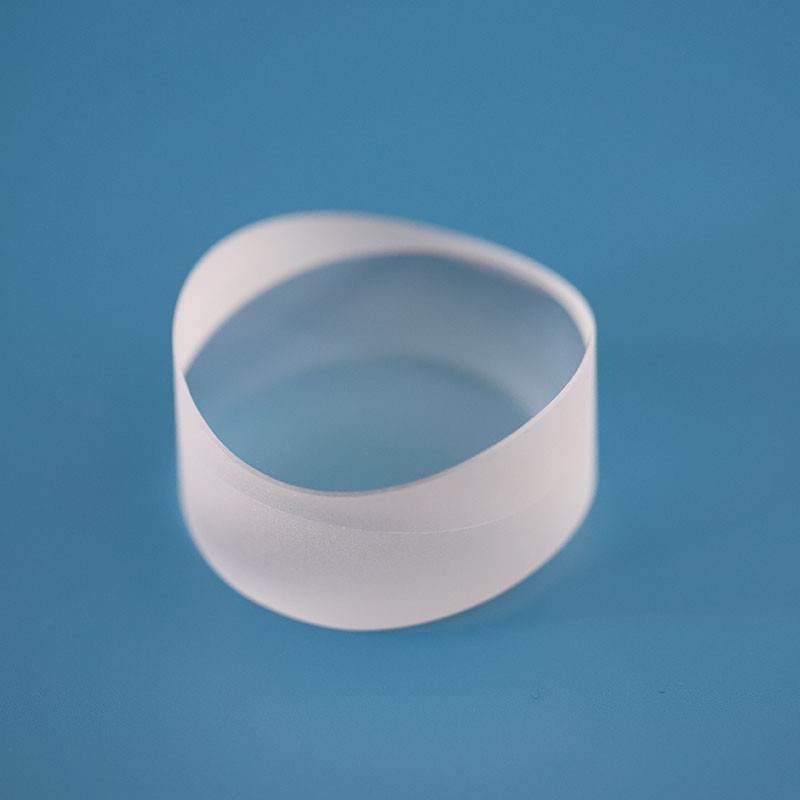

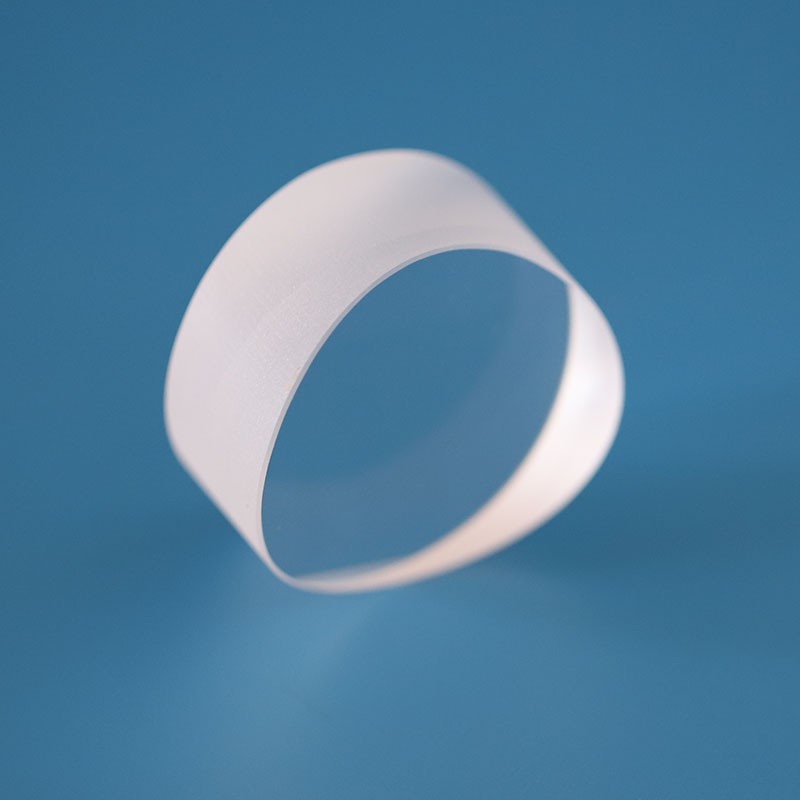

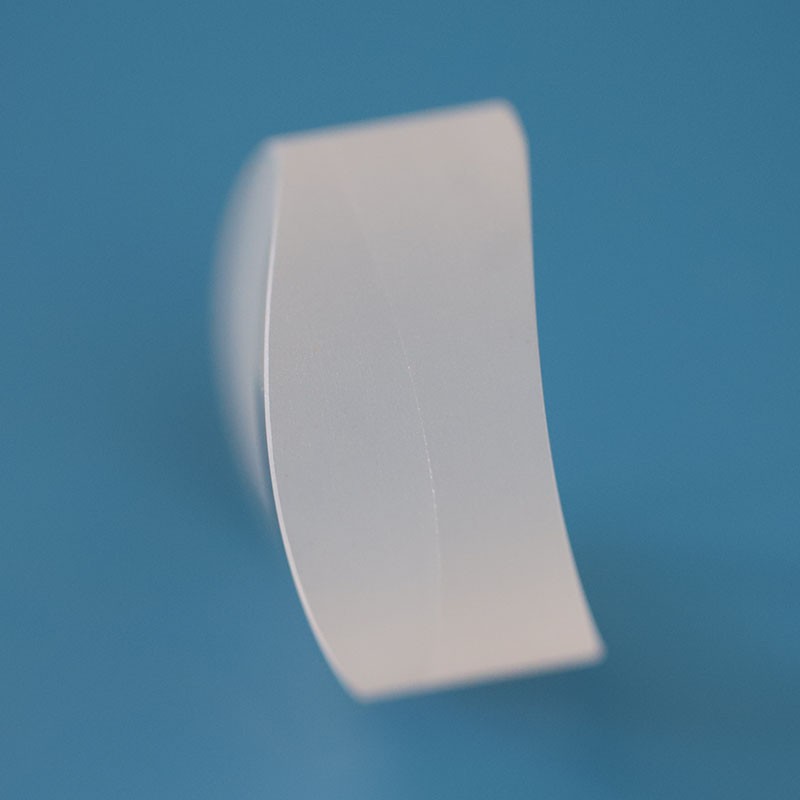

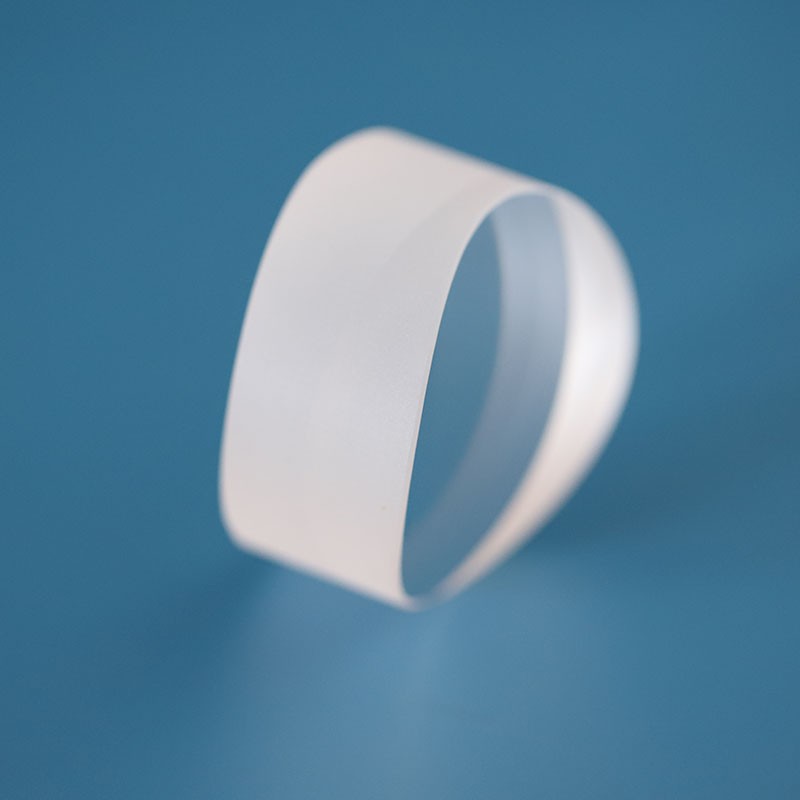

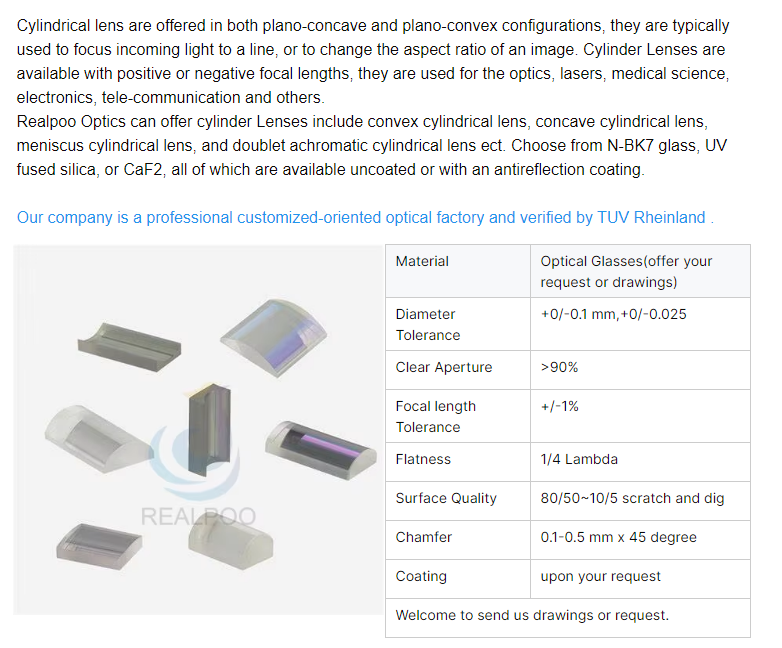

Factory custom optical round cylindrical lens (rod lens) and rectangular cylindrical lens made from N-BK7 or K9 optical glass, designed to focus or collimate light in only one axis (tangential plane) while leaving the orthogonal (sagittal) plane unaffected.

Available in plano-convex, plano-concave, and ground/polished rod lens formats with effective focal lengths ranging from 5mm to 550mm. Ideal for diode laser beam shaping, circular-to-line conversion, astigmatism correction, anamorphic magnification, and barcode scanner illumination.

Surfaces polished to laser-grade quality with optional AR coating at UV–VIS–NIR wavelengths. Custom diameters, lengths, radii, and coatings supported for OEM laser and imaging modules.

Description

Factory offer Optical BK7 Round Cylindrical Lens Cylindrical Lens glass triplet lens

Specifications:

Material: N-BK7 (nd=1.5168, νd=64.2) / K9 (H-K9L) / B270 / UV Fused Silica / Custom

Lens Type: Cylindrical Lens – Plano-Convex / Plano-Concave / Round Rod (Cylindrical) Lens

Form Factor:

Round Rod Cylindrical Lens: Diameter 1mm – 30mm / Length 3mm – 150mm+
Rectangular Cylindrical Lens: Width × Height per customer drawing

Effective Focal Length (Tangential): 5mm / 10mm / 15mm / 25mm / 50mm / 75mm / 100mm / 150mm / 200mm / 300mm / 500mm / 550mm / Custom

Radius of Curvature (Tangential): Calculated per EFL and refractive index

Dimension Tolerance: ±0.05mm / ±0.1mm

Center Thickness Tolerance: ±0.1mm

Surface Flatness (Plano Side): λ/4 @ 632.8nm

Surface Quality (Scratch-Dig): 60-40 / 40-20 / 20-10

Tangential Power: As specified; Sagittal Power = 0

Rod Lens Centration: <3 arc min (Standard), <1 arc min (Precision)

Edge / End Finish: Ground / Fine Polished / Bevel 0.1–0.3mm × 45°

Coating Options:
Uncoated
MgF₂ AR @ 550nm
Broadband AR 400–700nm (Ravg<0.5%)
V-Coating @ 405nm / 532nm / 635nm / 650nm / 808nm / 1064nm / Custom

Operating Wavelength Range: 350nm – 2000nm (BK7/K9)

Operating Temperature: -40°C to +80°C

We are professional manufacture on the optical lenses &lasers for over 20 years experience.
With the advanteges,we offer optical products in the fileds of University laboratory, Industry, Scientific research,Medical treatment, Mechanical equipments, lasers and Construction industry and so on.
We can provide optical lenses, optical prisms, high-precision Powell prisms, right-angle prisms, laser lenses, filters, aspherical lenses, collimating lenses, optical glass lenses, optical reflectors, cylindrical lenses, laser modules, laser heads, optical glued lenses, optical rod mirrors, etc.
Looking forward to communicating whether we have the opportunity to cooperate. For the lens/laser products you need, I would like to quote our competitive price.
Please contact for any custom needs,
