10X30mm 980nm 5mw dot laser module

  • 10X30mm laser module
  • 980nm laser module
  • custom 5mw red laser module

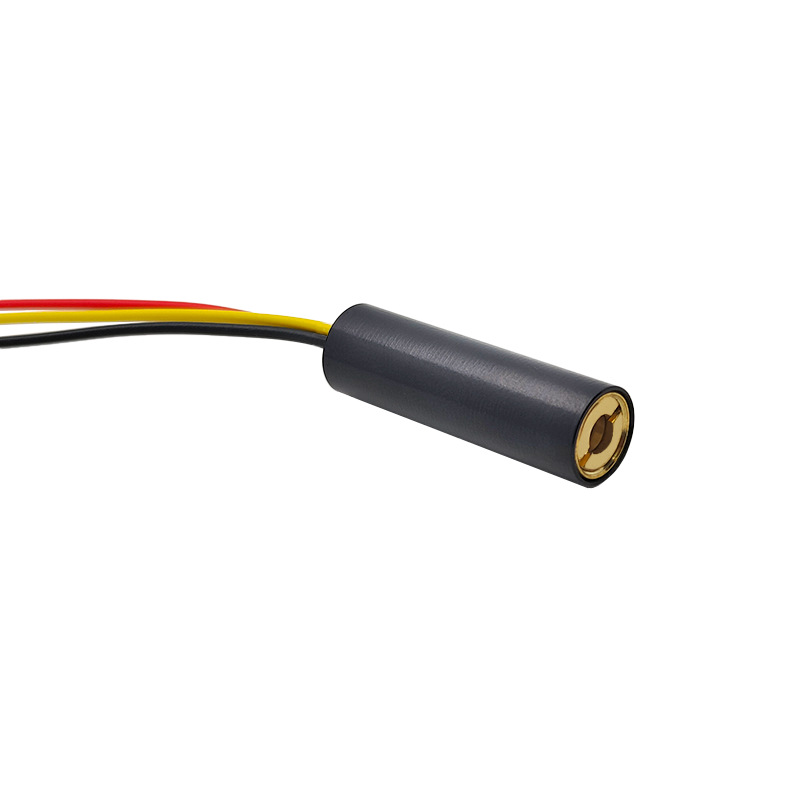

  • Ultra-compact Φ10×30mm near-infrared (IR) dot laser module with 980nm wavelength and ≤5mW output, featuring an adjustable focus collimating lens and built-in constant current driver.

     The 980nm IR beam is invisible to the naked eye—commonly used as a fiber optic alignment reference, optical test source, and lab experimental light source where low-power invisible referencing is required.

    • Inquiry Send Email

    Description

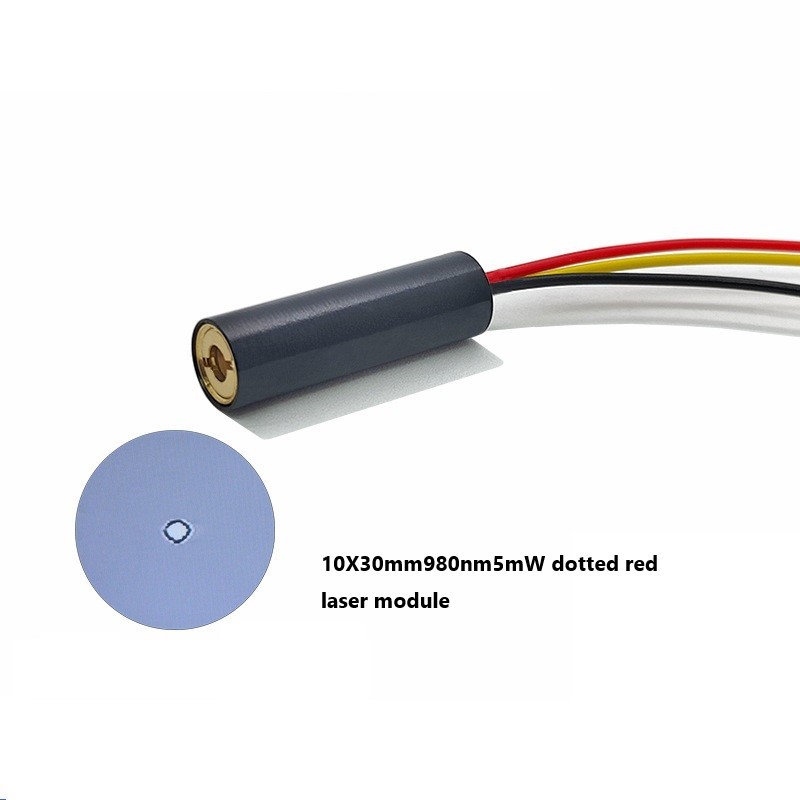

    10X30mm laser module 980nm 5mW dotted red laser module

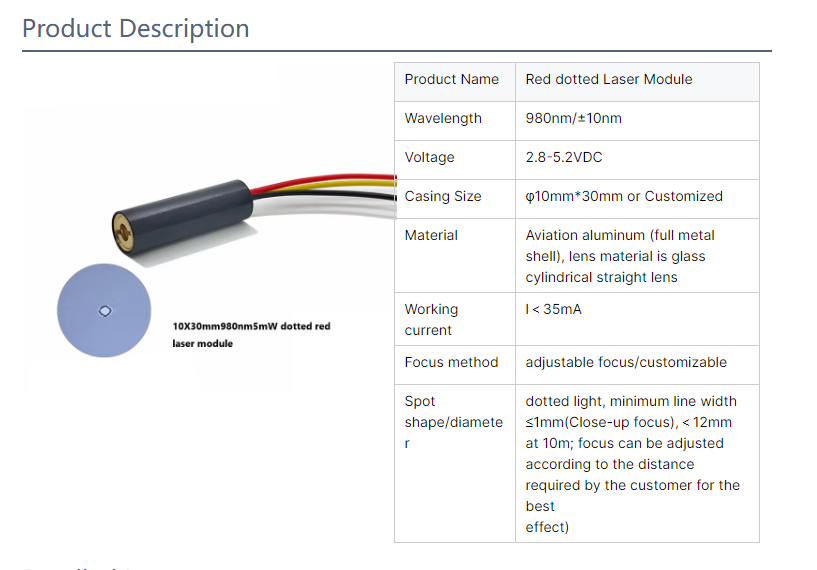

    Specifications
    • Wavelength: 980nm ±10nm (Near-Infrared / Invisible)
    • Output Power: ≤5mW (CW, Class 3R)

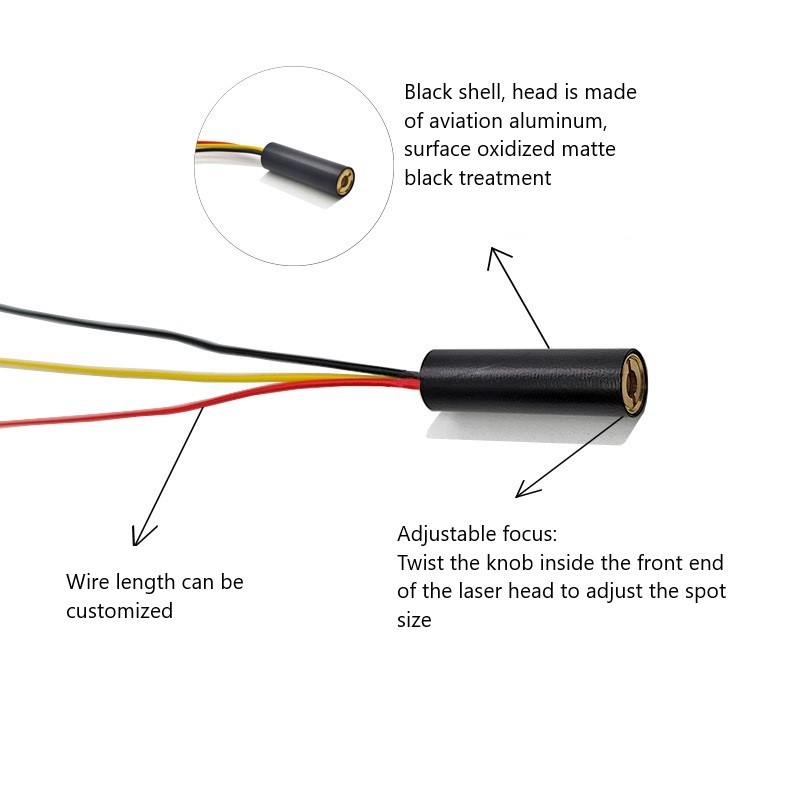

    • Beam Pattern: Dot (Spot, focus adjustable via front cap)
    • Lens: Coated Glass or PMMA Collimating Lens (user focusable)
    • Operating Voltage: DC 2.8V–5V (typical 3V/5V)
    • Operating Current: <30mA
    • Spot Size: Adjustable (collimated dot, e.g. ≤1mm @ 1m)

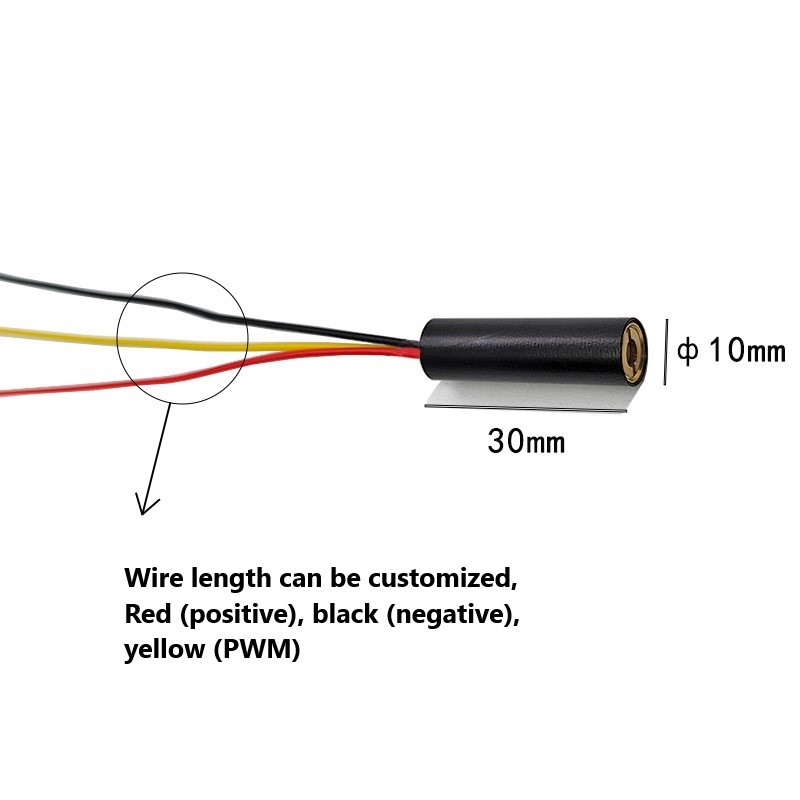

    • Housing: Φ10×30mm Black Anodized Brass/Aluminum (ESD protected)
    • Lead Wire: Red(+)/Black(-) 100–150mm or JST connector (optional)
    • Working Temp.: -10°C to +50°C
    • Storage Temp.: -40°C to +80°C
    • Lifetime: >10,000 hrs
    Applications
    • Fiber optic coupling & alignment reference
    • Optical lab experiment & test bench light source
    • Photoelectric sensor / IR trigger reference
    • Laser system alignment & invisible targeting aid
    • Scientific research & educational demonstration
