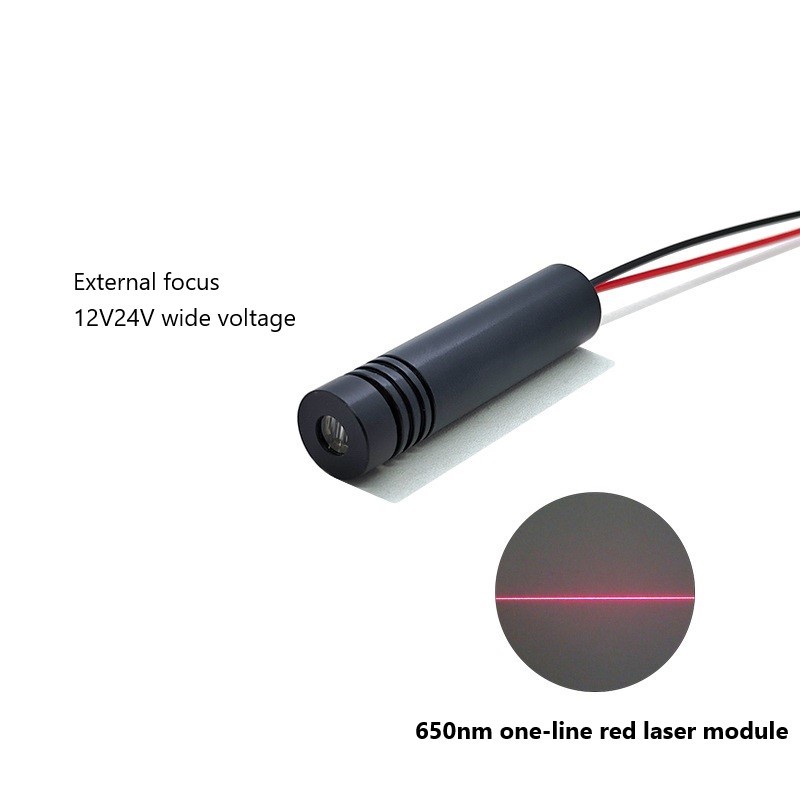

Industrial-grade Φ12×50mm red line laser module with 650nm wavelength and ≤5mW output, designed for 12V/24V wide voltage DC input with built-in APC constant current driver.

Equipped with a focusable optical glass or PMMA cylindrical lens, it projects a uniform, sharp red laser line—ideal for machine alignment, woodworking/stone cutting guidance, and OEM integration in industrial equipment where stable wide-range power compatibility is required

Description

12X50mm 650nm5mW laser diode 12V24V wide voltage cutting machine cutting external focus one-line red laser module

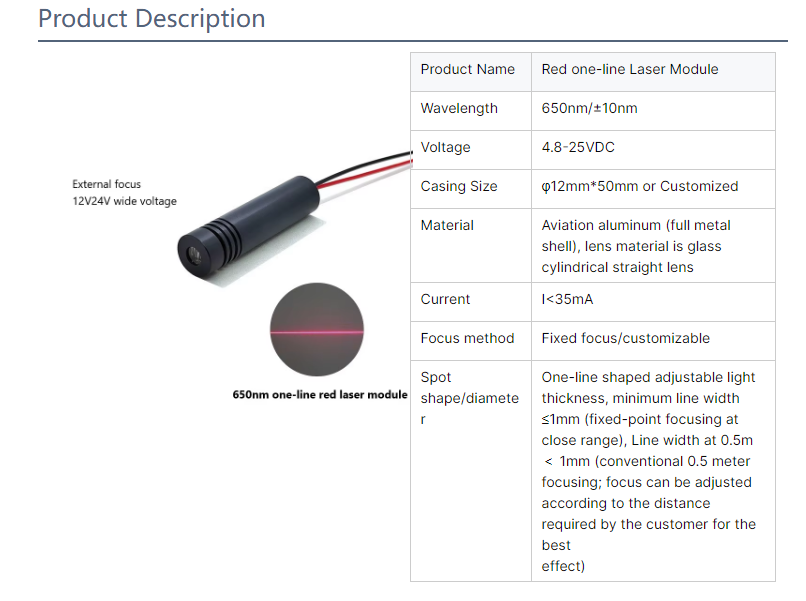

Specifications

Wavelength: 650nm ±10nm (Visible Red)
Output Power: ≤5mW (Class II / Class 3R available)
Laser Pattern: Single Line (fan angle optional: 15°–110°)

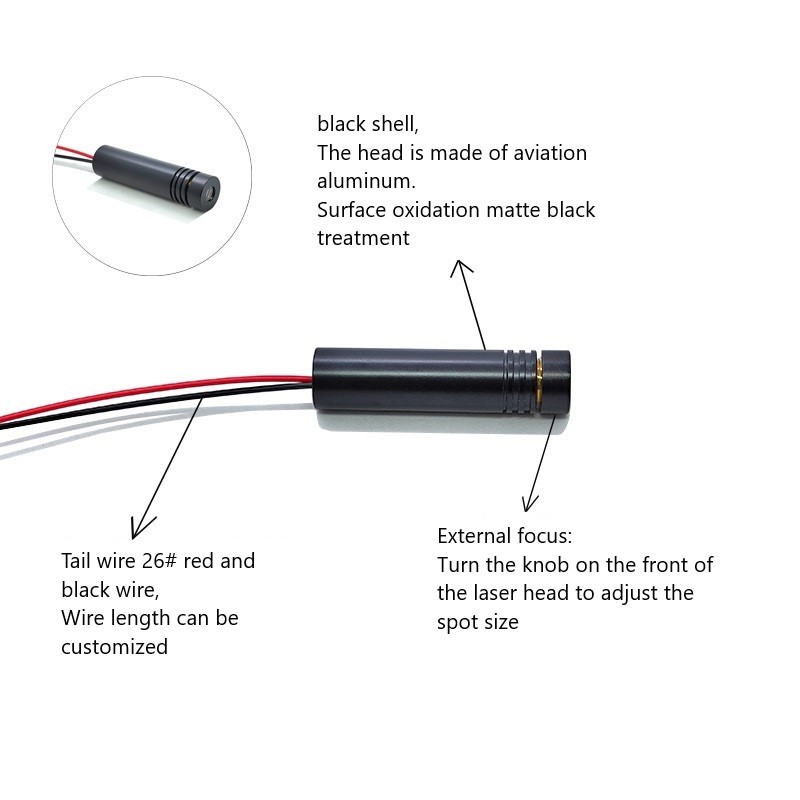

Lens: Optical Glass or PMMA Cylindrical Lens (focus adjustable)
Operating Voltage: DC 12V / 24V Wide Voltage (or 3V–5V optional)
Operating Current: <50mA
Line Width: ≤1.0mm @ 1m (adjustable via focus ring)

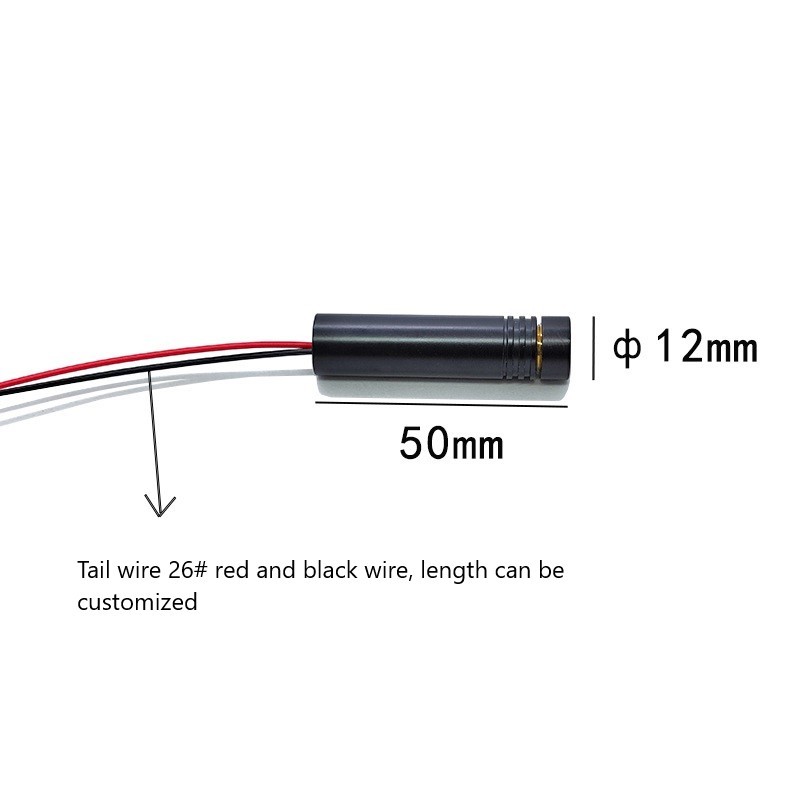

Housing: Φ12×50mm Black Anodized Aluminum (anti-static & reverse polarity protected)
Lead Wire: Red/Black 100–150mm (or pre-wired connector)
Working Temp.: -10°C to +50°C
Storage Temp.: -40°C to +80°C
Lifetime: >8,000 hrs
